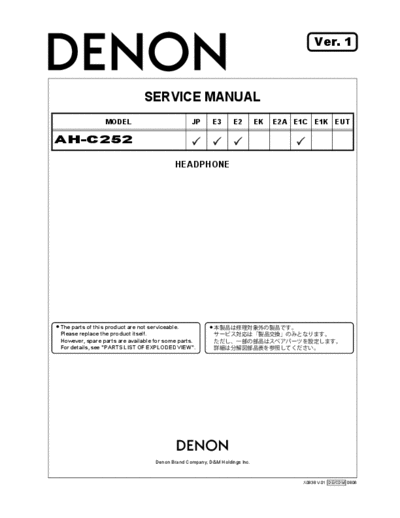

Image preview - the first page of the document
>> Download Схема AH-C252 documenatation <<
Text preview - extract from the document
Ver. 1
SERVICE MANUAL
MODEL JP E3 E2 EK E2A E1C E1K EUT
AH-C252
HEADPHONE
The parts of this product are not serviceable.
Please replace the product itself.
However, spare parts are available for some parts.
For details, see "PARTS LIST OF EXPLODED VIEW".
e
Denon Brand Company, D&M Holdings lnc.
X0838 V.01 DE/CDM 0806
EXPLODED VIEW
EAR PAD (M)
EAR PAD (S)
EAR PAD (L)
1
2
3
PARTS LIST OF EXPLODED VIEW
Parts for which "nsp" is indicated on this table cannot be supplied.
The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Note: The symbols in the column "Remarks" indicate the following destinations.
EM : E2(Europe model), E3(U.S.A. & Canada model), E1C (China model)
JP : Japan model.
Ref. No. Part No. Part Name Remarks Q'ty New
1 nsp AH-C252BKEM ASS'Y Black model, for EM AH-C252BKEM 1 *
1 nsp AH-C252WTEM ASS'Y White model, for EM AH-C252WTEM 1 *
1 nsp AH-C252-K ASS'Y Black model, for JP AH-C252-K 1 *
1 nsp AH-C252-L ASS'Y Blue model, for JP AH-C252-L 1 *
1 nsp AH-C252-R ASS'Y Red model, for JP AH-C252-R 1 *
1 nsp AH-C252-W ASS'Y White model, for JP AH-C252-W 1 *
2 00D 916 0010 601 EAR PIECE (3 SIZE) 6P SET for Black,Blue,Red model 1394-06290 1
2 918 429 0000 20D EAR PIECE (3 SIZE) 6P SET for White model AH-PADC252W 1
3 nsp CARRYING POUCH - 1 *
AH-C252BKEM is the same as AH-C252-K and AH-C252WTEM is the same as AH-C252-W.
SECURITY TAGS
Attach security tags to AH-C252BKEM and AH-C252WTEM package. (Attach two tags within an area of 3 inches from the bar code.)
Ref. No. Part No. Part Name Remarks Q'ty New
nsp Security tag (Checkpoint Systems Inc. : NE460) - 1 *
nsp Security tag (Sensormatic Electronics Corp. : ZLDRS1) - 1 *
2
AH-C252
