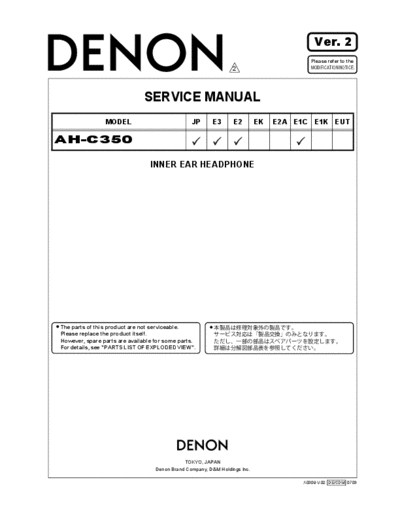

Image preview - the first page of the document
>> Download Схема AH-C350 documenatation <<
Text preview - extract from the document
Ver. 2
Please refer to the
2 MODIFICATION NOTICE.
SERVICE MANUAL
MODEL JP E3 E2 EK E2A E1C E1K EUT
AH-C350
INNER EAR HEADPHONE
The parts of this product are not serviceable.
Please replace the product itself.
However, spare parts are available for some parts.
For details, see "PARTS LIST OF EXPLODED VIEW".
TOKYO, JAPAN
Denon Brand Company, D&M Holdings lnc.
X0309 V.02 DE/CDM 0703
AH-C350
EXPLODED VIEW
1
EAR PAD (M)
EAR PAD (S)
EAR PAD (L)
2
PARTS LIST OF EXPLODED VIEW
The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Part indicated with the mark "nsp" are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
Ref. No. nsp Part No. Part Name Remarks Q'ty New
1 - AH-C350-K ASS'Y Black model, for JP/EM 450022 1 *
1 - AH-C350-W ASS'Y White model, for JP/EM 450020 1 *
2 00D 9H3 0001 709 EAR PAD K (3 SIZE) 6P SET Black model 461336 1 * 2
2 00D 9H3 0001 710 EAR PAD W (3 SIZE) 6P SET White model 461335 1 * 2
AH-C350BKEM is the same as AH-C350-K, and AH-C350WTEM is the same as AH-C350-W.
2
AH-C350
DOCUMENTS FOR WEEE (For Europe model only)
NOTE: The following is not a list of spare parts.
For the spare parts, see "PARTS LIST OF EXPLODED VIEW".
Details of Recycle parts (AH-C350)
You have to remove the parts that marked "WEEE Mark " when the recycling processing. (Europe model only)
WEEE
Ref. No. Part Name Material Q'ty
Mark
1 EAR PAD L Si 2
2 EAR PAD M Si 2
3 EAR PAD S Si 2
4 PROTECTOR SUS 2
5 FRONT HOUSING ABS 2
6 BUSHING ABS 2
7 RING SUS 2
8 UNIT DAMPER ASSEMBLY COMPLEX 2
9 CORD ASSEMBLY COMPLEX 1
10 HOUSING COVER ABS+Cu+Ni+PU 2
11 REAR HOUSING L ABS 1
12 REAR HOUSING R ABS 1
13 NAME PLATE COMPLEX 2
Exploded view of AH-C350
You have to remove the parts that marked
10 13 "WEEE Mark " when the recycling processing.
12 (Europe model only)
7
8
5
2 4
6
3
1
9
11
3
