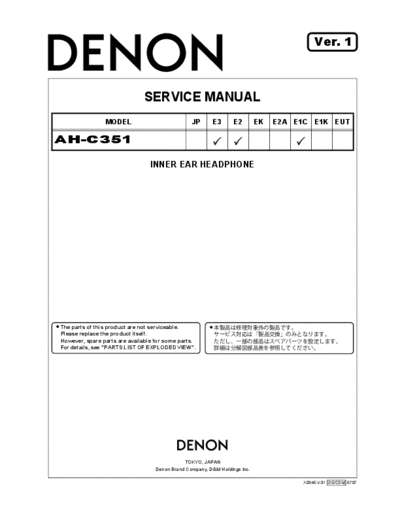

Image preview - the first page of the document
>> Download Схема AH-C351 documenatation <<
Text preview - extract from the document
Ver. 1
SERVICE MANUAL
MODEL JP E3 E2 EK E2A E1C E1K EUT
AH-C351
INNER EAR HEADPHONE
The parts of this product are not serviceable.
Please replace the product itself.
However, spare parts are available for some parts.
For details, see "PARTS LIST OF EXPLODED VIEW".
TOKYO, JAPAN
Denon Brand Company, D&M Holdings lnc.
X0345 V.01 DE/CDM 0707
AH-C351
EXPLODED VIEW
1
EAR PAD (M)
EAR PAD (S)
EAR PAD (L)
2
3
4
PARTS LIST OF EXPLODED VIEW
Parts for which "nsp" is indicated on this table cannot be supplied.
The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Ref. No. Part No. Part Name Remarks Q'ty New
1 nsp AH-C351BKEM ASS'Y Black model, for EM 461571 1 *
1 nsp AH-C351WTEM ASS'Y White model, for EM 461570 1 *
2 00D 9H3 0001 709 EAR PAD K (3 SIZE) 6P SET Black model 461336 1
2 00D 9H3 0001 710 EAR PAD W (3 SIZE) 6P SET White model 461335 1
3 nsp EXTENSION CABLE ASS'Y Black model 462243 1 *
3 nsp EXTENSION CABLE ASS'Y White model 462793 1 *
4 nsp CARRYING POUCH 462840 1 *
SECURITY TAGS
Attach security tags to this product's package. (Attach two tags within an area of 3 inches from the bar code.)
Ref. No. Part No. Part Name Remarks Q'ty New
nsp Security tag (Checkpoint Systems Inc. : NE460) - 1 *
nsp Security tag (Sensormatic Electronics Corp. : ZLDRS1) - 1 *
