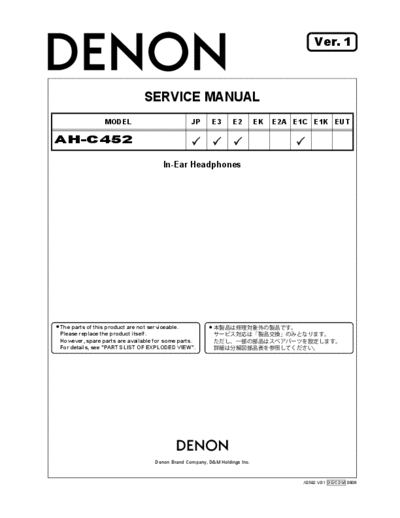

Image preview - the first page of the document
>> Download Схема AH-C452 documenatation <<
Text preview - extract from the document
Ver. 1
SERVICE MANUAL
MODEL JP E3 E2 EK E2A E1C E1K EUT
AH-C452
In-Ear Headphones
The parts of this product are not serviceable.
Please replace the product itself.
However, spare parts are available for some parts.
For details, see "PARTS LIST OF EXPLODED VIEW".
e
Denon Brand Company, D&M Holdings lnc.
X0392 V.01 DE/CDM 0808
EXPLODED VIEW
w
q
r
t
e
PARTS LIST OF EXPLODED VIEW
Parts for which "nsp" is indicated on this table cannot be supplied.
The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Note: The symbols in the column "Remarks" indicate the following destinations.
EM : E2(Europe model), E3(U.S.A. & Canada model), E1C (China model)
JP : Japan model.
Ref. No. Part No. Part Name Remarks Q'ty New
1 nsp AH-C452BKEM ASS'Y Black model, for EM AH-C452BKEM 1 *
1 nsp AH-C452WTEM ASS'Y White model, for EM AH-C452WTEM 1 *
1 nsp AH-C452SREM ASS'Y Silver model, for EM AH-C452SREM 1 *
1 nsp AH-C452-K ASS'Y Black model, for JP AH-C452-K 1 *
1 nsp AH-C452-W ASS'Y White model, for JP AH-C452-W 1 *
1 nsp AH-C452-S ASS'Y Silver model, for JP AH-C452-S 1 *
2 00D 916 0010 601 EAR PIECE (3 SIZE) 6P SET for Black,Silver model 1394-06290 1
2 918 429 0000 20D EAR PIECE (3 SIZE) 6P SET for White model AH-PADC252W 1
3 nsp CARRYING POUCH - 1 *
4 nsp EXTENSION CABLE ASS'Y for Black,Silver model - 1 *
4 nsp EXTENSION CABLE ASS'Y for White model - 1 *
5 nsp CLIP for Black,Silver model - 1 *
5 nsp CLIP for White model - 1 *
AH-C452BKEM is the same as AH-C452-K and AH-C452WTEM is the same as AH-C452-W. And AH-C452SREM is the same as AH-C452-S.
SECURITY TAGS
Attach security tags to AH-C452BKEM and AH-C452WTEM, AH-C452SREM package. (Attach two tags within an area of 3 inches from the bar code.)
Ref. No. Part No. Part Name Remarks Q'ty New
nsp Security tag (Checkpoint Systems Inc. : NE460) - 1 *
nsp Security tag (Sensormatic Electronics Corp. : ZLDRS1) - 1 *
2
AH-C452
