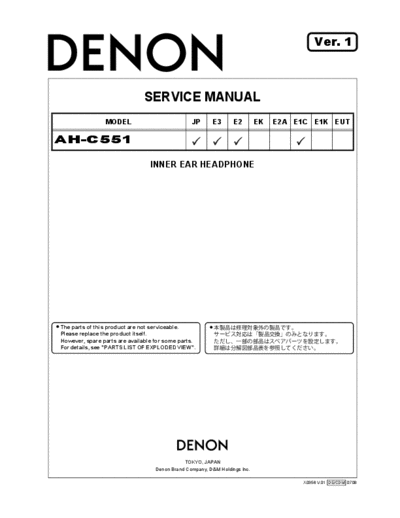

Image preview - the first page of the document
>> Download Схема AH-C551 documenatation <<
Text preview - extract from the document
Ver. 1
SERVICE MANUAL
MODEL JP E3 E2 EK E2A E1C E1K EUT
AH-C551
INNER EAR HEADPHONE
The parts of this product are not serviceable.
Please replace the product itself.
However, spare parts are available for some parts.
For details, see "PARTS LIST OF EXPLODED VIEW".
TOKYO, JAPAN
Denon Brand Company, D&M Holdings lnc.
X0356 V.01 DE/CDM 0708
AH-C551
EXPLODED VIEW
1
EAR PIECE (M)
EAR PIECE (S)
EAR PIECE (L)
3
2
4
PARTS LIST OF EXPLODED VIEW
Parts for which "nsp" is indicated on this table cannot be supplied.
The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Ref. No. Part No. Part Name Remarks Q'ty New
1 nsp AH-C551BKEM ASS'Y Black model, for EM AH-C551BKEM 1 *
1 nsp AH-C551SREM ASS'Y Silver model, for EM AH-C551SREM 1 *
1 nsp AH-C551-K ASS'Y Black model, for JP AH-C551-K 1 *
1 nsp AH-C551-S ASS'Y Silver model, for JP AH-C551-S 1 *
2 00D 916 0010 601 EAR PIECE (3 SIZE) 6P SET 1394-06290 1
3 nsp EXTENSION CABLE ASS'Y - 1 *
4 nsp CARRYING CASE - 1 *
AH-C BKEM is the same as AH-C -K, and AH-C SREM is the same as AH-C -S.
SECURITY TAGS
Attach security tags to this product's package. (Attach two tags within an area of 3 inches from the bar code.)
Ref. No. Part No. Part Name Remarks Q'ty New
nsp Security tag (Checkpoint Systems Inc. : NE410) - 1 *
nsp Security tag (Sensormatic Electronics Corp. : ZLDRS1) - 1 *
2
