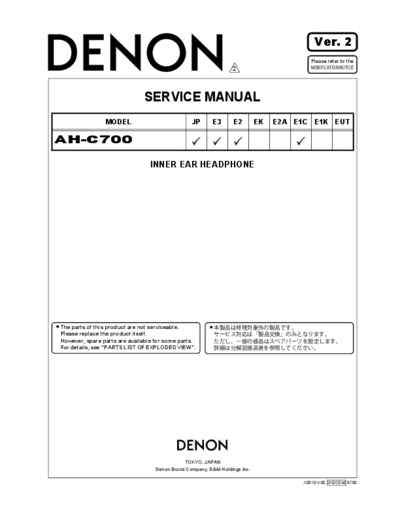

Image preview - the first page of the document
>> Download Схема AH-C700 documenatation <<
Text preview - extract from the document
Ver. 2
Please refer to the
2 MODIFICATION NOTICE.
SERVICE MANUAL
MODEL JP E3 E2 EK E2A E1C E1K EUT
AH-C700
INNER EAR HEADPHONE
The parts of this product are not serviceable.
Please replace the product itself.
However, spare parts are available for some parts.
For details, see "PARTS LIST OF EXPLODED VIEW".
TOKYO, JAPAN
Denon Brand Company, D&M Holdings lnc.
X0310 V.02 DE/CDM 0703
AH-C700
EXPLODED VIEW
1
EAR PIECE (M)
EAR PIECE (S)
EAR PIECE (L)
2
PARTS LIST OF EXPLODED VIEW
The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Part indicated with the mark "nsp" are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
Ref. No. nsp Part No. Part Name Remarks Q'ty New
1 - AH-C700-K ASS'Y Black model, for JP/EM AH-C700BK 1 *
1 - AH-C700-S ASS'Y Silver model, for JP/EM AH-C700SV 1 *
2 00D 916 0010 601 EAR PIECE (3 SIZE) 6P SET 1394-06290 1 * 2
AH-C700BKEM is the same as AH-C700-K, and AH-C700SREM is the same as AH-C700-S.
2
AH-C700
DOCUMENTS FOR WEEE (For Europe model only)
NOTE: The following is not a list of spare parts.
For the spare parts, see "PARTS LIST OF EXPLODED VIEW".
Details of Recycle parts (AH-C700)
You have to remove the parts that marked "WEEE Mark " when the recycling processing. (Europe model only)
WEEE
Ref. No. Part Name Material Q'ty
Mark
1 AL-CASE AL 2
2 BUSH TPE 2
3 EAR CHIP COMPLEX 2
4 POM WASHER POM 2
5 EAR PIECE S SI 2
6 EAR PIECE M SI 2
7 EAR PIECE L SI 2
8 HP CABLE ASSY COMPLEX 1
9 PLUG ASSY COMPLEX 1
Exploded view of AH-C700
You have to remove the parts that marked
1 "WEEE Mark " when the recycling processing.
(Europe model only)
2
3 4
6
5
8
7
9
3
