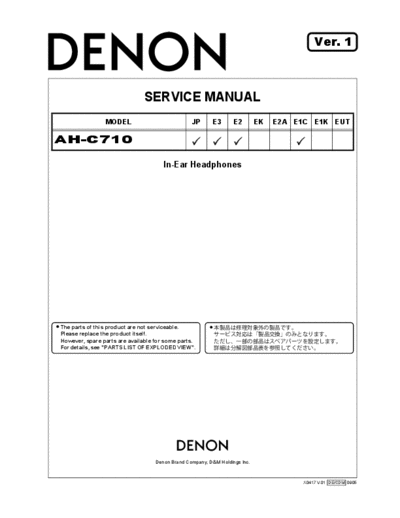

Image preview - the first page of the document
>> Download Схема AH-C710 documenatation <<
Text preview - extract from the document
Ver. 1
SERVICE MANUAL
MODEL JP E3 E2 EK E2A E1C E1K EUT
AH-C710
In-Ear Headphones
The parts of this product are not serviceable.
Please replace the product itself.
However, spare parts are available for some parts.
For details, see "PARTS LIST OF EXPLODED VIEW".
e
Denon Brand Company, D&M Holdings lnc.
X0417 V.01 DE/CDM 0905
EXPLODED VIEW
PARTS LIST OF EXPLODED VIEW
Parts for which "nsp" is indicated on this table cannot be supplied.
The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Note: The symbols in the column "Remarks" indicate the following destinations.
EM : E2(Europe model), E3(U.S.A. & Canada model), E1C (China model)
JP : Japan model
Ref.No. Part No. Part Name Remarks Q'ty New
1 nsp AH-C710BKEM ASS'Y Black model for EM AH-C710BKEM 1 *
1 nsp AH-C710SREM ASS'Y Silver model for EM AH-C710SREM 1 *
1 nsp AH-C710-K ASS'Y Black model for JP AH-C710-K 1 *
1 nsp AH-C710-S ASS'Y Silver model for JP AH-C710-S 1 *
2 917429000060D L SIZE EAR PIECE 2P SET for Black model 2800230441 1 *
2 917429000100D L SIZE EAR PIECE 2P SET for Silver model 2800230841 1 *
3 917429000050D M SIZE EAR PIECE 2P SET for Black model 2800230341 1 *
3 917429000090D M SIZE EAR PIECE 2P SET for Silver model 2800230741 1 *
4 917429000040D S SIZE EAR PIECE 2P SET for Black model 2800230241 1 *
4 917429000080D S SIZE EAR PIECE 2P SET for Silver model 2800230641 1 *
5 917429000110D FOAM EAR PIECE 2P SET - 2800230941 1 *
6 nsp CARRYING CASE - - 1 *
7 nsp EXTENSION CABLE ASS'Y for Black model - 1 *
7 nsp EXTENSION CABLE ASS'Y for Silver model - 1 *
8 nsp CLIP for Black model - 1 *
8 nsp CLIP for Silver model - 1 *
AH-C710BKEM is the same as AH-C710-K and AH-C710SREM is the same as AH-C710-S.
SECURITY TAGS
Attach security tags to AH-C710BKEM and AH-C710SREM package. (Attach two tags within an area of 3 inches from the bar code.)
Ref. No. Part No. Part Name Remarks Q'ty New
nsp Security tag (Checkpoint Systems Inc. : NE460) - 1 *
nsp Security tag (Sensormatic Electronics Corp. : ZLDRS1) - 1 *
2
AH-C710
