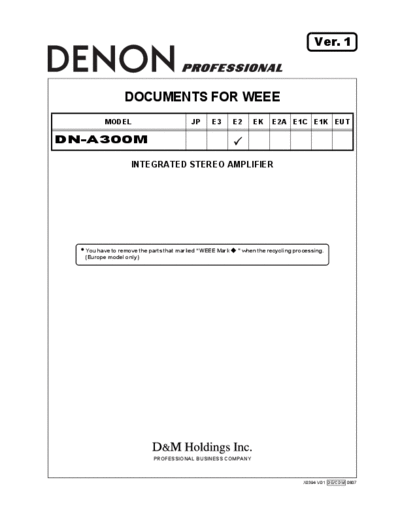

Image preview - the first page of the document
>> Download Схема 2 DN-A300M documenatation <<
Text preview - extract from the document
Ver. 1
DOCUMENTS FOR WEEE
MODEL JP E3 E2 EK E2A E1C E1K EUT
DN-A300M
INTEGRATED STEREO AMPLIFIER
You have to remove the parts that marked "WEEE Mark " when the recycling processing.
(Europe model only)
PROFESSIONAL BUSINESS COMPANY
X0394 V.01 DE/CDM 0807
DOCUMENTS FOR WEEE (Europe model)
Details of Recycle parts
You have to remove the parts that marked "WEEE Mark " when the recycling processing. (Europe model only)
Part indicated with the mark " " is not illustrated in the exploded view.
WEEE
Ref. No. Part Name Material Q'ty
Mark
1 KNOB BASS ABS 4
2 KNOB FUNCTION ABS 1
3 KNOB VR ABS 1
4 PANEL FRAME ABS 1
5 PANEL FRONT AL-EXT 1
6 LENS LED ACRYL 7
7 BUTTON POWER ABS 1
8 POWER S/W UNIT Complex 1
9 BADGE AL 1
10 FRONT UNIT Complex 1
11 VOLUME UNIT Complex 1
12 HEAT SINK MAIN AL 1
13 GUIDE B UNIT Complex 1
14 BRACKET H SINK Steel 3
15 AMP UNIT Complex 1
16 MIC UNIT Complex 1
17 SELECTOR UNIT Complex 1
18 GUIDE A UNIT Complex 1
19 SUBTRANS UNIT Complex 1
20 MAIN UNIT Complex 1
21 FOOT ABS 4
22 CHASSIS MAIN Fe 1
23 POWER TRANS Complex 1
24 CHASSIS BACK Fe 1
25 STOPPER AC CORD ABS 1
26 CORD ASSY Complex 1
27 BUSHING PA 8
28 CABINET TOP Fe 1
29 REMOCON WINDOW ABS 1
30 BRACKET POWER Steel 1
31 TERMINAL Complex 1
32 SPACER ABS 7
33 BRACKET RACK L Fe 1
34 BRACKET RACK R Fe 1
35 BRACKET BOTTOM Fe 1
36 ACETATE CLOTH TAPE PE 1
37 REMOCON UNIT Complex 1
38 ACETATE CLOTH TAPE PE 1
39 PLATE PANEL PC 1
40 CLAMP CABLE TIE ABS 4
41 FELT TOP FELT 4
42 COVER SAFETY ABS 1
43 COVER HOLDER FLET 6
44 CUSHION RUBBER FELT 2
45 ACETATE CLOTH TAPE PE 1
50 SEMI,TR/GE PNP 2SB Complex 2
51 SEMI,TR/GE NPN 2SC Complex 2
52 SEMI,TR/GE NPN 2SD Complex 2
53 LENS LED ACRYL 1
54 POWER TRANS Complex 1
2
DN-A300M
WEEE
Ref. No. Part Name Material Q'ty
Mark
SCREWS
A SCREW (+2S 3*8 ZNW/BH) Steel 44
B SCREW (+2S 3*8 WASHER PI12) Steel 1
C SCREW (+2S 3*16+S WASHER ZNW/HH ) Steel 6
D SCREW (3X18 ZNW/BH) Steel 7
E SCREW (+3S 4*10 ZNW/BH) Steel 4
F SCREW (+2S 4*12 BK/BH) Steel 4
G SCREW (+2S 3*10 DOT BK/BH) Steel 20
H SCREW (+2S 3*8 BK/FH) Steel 4
3
DN-A300M
---MEMO---
4
DN-A300M
Exploded view of DN-A300M
You have to remove the parts that marked
"WEEE Mark " when the recycling processing.
(Europe model only)
5
DN-A300M
Details of Recycle parts for POWER TRANS MAIN (Ref. No 23) Details of Recycle parts for SUB TRANS (Ref. No 54)
NO. MATERIAL NO. MATERIAL
1 Silicon Steel Sheet 1 Silicon Steel Sheet
2 Steel 2 Polybuthylene Terephtalate
3 Polybuthylene Terephtalate 3 66-Nylon
4 Polyurethane Enameled Copper Wire 4 Polyurethane Enameled Copper Wire
5 Polyurethane Enameled Copper Wire 5 Polyurethane Enameled Copper Wire
6 PVC Insulated Copper Wire 6 Copper Alloy
7 PVC Insulated Copper Wire 7 Copper Alloy
8 Thermal Fuse 8 Polyester Tape
9 Copper 9 Polyester Tape
10 Silicon Steel 10 Polyester Tape
11 Silicon Rubber Tube
12 Polyester Tape
13 Polyester Tape / Polyester Film
14 polyester film / Polyester Tape
15 Press Board
16 Polyester Tape
17 Polyester Tape / Polyester Film
18 Polyester Tape
19 Polyester Non-woven Insulating Tape
6
