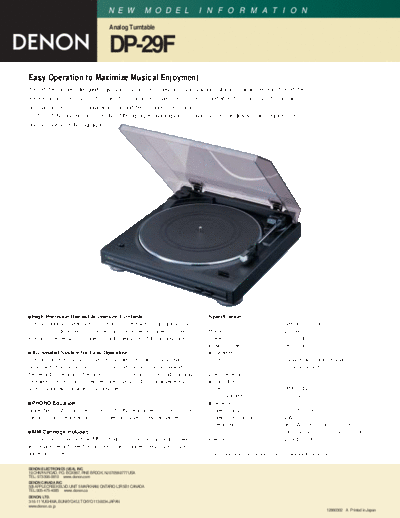

Image preview - the first page of the document



>> Download Описание DP-29F documenatation <<

Text preview - extract from the document

                                         N E W                 M O D E L           I N F O R M A T I O N

                                          Analog Turntable


                                          DP-29F
Easy Operation to Maximize Musical Enjoyment
The DP-29F has been designed to give you maximum enjoyment out of your valuable collection of analog records. The DP-29F
features an automatic system that starts the music at the simple touch of a button, and when the music stops, the tone arm
automatically returns to its original position and the turntable stops rotating.
    The DP-29F also includes a PHONO (MM) equalizer, enabling you to connect the turntable directly to an integrated amp that
does not have a PHONO equalizer.




 High-Precision Diecast Aluminium Turntable                                         Specification
The turntable has been precision manufactured with a rigid diecast alu-             Drive system.............................. Belt drive system
minium to produce uniform inertial mass for perfectly stable turntable              Motor ......................................... DC servo motor
rotation, an essential component of high fidelity sound during playback.            Speed ........................................ 33 1/3, 45 rpm
                                                                                    Wow & flutter ............................. Less than 0.15 %
 Automated System for Easy Operation                                                 Tonearm
The DP-29F employs an automated system that starts playing the                      Type........................................... Dynamically balance type,
record with the single touch of a button and finishes play at the end of                                                            Straight tonearm
the record by returning the tone arm to its original position and stopping          Effective length .......................... 195 mm
turntable rotation. This system ensures that you do not inadvertently                Cartridge
scratch your records when you play them.                                            Type........................................... MM (DSN-82)
                                                                                    Output voltage ........................... 2.5 mV
 PHONO Equalizer                                                                     General
Since the DP-29F includes a built-in PHONO equalizer, you can connect               Power supply ............................. AC 120 V, 60 Hz
the unit to an integrated amp that does not have its own equalizer.                 Power consumption ................... 2 W
                                                                                    Dimensions ............................... 360 (W) x 97 (H) x 357 (D) mm
 MM Cartridge Included                                                                                                              14.2" (W) x 3.8" (H) x 14.1" (D) inch
The DP-29F comes with an MM cartridge so that you can begin to enjoy                Weight ....................................... 2.8 kg, 6.2 lbs
your analog record collection as soon as you connect the DP-29F to your
home hi-fi system.                                                                  *Design and specifications are subject to change without notice.


DENON ELECTRONICS (USA), INC.
19 CHAPIN ROAD, P.O. BOX 867, PINE BROOK, NJ 07058-9777 USA
TEL: 973-396-0810 www.denon.com
DENON CANADA INC.
505 APPLE CREEK BLVD. UNIT 5 MARKHAM, ONTARIO L3R 5B1 CANADA
TEL: 905-475-4085   www.denon.ca
DENON, LTD.
3-16-11 YUSHIMA, BUNKYO-KU, TOKYO 113-0034 JAPAN
www.denon.co.jp
                                                                                                                                                   12860302 A Printed in Japan
