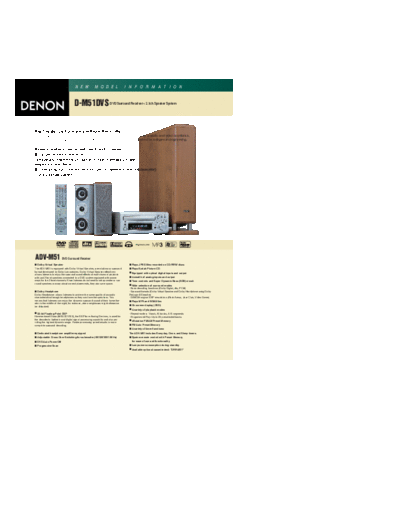

Image preview - the first page of the document
>> Download Описание D-M51DVS documenatation <<
Text preview - extract from the document
N E W M O D E L I N F O R M A T I O N
D-M51DVS DVD Surround Receiver + 2.1ch Speaker System
Big Theater performance without the clutter
Continuing with Denon's acclaimed attention to build quality and high standards of audio and video excellance,
this new product brings you the most lifelike theater experience without the need for a degree in engineering.
s Easy installation, set-up and user-friendly operation
s Top performance with style
Beautifully matched aluminum and wood materials will add
elegance to any decor
s Enveloping surround sound from just two speakers (and a subwoofer)
(Dolby Virtual Speaker)
ADV-M51 DVD Surround Receiver
s Dolby Virtual Speaker s Plays JPEG files recorded on CD-R/RW discs
The ADV-M51 is equipped with Dolby Virtual Speaker, a revolutionary surround s Plays Kodak Picture CD
format developed by Dolby Laboratories. Dolby Virtual Speaker effectively s Equipped with optical digital inputs and output
allows listeners to enjoy the surround sound effects of multi-channel playback
with just 2 front speakers connected to a DVD system equipped with power s A wealth of analog inputs and output
amps for the 2 front channels. Since listeners do not need to set up center or sur- s Tone controls and Super Dynamic Bass (SDB) circuit
round speakers or worry about correct placements, they also save space.
s Wide selection of surround modes
- Basic decoding functions (Dolby Digital, dts, PCM)
s Dolby Headphone - Surround formats (Dolby Virtual Speaker and Dolby Headphone using Dolby
Dolby Headphone allows listeners to achieve the same quality of acoustic ProLogic II Decoder)
characteristics through headphones as they can from the speakers. This - DENON original DSP simulations (Rock Arena, Jazz Club, Video Game)
means that listeners can enjoy the dynamic surround sound of their home the- s Plays MP3 and WMA files
ater in the middle of the night, for instance, when neighbours might otherwise
be disturbed. s On-screen display (OSD)
s A variety of playback modes
s 32-bit Floating Point DSP - Repeat modes: 1 track, All tracks, A-B segments
Hammerhead Sharc (MELODY100), the DSP from Analog Devices, is used for - Programmed Play: Up to 20 preselected tracks
the decoder to further boost digital signal processing capability and also pro- s 40-station FM/AM Preset Memory
viding the highest dynamic range. Faster processing speed results in more
complete surround decoding. s FM Auto Preset Memory
s A variety of timer functions:
s Dedicated headphone amplifier equipped The ADV-M51 includes Everyday, Once, and Sleep timers.
s Adjustable Cross-Over Switching for subwoofer (80/120/150/180 Hz) s System remote control with Preset Memory,
s DVD Auto Power Off for ease of use and functionality
s Progressive Scan s Low power consumption during standby
s Available optional cassette deck "DRR-M31"
N E W M O D E L I N F O R M A T I O N D-M51DVS
Main Specifications
s DVD Section
Playable discs: DVD-Video, VCD, CD-DA, CD-R, CD-RW,
DVD-R, DVD-RW(Video mode)
Analog audio output: 1.1 V (REC OUT)
s Video Section
Video output level / Impedance (DVD only)
Video output 1 Vp-p / 75 ohm
S-video output: Y (brightness) 1 Vp-p / 75 ohm; C signal 0.286 Vp-p / 75 ohm
Component Output:
Y(Brightness): 1Vp-p/75ohm
CB/PB(Blue): 0.7Vp-p/75ohm
CR/PR(Red): 0.7Vp-p/75ohm
s Audio Section
Rated power output: 20 W+ 20 W (8 ohms, 20 Hz to 20 kHz, T.H.D.10 % )
35W + 35W (6 ohms, 1 kHz, T.H.D.10% )
Playback frequency response: 10 Hz - 50 kHz (+0, -3 dB; during direct mode)
S/N ratio: 98 dB (during direct mode)
Compatible speaker impedance: 6 ohm - 16 ohm
Input sensitivity / Impedance: 200 mV / 47 kohm
Tone controls: Bass: ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
