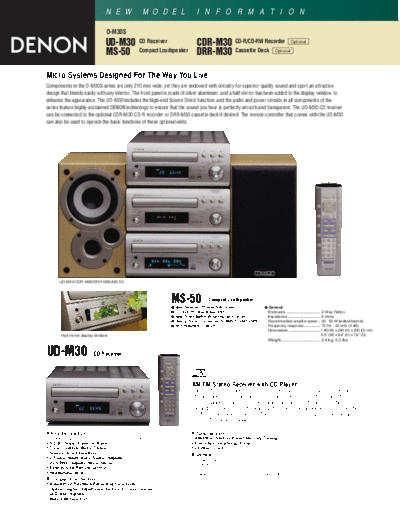

Image preview - the first page of the document
>> Download Описание D-M30S documenatation <<
Text preview - extract from the document
N E W M O D E L I N F O R M A T I O N
D-M30S
UD-M30 CD Receiver CDR-M30 CD-R/CD-RW Recorder Optional
MS-50 Compact Loudspeaker DRR-M30 Cassette Deck Optional
Micro Systems Designed For The Way You Live
Components in the D-M30S series are only 210 mm wide, yet they are endowed with circuitry for superior quality sound and sport an attractive
design that blends easily with any interior. The front panel is made of silver aluminum, and a half mirror has been added to the display window to
enhance the appearance. The UD-M30 includes the high-end Source Direct function, and the audio and power circuits in all components of the
series feature highly-acclaimed DENON technology to ensure that the sound you hear is perfectly smooth and transparent. The UD-M30 CD receiver
can be connected to the optional CDR-M30 CD-R recorder or DRR-M30 cassette deck if desired. The remote controller that comes with the UD-M30
can also be used to operate the basic functions of these optional units.
UD-M30/CDR-M30/DRR-M30/MS-50
MS-50 Compact Loudspeaker
s New Tweeter (25 mm Soft Dome) s General
s 110 mm Profiles Bass Unit Enclosure................................ 2-Way Reflex
s New Front Baffle Mounting and Finish Impedance.............................. 6 ohms
s Newly Tuned Crossover to Match D-M30/M50 Recommended amplifier power.. 20 - 50 W (watts/channel)
s Anti-magnetic Design Frequency response............... 75 Hz - 20 kHz (3 dB)
Dimensions .............................. 140 (W) x 240 (H) x 200 (D) mm
Half mirror display window 5.5" (W) x 9.4" (H) x 7.9" (D)
Weight................................. 2.4 kg, 5.3 lbs
UD-M30 CD Receiver
AM/FM Stereo Receiver with CD Player
The UD-M30 is a super micro component that gives you a CD player and a
FM/AM tuner in a single unit. With high-power output of 20 watts for each
stereo channel (total 40 watts) and highly-acclaimed DENON Hi-Fi technology in
the audio circuitry, the rich, high-quality sound from a unit as compact as the
UD-M30 is a marvel to behold. The D-M30S system is supplied with a pair of
Mission MS-50 loudspeakers.
s Amplifier Section s Tuner Section
Power Output........................ 20 W + 20 W (6 ohms) ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
