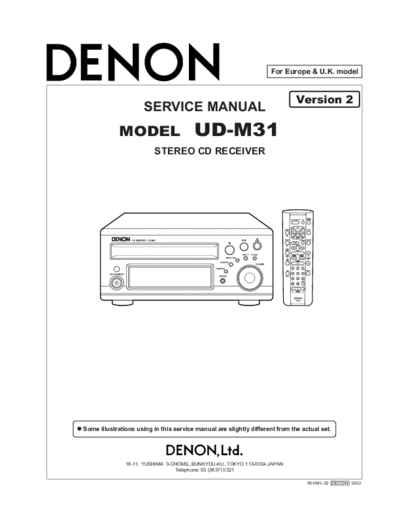

Image preview - the first page of the document



>> Download Схема UD-M31 documenatation <<

Text preview - extract from the document

                                                                    For Europe & U.K. model


                                                                              Version 2
                      SERVICE MANUAL
             MODEL                      UD-M31
                          STEREO CD RECEIVER




Some illustrations using in this service manual are slightly different from the actual set.




               16-11, YUSHIMA 3-CHOME, BUNKYOU-KU, TOKYO 113-0034 JAPAN
                                 Telephone: 03 (3837) 5321

                                                                                  X0164V.02 DE/CDM 0302
                                                                                                               UD-M31          2


   SAFETY PRECAUTIONS
   The following check should be performed for the continued protection of the customer and service technician.

   LEAKAGE CURRENT CHECK
   Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
   resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
   power cord is less than 460 kohms, the unit is defective.


DISASSEMBLY
  (Follow the procedure below in reverse order when reassembling)

1. TOP COVER
   (1)   Remove 2screws       on both sides.
   (2)   Remove 5screws     on the rear.
   (3)   Detach the Top Cover to the arrow direction.
                                                              Top cover




2. FRONT PANEL                                                                                                  FFC
   (1)   Disconnect FFC on thr rear of the CD
         Mecha.                                                                 CD Mecha.
   (2)   Remove 4 lower screws
                                                                  Front Panel
   (3)   Detach the Front Panel with releasing the
         hooks on both sides.




                                                                                                                 Hook



3. CD MECHANISM UNIT
   (1)   Disconnect FFC coming from the top of the
