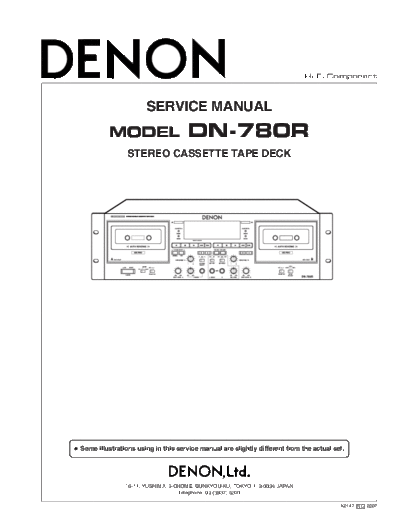

Image preview - the first page of the document



>> Download Схема DN-780R documenatation <<

Text preview - extract from the document

                                                                             Hi-Fi Component



                      SERVICE MANUAL
         MODEL                      DN-780R
                STEREO CASSETTE TAPE DECK




Some illustrations using in this service manual are slightly different from the actual set.




               16-11, YUSHIMA 3-CHOME, BUNKYOU-KU, TOKYO 113-0034 JAPAN
                                 Telephone: 03 (3837) 5321

                                                                                         X0147 NC 0207
                                                                                                                           DN-780R




        SAFETY PRECAUTIONS
        The following check should be performed for the continued protection of the customer and service technician.

        LEAKAGE CURRENT CHECK
        Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to
        chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either
        side of the power cord is less than 460 kohms, the unit is defective.


SPECIFICATIONS
      Type:                                         Vertical tape loading; 4-track 2-channel stereo double cassette deck
      Heads:                                        Recording/playback head (hard permalloy)
