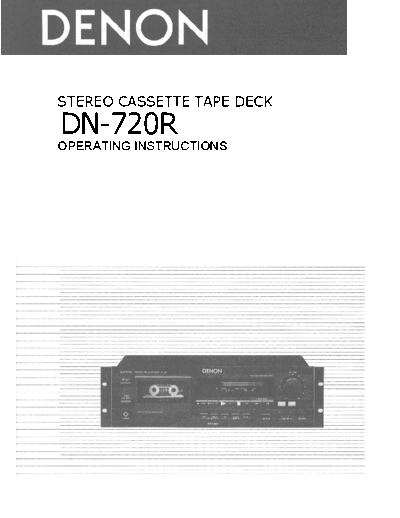

Image preview - the first page of the document



>> Download Инструкция DN-720R documenatation <<

Text preview - extract from the document

STEREO CASSETTE TAPE DECK
DN-720R
OPERATING INSTRUCTIONS
IMPORTANT TO SAFETY                                                                 FOR U.S.A. & CANADA MODEL ONLY

     WARNING:                                                                                                 CAUTION
       TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
                                                                                   TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED) PLUG WITH AN
         APPLIANCE TO RAIN OR MOISTURE.
                                                                                   EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN
                                                                                   BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
CAUTION:
1.   Handle the power supply cord carefully
     Do not damage or deform the power supply cord. If it is damaged or
     deformed, it may cause electric shock or malfunction when used. When
     removing it from wall outlet, be sure to remove by holding the plug
     attachment and not by pulling the cord.
2. Do not open the top cover
     In order to prevent electric shock, do not open the top cover.
     If problems occur, contact your DENON DEALER.
3. Do not place anything inside
     Do not place metal objects or spill liquid inside the cassette tape deck.
     Electric shock or malfunction may result.


Please, record and retain the Model name and serial number of your set
shown on the rating label.
Model No. DN-720R                           Serial No.




     CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
     REMOVE COVER (OR BACK. NO USER SERVICEABLE PARTS INSIDE.
     REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.



                      The lightning flash with arrowhead symbol within an
                      equilateral triangle is intended to alert the user of the
                      presence of uninsulated "dangerous voltage" within the
                      product's enclosure that may be of sufficient magnitude to
                      constitute a risk of electric shock to persons.


                      The exclamation point within an equilateral triangle is
                      intended to alert the user of the presence of important
                      operating and maintenance (servicing) instruction in the
                      literature accompanying the appliance.




2
                                                   SAFETY INSTRUCTIONS
1.    Read Instructions
