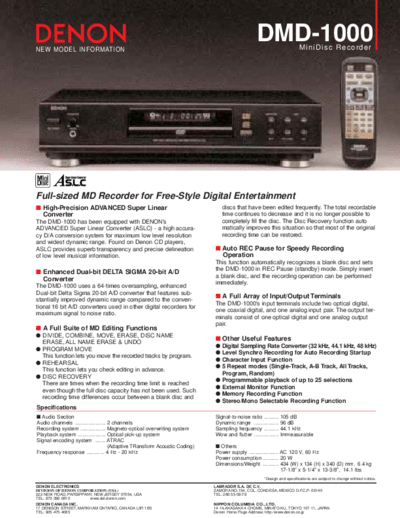

Image preview - the first page of the document

>> Download Описание DMD-1000 documenatation <<

Text preview - extract from the document

NEW MODEL INFORMATION
DMD-1000 MiniDisc Recorder

Full-sized MD Recorder for Free-Style Digital Entertainment
s High-Precision ADVANCED Super Linear discs that have been edited frequently. The total recordable
Converter time continues to decrease and it is no longer possible to
The DMD-1000 has been equipped with DENON's completely fill the disc. The Disc Recovery function auto
ADVANCED Super Linear Converter (ASLC) - a high accura- matically improves this situation so that most of the original
cy D/A conversion system for maximum low level resolution recording time can be restored.
and widest dynamic range. Found on Denon CD players,
ASLC provides superb transparency and precise delineation s Auto REC Pause for Speedy Recording
of low level musical information. Operation
This function automatically recognizes a blank disc and sets
the DMD-1000 in REC Pause (standby) mode. Simply insert
s Enhanced Dual-bit DELTA SIGMA 20-bit A/D
a blank disc, and the recording operation can be performed
Converter
immediately.
The DMD-1000 uses a 64-times oversampling, enhanced
Dual-bit Delta Sigma 20-bit A/D converter that features sub-
stantially improved dynamic range compared to the conven-
s A Full Array of Input/Output Terminals
The DMD-1000's input terminals include two optical digital,
tional 16 bit A/D converters used in other digital recorders for
one coaxial digital, and one analog input pair. The output ter-
maximum signal to noise ratio.
minals consist of one optical digital and one analog output
pair.
s A Full Suite of MD Editing Functions
q DIVIDE, COMBINE, MOVE, ERASE, DISC NAME
ERASE, ALL NAME ERASE & UNDO
s Other Useful Features
q Digital Sampling Rate Converter (32 kHz, 44.1 kHz, 48 kHz)
q PROGRAM MOVE
q Level Synchro Recording for Auto Recording Startup
This function lets you move the recorded tracks by program.
q Character Input Function
q REHEARSAL
q 5 Repeat modes (Single-Track, A-B Track, All Tracks,
This function lets you check editing in advance.
Program, Random)
q DISC RECOVERY
q Programmable playback of up to 25 selections
There are times when the recording time limit is reached
q External Monitor Function
even though the full disc capacity has not been used. Such
q Memory Recording Function
recording time differences occur between a blank disc and
q Stereo/Mono Selectable Recording Function
Specifications
s Audio Section Signal-to-noise ratio .......... 105 dB
Audio channels ..................... 2 channels Dynamic range ................. 96 dB
Recording system ................. Magneto-optical overwriting system Sampling frequency .......... 44.1 kHz
Playback system ................... Optical pick-up system Wow and flutter ................. Immeasurable
Signal encoding system ....... ATRAC
(Adaptive TRansform Acoustic Coding) s Others
Frequency response ............ 4 Hz - 20 kHz Power supply .................... AC 120 V, 60 Hz
Power consumption ........... 20 W
Dimensions/Weight ........... 434 (W) x 134 (H) x 340 (D) mm, 6.4 kg
17-1/8" x 5-1/4" x 13-3/8", 14.1 lbs
*Design and specifications are subject to change without notice.
DENON ELECTRONICS LABRADOR S.A. DE C.V.
DIVISION OF DENON CORPORATION (USA) ZAMORA NO.154, COL. CONDESA, MEXICO D.F.C.P. 06140
222 NEW ROAD, PARSIPPANY, NEW JERSEY 07054, USA TEL: 286-55-09/79
TEL: 973-396-0810 www.del.denon.com
DENON CANADA INC. NIPPON COLUMBIA CO., LTD.
17 DENISON STREET, MARKHAM ONTARIO, CANADA L3R 1B5 14-14,AKASAKA 4-CHOME, MINATO-KU, TOKYO 107-11, JAPAN
TEL: 905-475-4085 Denon Home Page Address: http://www.denon.co.jp
