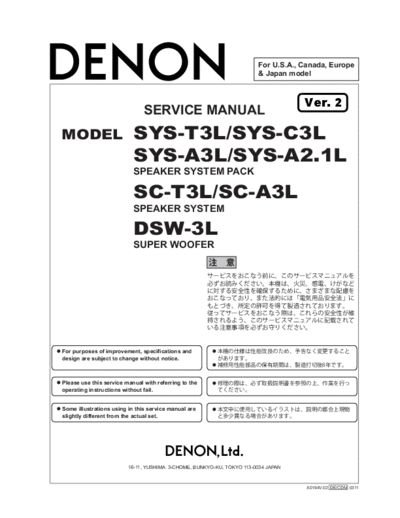

Image preview - the first page of the document



>> Download Схема SYS-T3L documenatation <<

Text preview - extract from the document

                                                                       For U.S.A., Canada, Europe
                                                                       & Japan model



                                                                                   Ver. 2
                               SERVICE MANUAL
MODEL                      SYS-T3L/SYS-C3L
                           SYS-A3L/SYS-A2.1L
                           SPEAKER SYSTEM PACK

                           SC-T3L/SC-A3L
                           SPEAKER SYSTEM

                           DSW-3L
                           SUPER WOOFER




For purposes of improvement, specifications and
design are subject to change without notice.



Please use this service manual with referring to the
operating instructions without fail.


Some illustrations using in this service manual are
slightly different from the actual set.




                         16-11, YUSHIMA 3-CHOME, BUNKYO-KU, TOKYO 113-0034 JAPAN



                                                                                    X0194V.02 DE/CDM 0311
                                    SYS-T3L/SYS-C3L/SYS-A3L/SYS-A2.1L/SC-T3L/SC-A3L/DSW-3L                                  2




SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.

LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.




                                                                        500V


                                                                                            1M


(1)




(2)




                                                                 (1)

                                                                 (2)




                                                           2
                                                                     SYS-T3L/SYS-C3L/SYS-A3L/SYS-A2.1L/SC-T3L/SC-A3L/DSW-3L                                                                                            3




NOTE FOR PARTS LIST
  l Part indicated with the mark " " are not always in stock and possibly to
     take a long period of time for supplying, or in some case supplying of
     part may be refused.
  l When ordering of part, clearly indicate "1" and "I" (i) to avoid mis-
     supplying.
  l Ordering part without stating its part number can not be supplied.
  l Part indicated with the mark " " is not illustrated in the exploded view.
  l Not including Carbon Film Resister
