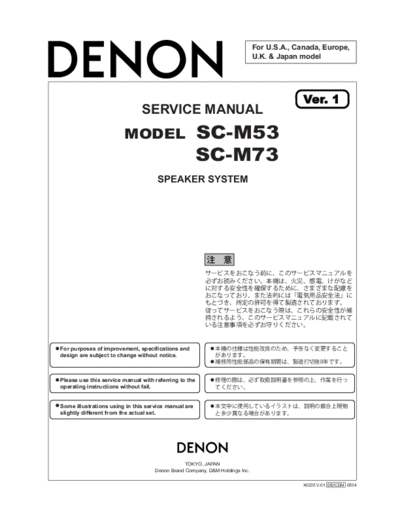

Image preview - the first page of the document



>> Download Схема SC-M53 & SC-M73 documenatation <<

Text preview - extract from the document

                                                                             For U.S.A., Canada, Europe,
                                                                             U.K. & Japan model




                                                                                           Ver. 1
                               SERVICE MANUAL
                        MODEL                          SC-M53
                                                       SC-M73
                                     SPEAKER SYSTEM




For purposes of improvement, specifications and
design are subject to change without notice.



Please use this service manual with referring to the
operating instructions without fail.


Some illustrations using in this service manual are
slightly different from the actual set.




                                               TOKYO, JAPAN
                                    Denon Brand Company, D&M Holdings Inc.

                                                                                           X0235 V.01 DE/CDM 0504
                                                                                                      SC-M53 / SC-M73


SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.

LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.




                                                           2
                                                                                                                                                                                                 SC-M53 / SC-M73


NOTE FOR PARTS LIST
  l Part indicated with the mark " " are not always in stock and possibly to
     take a long period of time for supplying, or in some case supplying of
     part may be refused.
  l When ordering of part, clearly indicate "1" and "I" (i) to avoid mis-
     supplying.
  l Ordering part without stating its part number can not be supplied.
  l Part indicated with the mark " " is not illustrated in the exploded view.
  l Not including Carbon Film Resister
