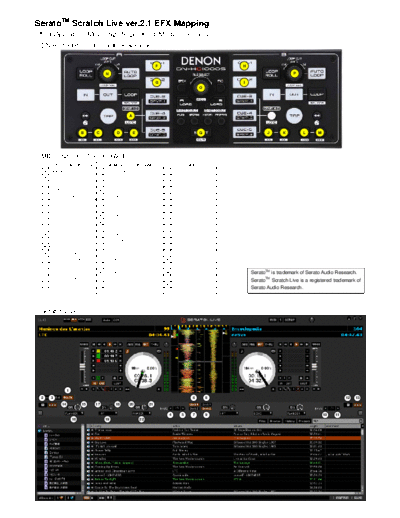

Image preview - the first page of the document
>> Download Описание DN-HC1000S documenatation <<
Text preview - extract from the document
SeratoTM Scratch Live ver.2.1 EFX Mapping
Effect Operation (MIDI Ch2 / Super Knob Mode for Effect Unit1)
DN-HC1000S Control buttons & knobs
F H
N P
G I
O
A
B C D E Q J K L M
MIDI Ch2 (SHIFT + BROWSE)
DN-HC1000S CONTROLS SCRATCH LIVE FUNCTIONALITY SHIFT +
A SAMP [A] 1 Open Effect window
B BEND DOWN [A] 2 Ultra Knob Mode Button [Unit 1] - -
C BEND UP [A] 3 Super Knob Mode Button [Unit 1] - -
D PREVIOUS [A] 4 Effect Unit 1 BPM Decrease - -
E NEXT TRACK [A] 5 Effect Unit 1 BPM Increase - -
F CUE1 [A] 6 Effect Unit 1 Attach To Deck 1 - -
G CUE2 [A] 7 Effect Unit 1 Attach To Deck 2 - -
H CUE1 [B] 8 Effect Unit 2 Attach To Deck 1 - -
I CUE2 [B] 9 Effect Unit 2 Attach To Deck 2 - -
J BEND DOWN [B] 10 Effect Unit 2 BPM Decrease - -
K BEND UP [B] 11 Effect Unit 2 BPM Increase - -
L PREVIOUS [B] 12 Ultra Knob Mode Button [Unit 2] - -
M NEXT TRACK [B] 13 Super Knob Mode Button [Unit 2] - -
N LOOP CUT SW [A] 14 Effect Button 1 [On/Off] [Unit 1] - -
LOOP CUT KNOB [A] 15 Effect Master Knob 1 [Unit 1] 16 Effect Select 1 [Unit 1]
O FILE SELECT SW 17 Effect Button 2 [On/Off] [Unit 1] - -
FILE SELECT KNOB 18 Effect Master Knob 2 [Unit 1] 19 Effect Select 2 [Unit 1] TM
Serato is trademark of Serato Audio Research.
P LOOP CUT SW [B] 20 Effect Button 3 [On/Off] [Unit 1] - - TM
Serato Scratch Live is a registered trademark of
LOOP CUT KNOB [B] 21 Effect Master Knob 3 [Unit 1] 22 Effect Select 3 [Unit 1]
Serato Audio Research.
Q SHIFT - Shift Button - -
Scratch Live
1
2 3 6 8 12 13
14 15 17 18 20 21
4 5 7 9 10 11
16 19 22
Effect Operation (MIDI Ch3 / Super Knob Mode for Effect Unit2)
DN-HC1000S Control buttons & knobs
F H
N P
G I
O
A
B C D E Q J K L M
MIDI Ch3 (SHIFT + HISTORY)
DN-HC1000S CONTROLS SCRATCH LIVE FUNCTIONALITY SHIFT +
A SAMP [A] 1 Open Effect window
B BEND DOWN [A] 2 Ultra Knob Mode Button [Unit 1] - -
C BEND UP [A] 3 Super Knob Mode Button [Unit 1] - -
D PREVIOUS [A] 4 Effect Unit 1 BPM Decrease - -
E NEXT TRACK [A] 5 Effect Unit 1 BPM Increase - -
F CUE1 [A] 6 Effect Unit 1 Attach To Deck 1 - -
G CUE2 [A] 7 Effect Unit 1 Attach To Deck 2 - -
H CUE1 [B] 8 Effect Unit 2 Attach To Deck 1 - -
I CUE2 [B] 9 Effect Unit 2 Attach To Deck 2 - -
J BEND DOWN [B] 10 Effect Unit 2 BPM Decrease - -
K BEND UP [B] 11 Effect Unit 2 BPM Increase - -
L PREVIOUS [B] 12 Ultra Knob Mode Button [Unit 2] - -
M NEXT TRACK [B] 13 Super Knob Mode Button [Unit 2] - -
N LOOP CUT SW [A] 23 Effect Button 1 [On/Off] [Unit 2] - -
LOOP CUT KNOB [A] 24 Effect Master Knob 1 [Unit 2] 25 Effect Select 1 [Unit 2]
O FILE SELECT SW 26 Effect Button 2 [On/Off] [Unit 2] - -
FILE SELECT KNOB 27 Effect Master Knob 2 [Unit 2] 28 Effect Select 2 [Unit 2]
P LOOP CUT SW [B] 29 Effect Button 3 [On/Off] [Unit 2] - -
LOOP CUT KNOB [B] 30 Effect Master Knob 3 [Unit 2] 31 Effect Select 3 [Unit 2]
Q SHIFT - Shift Button - -
Scratch Live
1
2 3 6 8 12 13
23 24 26 27 29 30
4 5 7 9 10 11
25 28 31
Effect Operation (MIDI Ch4 / Ultra Knob Mode for Effect Unit1&2)
DN-HC1000S Control buttons & knobs
F H
N P
G I
A
B C D E Q J K L M
MIDI Ch4 (SHIFT + PREPARE)
DN-HC1000S CONTROLS SCRATCH LIVE FUNCTIONALITY SHIFT +
A SAMP [A] 1 Open Effect window
B BEND DOWN [A] 2 Ultra Knob Mode Button [Unit 1] - -
C BEND UP [A] 3 Super Knob Mode Button [Unit 1] - -
D PREVIOUS [A] 4 Effect Unit 1 BPM Decrease - -
E NEXT TRACK [A] 5 Effect Unit 1 BPM Increase - -
F CUE1 [A] 6 Effect Unit 1 Attach To Deck 1 - -
G CUE2 [A] 7 Effect Unit 1 Attach To Deck 2 - -
H CUE1 [B] 8 Effect Unit 2 Attach To Deck 1 - -
I CUE2 [B] 9 Effect Unit 2 Attach To Deck 2 - -
J BEND DOWN [B] 10 Effect Unit 2 BPM Decrease - -
K BEND UP [B] 11 Effect Unit 2 BPM Increase - -
L PREVIOUS [B] 12 Ultra Knob Mode Button [Unit 2] - -
M NEXT TRACK [B] 13 Super Knob Mode Button [Unit 2] - -
N LOOP CUT SW [A] 32 Effect Ultra Button [On/Off] [Unit 1] - -
LOOP CUT KNOB [A] 33 Effect Ultra Knob [Unit 1] 34 Effect Ultra Select [Unit 1]
P LOOP CUT SW [B] 35 Effect Ultra Button [On/Off] [Unit 2] - -
LOOP CUT KNOB [B] 36 Effect Ultra Knob [Unit 2] 37 Effect Ultra Select [Unit 2]
Q SHIFT - Shift Button - -
Scratch Live
1
2 3 6 8 12 13
32 33 35 36
34 4 5 7 9 37 10 11
