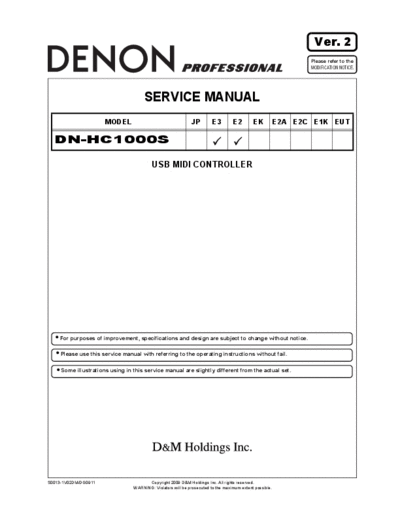

Image preview - the first page of the document
>> Download Схема DN-HC1000S documenatation <<
Text preview - extract from the document
Ver. 2
Please refer to the
MODIFICATION NOTICE.
SERVICE MANUAL
MODEL JP E3 E2 EK E2A E2C E1K EUT
DN-HC1000S
USB MIDI CONTROLLER
For purposes of improvement, specifications and design are subject to change without notice.
Please use this service manual with referring to the operating instructions without fail.
Some illustrations using in this service manual are slightly different from the actual set.
S0013-1V02DM/DG0911 Copyright 2009 D&M Holdings Inc. All rights reserved.
WARNING: Violators will be prosecuted to the maximum extent possible.
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.
CAUTION Please heed the points listed below during servicing and inspection.
Heed the cautions! Inspect for safety after servicing!
Spots requiring particular attention when servicing, such Check that all screws, parts and wires removed or discon-
as the cabinet, parts, chassis, etc., have cautions indicated nected for servicing have been put back in their original po-
on labels or seals. Be sure to heed these cautions and the sitions, inspect that no parts around the area that has been
cautions indicated in the handling instructions. serviced have been negatively affected, conduct an insu-
lation check on the external metal connectors and between
Caution concerning electric shock! the blades of the power plug, and otherwise check that
safety is ensured.
(1) An AC voltage is impressed on this set, so touching in-
ternal metal parts when the set is energized could
(Insulation check procedure)
cause electric shock. Take care to avoid electric shock,
Unplug the power cord from the power outlet, disconnect
by for example using an isolating transformer and
the antenna, plugs, etc., and turn the power switch on. Us-
gloves when servicing while the set is energized, un-
ing a 500V insulation resistance tester, check that the in-
plugging the power cord when replacing parts, etc.
sulation resistance between the terminals of the power
(2)There are high voltage parts inside. Handle with extra plug and the externally exposed metal parts (antenna ter-
care when the set is energized. minal, headphones terminal, microphone terminal, input
terminal, etc.) is 1M or greater. If it is less, the set must
Caution concerning disassembly and be inspected and repaired.
assembly!
Though great care is taken when manufacturing parts from
sheet metal, there may in some rare cases be burrs on the
edges of parts which could cause injury if fingers are
CAUTION Concerning important safety
moved across them. Use gloves to protect your hands.
parts
Only use designated parts! Many of the electric and structural parts used in the set
have special safety properties. In most cases these prop-
The set's parts have specific safety properties (fire resis- erties are difficult to distinguish by sight, and using re-
tance, voltage resistance, etc.). For replacement parts, be placement parts with higher ratings (rated power and
sure to use parts which have the same properties. In par- withstand voltage) does not necessarily guarantee that
ticular, for the important safety parts that are marked z on safety performance will be preserved. Parts with safety
wiring diagrams and parts lists, be sure to use the desig- properties are indicated as shown below on the wiring dia-
nated parts. grams and parts lists is this service manual. Be sure to re-
place them with parts with the designated part number.
Be sure to mount parts and arrange
the wires as they were originally! (1) Schematic diagrams ... Indicated by the z mark.
For safety reasons, some parts use tape, tubes or other in- (2) Parts lists ... Indicated by the z mark.
sulating materials, and some parts are mounted away from
Using parts other than the designated
the surface of printed circuit boards. Care is also taken with
parts could result in electric shock, fires or
the positions of the wires inside and clamps are used to
other dangerous situations.
keep wires away from heating and high voltage parts, so
be sure to set everything back as it was originally.
2
DIMENSION
250 mm
88 mm
25 mm
3
HOW TO CHECK FIRMWARE VERSION?
(1) Press the Shift and FWD button at the same time, then connect HC1000S to PC with USB cord to check the light
buttons that represent Firmware version.
Firmware Version Leds (Ver X .YZ)
Z: 1(CUE1),2(CUE2),3(CUE3),4(CUE4),5(CUE5),
X: 1(Auto Loop), 2(IN), 3(OUT), 4(TAP) 6(Auto Loop),7(IN),8(OUT),9(TAP)
Y: 1(CUE1), 2(CUE2),3(CUE3),4(CUE4),5(CUE5)
The first release is "Ver 1.17".
(2) Press the Shift button to retrurn to Normal Mode.
FIRMWARE UPDATE
Use the procedure described below to update the firmware to a newer version.
(1) Press the BACK and FWD button at the same time, then connect DN-HC1000S to PC.
(2) DN-HC1000S will enter updating mode. CUE-1(A, B) will light to indicate "Update Ready."
(3) PC Operation System will pop-up a new hard disc, named DN-HC1000S.
(4) Copy updated file (EX: DN-HC1000S_v1.13.bin), and paste on "DN-HC1000S" hard disc.
(5) It will start updating. After updating successfully, DN-HC1000S will switch to Midi Controller automatically.
(6) Firmware updating State:
CUE-1(A, B): Update Ready
CUE-2(A, B): Update Data(0%)
CUE-3(A, B): Update Data(50%)
CUE-4(A, B): Update Data(100%)
CUE-5(A, B): Update Success (* If it doesn't light, it means "Updating Error")
ALL LED LIGHT UP
(1) Press the BACK and SHFT button at the same time, then connect DN-HC1000S to PC.
4
TROUBLE SHOOTING
FLOW CHART NO.1 (MAIN UNIT)
The power cannot be turned on.
Is normal state restored when once unplugged USB cord is plugged No Is the USB cable or the USB terminal of the PC
again? side normal?
Yes
Check JK101 and the periphery circuit, and replace it if defective.
FLOW CHART No.2 (MAIN UNIT)
+3.3V is not outputted.
No Refer to FLOW CHART NO.1 [The power
Is the +5V line voltage normal?
cannot be turned on.]
Yes
Check IC105 and the periphery circuit, and replace it if defective.
FLOW CHART No.3 (MAIN UNIT)
The key operation is not functioning.
Are the contact point and the installation state of the key switches No Re-install the switches (SW101~SW146)
SW101~SW146 normal? correctly or replace the poor switch.
Yes
No Check Q101 Q118 and the periphery circuit,
Does LED D101A D118A D101B D118B light correctly ? and replace it if defective.
Yes
When pressing each key switches, do the voltage of each pin of
IC101(shown below) decrease?
SW143,SW144,SW145,SW146 : IC101 34pin
SW136,SW137,SW138,SW139,SW140,SW141,SW142 : IC101 35pin No Check the key switches SW101 SW146
SW129,SW130,SW131,SW132,SW133,SW134,SW135 : IC101 36pin and their periphery, and service it if detective.
SW122,SW123,SW124,SW125,SW126,SW127,SW128 : IC101 37pin
SW115,SW116,SW117,SW118,SW119,SW120,SW121 : IC101 38pin
SW108,SW109,SW110,SW111,SW112,SW113,SW114 : IC101 39pin
SW101,SW102,SW103,SW104,SW105,SW106,SW107 : IC101 40pin
Yes
Replace IC101.
5
SEMICONDUCTORS
Only major semiconductors are shown, general semiconductors etc. are omitted to list.
The semiconductor which described a detailed drawing in a schematic diagram are omitted to list.
1. IC's
MC9S08JM32 (IC101)
PTD3/KBIP3/ADP10
PTG5/EXTAL
PTD4/ADP11
PTG3/KBIP7
PTG2/KBIP6
PTC5/RxD2
PTG4/XTAL
PTC3/TxD2
PTC1/SDA
PTC0/SCL
BKGD/MS
VSSOSC
PTD5
PTD6
PTC2
PTD7
64 49
63 62 61 60 59 58 57 56 55 54 53 52 51 50
PTC4 1 48 PTD2/KBIP2/ACMPO
IRQ/TPMCLK 2 47 VSSAD
RESET 3 46 VREFL
PTF0/TPM1CH2 4 45 VREFH
PTF1/TPM1CH3 5 44 VDDAD
PTF2/TPM1CH4 6 43 PTD1/ADP9/ACMP◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
