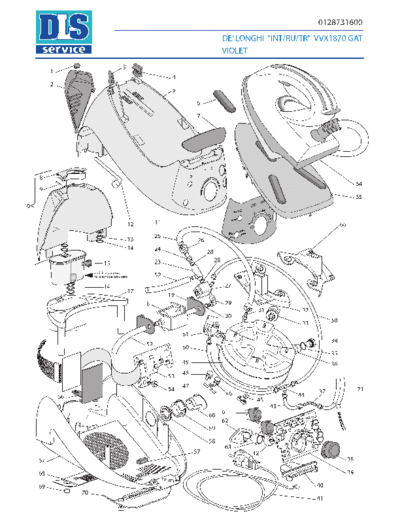

Image preview - the first page of the document
>> Download vvx1870 documenatation <<
Text preview - extract from the document
0128731600
DE' LONGHI "INT/RU/TR" VVX1870 GAT
VIOLET
3
1
4
2
5
6
7
8
64
9
65
10
12 11 66
25
13 26
14 24 28
23 28
15
vedi lista accessori
nella scheda prodotto 52
14 27
17
19
18 29
31 32
30
33 50
51
34
52 50
35
49 36
48
53
47
54 37 71
46 44
56
45
43
61
60
62
59
58
63
57 42
67 38
68 39
69 40
70
41
DE'LONGHI INT/RU/TR VVX1870 GAT 0128731600
Pos. Spare part code Description
01 5312811981 PROTECTION
02 5312810621 BLOCK
03 5312811441 RUBBER PAD LEFT
04 5312810641 RUBBER PAD RIGHT
05 5912810771 BODY UPPER
06 5312810631 RUBBER PAD
07 5912810781 BLOCK
08 5312810591 STOPPER
09 5312810601 FILTER
10 5912811091 TANK
11 5412810191 OVERLAY
12 5312812221 PIPETTE
13 5328511000 O-RING
14 5393500800 O-RING
15 5312810661 FILTER STOP
17 5312810891 SUPPORT
18 5132106900 PUMP
19 534848 SUPPORT
23 5528103200 VALVE
24 6228101300 CONNECTION
25 5312890381 TUBE
26 9824820112 TUBE RETAINER
27 5212810211 SOLENOID VALVE
28 5328500900 O-RING
29 5312811781 CONNECTION
30 5328502800 O-RING
31 6228105100 HOSE COUPLING
32 5312810731 SUPPORT RIGHT
- Pag. 1/3 -
DE'LONGHI INT/RU/TR VVX1870 GAT 0128731600
Pos. Spare part code Description
33 5228108100 PRESSURE Switch
34 7312870549 STOPPER
35 5312811801 O-RING
36 6212810091 CONNECTION
37 5312811311 CONNECTION L
38 5312810711 KNOB
39 5312810671 SWITCH HOLDER
40 5312810751 CABLE HOLDER
41 5012871139 POWER SUPPLY CORD
42 5312810681 TAP
43 5312890361 TUBE L=140mm 4x7 red
44 5312812291 CONNECTION
