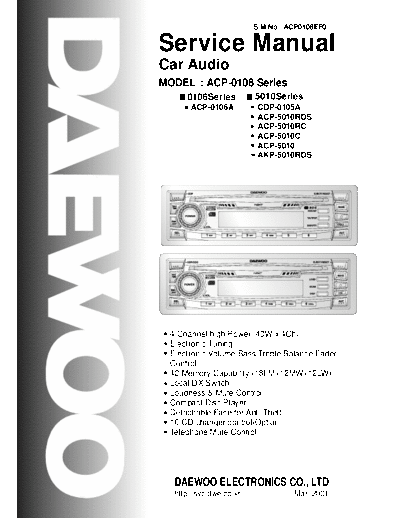

Image preview - the first page of the document
>> Download ACP-0108 documenatation <<
Text preview - extract from the document
S/M No : ACP0108EF0
Service Manual
Car Audio
MODEL : ACP-0108 Series
0106Series 5010Series
ACP-0106A CDP-0105A
ACP-5010RDS
ACP-5010RC
ACP-5010C
ACP-5010
AKP-5010RDS
4-Channel high Power (40W x 4Ch)
Electronic Tuning
Electronic Volume/Bass/Treble/Balance/Fader
Control
42 Memory Capability (18FM+12MW+12LW)
Local/DX Switch
Loudness & Mute Control
Compact Disc Player
Detachable Face for Anti-Theft
10 CD-changer control(Option)
Telephone Mute Control
DAEWOO ELECTRONICS CO., LTD
http://svc.dwe.co.kr Mar. 2001
TABLE OF CONTENTS
1. PRODUCT SPECIFICATIONS ..................................................1
2. LINE DRAWING ........................................................................2
3. EMERGENCY TROUBLE SHOOT ............................................3
4. ADJUSTMENTS ........................................................................6
5. SCHEMATIC DIAGRAM ..........................................................11
6. PARTS LOCATION ON P.C.BOARD ......................................12
7. OVERALL EXPLODED VIEW & PARTS LIST .......................15
8. DECK MECHANISM EXPLODED VIEW & PARTS LIST .......16
9. ELECTRICAL PARTS LIST........................................................20
10. FUNCTION OF MICOM IC .....................................................24
11. IC BLOCK DIAGRAM .............................................................30
12. LIQUID CRYSTAL DISPLAY ..................................................34
13. OUTPUT CONNECTION DESCRIPTIONS ............................35
1. PRODUCT SPECIFICATIONS
AUDIO SECTION
Maximum output power : 40watts per channel into 4 ohms.
Load impedance : 4 ohms or 8 ohms
Total harmonic distortion : Less than 10% at 12 watts
Frequency response : 100Hz( + 3dB), 10kHz(-5 + 3dB)
Control Bass/Treble : 10 + 3dB at 100Hz/10kHz
CD PLAYER SECTION
System : 2-track / 2-channel system
Total harmonic distortion : 0.35%max. (WRMS)
Signal to noise ratio(network) : 63Hz ~ 10kHz (+3dB) normal (LH)tape
Wow and flutter Below measurable limit
Laser Diode Properties : Meterial
Ga AIAS
Wave length
760-800 mm
Emission Duration
Continuous
Laser out-put Power
Less than 44.6 W
TUNER SECTION
(FM) Tuning range : 87.5 to 108MHz
Sensitivity : 10dBuV
Stereo separation : 30dB
Signal to noise ratio : 55dB
Frequency range : 87.5 ~ 108MH
: 522 to 1620KHz at Europe
(MW) Tuning range : 530 to 1710kHz at U.S.A
Sensitivity : 28dBuV
Signal to noise ratio : 50dB
Frequency range : 522 ~ 1620KHz
Channel space : 9KHz (or 10KHz at U.S.A)
(LW) Tuning range : 144 to 288KHz
Usable Sensitivity : 40dBuV
GENERAL
Power requirements : DC 13.8V (10.8 ~15.6V allowable)
Negative ground
Spdaker impedance : 4 or 8 ohm
Output power : Maximum 40Wx4Ch.
Current consumption : 10A
Dimension (W x H x D) : 178 x 50 x 156 mm
Chassis size : 195 x 64 x 14.6 mm
Weight(Net) : 1.75Kg
Design and specifications are subject to changes for improvements without notice.
1
2. LINE DRAWING
2-1. FRONT SIDE
ACP-0108RDS Serise
- RDS Function
- Compact Disc Player
- 4-Channel high Power (40W x 4Ch)
- Electronic Tuning
- Electronic Volume /Bass /Treble /Balance
/Fader Control
- 42 Memory Capability (18FM+12MW+12LW)
- Local/DX Switch
- Loudness & Mute Control
- Detachable Face for Anti-Theft
- 10 CD-changer control(Option)
- Telephone Mute Control *ACP-5010RDS, 5010RC *AKP-5010RDS
ACP-0108 BASIC Series
- Basic Function
- Compact Disc Player
- 4-Channel high Power (40W x 4Ch)
- Electronic Tuning
- Electronic Volume /Bass /Treble /Balance
/Fader Control
- 42 Memory Capability (18FM+12MW+12LW)
- Local/DX Switch
- Loudness & Mute Control
- Detachable Face for Anti-Theft
- 10 CD-changer control(Option)
*ACP-5010C, 5010 *CDP-0105A
- Telephone Mute Control
*ACP-0106A
2-2. REAR SIDE
2
3. EMERGENCY TROUBLE SHOOT
3-1. General Function
Yes Output connector Yes Put exactly output
No sound from is missing connector in.
speakers
A No
Output connector Yes
Change output
connector to
is inferior goods superior goods
No
Power IC, Output Yes
Change Power IC,
Socket is inferior Output Socket to
goods superior goods
Yes Balance of front Yes Re-adjust Balance Ref. Balance = Center
Different each and rear is in one of front, rear Front / Rear
channel have side
output level No
(Front, Rear,
Left, Right) Ref. Balance = Center
Balance of Left, Yes Re-adjust Balance
Right is in one Left / Right
of Left, Right
side.
Treble or Bass Yes Balance of Treble Ref. Balance = Center
Yes Re-adjust Balance
is low or Bass is in one of Treble or Bass
Treble / Bass
unusually side.
Yes Power is not Yes
supplied Return to A
No
L.C.D or Lamp
Output voltage of Yes Change Regulator Ref. Regulator IC output
is not turned IC and check Voltage = V
off. power IC is little. output voltage.
No
Change LCD or Ref. Electrical Parts List
LCD or Lamp is Yes
Lamp to superior L.C.D., Lamp
inferior goods. goods.
3
EMERGENCY TROUBLE SHOOT
3-2. Tuner Function
Yes No selected the Yes Select exactly
Hearing noise broadcasting
station frequency.
only
A No
Tuner Module is Yes
Change tuner Ref. CAT-7
module to Adjustments/Tuner
inferior goods. superior goods.
Yes Weak frequency Yes Change to goods of
Extreme noise area caused by R.D.S function.
in broadcast elevations
B
No
Antenna Yes Put exactly
connector is antenna connector
missing in his jack
Weak Yes Weak frequency Yes Switch Ref. Function of auto-
separation of automatically to switch noise
area of FM, MW mono mode in reduction
FM stereo weak frequency
area
Yes No selected the Yes
Station in
local stations. Return to A or B
other regions
are not held.
R1 In case of located Glass Antenna, check if heat wire is cut or not in rear window.
R2 Check Antenna connector part.
4
EMERGENCY TROUBLE SHOOT
3-3. CD Function
Yes There is Disc in Yes Take out Disc
Disc is not the slot from the slot
inserted.
Yes Disc is inferior Yes Use only superior
No sound goods disc
A
No
disc was inserted Yes Insert CD with
upside down label side down
No
Disc is dirty Yes Wipe with cleaning
cloth
No
Selected PAUSE Yes Release PAUSE
function function
No
Selected MUTE Yes Release MUTE
function function
No
Mechanism is Yes Change Ref. DWEC CD Mecha
Mechanism to DCM-200/201
inferior goods superior goods
Selection time
Yes Inspect disc for Yes
is longer than scratches. Ref. Point A
unusually
Disc is stopped Yes It is normal for Yes Turn power on Ref. Power Off/On
under eject CD-Deck or the again after turn off. Hard Reset
slot
5
4. ADJUSTMENTS
4-1. TUNER MODULE ADJUSTMENT LOCATIONS
CAT-7 (3 Band)
CAT-6 (2 Band)
6
ADJUSTMENTS
4-2. MW / LW ADJUSTMENT METHOD
TEST SSG
STEP ALIGNMENT TUNING ALIGNMENT INDICATOR
POSITION FREQUENCY
Band Covering 522 KHz 522 KHz AMOSC MAXIMUM
V.T point of
Range
AM Board
1620 KHz 1620 KHz - 7.6V
MW IF 522 KHz Output 450 KHz AMIF MAXIMUM
603 KHz Output 603 KHz AMRF1 MAXIMUM
TRACKING AMRF2
1404 KHz 1404 KHz AMRF1 MAXIMUM
Output
AMRF2
Band Covering
144 KHz - 144 KHz LWOSC MAXIMUM
Range
LW
LMRF1
TRACKING 220 KHz Output 220 KHz MAXIMUM
LMRF2
7
ADJUSTMENTS
4-3. FM ADJUSTMENT METHOD
FEED SIGNAL MEASURE ADJUST
STEP SUBJECT ADJUSTMENT
FROM TO OUTPUT POINT
98.1 MHz, ANT
input 60dBu, 1kHz ANT jack The voltage Adjust for 0V
1 IF adjust FM DET
(30% MOD) FM and GND between CW03 0.05V
SSG
98.1 MHz, ANT
MPX IC input 40dBu, 1kHz ANT jack L or R CH SP.
ST L, R separation
2 Separation (L+R=45% output wire
and GND BLEND 8dB
Control L-R=45% VTVM and Scope
PILOT=10% MOD)
8
ADJUSTMENTS
4-4. CDP MODE TEST & ADJUSTMENT METHOD
Definition of Mechanical Mode
No MODE DEFINITION & STATUS
- Disc haven't been inserted or disc have been ejected. When disc shall be transported
1 STOP MODE
into the unit
Mechanism shall be fixed at this mode.
- Loading device can insert disc thru the slot.
- Floating device being locked.
LOADING - Disc have been inserted thru the slot in front of unit. It is transient state between STOP
2
MODE mode and PLAY mode.
- If disc should be inserted at the state of POWER ON, disc shall be loaded by a series of
operation of specified device.
3 PLAY MODE - After disc have being clamped on the turn-table, disc shall be rotated.
- Disc shall be played.
- Floating device being unlocked.
4 EJECT - Disc is to be ejected at this mode. It is transient state between PLAY mode and STOP
MODE mode.
- If disc should be mounted at the state of POWER ON and commanded by EJECT key, disc
shall be ejected thru the slot by a series of operation of specified device.
Standard values / Play-ability test
No ITEMS SPECIFIED VALUES, CONDITIONS TEST CONDITIONS, REFERENCES CONNEC
STANDARD VALUES RELIABILITY LIMITS TION
1 Loading Time 7sec + 3sec < 17 sec From insertion up to make sound.
(TCD-784)
2 Ejecting Time < 5 sec < 15 sec From track No.1 Between the EJECT
command and the disc eject completion.
(TCD-784)
3 Access Time 6sec + 3sec < 15 sec From out-most Track, Between the PLAY
command of in-most Track and marking
sound.
4 Disc > 120g > 90g
Shall be measure when the center of Disc is
Take-up Force > 120g During play in
correspond with the center of Roller.
low temp.
5 Disc > 80g > 70g
Shall be measure when the center of Disc is
During play in
correspond with the center of Roller.
low temp.
9
ADJUSTMENTS
No ITEMS SPECIFIED VALUES, CONDITIONS TEST CONDITIONS, REFERENCES CONNEC
STANDARD VALUES RELIABILITY LIMITS TION
6 Clamping Force > 130g > 130g
7 Mechanical Loading Eject -Test should be performed in no reverberation
If anything is not
Noise < 75dB(A)
error, shall not room at the noise level of less than 20dB(A).
Play < 40dB(A) -Test should be performed at the 50cm in front
defined.
Access < 70dB(A)
of the unit.
-IHF-A MODE (RMS-FAST)(TCD-792D)
8 Anti-Vibrational >1.0g/10Hz-20Hz, Z way -The G level should be upped to the sound
Performance >2.0g/30Hz-200Hz, Z way skip level from the less level slowly at the
Z way only
>0.6g/10Hz-20Hz, X&Yway frequency.
10Hz-20Hz:0.7g
>1.2g/30Hz-200Hz, X&Yway -Ignore the sound skip at the near of
30Hz-200Hz:1.2g
X=side to side resonance frequency(about 100Hz).
Y=front to back -In playing YEDS-10 Tr #5, shall perform with
Z=up to down vibration
-No sound skipping.
9 Playability -Interruption:0.7mm -No sound skipping in the specified range.
-Block Dot Disc:0.8mm equal with -The sound skipping does not include any
-Scratch Disc:1mm standard values interpolating noise.
-Finger Print Disc:65um
10 Disc Deflection + 0.4mm + 0.4mm -No sound skipping at the ABEX 731RA Tr
No8
-The sound skipping does not include any
interpolating noise.
-Except from specified item due to the
reliability limits of TEST DISC in the HTO
TEST.
Disc
11 + 0.21mm + 0.21mm -No sound skipping at the ABEX 713 Tr No8
Eccentricity
-The sound skipping does not include any
interpolating noise.
-Except from specified item due to the
reliability limits of TEST DISC in the HTO
TEST.
12 Jitter < 28 nsec < 33 nsec
13 Frequency 20-20kHz + 2dB 20-20kHz + 3dB This measurement may be done at 20Hz,
Response 20kHz, (1kHz=0dB)
14 Harmonic < 0.03% at 1kHz 400Hz HIGHPASS FILTER
< 0.05% at 1kHz
Distortion 20kHz(-60dB 24kHz) LOWPASS FILTER
15 Dynamic > 80dB at 1kHz > 75dB at 1kHz 20kHz(-60dB 24kHz) LOWPASS FILTER,
Range 60dB AMP IHF-A WEIGHTING FILTER
16 S/N Ratio > 85dB at 1kHz > 85dB at 1kHz
17 Channel > 70dB at 1kHz > 65dB at 1kHz 400Hz HIGHPASS FILTER
20kHz (-60dB 24kHz)LOWPASS FILTER
10
for ACP-0108Seires
5. SCHEMATIC DIAGRAMS
OPTION
RDS Function
CDC Function
11
6. PARTS LOCATION ON P.C. BOARD
6-1. PCB MAIN
PART SIDE
12
PARTS LOCATION ON P.C. BOARD for ACP-0108Series
BOTTOM SIDE
13
PARTS LOCATION ON P.C. BOARD for ACP-0108Series
6-2. PCB FRONT
PART SIDE
BOTTOM SIDE
14
for ACP-0108Seires
7. OVERALL EXPLODED VIEW & PARTS LIST
15
for ACP-0108Seires
8. DECK MECHANISM EXPLODED VIEW&PARTS LIST
16
DECK MECHANISM EXPLODED VIEW & PARTS LIST
for ACP-0108 Series
8-1. PARTS LIST for DCM-200/201
No PART NAME PART NO. Q'TY MARK
A CHASSIS SIDE TOTAL ASSY 1 A
1 CHASSIS SIDE ASSY 97LA202300 1 A
2 LOCK PLATE R ASSY 97LA202400 1 A
3 WASHER CUT D4xD2xT0.25 97L3101500 1 B
4 MOVING PLATE R ASSY 97LA202500 1 A
5 SPG MOVING PLATE 97L3003900 1 S
B CHASSIS GEAR TOTAL ASSY 97LA202600 1 A
1 CHASSIS GEAR ASSY 97LA302500 1 A
2 MOTOR LOADING 97L8100500 1 E
3 GEAR LOAD MOTOR 97L2702600 1 M
4 CONNECTOR ASSY 2P 97L8800202 1 E
5 SCREW MACHINE PAN M2x2.5 97L3101700 2 B
6 IDLER PLATE ASSY 97LA302700 1 A
7 GEAR 1 97L2702100 1 M
8 GEAR 2 97L2702200 1 M
9 GEAR 3 97L2702500 1 D
10 GEAR 4 97L2703400 1 M
11 WASHER CUT D5xD1.6xT0.25 97L3101400 4 B
12 LEVER SOLENOID 97L2601500 1 P
13 SOLENOID 97L7102100 1 E
14 SPRING IDLER 97L3003500 1 S
15 SCREW MACHINE PAN M2x2.5 97L3101700 1 B
C CHASSIS TOP TOTAL ASSY 97LA202900 1 A
1 CHASSIS TOP 97L0602400 1 P
2 CUSHION PLATE CLAMP 97L4201100 1 B
3 BRACKET CD GUIDE 97L2400900 1 M
4 SCREW TAPTITE SPL M2x3.5 97L3101300 2 B
D CHASSIS FLOATING ASSY 97LA202700 1 A
D1 CHASSIS CLAMP TOTAL ASSY 97LA303300 1 A
1 CHASSIS CLAMP ASSY 97LA402000 1 A
2 ROLLER CLAMP 97L3700900 1 C
3 WASHER CUT D4xD1.6xT0.25 97L3101400 1 C
4 PLATE CLAMP 97L0901500 1 M
D2 DRIVE UNIT TOTAL ASSY 97LA303200 1 A
1 DRIVE UNIT ASSY 97LA401700 1 A
2 PICK-UP ASSY(DOP-200) 97LA101700 1 A
3 GUIDE SLED SCREW 97L2501400 1 C
17
DECK MECHANISM EXPLODED VIEW & PARTS LIST
for ACP-0108 Series
No PART NAME PART NO. Q'TY MARK
4 GEAR SLED SCREW 97L2702700 1 M
5 SLIDER RACK 97L5200300 1 M
6 SPG SLED INSERT 97L5200100 1 M
7 SCREW MACHINE PAN M1.7x3 97L3102100 2 B
8 HOLDER FEED MOTOR 97L2301100 1 M
9 GEAR CENTER 97L2702800 1 M
10 MOTOR FEED 97L8100600 1 E
11 GEAR FEED MOTOR 97L2703300 1 M
12 SCREW MACHINE PAN M2x5 SW 7051200511 2 B
13 SCREW MACHINE PAN M2x3 7001200311 2 B
14 PLATE SPG 97L0902200 1 P
15 SCREW TAPPING PAN T2S M2x4 7121200411 1 B
16 MOTOR SPINDLE 97L8100700 1 E
17 TURN TABLE 97L2501500 1 M
18 SCREW MACHINE PAN M1.7x2.5 97L3102200 2 B
19 PCB SP MOTOR 97L65015BA 1 E
20 SWITCH LIMIT 5S50101113 1 E
21 SCREW TAPPING PAN T2S M2x4 7121200411 2 B
22 DAMPER RUBBER 97L2600900 3 Ru
1 E-RING( 2) 7402002011 1 B
2 SPRING CLAMP 97L3004300 2 S
E SENSOR PCB ASSY 97LA203200 1 A
E1 LED PCB ASSY 97LA303100 1 A
1 PCB LED 97L65015DA 1 E
2 LED DSI2321--- 4 E
3 CONNECTOR ASSY 12P 97L8800201 1 E
4 CONNECTOR ASSY 5P 97L8800203 1 E
5 CONN WAFER(ANGLE) 2P 97P6271000 2 E
6 SWITCH DETECT 5S50101112 1 E
E2 PT PCB ASSY 97LA303400 1 A
1 PCB PT 97L65015LA 1 E
2 PHOTO TR TST2321--- 4 E
F HOLDER ROLLER TOTAL ASSY 97LA202800 1 A
1 HOLDER ROLLER ASSY 97LA302700 1 A
2 SHAFT ROLLER 97L3600800 1 C
3 GEAR ROLLER 97L2703100 1 M
4 BEARING ROLLER 97L5300100 2 M
5 ROLLER RUBBER 97L3700800 1 Ru
6 WASHER CUT D4xD2xT0.25 97L3101500 1 B
18
DECK MECHANISM EXPLODED VIEW & PARTS LIST
for ACP-0108 Series
No PART NAME PART NO. Q'TY MARK
7 GEAR RELAY 2 97L2703000 1 M
8 GEAR RELAY 1 97L2702900 1 M
9 WASHER CUT D6xD2.6xT0.25 97L3101600 1 B
10 WASHER CUT D4xD1.6xT0.25 97L3101400 1 B
11 ROLLER BUSH 97L3701100 1 C
12 BRACKET DOOR 97L2401400 1 M
13 SCREW TAPTITE SPL M2x3.5 97L3101300 2 B
8-2. DECK TOTAL ASSY PARTS LIST
No PART NAME PART NO. Q'TY MARK
1 CHASSIS MAIN 97L0601700 1 P
B CHASSIS GEAR TOTAL ASSY 97LA202600 1 A
2 GEAR DOUBLE 97L2702400 1 M
3 SCREW TAPTITE PAN M2x3.5 97L3101800 2 B
E SENSOR PCB ASSY 97LA203200 1 A
4 SCREW TAPTITE SPL M2x3.5 97L3101300 2 B
5 LOCK PLATE L ASSY 97LA202000 1 A
6 WASHER CUT D4xD2xT0.25 97L3101500 1 B
7 MOVING PLATE L ASSY 97LA202100 1 A
8 HOLDER DAMPER 97L2300900 1 P
9 DAMPER RUBBER 97L2600900 1 Ru
10 SCREW TAPTITE PAN M2x3.5 97L3101800 1 B
11 BRACKET DAMPER ASSY 97LA202200 1 A
12 SCREW TAPTITE PAN M2x3.5 97L3101800 1 B
D CHASSIS FLOATING ASSY 97LA202700 1 A
F HOLDER ROLLER TOTAL ASSY 97LA202800 1 A
A CHASSIS SIDE TOTAL ASSY 1 A
13 SCREW TAPTITE PAN M2x3.5 97L3101800 3 B
14 SPRING HOLDER ROLLER 97L3003800 2 S
15 SPRING MOVING PLATE 97L3003900 1 S
16 SPRING SUSPENSION F 97L3004000 2 S
17 SPRING SUSPENSION R 97L3004100 2 S
C CHASSIS TOP TOTAL ASSY 97LA202900 1 A
18 SCREW TAPTITE PAN M2x3.5 97L3101800 4 B
19 SCREW TAPTITE SPL M2x3.5 97L3101300 2 B
20 PCB TOTAL ASSY 97LA0003P- 1 A
21 SCREW TAPTITE SPL M2x3.5 97L3101300 3 B
19
for ACP-0108Series
9. ELECTRICAL PARTS LIST
CAUTION R is a recommendable part for essential stock.
9-1. MAIN SECTION
No PART NAME PART CODE DESCRIPTION
CN103 CONN AS 97T8860900 RCA 100 E3P20(B)
CW101 CONNECTOR 97T6234800 PCE 100D-18RR-K(BK)
CW104 CONN DETACHABLE 97T62150A0 FP. S-12-3.2-GG
C348 C ELECTRO CEYE1C332E SD 16V 3300MF (13X25)
IC101 IC AUDIO 1SAA6579T- SAA6579T
IC204 IC CHIP CUSTOM 176S8016X4 UPD-178016AGC-579-3B9
IC301 IC CHIP EVR 1LC75371M- LC75371M MFP36S
IC302 IC POWER 1TDA8571J- TDA8571J-Y
IC501 1K1A7808P1 KIA7808PI
IC REGULATOR
IC503 1K1A7809P- KIA 7809P TO-220AB
J101 JACK ANT 97T6802500 9.5X20X27.5
LD101 LED DLT4H11G41 LT4H11G-41(RED)
L501 COIL CHOKE 5LC301PA18 37X1X5.2 300UH P EI-19MM
Q211,Q502 T2SB1566-- 2SB1566
TR
Q213 T2SD2395-- 2SD2395
RV101 R SEMI FIXED RV1417504- H500K-5X5-6N-PC-BS
10001 PCB MAIN AS AUTO PNMAJMKT01 ACP-0108RT
B001 PCB MAIN 97T65986MA 190X330XT1.6/2
CT101 5XJZ4R332D HC-49/S 4.332MHZ 25PPM F
CRYSTAL QUARTZ
CT201 5XJZ4R500E HC-49/S 4.5MHZ 30PPM F
DZ101 DKTZJ01B-- MTZJ 10B 26MM
DZ103,DZ501 DKTZJ9R1B- MTZJ 9R1B 26MM
DZ105,DZ106
DKTZJ5R6B- MTZJ 5R6B 26MM
Q201
DIODE ZENER
DZ202 DKTZJ7R5A- MTZJ 7R5A 26MM
DZ502 DKTZJ6R8B- MTZJ 6R8B 26MM
DZ503 DKTZJ6R2B- MTZJ 6R2B 26MM
DZ504 DKTZJ5R1A- MTZJ 5R1A 26MM
L101 5LL568K02K 0.56UH K 02 TA 26MM
COIL INDUCTOR
L102 5LL479K03K 4.7UH K 03 TA 26MM
Q101,Q319
TZRC111M-- KRC111M
Q320,Q501
Q102,Q103 TZTC3113B- KTC 3113B
TR
Q104,Q109
Q210,Q503 TZRC102M KRC102M(KEC)
Q504
20
PARTS LIST for ACP-0108Series
No PART NAME PART CODE DESCRIPTION
Q105,Q110 TZRA105M-- KRA-105M
Q106,Q212 TZTC3205Y- KTC3205Y (2236Y)
Q202,Q301
TR TZDTC323TS DTC323TSA SPT
Q302
Q507,Q508 TZTC3198Y- KRC102M(KEC)
Q506 TZTA1267Y- KTA1267Y TAPPING
9-2. FRONT SECTION
No PART NAME PART CODE DESCRIPTION
CB001 CABINET FRONT AS 97TCFA60GD ACP-0206RT
CB010 CABINET FRONT 97T0111400 ABS XR-404
CB020 KNOB PLAY 97T13E0600 ACRYL IH-830H
CB030 KNOB TUNING UP 97T13E0700 PC LEXAN -121
CB040 KNOB TUNING DOWN 97T13E0800 PC LEXAN -121
CB050 KNOB SEL 97T13E0900 PC LEXAN -121
CB060 KNOB PRESET -L 97T13D9900 PC LEXAN -121
CB070 KNOB PRESET -R 97T13E1700 PC LEXAN -121
CB080 KNOB AF 97T13E2100 PC LEXAN -121
CB090 KNOB TA/DISP 97T13E2200 PC LEXAN -121
CB100 KNOB EJECT 97T13E1100 PC LEXAN -121
CB110 KNOB BAND 97T13E1200 ACRYL IH-830H
CB120 CAP KNOB BAND 97T0440000 PC LEXAN - 121
CB140 KNOB LOUD 97T13E1400 ACRYL IH-830H
CB150 CAP KNOB LOUD 97T0440100 PC LEXAN - 121
CB160 KNOB AUT 97T13E1500 PC LEXAN - 121
CB170 CAP KNOB PLAY 97T0439900 PC LEXAN - 121
CB200 REFLECTION S.W 97T2226500 ACRYL IH-830H
CB002 CASE FRONT AS PNCFCA08GD AFK-8045RC
00010 CASE FRONT 97T0433200 PP
CB130 KNOB REL 97T13E1300 ABS XR-404
CB210 CABINET BACK 97T0111500 ABS XR-404
CB240 WINDOW LCD 97T1609800 ACRYL IH-830H
CB270 DECORATION 97T1001600 ACRYL
SUP18 CUSHION L 97T4227800 SPONGE T3.0
SUP19 CUSHION R 97T4227900 SPONGE T3.0
SUP25 SHEET WINDOW A 97T9610100 DOUBLE TAPE
SUP26 SHEET WINDOW B 97T9610200 DOUBLE TAPE
SUP28 SHEET DECO A 97T9610300 DOUBLE TAPE
21
PARTS LIST for ACP-0108Series
No PART NAME PART CODE DESCRIPTION
11001 PCB FRONT AS PNFRMBKT00 ACP-0106R
CW104 CONN DETACHABLE 97T62150B0 FP.P-14-3.4-GG
LCD LCD 97T0L1600P LS-09058P00
LD402,LD403 LED DDB3803X-- DB3803X(BLUE)
PL501,PL502
PL503,PL504
LAMP PILOT 97T82L6W95 9V50MA
PL505,PL506
PL507,PL508
SW516,SW517 SW TACT 5S52643CL1 1C-1P SKMA 1018A 260G
VR401 VR ENCODER 5V3503A70A SRGP 200 200
0F010 HOLDER LCD 97T2308300 PC LEXAN-121H
0F020 REFLECTION LCD 97T2226600 ACRYL IH-830H
0F030 SHEET LCD 97T9610000 TREPAL D112
0F040 COVER LCD 97T0440200 ET TO.3
11001 PCB FRONT AS AUTO PNFRJMKT00 ACP-0106R
B002 PCB FRONT 97T65986FR 190X221X1.6/5 FR-1
SW501,SW502
SW503,SW504
SW505,SW506
SW507,SW508
SW TACT 5S50101Z02 1C-19 SKQC10918B 260G
SW509,SW510
SW511,SW512
SW513,SW514
SW515,SW516
11002 PNFRJCKT00 PCB FRONT AUTO CHIP ACP-0106R
IC401 IC DRIVER(LCD) 1HL14104-- HL14104
9-3. PCB ISO AS SECTION
No PART NAME PART CODE DESCRIPTION
B006 PCB ISO 97T659661S 160X137.5X1.6/9
CW105 CONN AS 97T8856100 ISO 16P WITH 10A FUSE
22
E.PARTS LIST for ACP-0108Series
9-4. PCB FM 1-CHIP AS SECTION
No PART NAME PART CODE DESCRIPTION
AIF IFT AM 5105AYWA35 5DL-C5167
AOSC IFT OSC 5105ARDA34 5DL-C5146
ARF01 IFT MW RF1 5105AWHA32 5DL-C5165
ARF02 IFT MW RF2 5105AGNA33 5DP-N5166
ARF11 IFT LW RF2 5105AGYA36 5DLP-N5162
ARF21 IFT LW RF2 5105ABLA37 5DLP-C5163
CR01 FILTER MECHA 5PB456A12- CMU2-456A12
FDET IFT FM DET 5107FBKA30 7BS-C4024
FIF IFT FM IF 5105FORA29 5DLH-C5115
IC01 IC AUDIO ONE CHIP 1LA1875M-- LA1875M
IC02 IC AUDIO NC 1K1A6010SN KIA6010SN
IC03 IC RF 1LA1177--- LA1177 FM SIP TYPE
LOSC IFT OSC 5105ABRA38 5DL-N5164
L02 COIL ANT 5LA109KA22 0.5X3.4X3.5+3.0 R/NA
L04 COIL OSC 5L0109KA23 0.5X3.0X2.5+3.0 R/NA
L07 COIL TRAP 5LT109KA21 0.3X1.8X7 1/2 L/NA
00010 SHIELD CASE 97T3301000 STPE #50 TO.4
10001 PCB FM 1-CHIP AS AUT PNFCJMJV00 CAT-7-NC
B01 PCB TUNER 97T65987TU 190X110X1.6T
10002 PCB FM 1-CHIP AUTO PNFCJCJV00 CAT-7-NC
Q01 FET CHIP THN3G01JBL HN3G01J-BL
Q02 TKRC111S-B KRC111S
Q03,Q11 TKRC112S-- KRC-112S
Q04,Q12 TR CHIP
Q13,Q82 TSTC2412G- STC2412G SOP-23 DAG
Q83,Q84
Q05 FET T3SK23101D FET 3SK23101D
Q10 TKTC3879-B KTC3879
TR CHIP
Q81 TKRC110S-B KRC110S SOT-23
23
10. FUNCTION OF MICOM IC
10-1. PIN CONFIGURATION (TOP VIEW)
24
FUNCTION OF MICOM IC UPD178016GC
for ACP-0108 Seriese
10-2. PIN DESCRIPTION
PIN ASSIGN NAME DESCRIPTION I/O
77 P_XIN X1 4.5 MHz CRYSTAL I
76 P_XOUT X2 O
22 P_VDD VDDPORT PERMANENT POWER INPUT PORT )MAX : 6.5V
30 P_VDD VDDPLL
79 P_VDD VDD
22 P_GND GNDPORT GROUND
33 P_GND GNDPLL
75 P_GND GND
71 P_ACC P04/INTP4 BACK UP MODE CONTROL PORT. I
LOW : BACK UP MODE.
HIGH : OPERATING MODE.
18 P_POWER P40 POWER CONTROL PORT. O
POWER OFF LOW, POWER ON HIGH
7 P_LCD SI P20/SI1 KEY & LCD DRIVER IC INTERFACE PORTS. I
8 P_LCD S0 P21/SO1 O
9 P_LCD CLK P22/SCK1 O
10 P_LCD CE P23/STB O
12 P_EVR CE P25/SI0 EVR IC INTERFACE PORTS O
13 P_EVR SO P26/SO0 O
14 P_EVR CLK P27/SCK0 O
19 P_AMUTE P41 AUDIO MUTE PORT, ACTIVE HIGH O
59 P_BEEP P36/BEEP BEEP OUTPUT PORT. O
(2.08 KHz)
4 P_WRMC P00/INTP0 WIRE REMOCON INPUT PORT. I
67 P_RMC P24/BUSY WIRELESS REMOCON INPUT PORT. I
11 P_PANEL P42 DETACHABLE ON / OFF INPUT PORT. I
CONTACT LOW
SEPARATE HIGH
20 P_COLOR LCD BACK - LIGHTING COLOR CONTROL PORT O
RESET : COLOR LOW
TWO KEY IN : CHANGED
25
FUNCTION OF MICOM IC UPD178016GC
for ACP-0108 Series
PIN ASSIGN NAME DESCRIPTION I/O
66 P_WLED P125 WARNING LED OUTPUT PORT. O
OUT PUT CONDITION : PANEL OFF
1 : 3
T : 1Sec
42 P_PHONE P55 TELEPHONE MUTE (ACTIVE LOW) I
3 P-SE P12/AN12 SE KEY INPURT PORT (ACTIVE LOW) I
64 P-SIN1 P123 OPTION DIODE MATRIX INPUT PORT. I
63 P-SIN2 P122 I
62 P-SIN3 P121 I
61 P-SIN4 P120 I
60 P_DOUT1 P37 OPTION DIODE MATRIX OUTPUT PORT. O
58 P_DOUT2 P35 O
57 P_DOUT3 P34/T12 O
56 P_DOUT4 P33/T11 O
47 P_RADIO P62 RADIO MODE CONTROL PORT O
45 P_BAND1 P60 BAND SELECT PORT (TUNER MODE) O
46 P_BAND2 P61 RESET FM MW LW O
BAND1 : 0 1 0 0
BAND2 : 0 0 1 0
49 P_TMUTE P64 MUTE OUTPUT AT AF CHECKING O
(ACTIVE HIGH)
48 P_ST P63 STEREO INPUT PORT. (ACTIVE LOW) I
51 P_SD P66 SIGNAL DETECTION PORT. I
(ACTIVE HIGH)
1 P_SM P10/AN10 SIGNAL METER INPUT PORT. I
RANGE : SEEK : LOCAL : SD ACTIVE CHECK
DX : SD ACTIVE CHECK
AF AF CHECK STOP VOLTAGE 2.2 V
26
FUNCTION OF MICOMIC UPD178016GC
for ACP-0108 Series
PIN ASSIGN NAME DESCRIPTION I/O
31 P_FMVCO VCOH FM VCO INPUT PORT. I
INPUT RANGE : 0.07 1.5 Vrms
32 P_AMVCO VCOL AM VCO INPUT PORT. I
INPUT RANGE : 0.07 1.5 Vrms
29 P_FMIF FMIFC FM IF COUNT INPUT PORT. I
RANGE:10.7 MHz 30KHz ,Vpp = 0.07 1.5 Vrms
28 P_AMIF AMIFC AM IF COUNT INPUT PORT. I
INPUT RANGE : 450 KHz 1KHz (AM)
450 KHz 0.37 KHz (LM)
Vpp = 0.07 1.5 Vrms
50 P_IFREQ P65 IF REQUEST PORT. O
* TUNING : HIGH OUTPUT
44 P_LO/DX P57 LOCAL MODE HIGH O
DX MODE LOW
52 P_MONO P67 (RADIO MODE) O
MONO MODE HIGH
STREO MODE LOW
34 P_PUMP1 EO0 PLL ERROR OUT1 PORT. O
35 P_PUMP2 EO1 PLL ERROR OUT2 PORT. O
53 P_RDS DATA P30 RDS DATA INPUT PORT. I
54 P_RDS ID P31 I
68 P_RDS CLK P01/INTP1 I
2 P_MRC P11/ANI1 MULTI-PATH INPUT PORT. I
* MULTI-PATH : 0.6 0.9 V
43 P_CDC P56 CDC MODE ON OUTPUT PORT. O
ACTIVE HIGH
72 P_CDC DI P05/INTP5 CDC DATA COMMUNICATION PORT. I
16 P_CDC DO P133/PWM1 O
27
FUNCTION OF MICOMIC UPD178016GC
for ACP-0108 Series
PIN ASSIGN NAME DESCRIPTION I/O
15 P_TAPE P132/PWM0 TAPE MODE OUTPUT PORT. O
40 P_TAPE IN P50 TAPE CASSETTE CONDITION CHECK PORT I
LOW : EJECT CONDITION
HIGH : LOADING CONDITION
37 P_FWD IN P52 TAPE FWD/RVS PLAY CONDITION INPUT PORT I
RVS : HIGH FWD : LOW
38 P_FF IN P51 TAPE PLAY/FF CONDITION INPUT PORT I
PLAY : LOW FF : HIGH
25 P45 O
24 P_DOLBY P44 DOLBY MODE (ACTIVE HIGH) O
23 P_MTL P43 METAL ON : HIGH, METAL OFF : LOW OUTPUT. O
17 P_DMUTE P134/PWM2 DECK MUTE PORT, O
28
MATRIX TABLE OF KEY & OPT. DIODE
for ACP-0108 Series
KEY MATRIX TABLE :
Return
KI 1 (50) KI 2 (51) KI 3 (52) KI 4 (53) KI 5 (54)
Source
KS 6 (49) LOC/LOUD
T.UP T.DOWN - -
(B:LOC)
KS 5 (48) MI M2 M3 TA/TA-STBY AF/REG
(TOP) (INTRO) (REPEAT) (B:SCAN UP) (B:LOUD)
M5 AUT
M4 M6 DISP/PTY
KS 4 (47) (INTRO)
(SHUFFLE) (DISC DOWN) (DICS UP) (B:DISP) (INTRO)
CDP EJECT
KS 3 (46) Audio UP Audio DOWN Audio MODE POWER
/CDP RESET
CDP/CDC CDC BAND/
KS 2 (45) - MUTE
PLAY/PAUSE PLAY/PAUSE LANG
KS 1 (44) - - - - -
OPTION DIODE TABLE (MAIN PCB BOARD)
SOURCE
P_DOUT 1 P_DOUT 2 P_DOUT 3 P_DOUT 4
RETURN (P37, 60PIN) (P35, 60PIN) (P34, 57PIN) (P33, 56PIN)
P_SIN 1
SECURITY1 SECURITY2 SECURITY3 SECURITY4
(P123, 64PIN)
P_SIN 2
FM-ONLY EN-RDS LW ENABLE EN-DOLBY
(P122, 63PIN)
P_SIN 3
DIS-CLOCK TUNER 1,2 DIS-FAD MODEL1
(P121, 62PIN)
P_SIN 4
AREA 1 AREA 2 AREA 3 MODEL2
(P120, 61PIN)
29
11. IC BLOCK DIAGRAM
11-1. LC75854 (IC LCD DRIVER) :IC401
30
IC LOCK DIAGRAM
11-2. SAA6579T (IC Audio):IC101
31
IC BLOCK DIAGRAM
11-3. TDA8571J (IC Audio Power):IC304
32
IC BLOCK DIAGRAM
11-4. LC75371M (IC EVR) : IC303
33
12. LIQUID CRYSTAL DISPLAY
12-1. AKL-5010RC
IC NO 39 38 37 36 35 34 33 31 32 6 7 8 9 10 11
LCD NO. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
COM1 -- T1 1A CH AF 9H 9A T2 TRACK 8H 8A T3 COL1 7H 7A
COM2 CD RPT 1B 1F 9B 9G 90 9F 8B 8G 80 8F 7B 7G 70
COM3 MY RDM 1C 1G 9I 9K 9L 9N 8I 8K 8L 8N 7I 7K 7L
COM4 LOUD INT 1D 1E 9C 9D 9M 9E 8C 8D 8M 8E 7C 7D 7M
IC NO 12 13 14 15 30 29 28 27 26 25 24 23 22 21 20
LCD NO. 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
COM1 DICS LOC 6H 6A COL AUT 5H 5A T4 PTY 4H 4A T5 TP 3H
COM2 7F 6B 6G 60 6F 5B 5G 50 5F 4B 4G 40 4F 3B 3G
COM3 7N 6I 6K 6L 6N 5I 5K 5L 5N 4I 4K 4L 4N 3I 3K
COM4 7E 6C 6D 6M 6E 5C 5D 5M 5E 4C 4D 4M 4E 3C 3D
IC NO 19 18 17 16 5 4 3 40 41 42 43
LCD NO. 31 32 33 34 35 36 37 38 39 40 41
COM1 3A TA REG 2H 2A ST T9 COM1 --- --- ---
COM2 30 3F 2B 2G 20 2F T8 --- COM2 --- ---
COM3 3L 3N 2I 2K 2L 2N T7 --- --- COM3 ---
COM4 3M 3E 2C 2D 2M 2E T6 --- --- --- COM4
34
13. OUTPUT CONNECTOR DESCRIPTIONS
13-1. 26 Pin CONNECTOR
The pins in the ISO connector have the following functions
(connector seen from the rear)
A. ELECTRIC CONNECTIONS
1. T.Mute : Brown
4. Back-up+12V : YELLOW
5. +12V (electric antenna) : BLUE
6. Dimmer : PINK
7. +12V supply(from ignition lock) : RED
8. Earth : BLACK
B. LOUD SPEAKER
1. +Right Rear : VIOLET
2. - Right Rear : VIOLET/BLACK
3. +Right Front : GRAY
4. - Right Front : GRAY/BLACK
5. +Left Front : WHITE
6. - Left Front : WHITE/BLACK
7. +Left Rear : GREEN
8. - Left Rear : GREEN/BLACK
C. OTHER (OPTION)
5. EARTH
6. TRIP LINE AMPLIFIER(ACC 12V)
8. LINE-OUT(RIGHT)
10. LINE-OUT(LEFT)
D. FUSE
10A
13-2. 8 Pin CONNECTOR
1 CDC-ON
2 BACK-UP B+
3 NO CONNECTION
4 DATA
5 GROUND
6 R-CH
7 L-CH
8 SIGNAL GROUND
35
OUTPUT CONNECTOR DESCRIPTION
13-3. 13PIN CONNECTOR
1 REAR LEFT SP(-) 8 REAR RIGHT SP(+)
2 REAR RIGHT SP(-) 9 NEGATIVE GROUND
3 AUTO ANT 10 RIGHT (ILLUMINATION)
4 ACC B(+)POWER 11 BATTERY B+(BACK-UP)
5 FRONT RIGHT SP(+) 12 FRONT RIGHT SP(-)
6 FRONT LEFT SP(+) 13 FRONT LEFT SP(-)
7 REAR LEFT SP(+)
13-4. 18PIN CONNECTOR
1 FRONT R-CH SP(+) 7 REAR L-CH SP(+) 13 NO CONNECTION
2 REAR R-CH SP(+) 8 FRONT L-CH SP(+) 14 GROUND
3 ILLUMINATION(+) 9 FRONT R -CH SP( - ) 15 NO CONNECTION
4 ACC. B(+) 10 REAR R-CH SP( - ) 16 NO CONNECTION
5 BACK UP B+ 11 ILLUMINATION( - ) 17 REAR L-CH SP ( - )
6 NO CONNECTION 12 AUTO ANT. B+ 18 FRONT L-CH SP( - )
NOTE! The red cable must be connected via the car s ignition lock to prevent unwanted discharge of
the battery if it is not used for longer periods of time.
36
DAEWOO ELECTRONICS CO., LTD
686, AHYEON-DONG MAPO-GU
SEOUL, KOREA
C.P.O. BOX 8003 SEOUL, KOREA
TELEX : DWELEC K28177-8
CABLE : "DAEWOOELEC"
E-mail : [email protected]
TEL : 82-2-360-7799
FAX : 82-2-360-7877
AKR0108EFO
010301
edited by Mc. Cem
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
