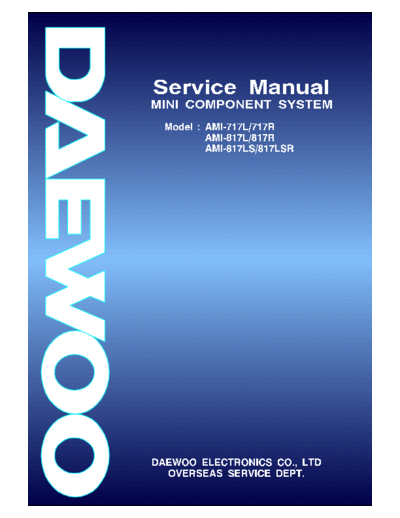

Image preview - the first page of the document
>> Download AMI-717L & 817L & 817LS documenatation <<
Text preview - extract from the document
FIGURE 1
EXAMPLE OF ANTENNA GROUNDING
AS PER NATIONAL
ELECTRICAL CODE
ANTENNA
LEAD IN
WIRE
PORTABLE GROUND
CLAMP
CART ANTENNA
WARNING DISCHARGE UNIT
(NEC SECTION 810-20)
ELECTRIC
SERVICE
EQUIPMENT
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
NEC : NATIONAL ELECTRICAL CODE
FIGURE 2
FM RF SSG FM Antenna
Terminal(75 ohm)
75 ohm Coaxal
SET
Carrier Frequency : 98MHz
Output Level : 26dBuV
Modulation:Audio 1kHZ, 75kHz Deviation
RF Signal Waveform
VOLT/DIV : 200mV
TIME/DIV : 50ns
Level : 1.2+0.3Vp-p
Traverse Waveform
A
0V
B
Output Level
Measurement Input Point
Point Scope
R-CH 47 kohm
VTVM
Input Level
Measurement
Point
L-CH 47 kohm
Adjust with Frequency
Counter Connected
Test Tape : MTT-111N(3kHz) Frequency Counter
MTT-5511(Blank)
Set
Output Level
Measurement Point
Forward Reverse
Side Side
Test Tape
MTT-114N
(10kHz)
L-CH L-CH Oscilloscope
Peak
Set V H
within
Output Level
1 dB
within
1 dB
R-CH Output Level
Peak Measurement Point
Screw
Angle
Screen Pattern
L-CH R-CH Screw Angle In Phase 45 90 135 180
Peak Peak
Good Wrong
2. EXPLODED VIEW AND MECHANICAL PARTS LIST
u AMI - 717L / 717R / 817L / 817R / 817LS / 817LSR
-6-
Q'ty
No. Parts Name Parts Code Description
717L/717R 817L/R/LS/LSR
WINDOW DOOR A/B 9CD1613900 ACRYL 1 1
1
WINDOW DOOR A/B 9CD1614000 ACRYL 1 1
COVER DOOR A/B 9CD0410200 MIPS 1 1
2
COVER DOOR A/B 9CD0410300 MIPS 1 1
DOOR FRAME A/B 9CD1809400 ABS 1 1
3
DOOR FRAME A/B 9CD1809500 ABS 1 1
4 SPRING DOOR EJECT L 9CD30078L0 SUS D0.8 1 1
5 SPRING DOOR EJECT R 9CD30078R0 SUS D0.8 1 1
6 KNOB VOLUME 9CD1334400 ABS 1 1
7 KNOB EQ 9CD1334600 ABS 1 1
8 KNOB OPEN 9CD1335900 ABS 1 1
9 KNOB FUNCTION 9CD1334300 ACRYL CLEAR 4 4
10 KNOB MODE 9CD1334900 ABS 1 1
11 KNOB SUPER 9CD1334500 ABS 1 1
12 KNOB DISC 9CD1334200 ACRYL MILKY 1 1
13 KNOB REC 9CD1334700 ABS 1 1
14 WINDOW FLT 9CD1613700 ACRYL 1 1
15 BRKT.SIDE 9CD2412900 ABS 1.5GR 2 2
16 DECO VR 9CD1002400 MIPS 1 1
17 COVER LED 9CD0409700 MIPS WHITE 1 1
18 WINDOW DECO 9CD1613800 ACRYL SMOG 1 1
GUIDE FLT 9CD2505900 AMI-317L,AMI-717L 1 -
19
GUIDE FLT 9CD2505600 AMI-817L,AMI-917L - 1
20 PANEL FRONT 9CD0305900 MIPS 1 1
21 DAMPER ASSY 9CDM029800 ABS/ACETAL 2 2
22 LOCKER ASSY 9CDM029900 ABS/ACETAL 2 2
CASS.DECK(A/S) 9CD6007000 S/S ADR-2138MW 1 1
23
CASS.DECK(A/S) 9CD6006800 S/S ADR-2136SW - -
24 HOLDER PCB DECK 9CD2303600 MIPS 16.5GR(AMI-917L) 2 2
25 CD DECK MECHA. 9CD6006900 DCC-01B 1 1
26 HEAT SINK 9CD4402800 BSP 0.5T 1 1
27 DOOR CD 9CD1809300 MIPS 1 1
CHASSIS BOTTOM 9CD0607100 AMI-717L,AMI-817L,AMI-917L 1 1
28
CHASSIS BOTTOM 9CD0607500 AMI-317L - -
HEAT SINK 1 9CD4404500 AL - -
HEAT SINK 3 9CD4404600 AL 1 -
29
HEAT SINK 5 9CD4404700 AL - 1
HEAT SINK 7 9CD4404300 AL - -
30 HEAT SINK P 9CD4404200 AL T2.0 - -
31 CUSHION FOOT 9CD4207700 URETHAN FOAM RUBBER 2 2
COVER BACK 9CD0409801 MIPS 1 -
32 COVER BACK 9CD0409803 MIPS - 1
COVER BACK 9CD0409804 MIPS - -
33 WINDOW TOP 9CD1612900 ACRYL SMOG - 1
COVER TOP 9CD0409600 MIPS 1 -
34
COVER TOP 9CD0409100 MIPS - 1
35 COVER SIDE L 9CD0409200 MIPS 1 1
36 COVER SIDE R 9CD0409300 MIPS 1 1
37 DECO TOP 9CD1002200 ACRYL CLEAR - 1
38 BRKT.PCB A 9CD2413100 SECC 1.0T - -
39 FILTER LED 9CD4700700 PC 0.15T 1 1
40 PLATE FLT 9CD0909800 PVC SHEET T1.0 2 -
41 PLATE FUNCTION 9CD0910000 PVC SHEET T0.5 1 1
42 BADGE DAEWOO 9CD1500900 ABS HOT STAMPING 1 1
43 BRKT.HEAT TR. 9CD2413900 SUS T0.4 - -
44 HOLDER AC CORD 9CD2303300 ABS 4.0GR 1 1
PCB MAIN 9CD6574900 AMI-917L - -
P1 PCB MAIN 9CD6575200 AMI-317L - -
PCB MAIN 9CD6575300 AMI-717,817L 1 1
P2 PCB POWER 9CD6575000 AMI-917L - -
PCB FRONT 9CD6575100 AMI-917L - -
P3 PCB FRONT 9CD6575600 AMI-817L - 1
PCB FRONT 9CD6575900 AMI-317,717L 1 -
P4 PCB CD 9CD6574800 AMI-317,717,817,917L 1 1
P5 PCB DECK 9CD6573400 AMI-917L - -
P6 PCB LED 9CD6574801 AMI-817L,AMI-917L - 1
S1 SCREW TAPTTITE 7173261011 TT2 BIN 2.6X10 MFZN 12 12
S2 SCREW TAPTTITE 7173301012 TT2 BIN 3.0X10 BK 35 37
S3 SCREW TAPTTITE 7173301212 TT2 BIN 3.0X12 BK 7 7
S4 SCREW TAPTTITE 7173400611 TT2 BIN 4X6 MFZN 8 8
S5 SCREW TAPTTITE 7173300611 TT2 BIN 3X6 MFZN - -
W1 WASHER SCREW 9CD3102400 TT2 BIN 3X10 + D14 2 2
3. WIRING DIAGRAM
u AMI - 717L / 717R / 817L / 817R / 817LS / 817LSR
-8-
4. BLOCK DIAGRAM
u AMI - 717L / 717R / 817L / 817R / 817LS / 817LSR
-9-
5. SCHEMATIC DIAGRAM
u POWER / AMP
w AMI - 717L / 717R
- 10 -
u POWER / AMP
w AMI - 817L / 817R
- 11 -
u POWER / AMP
w AMI - 817LS / 817LSR
- 12 -
u CD
w AMI - 717L / 717R / 817L / 817R
- 13 -
u TUNER
w AMI - 717L / 717R / 817L / 817R / 817LS / 817LSR
- 14 -
u TUNER-FTZ (OPTIONAL)
w AMI - 717L / 717R / 817L / 817R / 817LS / 817LSR
- 15 -
u TAPE
w AMI - 717L / 717R / 817L / 817R / 817LS / 817LSR
- 16 -
u CONTROL
w AMI - 717L / 717R / 817L / 817R
- 17 -
u CONTROL
w AMI - 817LS / 817LSR
- 18 -
PCB PATTERN LAYOUT
AMP/POWER/TAPE/TUNER
19
PCB PATTERN LAYOUT
CD
20
PCB PATTERN LAYOUT
CONTROL
21
Q'ty
No. Parts Name Parts Code Description Location
717R 717L
1 AM RF UNIT 5LR0000826 RBW07VB-K5020 1 1 L101
2 ANT AM LOOP 5LA180K828 LOOP-7 1 1 AT101
3 ANTENNA FM 9736806000 2M T-ANT 1 1 AT102
4 C CERA CCXB1H101K 50V B 100PF K (TAPPING) 1 1 CC203
5 C CERA CCXB1H102K 50V B 1000PF K (TAPPING) 4 4 CC001 CC253 CC254 CC605
6 C CERA CCXB1H221K 50V B 220PF K (TAPPING) - 2 CC803 CC804
7 C CERA CCXB1H331K 50V B 330PF K (TAPPING) 5 2 [CC270 CC278 CC279] CM607 CM608
8 C CERA CCXB1H332K 50V B 3300PF K (TAPPING) 2 2 CC801 CC802
9 C CERA CCXB1H471K 50V B 470PF K (TAPPING) 2 - CC803 CC804
10 C CERA CCXB1H472K 50V B 4700PF K (TAPPING) 3 5 CC213 CC811 CC812 [CC813 CC814]
11 C CERA CCXB1H561K 50V B 560PF K (TAPPING) 2 2 CC210 CC211
12 C CERA CCXB1H681K 50V B 680PF K (TAPPING) 2 2 CM601 CM602
13 C CERA CCXB1H682K 50V B 6800PF K (TAPPING) 1 1 CC204
14 C CERA CCXB1H821K 50V B 820PF K (TAPPING) 4 4 CC601 CC602 CC603 CC604
CC002 CC004 CC102 CC201 CC205
CC206 CC207 CC209 CC251 CC252
[CC257 CC275] CC501 CC502 CC503
15 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 30 28
CC507 CC515 CC521 CC529 CC535
CC536 CC607 CC817 CC818 CC906
CC907 CC931 CC932 CC933 CC934
CC005 CC006 CC101 CC103 CC202
CC463 CC483 CC504 CC505 CC506
CC511 CC512 CC513 CC526 CC527
16 C CERA CCXF1H104Z 50V F 0.1MF Z 29 29
CC537 CC544 CC608 CC705 CC708
CC709 CC712 CC716 CC723 CC807
CC902 CC903 CC904 CC905
CC701 CC703 CC704 CC707 CC715
17 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 7 7
CC808 CC901
18 C CERA CCXF1H473Z 50V F 0.047MF Z (TAPPING) 5 5 CC212 CC509 CC522 CC528 CC609
19 C CERA CCZB1E102K 25V B 1000PF K (AXIAL) 3 3 CC520 CC533 CC534
20 C CERA CCZB1E151K 25V B 150PF K (AXIAL) 2 2 CC531 CC532
21 C CERA CCZB1E152K 25V B 1500PF K (AXIAL) 1 1 CC523
22 C CERA CCZB1E222K 25V B 2200PF K (AXIAL) 2 2 CC510 CC516
23 C CERA CCZB1E391K 25V B 390PF K (AXIAL) 1 1 CC508
24 C CERA CCZB1E472K 25V B 4700PF K (AXIAL) 3 3 CC518 CC542 CC543
25 C CERA CCZB1E682K 25V B 6800PF K (AXIAL) 1 1 CC514
CC461 CC462 CC481 CC482 CC710
26 C CERA CXCH1H101J 50V CH 100PF J (TAPPING) 10 10
CC719 CC720 CC724 CC725 CC726
27 C CERA CXCH1H120J 50V CH 12PF J (TAPPING) 1 1 CC104
28 C CERA CXCH1H150J 50V CH 15PF J (TAPPING) 2 2 CC711 CC717
29 C CERA CXCH1H180J 50V CH 18PF J (TAPPING) 1 1 CC718
30 C CERA CXCH1H330J 50V CH 33PF J (TAPPING) 5 5 CC255 CC256 CC706 CC713 CC714
31 C CERA CXCH1H470J 50V CH 47PF J (TAPPING) 1 - CC277
32 C CERA CXCH1H560J 50V CH 56PF J (TAPPING) 2 2 CC805 CC806
33 C CERA CXCH1H820J 50V CH 82PF J (TAPPING) 1 - CC276
34 C CERA CZCH1E609K CH 25V 6PF K AXIAL 1 1 CC519
35 C CERA CZCH1E809K CH 25V 8PF K AXL 52MM 1 1 CC517
36 C CERA CZCH1H270J CH 50V 27PF J AXL 52MM 2 2 CC524 CC525
37 C ELECTRO CEXE1C102A 16V RS 1000MF 13X20 1 1 CE515
38 C ELECTRO CEXF1A102V 10V RSS 1000MF (10X16) TP 1 1 CE706
39 C ELECTRO CEXF1C221V 16V RSS 220MF (8X11.5) TP 5 5 CE507 CE511 CE512 CE513 CE517
CE201 CE214 CE251 CE506 CE508
40 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 10 10
CE509 CE510 CE514 CE516 CE524
41 C ELECTRO CEXF1E221V 25V RSS 220MF (8X11.5) TP 2 2 CE102 CE213
CE001 CE203 [CE272] CE487 CE518
CE523 CE601 CE602 CE605 CE608
42 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 20 19
CE611 CE612 CE618 CE624 CE626
CE902 CE932 CE933 CE934 CE935
CE206 CE471 CE501 CE504 CE603
43 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 10 10
CE604 CE621 CE708 CE807 CE808
CE707 CE804 CE805 CE809 CE811
44 C ELECTRO CEXF1H101V 50V RSS 100MF (8X11.5) TP 7 7
CE812 CE813
CE205 CE207 CE208 CE209 CE210
45 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 14 14 CE211 CE486 CE613 CE614 CE615
CE616 CE620 CE622 CE704
46 C ELECTRO CEXF1H220V 50V RSS 22MF (5X11) TP 1 1 CE204
47 C ELECTRO CEXF1H228V 50V RSS 0.22MF (5X11) TP 1 1 CE212
CE101 CE472 CE473 CE474 CE475
CE476 CE477 CE478 CE479 CE480
48 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 24 24 CE481 CE482 CE483 CE484 CE485
CE488 CE489 CE606 CE619 CE625
CE701 CE702 CE801 CE802
49 C ELECTRO CEXF1H339V 50V RSS 3.3MF (5X11) TP 4 3 CE202 [CE273] CE609 CE617
50 C ELECTRO CEXF1H470V 50V RSS 47MF (6.3X11) TP 4 4 CE803 CE810 CE903 CE904
51 C ELECTRO CEXF1H478V 50V RSS 0.47MF (5X11) TP 4 4 CE502 CE503 CE505 CE623
52 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP 4 4 CE519 CE520 CE521 CE522
53 C ELECTRO CEYF1E222V 25V RSS 2200MF (16X25) 1 1 CE905
54 C ELECTRO CEYF1H222V 50V RSS 2200MF (18X35.5) 2 2 CE906 CE907
55 C MYLAR CMXM1H102J 50V 0.001MF J (TP) 2 2 CM605 CM606
56 C MYLAR CMXM1H103J 50V 0.01MF J (TP) 4 4 CM202 CM203 CM204 CM205
CM473 CM474 CM475 CM476 CM801
57 C MYLAR CMXM1H104J 50V 0.1MF J 8 8
CM802 CM901 CM904
58 C MYLAR CMXM1H122J 50V 0.0012MF J 2 2 CM505 CM506
Q'ty
No. Parts Name Parts Code Description Location
717R 717L
59 C MYLAR CMXM1H153J 50V 0.015MF J (TP) 1 1 CM201
60 C MYLAR CMXM1H183J 50V 0.018MF J 3 3 CM471 CM478 CM503
61 C MYLAR CMXM1H223J 50V 0.022MF J 5 5 CM472 CM477 CM603 CM604 CM613
62 C MYLAR CMXM1H332J 50V 3300 PF J 2 2 CM611 CM612
63 C MYLAR CMXM1H333J 50V 0.033MF J (TP) 2 2 CM501 CM504
64 C MYLAR CMXM1H472J 50V 0.0047MF J 3 3 CM614 CM615 CM616
65 C MYLAR CMXM1H473J 50V 0.047MF J 4 2 [CC813 CC814] CM609 CM610
66 C MYLAR CMXM1H562J 50V 5600 PF J 4 4 CM206 CM207 CM479 CM480
67 C MYLAR CMXM1H683J 50V 0.068 MF J 1 1 CM502
68 CLIP FUSE 9734600700 FC-5N 2 2 FC901 FC902
69 COIL BIAS OSC 5L0503K643 SM-10F 5.04MH 1 1 L601
70 COIL CHOKE 5LC682K822 6.8MH 2 2 L204 L205
71 COIL DESCRIMINATOR 5107FBK473 7X7 BLK KSZ-73S 1 1 L203
72 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 2 2 L001 L251
73 CONN AS 9736407600 PIN BASE 53095-1310 13P 1 1 CN401
74 CONN AS 9738832100 7P 200 P=2.5 BOARDIN 1 1 CN509 CW509
75 CONN AS 9738833300 UL2851 #28 3P SHIELD 250M 1 1 CN601 CW601
76 CONN AS 9738833500 #28 6P SHIELD 250MM 1 1 CN602 CW602
77 CONN AS 9738833700 #26 8P FLAT 220MM 1 1 CN701 CW701
78 CONN AS 9738833900 #22 8P BOARD-IN 300MM 1 1 CN901 CW901
79 CONN AS 9738834000 #26 2.0PITCH 11P FLAT 150 1 1 CN703
80 CONN AS 9738834100 #26 13P FLAT 100MM 1 1 CN704
81 CONN AS 9738840800 FFC 16P P1.0X250MM R 1 1 CN501
82 CONN AS 9738840900 FFC 19P P1.25X110MM K 1 1 CN508
83 CONN PIN 9736407800 53095-1010 10PIN ANGLE 1 1 CN402
84 CONN WAFER 9736407900 52084-1010 10P BOTTOM 1 1 CW402
85 CONN WAFER 9736408300 52492-1920 19P BOTTOM 1 1 CW702
86 CONN WAFER 9736408400 52045-1945 19P 1 1 CW508
87 CONN WAFER 9CD6258800 2P S2B-XH-A 1 1 CW101
88 CONN WAFER 9CD6259300 52807-1610 1 1 CW501
89 CONN WAFER 9CD6259400 2001-WS-12P 1 1 CW507
90 CONN WAFER 9CD6259500 2001-WS-6P 1 1 CW503
91 CONN WAFER 9CD6259600 2503-WS-2P 1 1 CW502
92 CORD AC 9736900200 KKP419C,KLCE-2F,0.75SQURE 1 1 CD901
93 CRYSTAL QUARTZ 5XA32R768- DT-38 32.768KHZ 20PPM 1 1 XC702
94 DIODE D1N4001- 1N4001 4 4 D801 D802 D901 D902
95 DIODE D1N5402- 1N5402 4 4 D905 D906 D907 D908
96 DIODE DRL202-- RL202 2 2 D903 D904
D201 D471 D501 D502 D601
D602 D705 D706 D707 [D708]
97 DIODE DZN4148- 1N4148 AUTO 52MM 16 15
D709 D710 D711 D712 D713
D931
98 DIODE ZENER DKTZ30A- MTZ 30A 1 1 DZ902
99 DIODE ZENER DZTZ3R9B-- MTZ3.9B 1 1 DZ502
100 DIODE ZENER DZTZ5R6B-- UZ-5.6B 3 3 DZ501 DZ503 DZ504
101 DIODE ZENER DZTZ6R2A-- MTZ-6.2 52MM TAPPING 1 1 DZ901
102 FET TZTK117Y-- KTK117(Y) AUTO 2 2 Q601 Q602
103 FILTER 5PPCFAZ077 PCFAZ077 1 1 CF201
104 FILTER CERA 5PE107MJA- SFE 10.7MHZ RED 1 1 CF002
105 FILTER CERA 5PE107MS2A SFE107MS2-A 1 1 CF001
106 FUSE GLASS TUBE 5FSGB8012L SEMKO MF51 800MA 250V TL 1 1 F901
107 IC 1BA1450S-- BA1450S 1 1 IC201
108 IC 1BU4094BCF BU4094BCF(SOP16) 2 2 IC603 IC706
109 IC 1DBL2084-- DBL2084(D/W) 2 2 IC504 IC506
110 IC 1L4959-- L4959 1 1 IC901
111 IC 1LC72130-- LC72130 1 1 IC202
112 IC 1M24C04- M24C04-BN6 1 1 IC701
113 IC 1M38199316 U-COM M38199 1 1 IC705
114 IC 1MC7805- MC 7805 (KA7805) 1 1 IC205
115 IC 1MSGEQ5A-- MSGEQ5A 1 1 IC702
116 IC 1STK41422- STK-4142-2 1 1 IC801
117 IC 1TA8189N-- TA8189N 1 1 IC601
118 IC 1TDA7479D- TDA7479D 1 - IC204
119 IC AMSS 1LA2000- LA2000 1 1 IC604
120 IC AUDIO 1KA9270- KA9270 1 1 IC505
121 IC AUDIO 1TDA7439-- TDA7439 1 1 IC471
122 IC AUDIO DSP 1KA9282B-- KA9282B 1 1 IC502
123 IC CHIP 1KA9258D-- KA9258D 1 1 IC503
124 IC CHIP RF 1KA9220B-- KA9220B 1 1 IC501
125 IC PRE AMP 1TM97CT38P LTM97CT-38P 1 1 IC704
126 IC SWITCHING 1BA7755A-- BA7755A (HEAD SW) 1 1 IC602
127 JACK ANTENNA 9736322200 T-646 1 1 J001
128 JACK HEADPHONE 9766319501 HTJ-064-05B GOLD 1 1 J901
129 JACK RCA 9CD6313700 S-436P 1 1 J461
130 JACK SPEAKER 9736320500 CJ-9007-040 1 1 J902
131 LED DLTL16KEE- LTL-16KEE(RED)PI3.1 4 4 LD703 LD706 LD709 LD712
LD701 LD702 LD704 LD705 LD707
132 LED DLTL16KGE- LTL-16KGE(GREEN)PI3.1 8 8
LD708 LD710 LD711
133 LED DLTL307EE- LTL-307EE(RED)PI5 1 - LD713
134 PIN WAFER 9736407700 52084-1310 13P BOTTOM 1 1 CW401
TP501 TP502 TP503 TP504 TP901
135 PIN WRAPPING 9713550400 1.0X2.5X15 6 6
TP902
Q'ty
No. Parts Name Parts Code Description Location
717R 717L
136 R CARBON FILM RD-2Y229J- 1/2 2.2 OHM J 1 1 R550
137 R CARBON FILM RD-4Z100J- 1/4 10 OHM J 2 2 R588 R589
138 R CARBON FILM RD-4Z101J- 1/4 100 OHM J 2 2 R814 R819
R812 R815 R824 R825 R826
139 R CARBON FILM RD-4Z103J- 1/4 10K OHM J 7 7
R827 R853
140 R CARBON FILM RD-4Z124J- 1/4 120K OHM J 1 1 R813
141 R CARBON FILM RD-4Z222J- 1/4 2.2K OHM J 2 2 R811 R820
142 R CARBON FILM RD-4Z393J- 1/4 39K OHM J 1 1 R828
143 R CARBON FILM RD-4Z472J- 1/4 4.7K OHM J 4 4 R809 R810 R821 R822
144 R CARBON FILM RD-4Z475J- 1/4 4.7M OHM J 1 1 R2
145 R CARBON FILM RD-4Z561J- 1/4 560 OHM J 2 2 R805 R806
146 R CARBON FILM RD-4Z563J- 1/4 56K OHM J 2 2 R807 R808
147 R CARBON FILM RD-4Z681J- 1/4 680 OHM J 4 4 R846 R847 R848 R849
148 R CARBON FILM RD-4Z683J- 1/4 68K OHM J 1 1 R823
149 R CARBON FILM RD-4Z689J- 1/4 6.8 OHM J 4 4 R842 R843 R844 R845
R004 R009 R206 R255 R545
150 R CARBON FILM RD-AZ100J- 1/6 10 OHM J 7 7
R720 R907
R008 R102 R227 R228 R301
R304 R313 R482 R546 R635
151 R CARBON FILM RD-AZ101J- 1/6 100 OHM J 20 20
R654 R663 R664 R672 R719
R724 R728 R730 R801 R802
R208 R215 R216 R251 R256
R260 R261 R262 R263 R323
R421 R422 R480 R481 R484
R485 R488 R489 R511 R521
152 R CARBON FILM RD-AZ102J- 1/6 1K OHM J 44 44
R522 R563 R564 R580 R601
R602 R603 R604 R613 R614
R636 R647 R659 R725 R727
R734 R736 R737 R73
L208 R213 R214 R254 R257
R258 R487 R579 R619 R620
R624 R639 R640 R641 R642
R653 R705 R708 R709 R711
153 R CARBON FILM RD-AZ103J- 1/6 10K OHM J 40 40
R712 R713 R714 R715 R716
R721 R722 R731 R733 R735
R738 R755 R765 R776 R777
R905 R931 R932 R93
R109 R471 R472 R473 R474
R502 R510 R518 R519 R548
154 R CARBON FILM RD-AZ104J- 1/6 100K OHM J 19 19
R549 R567 R568 R584 R585
R648 R671 R762 R764
R505 R508 R559 R560 R622
155 R CARBON FILM RD-AZ105J- 1/6 1M OHM J 6 6
R665
156 R CARBON FILM RD-AZ106J- 1/6 10M OHM J 1 1 R717
157 R CARBON FILM RD-AZ109J- 1/6 1 OHM J 2 2 R901 R902
158 R CARBON FILM RD-AZ121J- 1/6 120 OHM J 1 1 R551
159 R CARBON FILM RD-AZ122J- 1/6 1.2K OHM J - 1 R753
R259 R509 R523 R531 R532
160 R CARBON FILM RD-AZ123J- 1/6 12K OHM J 10 10
R533 R538 R539 R557 R558
161 R CARBON FILM RD-AZ124J- 1/6 120K OHM J 1 1 R513
162 R CARBON FILM RD-AZ151J- 1/6 150 OHM J 5 5 R302 R305 R314 R627 R628
163 R CARBON FILM RD-AZ152J- 1/6 1.5K OHM J 4 4 R325 R778 R779 R780
164 R CARBON FILM RD-AZ153J- 1/6 15K OHM J 5 5 R463 R464 R515 R553 R554
165 R CARBON FILM RD-AZ154J- 1/6 150K OHM J 2 2 R503 R525
166 R CARBON FILM RD-AZ181J- 1/6 180 OHM J 3 3 R303 R306 R315
167 R CARBON FILM RD-AZ182J- 1/6 1.8K OHM J 3 3 R401 R402 R741
168 R CARBON FILM RD-AZ183J- 1/6 18K OHM J 5 5 R201 R203 R526 R643 R644
R504 R625 R626 R637 R638
169 R CARBON FILM RD-AZ184J- 1/6 180K OHM J 6 6
R651
170 R CARBON FILM RD-AZ220J- 1/6 22 OHM J 1 1 R534
171 R CARBON FILM RD-AZ221J- 1/6 220 OHM J 3 3 R552 R903 R904
R211 R212 R253 R264 R433
172 R CARBON FILM RD-AZ222J- 1/6 2.2K OHM J 11 11 R434 R486 R581 R742 R745
R747
R107 R423 R424 R528 R530
173 R CARBON FILM RD-AZ223J- 1/6 22K OHM J 8 7
R615 R616 [R753]
174 R CARBON FILM RD-AZ224J- 1/6 220K OHM J 4 4 R629 R630 R723 R726
R307 R316 R769 R771 R773
175 R CARBON FILM RD-AZ271J- 1/6 270 OHM J 6 6
R775
R222 R223 R431 R432 R475
176 R CARBON FILM RD-AZ272J- 1/6 2.7K OHM J 8 8
R478 R617 R618
177 R CARBON FILM RD-AZ273J- 1/6 27K OHM J 3 3 R542 R555 R556
178 R CARBON FILM RD-AZ331J- 1/6 330 OHM J 5 5 R007 R308 R317 R483 R670
R005 R106 R221 R324 R516
179 R CARBON FILM RD-AZ332J- 1/6 3.3K OHM J 7 7
R541 R543
180 R CARBON FILM RD-AZ333J- 1/6 33K OHM J 4 4 R621 R655 R656 R756
181 R CARBON FILM RD-AZ334J- 1/6 330K OHM J 5 5 R650 R673 R718 R761 R763
182 R CARBON FILM RD-AZ390J- 1/6 39 OHM J 1 - R767
R309 R318 R768 R770 R772
183 R CARBON FILM RD-AZ391J- 1/6 390 OHM J 6 7
R774
184 R CARBON FILM RD-AZ392J- 1/6 3.9K OHM J 5 5 R403 R404 R529 R633 R634
Q'ty
No. Parts Name Parts Code Description Location
717R 717L
R520 R537 R572 R586 R587
185 R CARBON FILM RD-AZ393J- 1/6 39K OHM J 6 6
R759
186 R CARBON FILM RD-AZ470J- 1/6 47 OHM J 5 4 R003 R209 R252 [R275] R657
187 R CARBON FILM RD-AZ471J- 1/6 470 OHM J 2 2 R310 R319
R101 R103 R104 R105 R207
R210 R547 R561 R562 R565
188 R CARBON FILM RD-AZ472J- 1/6 4.7K OHM J 25 25 R566 R573 R574 R575 R576
R577 R578 R582 R583 R645
R646 R662 R669 R752 R787
189 R CARBON FILM RD-AZ473J- 1/6 47K OHM J 4 4 R512 R658 R750 R751
190 R CARBON FILM RD-AZ474J- 1/6 470K OHM J 5 5 R217 R218 R501 R540 R661
191 R CARBON FILM RD-AZ479J- 1/6 4.7 OHM J 1 1 R652
R311 R320 R569 R570 R571
192 R CARBON FILM RD-AZ561J- 1/6 560 OHM J 6 6
R668
R476 R477 R527 R611 R612
193 R CARBON FILM RD-AZ562J- 1/6 5.6K OHM J 6 6
R729
194 R CARBON FILM RD-AZ563J- 1/6 56K OHM J 4 4 R514 R517 R803 R804
195 R CARBON FILM RD-AZ681J- 1/6 680 OHM J 2 1 R006 [R766]
196 R CARBON FILM RD-AZ682J- 1/6 6.8K OHM J 5 5 R219 R609 R610 R631 R632
R607 R608 R623 R649 R707
197 R CARBON FILM RD-AZ683J- 1/6 68K OHM J 6 6
R760
198 R CARBON FILM RD-AZ689J- 1/6 6.8 OHM J 2 2 R743 R748
199 R CARBON FILM RD-AZ820J- 1/6 82 OHM J 3 3 R506 R605 R606
200 R CARBON FILM RD-AZ821J- 1/6 820 OHM J 1 1 R312
201 R CARBON FILM RD-AZ822J- 1/6 8.2K OHM J 4 4 R461 R462 R507 R524
202 R CARBON FILM RD-AZ823J- 1/6 82K OHM J 4 2 [R276 R277] R535 R536
203 R FUSIBLE RF01F4780J 0.47OHM 1W 2 2 RF901 RF902
204 R SEMI FIXED RV1417222- 1/10 2.2K OHM B V6EK-PV1S 1 1 RV601
205 R SEMI FIXED RV6417223- VM6CK-PV(1S) B 22K OHM 3 3 RV201 RV501 RV502
206 RESONATOR 5PCSA8MTZ- CSA8MTZ, 8MHZ 1 1 XC701
207 RESONATOR CERA 5PCSA16R93 CSA16.93MXZ04 1 1 XC501
208 SW ENCORDER 5SH162401- EC16B24204 24P W/DETENT 1 1 VR702
SW701 SW702 SW703 SW704 SW705
SW706 SW707 SW708 SW709 SW710
209 SW TACT 5S50101001 KPT-1105A 1C-1P 24 24 SW711 SW712 SW713 SW714 SW715
SW716 SW717 SW718 SW719 SW720
SW721 SW722 SW723 SW724
210 TR TKRA107M-- KRA107M (KSR2006) 1 1 Q003
211 TR TKRA111M-- KRA111-M TAPPING(KSR2010) 5 5 Q711 Q712 Q713 Q714 Q715
212 TR TKRC107M-- KRC107-M TAPPING(KSR1006) 5 4 Q701 Q706 Q708 Q710 [Q717]
213 TR TKRC111M-- KRC111M (KSR1010) 2 2 Q702 Q703
214 TR TKSA928AY- KSA928A-Y 2 2 Q501 Q502
215 TR TKSC2331Y- KSC2331Y 1 1 Q503
216 TR TKSR1003-- KSR1003 1 1 Q504
217 TR TZRA107M-- KRA107M (KSR2006) 2 2 Q613 Q614
218 TR TZRA111M-- KRA111M 2 2 Q610 Q611
219 TR TZRC107M-- KRC107M(AUTO) 2 2 Q618 Q716
220 TR TZRC111M-- KRC111M 3 3 Q612 Q616 Q619
221 TR TZTA1266Y- KTA1266Y- (AUTO)(1015Y) 3 3 Q603 Q604 Q617
222 TR TZTA1273-- KTA1273 1 1 Q901
223 TR TZTA1273Y- KTA1273Y(966Y) 4 4 Q615 Q705 Q707 Q709
224 TR TZTC3194Y- KTC3194Y 1 1 Q001
Q201 Q202 Q471 Q472 Q505
225 TR TZTC3198Y- KTC3198Y-(1815Y) (AUTO) 10 10
Q606 Q607 Q608 Q609 Q704
226 TR TZTC3205Y- KTC3205Y (2236Y) 1 1 Q605
227 TRANS POWER 5TP8066768 EI=66X50 230V 50HZ 1 1 PT901
228 TUNER PACK 9737612700 FTA3-503V 1 1 TU001
229 VFD DSVA09MM10 SVA09MM10 1 1 FD701
230 WIRE JUMPER W581GY1005 AWG22 1/0.65 SN 10 AUTO R831 R835 R836
231 WIRE JUMPER W581GY5095 AWG22 1/0.65 SN 5 AUTO L801 L802 L841 L842
232 WIRE JUMPER W581GY6095 AWG22 1/0.65 SN 6 AUTO CC908 [L270] R002 R832
233 WIRE JUMPER W581GY7595 AWG22 1/0.65 SN 7.5 AUTO R703
234 WIRE LEAD 9738834300 #26 1P 200MM 1 1 W601
235 X-TAL 5XA4R332M- 4.332M 1 - XC270
236 X-TAL 5XA7R20000 7.2M 1 1 XC251
Q'ty
No Parts Name Parts Code Description 817 817 817 817 Location
LS LSR L R
1 AM RF UNIT 5LR0000826 RBW07VB-K5020 1 1 1 1 L101
2 ANT AM LOOP 5LA180K828 LOOP-7 1 1 1 1 AT101
3 ANTENNA FM 9736806000 2M T-ANT 1 1 1 1 AT102
4 C CERA CCXB1H101K 50V B 100PF K (TAPPING) 1 1 1 1 CC203
5 C CERA CCXB1H102K 50V B 1000PF K (TAPPING) 4 4 4 4 CC001 CC253 CC254 CC605
6 C CERA CCXB1H122K 50V B 1200PF K (TAPPING) 1 1 - - CC449
7 C CERA CCXB1H221K 50V B 220PF K (TAPPING) 2 2 3 1 CC711 [CC803 CC804]
8 C CERA CCXB1H222K 50V B 2200PF K (TAPPING) 1 1 - - CC454
9 C CERA CCXB1H331K 50V B 330PF K (TAPPING) 2 5 2 5 [CC270 CC278 CC279] CM607 CM608
10 C CERA CCXB1H332K 50V B 3300PF K (TAPPING) 2 2 2 2 CC801 CC802
11 C CERA CCXB1H471K 50V B 470PF K (TAPPING) - 2 - - CC803 CC804
CC213 [CC448] CC809 CC811 CC812
12 C CERA CCXB1H472K 50V B 4700PF K (TAPPING) 7 5 6 6
[CC813 CC814]
13 C CERA CCXB1H561K 50V B 560PF K (TAPPING) 2 2 2 2 CC210 CC211
14 C CERA CCXB1H562K 50V B 5600PF K (TAPPING) 1 1 - - CC453
15 C CERA CCXB1H681K 50V B 680PF K (TAPPING) 2 2 2 2 CM601 CM602
16 C CERA CCXB1H682K 50V B 6800PF K (TAPPING) 1 1 1 1 CC204
17 C CERA CCXB1H821K 50V B 820PF K (TAPPING) 4 4 4 4 CC601 CC602 CC603 CC604
CC002 CC004 CC102 CC201 CC205
CC206 CC207 CC209 CC251 CC252
[CC257 CC275/CC818] [CC451] CC501
18 C CERA CCXF1H103Z 50V F 0.01MF Z (TAPPING) 29 30 27 29 CC502 CC503 CC507 CC515 CC521
CC529 CC535 CC536 CC607 CC817
CC906 CC907 CC931 CC932 CC933
CC934
CC005 CC006 CC101 CC103 CC202
[CC444 CC445 CC446 CC447 CC450
CC452 CC455 CC456] CC463 CC483
19 C CERA CCXF1H104Z 50V F 0.1MF Z 39 39 29 29
CC504 CC505 CC506 CC511 CC512
CC513 CC526 CC527 CC537 CC544
CC608 [CC703] CC705 CC708 [CC709]
CC701 [CC703] CC704 CC707 CC709
20 C CERA CCXF1H223Z 50V F 0.022MF Z (TAPPING) 8 8 7 7
CC715 CC722 CC808 CC901
21 C CERA CCXF1H333Z 50V F 0.033MF Z (TAPPING) 1 1 1 1 CC810
22 C CERA CCXF1H473Z 50V F 0.047MF Z (TAPPING) 5 5 5 5 CC212 CC509 CC522 CC528 CC609
23 C CERA CCZB1E102K 25V B 1000PF K (AXIAL) 3 3 3 3 CC520 CC533 CC534
24 C CERA CCZB1E151K 25V B 150PF K (AXIAL) 2 2 2 2 CC531 CC532
25 C CERA CCZB1E152K 25V B 1500PF K (AXIAL) 1 1 1 1 CC523
26 C CERA CCZB1E222K 25V B 2200PF K (AXIAL) 2 2 2 2 CC510 CC516
27 C CERA CCZB1E391K 25V B 390PF K (AXIAL) 1 1 1 1 CC508
28 C CERA CCZB1E472K 25V B 4700PF K (AXIAL) 3 3 3 3 CC518 CC542 CC543
29 C CERA CCZB1E682K 25V B 6800PF K (AXIAL) 1 1 1 1 CC514
[CC441 CC442 CC443] CC461 CC462
30 C CERA CXCH1H101J 50V CH 100PF J (TAPPING) 13 13 10 10 CC481 CC482 CC710 CC719 CC720
CC724 CC725 CC726
31 C CERA CXCH1H120J 50V CH 12PF J (TAPPING) 1 1 1 1 CC104
32 C CERA CXCH1H150J 50V CH 15PF J (TAPPING) 1 1 2 2 [CC711] CC717
33 C CERA CXCH1H180J 50V CH 18PF J (TAPPING) 1 1 1 1 CC718
34 C CERA CXCH1H330J 50V CH 33PF J (TAPPING) 5 5 5 5 CC255 CC256 CC706 CC713 CC714
35 C CERA CXCH1H470J 50V CH 47PF J (TAPPING) - 1 - 1 CC277
36 C CERA CXCH1H560J 50V CH 56PF J (TAPPING) 2 2 2 2 CC805 CC806
37 C CERA CXCH1H820J 50V CH 82PF J (TAPPING) - 1 - 1 CC276
38 C CERA CZCH1E609K CH 25V 6PF K AXIAL 1 1 1 1 CC519
39 C CERA CZCH1E809K CH 25V 8PF K AXL 52MM 1 1 1 1 CC517
40 C CERA CZCH1H270J CH 50V 27PF J AXL 52MM 2 2 2 2 CC524 CC525
41 C ELECTRO CEXE1C102A 16V RS 1000MF 13X20 1 1 1 1 CE515
42 C ELECTRO CEXF1A102V 10V RSS 1000MF (10X16) TP 1 1 1 1 CE706
43 C ELECTRO CEXF1C221V 16V RSS 220MF (8X11.5) TP 5 5 5 5 CE507 CE511 CE512 CE513 CE517
CE201 CE214 CE251 [CE442] CE506
44 C ELECTRO CEXF1E101V 25V RSS 100MF (6.3X11) TP 12 12 10 10 CE508 CE509 CE510 CE514 CE516
CE524 [CE707]
45 C ELECTRO CEXF1E221V 25V RSS 220MF (8X11.5) TP 2 2 2 2 CE102 CE213
CE001 CE203 [CE272][CE441] CE487
CE518 CE523 CE601 CE602 CE605
46 C ELECTRO CEXF1E470V 25V RSS 47MF (5X11) TP 21 22 20 21 CE608 CE611 CE612 CE618 CE620
CE624 CE626 CE902 CE932 CE933
CE934 CE935
CE206 CE471 CE501 CE504 CE603
47 C ELECTRO CEXF1H100V 50V RSS 10MF (5X11) TP 10 10 10 10
CE604 CE621 CE708 CE807 CE808
[CE707] CE804 CE805 CE809 CE811
48 C ELECTRO CEXF1H101V 50V RSS 100MF (8X11.5) TP 6 6 7 7
CE812 CE813
CE205 CE207 CE208 CE209 CE210
49 C ELECTRO CEXF1H109V 50V RSS 1MF (5X11) TP 13 13 13 13 CE211 CE486 CE613 CE614 CE615
CE616 CE622 [CE704] [CE709]
50 C ELECTRO CEXF1H220V 50V RSS 22MF (5X11) TP 1 1 1 1 CE204
51 C ELECTRO CEXF1H228V 50V RSS 0.22MF (5X11) TP 1 1 1 1 CE212
CE101 CE472 CE473 CE474 CE475
CE476 CE477 CE478 CE479 CE480
52 C ELECTRO CEXF1H229V 50V RSS 2.2MF (5X11) TP 24 24 24 24 CE481 CE482 CE483 CE484 CE485
CE488 CE489 CE606 CE619 CE625
CE701 CE702 CE801 CE802
53 C ELECTRO CEXF1H339V 50V RSS 3.3MF (5X11) TP 3 4 3 4 CE202 [CE273] CE609 CE617
54 C ELECTRO CEXF1H470V 50V RSS 47MF (6.3X11) TP 4 4 4 4 CE803 CE810 CE903 CE904
55 C ELECTRO CEXF1H478V 50V RSS 0.47MF (5X11) TP 4 4 4 4 CE502 CE503 CE505 CE623
56 C ELECTRO CEXF1H479V 50V RSS 4.7MF (5X11) TP 4 4 4 4 CE519 CE520 CE521 CE522
57 C ELECTRO CEYF1E222V 25V RSS 2200MF (16X25) 1 1 1 1 CE905
58 C ELECTRO CEYF1H332V 50V RSS 3300MF 2 2 2 2 CE906 CE907
Q'ty
No Parts Name Parts Code Description 817 817 817 817 Location
LS LSR L R
59 C MYLAR CMXM1H102J 50V 0.001MF J (TP) 2 2 2 2 CM605 CM606
60 C MYLAR CMXM1H103J 50V 0.01MF J (TP) 4 4 4 4 CM202 CM203 CM204 CM205
CM473 CM474 CM475 CM476 CM801
61 C MYLAR CMXM1H104J 50V 0.1MF J 8 8 8 8
CM802 CM901 CM904
62 C MYLAR CMXM1H122J 50V 0.0012MF J 2 2 2 2 CM505 CM506
63 C MYLAR CMXM1H153J 50V 0.015MF J (TP) 1 1 1 1 CM201
64 C MYLAR CMXM1H183J 50V 0.018MF J 3 3 3 3 CM471 CM478 CM503
65 C MYLAR CMXM1H223J 50V 0.022MF J 5 5 5 5 CM472 CM477 CM603 CM604 CM613
66 C MYLAR CMXM1H332J 50V 3300 PF J 2 2 2 2 CM611 CM612
67 C MYLAR CMXM1H333J 50V 0.033MF J (TP) 2 2 2 2 CM501 CM504
68 C MYLAR CMXM1H472J 50V 0.0047MF J 3 3 3 3 CM614 CM615 CM616
69 C MYLAR CMXM1H473J 50V 0.047MF J 2 4 2 2 [CC813 CC814] CM609 CM610
70 C MYLAR CMXM1H562J 50V 5600 PF J 4 4 4 4 CM206 CM207 CM479 CM480
71 C MYLAR CMXM1H683J 50V 0.068 MF J 1 1 1 1 CM502
72 CLIP FUSE 9734600700 FC-5N 2 2 2 2 FC901 FC902
73 COIL BIAS OSC 5L0503K643 SM-10F 5.04MH 1 1 1 1 L601
74 COIL CHOKE 5LC682K822 6.8MH 2 2 2 2 L204 L205
75 COIL DESCRIMINATOR 5107FBK473 7X7 BLK KSZ-73S 1 1 1 1 L203
76 COIL PEAKING 5CPZ100K02 10UH K (AXIAL 3.5MM) 2 2 2 2 L001 L251
77 CONN AS 9736407600 PIN BASE 53095-1310 13P 1 1 1 1 CN401
78 CONN AS 9738824100 2P UL2468 400MM 1 1 1 1 CN503
79 CONN AS 9738832100 7P 200 P=2.5 BOARDIN 1 1 1 1 CN509 CW509
80 CONN AS 9738833300 UL2851 #28 3P SHIELD 250M 1 1 1 1 CN601 CW601
81 CONN AS 9738833500 #28 6P SHIELD 250MM 1 1 1 1 CN602 CW602
82 CONN AS 9738833700 #26 8P FLAT 220MM 1 1 1 1 CN701 CW701
83 CONN AS 9738833900 #22 8P BOARD-IN 300MM 1 1 1 1 CN901 CW901
84 CONN AS 9738834000 #26 2.0PITCH 11P FLAT 150 1 1 1 1 [CN703] CN704
85 CONN AS 9738834100 #26 13P FLAT 100MM 1 1 1 1 CN703 [CN704]
86 CONN AS 9738840800 FFC 16P P1.0X250MM R 1 1 1 1 CN501
87 CONN AS 9738840900 FFC 19P P1.25X110MM K 1 1 1 1 CN508
88 CONN PIN 9736407800 53095-1010 10PIN ANGLE 1 1 1 1 CN402
89 CONN WAFER 9736407900 52084-1010 10P BOTTOM 1 1 1 1 CW402
90 CONN WAFER 9736408300 52492-1920 19P BOTTOM 1 1 1 1 CW702
91 CONN WAFER 9736408400 52045-1945 19P 1 1 1 1 CW508
92 CONN WAFER 9CD6258800 2P S2B-XH-A 1 1 1 1 CW101
93 CONN WAFER 9CD6259300 52807-1610 1 1 1 1 CW501
94 CONN WAFER 9CD6259400 2001-WS-12P 1 1 1 1 CW507
95 CONN WAFER 9CD6259500 2001-WS-6P 1 1 1 1 CW503
96 CONN WAFER 9CD6259600 2503-WS-2P 1 1 1 1 CW502
97 CORD AC 9736900200 KKP419C,KLCE-2F,0.75SQURE 1 1 1 1 CD901
98 CRYSTAL QUARTZ 5XA32R768- DT-38 32.768KHZ 20PPM 1 1 1 1 XC702
D801 D802 [D807] D901 D902
99 DIODE D1N4001- 1N4001 6 6 5 5
D909
100 DIODE D1N5402- 1N5402 4 4 4 4 D905 D906 D907 D908
101 DIODE DRL202-- RL202 2 2 2 2 D903 D904
D201 D471 D501 D502 D601
D602 D705 D706 D707 [D708]
102 DIODE DZN4148- 1N4148 AUTO 52MM 19 19 19 20
D709 D710 D711 D712 D713
D803 D804 D805 D806 D931
103 DIODE ZENER DKTZ30A- MTZ 30A 1 1 1 1 DZ902
104 DIODE ZENER DZTZ3R9B-- MTZ3.9B 1 1 1 1 DZ502
105 DIODE ZENER DZTZ5R1B-- MTZ-5.1V B 0.5W (AUTO) 1 1 - - DZ441
106 DIODE ZENER DZTZ5R6B-- UZ-5.6B 3 3 3 3 DZ501 DZ503 DZ504
107 DIODE ZENER DZTZ6R2A-- MTZ-6.2 52MM TAPPING 1 1 1 1 DZ901
108 FET TZTK117Y-- KTK117(Y) AUTO 2 2 2 2 Q601 Q602
109 FILTER 5PPCFAZ077 PCFAZ077 1 1 1 1 CF201
110 FILTER CERA 5PE107MJA- SFE 10.7MHZ RED 1 1 1 1 CF002
111 FILTER CERA 5PE107MS2A SFE107MS2-A 1 1 1 1 CF001
112 FUSE GLASS TUBE 5FSGB1622L SEMKO TL 1.6A 250V MF51 1 1 1 1 F901
113 IC 1BA1450S-- BA1450S 1 1 1 1 IC201
114 IC 1BU4094BCF BU4094BCF(SOP16) 3 3 2 2 IC603 IC706 [IC707]
115 IC 1DBL2084-- DBL2084(D/W) 2 2 2 2 IC504 IC506
116 IC 1L4959-- L4959 1 1 1 1 IC901
117 IC 1LC72130-- LC72130 1 1 1 1 IC202
118 IC 1M24C04- M24C04-BN6 1 1 1 1 IC701
119 IC 1M38199316 U-COM M38199 - - 1 1 IC705
120 IC 1M65849BFP M65849BFP(DIP32) 1 1 - - IC441
121 IC 1MC7805- MC 7805 (KA7805) 1 1 1 1 IC205
122 IC 1MSGEQ5A-- MSGEQ5A 1 1 1 1 IC702
123 IC 1STK41622- STK4162-2 1 1 1 1 IC801
124 IC 1TA8189N-- TA8189N 1 1 1 1 IC601
125 IC 1TDA7479D- TDA7479D - 1 - 1 IC204
126 IC AMSS 1LA2000- LA2000 1 1 1 1 IC604
127 IC AUDIO 1KA9270- KA9270 1 1 1 1 IC505
128 IC AUDIO 1TDA7439-- TDA7439 1 1 1 1 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
