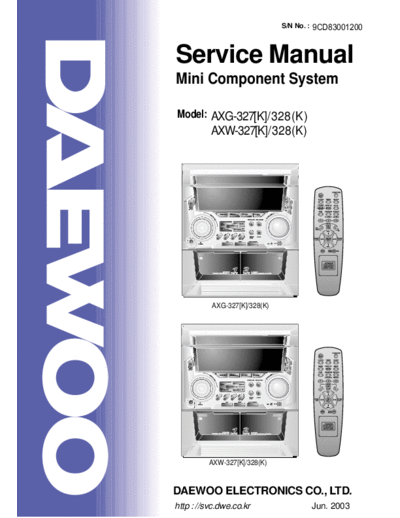

Image preview - the first page of the document
>> Download AXW-327 documenatation <<
Text preview - extract from the document
S/N No. : 9CD83001200
Service Manual
Mini Component System
Model: AXG-327[K]/328(K)
AXW-327[K]/328(K)
AXG-327[K]/328(K)
AXW-327[K]/328(K)
DAEWOO ELECTRONICS CO., LTD.
http : //svc.dwe.co.kr Jun. 2003
Exploded View and Mechanical Parts List
6
Exploded View and Mechanical Parts List
No. Part Name Part Code Description Qty Remark No. Part Name Part Code Description Qty Remark
1 WINDOW DOOR A 9CD16197A0 ACRYL 1 40-2 CHASSIS BOTTOM 9CD0607100 SECC 1.0T 1 324/325/326/327/328
2 WINDOW DOOR B 9CD16197B0 ACRYL 1 41-1 COVER BACK 9CD0409800 MIPS 1 322/324/325/326
3 DOOR COVER A 9CD18136A0 MIPS 1 41-2 COVER BACK 9CD0414800 SECC 1.0T 1 327/328
4 DOOR COVER B 9CD18136B0 MIPS 1 42 HOLDER AC CORD 9CD2303300 ABS 1 324/325/326/327/328
5 SRING DOOR EJECT L 9CD30080L0 STS 0.9 1 43 COVER ANT 9CD0410400 ABS 1
6 SRING DOOR EJECT R 9CD30080R0 STS 0.9 1 44 HOLDER PCB 9CD2304800 MIPS 1 327/328
7 DOOR FRAME A 9CD18113A0 MIPS 1 45-1 HEAT SINK 10 9CD4404500 AL 1 322
8 DOOR FRAME B 9CD18113B0 MIPS 1 45-2 HEAT SINK N30 9CD4406200 AL 1 324
9 CUSHION FOOT 9CD4207700 URETHAN 2 45-3 HEAT SINK N50 9CD4405800 AL 1 325
10-A DAMPER GEAR B 9CD2603200 ACETAL 2 45-4 HEAT SINK N65 9CD4408200 AL 1 326
10-B DAMPER BASE B 9CD2603300 ABS 2 45-5 HEAT SINK N100 9CD4406100 AL 1 327
11-A LOCKER BASE 9CDOB01900 ABS 2 45-6 HEAT SINK N150A 9CD4407900 AL 1 328
11-B LOCKER CAM 9CDOB02000 ABS 2 46 BRACKET HEAT TR 9CD2414600 SECC 1.0T 2 324/325/326
11-C LOCKER SPRING 9CDOB01600 STS 2 47 BRACKET HEAT TR 9CD2414600 SUS 0.5T 1 322
12 BRKT SIDE 9CD2412900 ABS 2 48 FRAME BOTTOM 9CD0607800 SECC 1.0T 1 327/328
13 KNOB POWER 9CD1348700 MIPS 1 49 BRKT PCB C 9CD2414500 SECC 1.0T 1 327/328
14 LENS LED 9CD1619900 ACRYL 1 50 BRKT PCB A 9CD2413100 SECC 1.0T 1 327DP
15 KNOB CD 9CD1348710 MIPS 1 51 HEAT SINK PW 9CD4404200 AL 1 327/328
16 KNOB CONTROL 9CD1348400 MIPS 1 52 BRACKET TUNER PCB L 9CD24159L0 SECC 1.0T 1 327/328
17 KNOB FUNCTION 9CD1348600 ACRYL 1 53 BRACKET TUNER PCB R 9CD24159R0 SECC 1.0T 1 327/328
18 PLATE FILTER 9CD0912800 T0.15 1 option 54 FOOT RUBBER 9CD0801000 RUBBER 2 327/328
19 KNOB SET 9CD1348500 MIPS 1 55 STOPPER AC CORD 9CD5700500 66NYLON 1 327/328
20 PANEL FRONT 9CD0311100 MIPS 1 Qty
No. SCREW TYPE Part Code Description 322 324 325 326 327 328
21-A CASSETTE DECK LOGIC 9CD6010000 1 322
21-B CASSETTE DECK LOGIC 9CD6010100 1 324/325/327/328 S1 SCREW TAPTTITE 7173261011 TT2 BIN 2.6 X 10 MFZN 14 14 14 14 14 14
22 BADGE DAEWOO 9CD1500900 ABS 1 S2 SCREW TAPTTITE 7173301011 TT2 BIN 3.0X10 MFZN 16 15 15 15 15 15
23 DECO VOLUME 9CD3104200 ABS 1 S3 SCREW TAPTTITE 7173301212 TT2 BIN 3.0X12 BK 21 21 21 21 21 23
24 KNOB CAP 9CD1349300 MIPS 1 S4 SCREW TAPTTITE 7173301612 TT2 BIN 3.0X16 BK 2 2 2 2 2 2
25 KNOB VOLUME 9CD1348200 MIPS 1 S5 SCREW TAPTTITE 7173300411 TT2 BIN 3.0X6 MFZN 5 8 8 8 12 13
26 RING REFLECTOR 9CD3104210 ACRYL 1 S6 SCREW TAPTTITE 7173301411 TT2 BIN 3.0X14 MFZN * 4 4 4 4 8
27 KNOB JOG 9CD1348210 MIPS 1 327/328 S7 SCREW TAPTTITE 7173400611 TT2 BIN 4.0X6 MFZN * 4 4 4 4 4
28 KNOB TUNE 9CD1349400 MIPS 1 322/324/325/326 S8 SCREW TAPTTITE 7173401011 TT2 BIN 4.0X10 MFZN 4 * * * 4 *
29 LENS DECO 9CD1620000 ACRYL 2 S9 WASHER SCREW 9CD3102401 TT2 BIN 3.0X8 + D12 1 * * * * *
30 WINDOW FLT 9CD1619500 ACRYL 1 S10 WASHER SCREW 9CD3102400 TT2 BIN 3.0X10 + D14 1 1 1 1 * *
31 CD DECK MECHA 9CD6009300 1 W1 WASHER PLAIN 1 * * * * *
32 DOOR CD 9CD1813700 MIPS 1 No. Part Name Qty Remark
33 WINDOW CD DOOR 9CD1619600 ACRYL 1 P2 PCB MAIN 1
34 KNOB MIC 9CD133200 0 MIPS 1 AMI-810 P3 PCB POWER 1
35 BRACKET MIC PCB 9CD2415500 SECC 1.0T 1 P4 PCB TAPE 1 327/328
36-A GUIDE FLT 9CD2506500 ABS 1 322/324/325/326 P5 PCB CD 1
36-B GUIDE FLT 9CD2506300 ABS 1 327/328 P6 PCB MP3 1 option
37 COVER TOP 9CD0411400 MIPS 1 P7 PCB MIC 1
38 COVER SIDE L 9CD04115L0 MIPS 1 P8 PCB TUNER 1 328
39 COVER SIDE R 9CD04115R0 MIPS 1 P9 PCB JACK 1 option
40-1 CHASSIS BOTTOM 9CD0607500 ABS 1 322
7
Wiring Diagram
AXG-327(K) Only
CN301 [9728818900] #8P 220 P=2.5 Shield
CW901 CW901 [9728804100 #22 10P 2.5 350mm Board-In
CN602
R/P HEAD CN505 [9728816800] #24 3P+UL1007 3P 250mm
CN301
J301
CN602 TU001
R/P HEAD
CW902
CW509
PCB KARAOKE
IC204
9CD6589000
CW302
PCB POWER CN401 LC72723 IC201
IC401
9CD6581000 BA1450S
ICBD3872
IC202 AXG-327K Only
CN402 CW603 LC72723
CN602 CN601 CN504 [9728816700] FFC 7P 1.25 X 120mm R
R/P HEAD PLAY HEAD
CW901
J001
CN401 [9736407600] Pin Base 53095-1310 13P CW303
CW504
PCB MAIN
CW505
IC402
9CD6590100
CN402 [9736407800] 53095-1010 10P
CASSETTE MECHA. ASS'Y
CN603 [9728814000] #28 8P 200mm
PCB MP3 CD
CW503
CN602 [9738828800] #28 7P P2.5 100mm Shield
CW502
9CD6588600-00
CW506
CN601 [9738828700] #28 3P 220mm Shield
CN702 IC901 IC801
CW501
L4959 STK411-210E
CN500 [9718813800] 16P 1.0 X 120mm
CW503 [2001-WS-12] 12P 2.0mm
CW502 [2001-WS-06] 6P 2.0mm
FD710
CN701
CN603 CW508
CW401
PCB FRONT
CW708
PCB TAPE CW402 9CD6589100
9CD6584200 CW702
M
CN601
CN602
M CD MECHA. ASS'Y
CN302
CN902 CN701
CW902 [9728804200] #26 2P 2.5 350mm
CN702 [9728812100] FFC 16P 1.25 X 150mm R
CN701 [9738836200] #26 FLAT 10P 160mm CN302 [9728804200] UL1007 #26 1P 100mm
8
Wiring Diagram
AXG-328(K) Only
CN301 [9728818900] #8P 220 P=2.5 Shield
CW901 CW901 [9728804100 #22 10P 2.5 350mm Board-In
CN602
R/P HEAD
J001
TU001
CN301
J301
PCB TUNER PCB KARAOKE
CN602 CN201
CW902 9CD6590200
CW302
R/P HEAD CW303 IC402 CW509 9CD6589000
PCB POWER CN401 CW201
CN509
9CD6581000 AXG-328K Only
ICBD3872 CW901
CN201 [9728819200] #24 12P 250mm
CN402 CN505 [9728816800] #24 3P+UL1007 3P 250mm
CW603 IC403 IC404 CN504 [9728816700] FFC 7P 1.25 X 120mm R
CN602 CN601
R/P HEAD PLAY HEAD 4558 4558
CN401 [9736407600] Pin Base 53095-1310 13P
CW504
IC803 PCB MAIN
CW505
9CD6589400
CN402 [9736407800] 53095-1010 10P
CASSETTE MECHA. ASS'Y
CN603 [9728814000] #28 8P 200mm
PCB MP3 CD
CW503
CN602 [9738828800] #28 7P P2.5 100mm Shield
CW502
9CD6588600-00
CW506
CN601 [9738828700] #28 3P 220mm Shield
CN702 CW905 IC901 IC801 IC802
CW501
L4959 STK402-050 STK411-210E
CN500 [9718813800] 16P 1.0 X 120mm
CW503 [2001-WS-12] 12P 2.0mm
FAN CW502 [2001-WS-06] 6P 2.0 X 170mm
FD710
CN701
CN603 CW508
CW401
PCB FRONT
CW708
PCB TAPE CW402 9CD6589100
9CD6584200 CW702
M
CN601
CN602
M CD MECHA. ASS'Y
CN302
CN902 CN701
CW902 [9728804200] #26 2P 2.5 350mm
CN702 [9728812100] FFC 16P 1.25 X 150mm R
CN701 [9738836200] #26 FLAT 10P 160mm CN302 [9728804200] UL1007 #26 1P 100mm
9
Wiring Diagram
AXW-327(K) Only
CN301 [9728818900] #8P 220 P=2.5 Shield
CW901 [9728804100 #22 10P 2.5 350mm Board-In
CN602
R/P HEAD CW901 CN509 [9728817500] UL2547 & 1007 P=2.5X250 8P
CW902
CN301
CN602 TU001 J301
R/P HEAD CW509
IC204 PCB KARAOKE
PCB POWER
CW302
CN401 IC401
LC72723 IC201 9CD6589000
9CD6581000 BA1450S
ICBD3872
IC202
CN402 CW603 AXW-327K Only
LC72723
CN602 CN601
R/P HEAD PLAY HEAD
CW901
J001
CW303 CW500
CN401 [9736407600] Pin Base 53095-1310 13P
PCB MAIN CN509
CW501
9CD6590100
CN500 [9718813800] 16P 1.0 X 120mm
IC402
CASSETTE MECHA. ASS'Y CN402 [9736407800] 53095-1010 10P PCB CD
CN603 [9728814000] #28 8P 200mm
9CD6585000
CN602 [9738828800] #28 7P P2.5 100mm Shield
CW510
CN601 [9738828700] #28 3P 220mm Shield
OPTICAL JACK
CW506
CW504
SONY
S/S
IC901 IC801 CW508
CN702
CN508 [9728818700] FFC 17P 330mm
L4959 STK411-210E
CN504 [2001-WS-12] 12P 2.0mm
CN501 [2001-WS-06] 6P 2.0 X 170mm
FD710
CN701
CN603 CW508
CW401
PCB FRONT
CW708
PCB TAPE CW402 9CD6589100
9CD6584200 CW702
M
