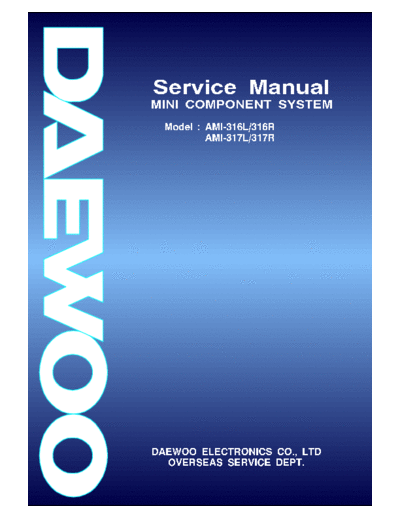

Image preview - the first page of the document
AMI-316-317[1].part5


>> Download AMI-316-317[1].part5 documenatation <<

Text preview - extract from the document
                                   FIGURE 1
                      EXAMPLE OF ANTENNA GROUNDING
                              AS PER NATIONAL
                              ELECTRICAL CODE



                                                      ANTENNA
                                                      LEAD IN
                                                      WIRE


PORTABLE                        GROUND
                                CLAMP
  CART                                                ANTENNA
WARNING                                               DISCHARGE UNIT
                                                      (NEC SECTION 810-20)

                 ELECTRIC
                 SERVICE
                 EQUIPMENT
                                                     GROUNDING CONDUCTORS
                                                     (NEC SECTION 810-21)
                                              GROUND CLAMPS
                                            POWER SERVICE GROUNDING
                                            ELECTRODE SYSTEM
                                            (NEC ART 250, PART H)
           NEC : NATIONAL ELECTRICAL CODE


FIGURE 2
       FM RF SSG                 FM Antenna
                               Terminal(75 ohm)
                   75 ohm Coaxal

                                         SET

    Carrier Frequency : 98MHz
    Output Level : 26dBuV
    Modulation:Audio 1kHZ, 75kHz Deviation




RF Signal Waveform
                                                  VOLT/DIV : 200mV
                                                   TIME/DIV : 50ns




                                               Level : 1.2+0.3Vp-p




Traverse Waveform


                                                                A

  0V

                                                                B
                                                  Output Level
                                                  Measurement                               Input Point
                                                     Point                                                                Scope

                                                      R-CH                        47 kohm

                                                                                                VTVM
                                        Input Level
                                        Measurement
                                        Point

                                                       L-CH                       47 kohm




                                                                                                                  Adjust with Frequency
                                                                                                                   Counter Connected
    Test Tape : MTT-111N(3kHz)                         Frequency Counter
                MTT-5511(Blank)

                                  Set

                                                Output Level
                                                Measurement Point
                                                                                                                Forward          Reverse
                                                                                                                  Side            Side




                                                                                                    Test Tape
                                                                                                    MTT-114N
                                                                                                     (10kHz)
 L-CH                                                                                                              L-CH                 Oscilloscope
 Peak


                                                                                                                   Set                     V    H
                                    within
                   Output Level




                                     1 dB
                                                                     within
                                                                      1 dB
         R-CH                                                                                                                   Output Level
         Peak                                                                                                                   Measurement Point
Screw
Angle
                                                                                                                     Screen Pattern



                                         L-CH      R-CH             Screw Angle                           In Phase 45      90      135 180
                                         Peak      Peak
                                                                                                                Good                 Wrong
 2. EXPLODED VIEW AND MECHANICAL PARTS LIST

u AMI - 316L / 316R




                                          -6-
No.           Parts Name      Parts Code                Description       Q ' ty
       W INDOW DOOR A         9CD1613900   ACRYL                           1
 1
       W INDOW DOOR B         9CD1614000   ACRYL                           1
       COV ER DOOR A          9CD0410200   MIPS                            1
 2
       COV ER DOOR B          9CD0410300   MIPS                            1
       DOOR FRAME A/B         9CD1809400   MIPS                            1
 3
       DOOR FRAME A/B         9CD1809500   MIPS                            1
 4     SPRING DOOR EJECT L    9CD30078L0   STS                             1
 5     SPRING DOOR EJECT R    9CD30078R0   STS                             1
 6     CUSHION FOOT           9CD4207700   URETHAN FOAM RUBBER             2
 7     KNOB V O LUME          9CD1334400   ABS                             1
 8     DAMPER ASSY            9CDM029800                                   2
 9     LOCKER ASSY            9CDM029900                                   2
 10    W INDOW FLT            9CD1614100   ACRYL                           1
 11    KNOB EQ L              9CD1335300   ABS                             1
 12    KNOB EQ R              9CD1335400   ABS                             1
 13    BR K T S I D E         9CD2412900   ABS                             2
 14    P A NEL FRONT          9CD0306000   MIPS                            1
 15    PLATE FLT              9CD0909800   P V C S H E E T ( T = 1 .0 )    2
 16    BA D G E D A E W O O   9CD1500900   ABS                             1
 17    PLATE FUNCTION         9CD0910000   P V C S H E E T ( T = 1 .0 )    1
 18    DOOR CD                9CD1809300   MIPS                            1
 19    HEAT SINK              9CD4402800   BS P                            1
 20    CD MECHANISM           9CD6006900                                   1
 21    COV ER TOP             9CD0409600   MIPS                            1
21-1   COV ER TOP             9CD0409100   MIPS                            -
 22    DECO TOP               9CD1002200   ACRYL                           -
 23    W INDOW T O P          9CD1612900   PC SHEET                        -
 24    C A S S . DECK (A/S)   9CD6006800                                   1
24-1   C A S S . DECK (A/R)   9CD6007000                                   -
 25    PLATE SHIELD           9CD0908500   ALP                             -
 26    KNOB FUNCTION          9CD1335100   ACRYL                           1
 27    PLATE FILTER           9CD0909900   P C S H E E T ( T = 0 .2 )      -
 28    KNOB CD PLAY           9CD1335700   ABS                             1
 29    KNOB PLAY MODE         9CD1335800   ABS                             1
 30    KNOB CONTROL           9CD1335000   ABS                             1
 31    GUIDE LED              9CD2506000   HIPS                            -
 32    GUIDE FLT              9CD2505600   ABS                             1
32-1   GUIDE FLT              9CD2505800   ABS                             -
 33    COV ER SIDE L          9CD0409200   MIPS                            1
 34    COV ER SIDE R          9CD0409300   MIPS                            1
 35    CHASSIS BOTTOM         9CD0607500   MIPS                            1
35-1   CHASSIS BOTTOM         9CD0607100   S E C C ( T = 1 .0 )            -
 36    HEAT SINK1             9CD4404500   AL                              1
36-1   HEAT SINK3             9CD4404600   AL                              -
36-2   HEAT SINK5             9CD4404700   AL                              -
 37    BR K T H E A T T R     9CD2413900   STS                             1
 38    RUBBER SILICON         9CD4207900   RUBBER                          1
 39    COV ER BACK            9CD0409801   MIPS                            1
 S1    SCREW                                T T 2 B I N 2 .6 X 1 0         13
 S2    SCREW                                T T 2 B I N 3 X 10             35
 S3    SCREW WASHER                         T T 2 B I N 3 X 10             1
 S4    SCREW                                TT2 BIN 3X 12 BK               5
 S5    SCREW                                TT2 BIN 4X 6                   8
 S6    SCREW                                TT2 BIN 2X 4                   -
 P1    PCB Ass'y                            FRONT PCB                      1
P1-1   PCB Ass'y                            FRONT PCB                      -
P1-2   PCB Ass'y                            FRONT PCB                      -
 P2    PCB Ass'y                            MAIN PCB                       1
P2-1   PCB Ass'y                            MAIN PCB                       -
P2-2   PCB Ass'y                            MAIN PCB                       -
 P3    PCB Ass'y                            POWER PCB                      1
P3-1   PCB Ass'y                            POWER PCB                      -
P3-2   PCB Ass'y                            POWER PCB                      -
 P4    PCB Ass'y                            PCB CD LED ASS'Y               -
u AMI - 317L / 317R




                      -8-
No.             Parts Name             Parts Code              Description                   Q ' ty
      W INDOW DOOR A/B                 9CD1613900   ACRYL                                      1
1
      W INDOW DOOR A/B                 9CD1614000   ACRYL                                      1
      COV ER DOOR A/B                  9CD0410200   MIPS                                       1
2
      COV ER DOOR A/B                  9CD0410300   MIPS                                       1
      DOOR FRAME A/B                   9CD1809400   ABS                                        1
3
      DOOR FRAME A/B                   9CD1809500   ABS                                        1
 4    S P R I NG D O O R E J E C T L   9CD30078L0   S U S D 0 .8                               1
 5    S P R I NG D O O R E J E C T R   9CD30078R0   S U S D 0 .8                               1
 6    KNOB V OLUME                     9CD1334400   ABS                                        1
 7    KNOB EQ                          9CD1334600   ABS                                        1
 8    KNOB OPEN                        9CD1335900   ABS                                        1
 9    KNOB FUNCTION                    9CD1334300   ACRYL CLEAR                                4
10    KNOB MODE                        9CD1334900   ABS                                        1
11    KNOB SUPER                       9CD1334500   ABS                                        1
12    KNOB DISC                        9CD1334200   ACRYL MILKY                                1
13    KNOB REC                         9CD1334700   ABS                                        1
14    W INDOW FLT                      9CD1613700   ACRYL                                      1
15    B R K T .S I D E                 9CD2412900   A B S 1 .5 G R                             2
16    DECO V R                         9CD1002400   MIPS                                       1
17    COV ER LED                       9CD0409700   MIPS WHITE                                 -
18    W INDOW DECO                     9CD1613800   ACRYL SMOG                                 1
      GUIDE FLT                        9CD2505900   AMI-317L,AMI-717L                          1
19
      GUIDE FLT                        9CD2505600   AMI-817L,AMI-917L                          -
20    P A NEL FRONT                    9CD0305900   MIPS                                       1
21    DAMPER ASSY                      9CDM029800   ABS/ACETAL                                 2
22    LOCKER ASSY                      9CDM029900   ABS/ACETAL                                 2
      C A S S .D E C K ( A / S )       9CD6007000   S/S ADR-2138MW                             -
23
      C A S S .D E C K ( A / S )       9CD6006800   S/S ADR-2136SW                             1
24    HOLDER PCB DECK                  9CD2303600   M I P S 1 6 .5 G R ( A M I - 9 1 7 L )     2
25    CD DECK MECHA.                   9CD6006900   DCC-01B                                    1
26    HEAT SINK                        9CD4402800   B S P 0 .5 T                               1
27    DOOR CD                          9CD1809300   MIPS                                       1
      CHASSIS BOTTOM                   9CD0607100   AMI-717L,AMI-817L,AMI-917L                 -
28
      CHASSIS BOTTOM                   9CD0607500   AMI-317L                                   1
      HEAT SINK 1                      9CD4404500   AL                                         1
      HEAT SINK 3                      9CD4404600   AL                                         -
29
      HEAT SINK 5                      9CD4404700   AL                                         -
      HEAT SINK 7                      9CD4404300   AL                                         -
30    HEAT SINK P                      9CD4404200   A L T 2 .0                                 -
31    CUSHION FOOT                     9CD4207700   URETHAN FOAM RUBBER                        2
      COV ER BACK                      9CD0409801   MIPS                                       1
32    COV ER BACK                      9CD0409803   MIPS                                       -
      COV ER BACK                      9CD0409804   MIPS                                       -
33    W INDOW T O P                    9CD1612900   ACRYL SMOG                                 -
      COV ER TOP                       9CD0409600   MIPS                                       1
34
      COV ER TOP                       9CD0409100   MIPS                                       -
35    COV ER SIDE L                    9CD0409200   MIPS                                       1
36    COV ER SIDE R                    9CD0409300   MIPS                                       1
37    DECO TOP                         9CD1002200   ACRYL CLEAR                                -
38    B R K T .P C B A                 9CD2413100   S E C C 1 .0 T                             -
39    FILTER LED                       9CD4700700   P C 0 .1 5 T                               -
40    PLATE FLT                        9CD0909800   P V C S H E E T T 1 .0                     2
41    PLATE FUNCTION                   9CD0910000   P V C S H E E T T 0 .5                     1
42    BA D G E D A E W O O             9CD1500900   ABS HOT STAMPING                           1
43    B R K T .H E A T T R .           9CD2413900   S U S T 0 .4                               1
44    HOLDER AC CORD                   9CD2303300   A B S 4 .0 G R                             -
      PCB MAIN                         9CD6574900   AMI-917L                                   -
P1    PCB MAIN                         9CD6575200   AMI-317L                                   1
      PCB MAIN                         9CD6575300   AMI-717,817L                               -
P2    PCB POWER                        9CD6575000   AMI-917L                                   -
      PCB FRONT                        9CD6575100   AMI-917L                                   -
P3    PCB FRONT                        9CD6575600   AMI-817L                                   -
      PCB FRONT                        9CD6575900   AMI-317,717L                               1
 3. WIRING DIAGRAM

u AMI -316L / 316R /317L / 317R




                                  - 10 -
 4. BLOCK DIAGRAM

u AMI -316L / 316R /317L / 317R




                                  - 11 -
 5. SCHEMATIC DIAGRAM
u POWER / AMP
  w AMI -316L / 316R /317L / 317R




                                    - 12 -
u CD
  w AMI -316L / 316R /317L / 317R




                                    - 13 -
u TUNER
  w AMI -316L / 316R /317L / 317R




                                    - 14 -
u TUNER-FTZ (OPTIONAL)




                         - 15 -
u TAPE
  w AMI -316L / 316R /317L / 317R




                                    - 16 -
u CONTROL
  w AMI - 316L / 316R / 317L / 317R




                                      - 17 -
                                                                                  Q'ty
NO         Parts Name   Parts Code              Description                                                       Location
                                                                     317L   317R    316L     317R
 1   AM RF UNIT         5LR0000826   RBW07VB-K5020                    1      1           1    1     L101
 2   ANT AM LOOP        5LA180K828   LOOP-7                           1      1           1    1     AT101
 3   ANTENNA FM         9736806000   2M T-ANT                         1      1           1    1     AT102
 4   C CERA             CCXB1H101K   50V B 100PF K (TAPPING)          1      1           1    1     CC203
 5   C CERA             CCXB1H102K   50V B 1000PF K (TAPPING)         3      3           3    3     CC001    CC253    CC254
 6   C CERA             CCXB1H272K   50V B 2700PF K (TAPPING)         2      2           2    2     CC801    CC802
 7   C CERA             CCXB1H331K   50V B 330PF K (TAPPING)          -      1           -    1     CC270
 8   C CERA             CCXB1H472K   50V B 4700PF K (TAPPING)         1      1           1    1     CC213
 9   C CERA             CCXB1H561K   50V B 560PF K (TAPPING)          2      2           2    2     CC210    CC211
10   C CERA             CCXB1H682K   50V B 6800PF K (TAPPING)         1      1           1    1     CC204
11   C CERA             CCXB1H821K   50V B 820PF K (TAPPING)          4      4           4    4     CC601    CC602    CC603   CC604
                                                                                                    CC002 CC004 CC102 CC201 CC205
                                                                                                    CC206 CC207 CC209 CC251 CC252
12   C CERA             CCXF1H103Z   50V F 0.01MF Z (TAPPING)         21     22      21       22    CC257 [CC275] CC501 CC502 CC503
                                                                                                    CC507 CC515 CC521 CC529 CC535
                                                                                                    CC536 CC607

                                                                                                    CC005    CC006 CC101       CC103 CC202
                                                                                                    CC215    CC410 CC504       CC505 CC506
                                                                                                    CC511    CC512 CC513       CC526 CC527
13   C CERA             CCXF1H104Z   50V F 0.1MF Z                    21     21      25       25
                                                                                                    CC537    CC544 CC608      [CC703] CC705
                                                                                                    [CC706   CC710 CC722       CC723 CC725]
                                                                                                    [CC712    CC716]
                                                                                                    CC403    CC407    CC408   CC701   [CC70
14   C CERA             CCXF1H223Z   50V F 0.022MF Z (TAPPING)        15     15      14       14    CC704    CC710    CC715   CC809   CC916
                                                                                                    CC917    CC918    CC921   CC922   CC923
15   C   CERA           CCXF1H473Z   50V   F   0.047MF Z (TAPPING)    5      5           5    5     CC212    CC509    CC522   CC528   CC609
16   C   CERA           CCZB1E102K   25V   B   1000PF K (AXIAL)       3      3           3    3     CC520    CC533    CC534
17   C   CERA           CCZB1E151K   25V   B   150PF K (AXIAL)        2      2           2    2     CC531    CC532
18   C   CERA           CCZB1E152K   25V   B   1500PF K (AXIAL)       1      1           1    1     CC523
19   C   CERA           CCZB1E222K   25V   B   2200PF K (AXIAL)       2      2           2    2     CC510    CC516
20   C   CERA           CCZB1E391K   25V   B   390PF K (AXIAL)        1      1           1    1     CC508
21   C   CERA           CCZB1E472K   25V   B   4700PF K (AXIAL)       3      3           3    3     CC518    CC542    CC543
22   C   CERA           CCZB1E682K   25V   B   6800PF K (AXIAL)       1      1           1    1     CC514
                                                                                                    CC401    CC402    CC405   CC406   CC719
23   C CERA             CXCH1H101J   50V CH 100PF J (TAPPING)         6      6           6    6
                                                                                                    CC720
24   C   CERA           CXCH1H120J   50V CH 12PF J (TAPPING)          1      1           1    1     CC104
25   C   CERA           CXCH1H150J   50V CH 15PF J (TAPPING)          1      1           1    1     CC717    [C711]
26   C   CERA           CXCH1H180J   50V CH 18PF J (TAPPING)          1      1           1    1     CC718    [C712]
27   C   CERA           CXCH1H330J   50V CH 33PF J (TAPPING)          4      4           4    4     CC255     CC256   CC713   CC714
28   C   CERA           CXCH1H331J   50V CH 330PF J (TAPPING)         1      1           1    1     CC606
29   C   CERA           CXCH1H470J   50V CH 47PF J (TAPPING)          -      1           -    1     CC277
30   C   CERA           CXCH1H820J   50V CH 82PF J (TAPPING)          -      1           -    1     CC276
31   C   CERA           CZCH1E609K   CH 25V 6PF K AXIAL               1      1           1    1     CC519
32   C   CERA           CZCH1E809K   CH 25V 8PF K AXL 52MM            1      1           1    1     CC517
33   C   CERA           CZCH1H270J   CH 50V 27PF J AXL 52MM           2      2           2    2     CC524    CC525
34   C   ELECTRO        CEXE1A102A   10V RS 1000MF 13X20              -      -           1    1     CE704
35   C   ELECTRO        CEXE1C102A   16V RS 1000MF 13X20              1      1           1    1     CE515
36   C   ELECTRO        CEXE1H100A   50V RS 10MF (5X11) TP            3      3           3    3     CE603    CE604    CE621
37   C   ELECTRO        CEXE1H109A   50V RS 1MF (5X11) TP             5      5           5    5     CE613    CE614    CE615   CE616   CE622
38   C   ELECTRO        CEXE1H229A   50V RS 2.2MF (5X11) TP           2      2           2    2     CE606    CE619
39   C   ELECTRO        CEXE1H339A   50V RS 3.3MF (5X11) TP           2      2           2    2     CE609    CE617
40   C   ELECTRO        CEXE1H478A   50V RS 0.47MF (5X11) TP          1      1           1    1     CE623
41   C   ELECTRO        CEXF1A102V   10V RSS 1000MF (10X16) TP        1      1           -    -     CE706
42   C   ELECTRO        CEXF1C221V   16V RSS 220MF (8X11.5) TP        5      5           5    5     CE507    CE511    CE512   CE513   CE517
                                                                                                    CE417    CE506    CE508   CE509   CE510
43   C ELECTRO          CEXF1E101V   25V RSS 100MF (6.3X11) TP        9      9           9    9
                                                                                                    CE514    CE516    CE524   CE707
44   C ELECTRO          CEXF1E222V   25V RSS 2200MF (16X25) TP        2      2           2    2     CE901    CE902
                                                                                                    CE001    CE102 CE201 CE203 CE213
                                                                                                    CE214    CE251 [CE272] CE518 CE523
45   C ELECTRO          CEXF1E470V   25V RSS 47MF (5X11) TP           19     20      19       20
                                                                                                    CE601    CE602 CE605 CE607 CE608
                                                                                                    CE611    CE612 CE618 CE620 CE624
                                                                                                    CE206    CE411    CE412   CE413   CE414
46   C ELECTRO          CEXF1H100V   50V RSS 10MF (5X11) TP           11     11      11       11    CE418    CE501    CE504   CE708   CE803
                                                                                                    CE804
                                                                                                    CE205    CE207    CE208   CE209   CE210
47   C ELECTRO          CEXF1H109V   50V RSS 1MF (5X11) TP            10     10      10       10
                                                                                                    CE211    CE704    CE801   CE802   CE805
48   C ELECTRO          CEXF1H220V   50V RSS 22MF (5X11) TP           1      1           1    1     CE204
49   C ELECTRO          CEXF1H228V   50V RSS 0.22MF (5X11) TP         1      1           1    1     CE212
                                                                                                    CE101    CE401 CE402 CE403 CE404
                                                                                                    CE405    CE406 CE407 CE408 CE415
50   C ELECTRO          CEXF1H229V   50V RSS 2.2MF (5X11) TP          14     14      14       14
                                                                                                    CE416    CE610 [CE701 CE702]
                                                                                                    [CE706   CE707]
51   C   ELECTRO        CEXF1H339V   50V   RSS   3.3MF (5X11) TP      1      2           1    2     CE202 [CE273]
52   C   ELECTRO        CEXF1H470V   50V   RSS   47MF (6.3X11) TP     4      4           4    4     CE911 CE912 CE913         CE914
53   C   ELECTRO        CEXF1H478V   50V   RSS   0.47MF (5X11) TP     3      3           3    3     CE502 CE503 CE505
54   C   ELECTRO        CEXF1H479V   50V   RSS   4.7MF (5X11) TP      4      4           4    4     CE519 CE520 CE521         CE522
55   C   ELECTRO        CEXF1V102V   35V   RSS   1000MF (13X25) TP    1      1           1    1     CE903
                                                                                 Q'ty
NO          Parts Name     Parts Code            Description                                                      Location
                                                                    317L   317R    316L     317R
56    C MYLAR              CMXM1H102J   50V 0.001MF J (TP)           4      4           4    4     CM601   CM602    CM605    CM606
57    C MYLAR              CMXM1H103J   50V 0.01MF J (TP)            4      4           4    4     CM202   CM203    CM204    CM205
                                                                                                   CM405   CM406    CM407    CM408   CM801
58    C MYLAR              CMXM1H104J   50V 0.1MF J                  6      6           6    6
                                                                                                   CM802
59    C   MYLAR            CMXM1H122J   50V   0.0012MF J             2      2           2    2     CM505   CM506
60    C   MYLAR            CMXM1H152J   50V   1500PF J               2      2           2    2     CM615   CM616
61    C   MYLAR            CMXM1H153J   50V   0.015MF J (TP)         2      2           2    2     CM201   CM613
62    C   MYLAR            CMXM1H183J   50V   0.018MF J              5      5           5    5     CM401   CM402    CM503    CM603   CM604
63    C   MYLAR            CMXM1H222J   50V   2200PF J               1      1           1    1     CM611
64    C   MYLAR            CMXM1H223J   50V   0.022MF J              4      4           4    4     CM403   CM404    CM901    CM902
65    C   MYLAR            CMXM1H332J   50V   3300 PF J              1      1           1    1     CM612
66    C   MYLAR            CMXM1H333J   50V   0.033MF J (TP)         2      2           2    2     CM501   CM504
67    C   MYLAR            CMXM1H392J   50V   0.0039MF J             1      1           1    1     CM614
68    C   MYLAR            CMXM1H473J   50V   0.047MF J              2      2           2    2     CM609   CM610
                                                                                                   CM206   CM207    CM409    CM410   CM607
69    C MYLAR              CMXM1H562J   50V 5600 PF J                6      6           6    6
                                                                                                   CM608
70    C MYLAR              CMXM1H683J   50V 0.068 MF J               1      1           1    1     CM502
71    CLIP FUSE            9734600700   FC-5N                        2      2           2    2     FC901   FC902
72    COIL BIAS OSC        5L0503K643   SM-10F 5.04MH                1      1           1    1     L601
73    COIL CHOKE           5LC682K822   6.8MH                        2      2           2    2     L204    L205
74    COIL DESCRIMINATOR   5107FBK473   7X7 BLK KSZ-73S              1      1           1    1     L203
75    COIL PEAKING         5CPZ100K02   10UH K (AXIAL 3.5MM)         2      2           2    2     L001    L251
76    CONN AS              9736407600   PIN BASE 53095-1310 13P      2      2           2    2     CN401    CW401
77    CONN AS              9738832100   7P 200 P=2.5 BOARDIN         1      1           1    1     CN509    CW509
78    CONN AS              9738833300   UL2851 #28 3P SHIELD 250M    1      1           1    1     CN603    CW603
79    CONN AS              9738833400   #28 3P+2P SHIELD 300MM       1      1           1    1     CN602    CW602
80    CONN AS              9738833600   #26 5P FLAT 170MM            2      2           2    2     CN601    CN701 CW601
81    CONN AS              9738833800   #26 8P BOARD-IN 300MM        1      1           1    1     CN901
82    CONN AS              9738833900   #22 8P BOARD-IN 300MM        1      1           1    1     CN901   CW901
83    CONN AS              9738834000   #26 2.0PITCH 11P FLAT 150    1      1           1    1     CN704
84    CONN AS              9738834100   #26 13P FLAT 100MM           1      1           1    1     CN703
85    CONN AS              9738840800   FFC 16P P1.0X250MM R         1      1           1    1     CN501
86    CONN AS              9738840900   FFC 19P P1.25X110MM K        1      1           1    1     CN508
87    CONN PIN             9736407800   53095-1010 10PIN ANGLE       2      2           2    2     CN402   CW402
88    CONN WAFER           9736407900   52084-1010 10P BOTTOM        1      1           1    1     CW402
89    CONN WAFER           9736408300   52492-1920 19P BOTTOM        1      1           1    1     CW702
90    CONN WAFER           9736408400   52045-1945 19P               1      1           1    1     CW508
91    CONN WAFER           9CD6258800   2P S2B-XH-A                  1      1           1    1     CW101
92    CONN WAFER           9CD6259300   52807-1610                   1      1           1    1     CW501
93    CONN WAFER           9CD6259400   2001-WS-12P                  1      1           1    1     CW507
94    CONN WAFER           9CD6259500   2001-WS-6P                   1      1           1    1     CW503
95    CONN WAFER           9CD6259600   2503-WS-2P                   1      1           1    1     CW502
96    CORD AC              9736900200   KKP419C,KLCE-2F,0.75SQURE    1      1           1    1     CD901
97    CRYSTAL QUARTZ       5XA32R768-   DT-38 32.768KHZ 20PPM        1      1           1    1     XC702
98    DIODE                 D1N4001-    1N4001                       4      4           4    4     D901    D902    D911    D912
99    DIODE                 DRL202--    RL202                        4      4           4    4     D904    D905    D906    D907
                                                                                                   D201  D401      D402    D403    D404
                                                                                                   D501  D502      D601    D602   [D703]
100 DIODE                   DZN4148-    1N4148 AUTO 52MM             18     19      19       20    [D705]D704      D706    D707    D708
                                                                                                   D709  D710      D711    D712   [D713]
                                                                                                   D801
101   DIODE ZENER           DZTZ30B-    MTZ30B                       1      1           1    1     DZ901
102   DIODE ZENER          DZTZ3R9B--   MTZ3.9B                      1      1           1    1     DZ502
103   DIODE ZENER          DZTZ5R6B--   UZ-5.6B                      3      3           3    3     DZ501 DZ503     DZ504
104   DIODE ZENER          DZTZ6R2B--   MTZ6.2B                      1      1           1    1     DZ902
105   FET                  TKTK117Y--   KTK117(Y)                    2      2           2    2     Q601  Q602
106   FILTER               5PPCFAZ077   PCFAZ077                     1      1           1    1     CF201
107   FILTER CERA          5PE107MJA-   SFE 10.7MHZ RED              1      1           1    1     CF002
108   FILTER CERA          5PE107MS2A   SFE107MS2-A                  1      1           1    1     CF001
109   FUSE GLASS TUBE      5FSGB4012L   SEMKO TL 400MA 250V MF51     1      1           1    1     F901
110   IC                   1BA1450S--   BA1450S                      1      1           1    1     IC201
111   IC                   1BU4094BCF   BU4094BCF(SOP16)             1      1           1    1     IC603
112   IC                   1DBL2084--   DBL2084(D/W)                 2      2           2    2     IC504 IC506
113   IC                    1L4959--    L4959                        1      1           1    1     IC901
114   IC                   1LC72130--   LC72130                      1      1           1    1     IC202
115   IC                    1M24C04-    M24C04-BN6                   1      1           1    1     IC701
116   IC                   1M38199316   U-COM M38199                 1      1           1    1     IC705
117   IC                   1TA8189N--   TA8189N                      1      1           1    1     IC601
118   IC                   1TDA7265--   TDA7265                      1      1           1    1     IC801
119   IC                   1TDA7479D-   TDA7479D                     -      1           -    1     IC204
120   IC AMSS               1LA2000-    LA2000                       1      1           1    1     IC604
121   IC AUDIO              1KA9270-    KA9270                       1      1           1    1     IC505
122   IC AUDIO             1TDA7439--   TDA7439                      1      1           1    1     IC401
123   IC AUDIO DSP         1KA9282B--   KA9282B                      1      1           1    1     IC502
124   IC CHIP              1KA9258D--   KA9258D                      1      1           1    1     IC503
125   IC CHIP RF           1KA9220B--   KA9220B                      1      1           1    1     IC501
126   IC PRE AMP           1TM97CT38P   LTM97CT-38P                  1      1           1    1     IC704
127   IC REGULATOR         1K1A78L05-   KIA78L05BP                   1      1           1    1     IC205
                                                                             Q'ty
NO          Parts Name    Parts Code             Description                                                   Location
                                                                317L   317R    316L     317R
128   IC SWITCHING         1BA7755A--   BA7755A (HEAD SW)        1      1           1    1     IC602
129   JACK ANTENNA         9736322200   T-646                    1      1           1    1     J001
130   JACK HEADPHONE       9766319501   HTJ-064-05B GOLD         1      1           1    1     J801
131   JACK RCA             9CD6313700   S-436P                   1      1           1    1     J401
132   JACK SPEAKER         9736320500   CJ-9007-040              1      1           1    1     J802
133   LED                  DLTL307EE-   LTL-307EE(RED)PI5        -      1           -    1     LD713
134   PIN WAFER            9736407700   52084-1310 13P BOTTOM    1      1           1    1     CW401
                                                                                               TP501   TP502    TP503    TP504    TP901
135 PIN WRAPPING           9713550400   1.0X2.5X15               6      6           6    6
                                                                                               TP902
136   R   CARBON   FILM    RD-2Y229J-   1/2   2.2 OHM J          1      1           1    1     R550
137   R   CARBON   FILM    RD-4Z100J-   1/4   10 OHM J           2      2           2    2     R588    R589
138   R   CARBON   FILM    RD-4Z102J-   1/4   1K OHM J           4      4           4    4     R815    R816    R817     R818
139   R   CARBON   FILM    RD-4Z479J-   1/4   4.7 OHM J          2      2           2    2     R809    R810
                                                                                               R004    R009    R206     R255     R545
140 R CARBON FILM         RD-AZ100J-    1/6 10 OHM J             7      7           7    7
                                                                                               R720    R921
                                                                                               R008    R102    R227     R228     R301
141 R CARBON FILM          RD-AZ101J-   1/6 100 OHM J            15     15      15       15    R304    R313    R436     R437     R546
                                                                                               R654    R663    R664     R672     R719

                                                                                               R208    R215    R216     R251     R256
                                                                                               R260    R261    R262     R263     R323
                                                                                               R409    R410    R423     R424     R431
                                                                                               R432    R511    R521     R522     R563
142 R CARBON FILM          RD-AZ102J-   1/6 1K OHM J             41     41      41       41
                                                                                               R564    R580    R601     R602     R603
                                                                                               R604    R613    R614     R647     R648
                                                                                               R659    R734    R736     R737     R739
                                                                                               R740    R744    R746     R74

                                                                                               L208  R213      R214   R254       R257
                                                                                               R258 [R276      R277] R579        R619
                                                                                               R620  R624      R639   R640       R641
                                                                                               R642 [R701       R702  R704       R707]
143 R CARBON FILM          RD-AZ103J-   1/6 10K OHM J            38     40      36       38
                                                                                               [R705 R708]     R709   R711     [R712]
                                                                                               [R713]R714      R715   R716      R721
                                                                                               R722 [R727      R730] R733       R735
                                                                                               R738 [R747]     R754   R757      R7

                                                                                               R109    R421    R422     R425     R426
                                                                                               R433    R434    R439     R440     R443
                                                                                               R445    R502    R510     R518     R519
144 R CARBON FILM          RD-AZ104J-   1/6 100K OHM J           26     26      26       26
                                                                                               R548    R549    R567     R568     R584
                                                                                               R585    R671    R762     R764     R823
                                                                                               R824
                                                                                               R505  R508      R559     R560     R622
145 R CARBON FILM          RD-AZ105J-   1/6 1M OHM J             6      6           6    6
                                                                                               R665
146   R   CARBON   FILM    RD-AZ106J-   1/6   10M OHM J          1      1           1    1     R717[R759]
147   R   CARBON   FILM    RD-AZ109J-   1/6   1 OHM J            2      2           2    2     R939  R940
148   R   CARBON   FILM    RD-AZ121J-   1/6   120 OHM J          1      1           1    1     R551
149   R   CARBON   FILM    RD-AZ122J-   1/6   1.2K OHM J         2      2           2    2     R405  R406
                                                                                               R259  R509      R523     R531     R532
150 R CARBON FILM          RD-AZ123J-   1/6 12K OHM J            10     10      10       10
                                                                                               R533  R538      R539     R557     R558
151 R CARBON FILM          RD-AZ124J-   1/6 120K OHM J           1      1           1    1     R513
152 R CARBON FILM          RD-AZ151J-   1/6 150 OHM J            5      5           5    5     R302  R305      R314     R627     R628
153 R CARBON FILM          RD-AZ152J-   1/6 1.5K OHM J           4      4           3    3     R325  R778      R779     R780
                                                                                               [R371] R403  R404  R411  R412
154 R CARBON FILM          RD-AZ153J-   1/6 15K OHM J            10     10      11       11     R515 R553  R554  R643  R644
                                                                                                R822
155 R CARBON FILM          RD-AZ154J-   1/6 150K OHM J           3      3           3    3     R503    R525    R821
                                                                                               R303    R306    R315 [R353
156 R CARBON FILM          RD-AZ181J-   1/6 180 OHM J            3      3           2    3
                                                                                               R362    R780]
157 R CARBON FILM          RD-AZ182J-   1/6 1.8K OHM J           3      3           3    3     R413    R414    [R741 R733]
158 R CARBON FILM          RD-AZ183J-   1/6 18K OHM J            5      5           5    5     R201    R203    R526  R813        R814
                                                                                               R504    R625    R626  R637        R638
159 R CARBON FILM          RD-AZ184J-   1/6 180K OHM J           6      6           6    6
                                                                                               R651
160 R CARBON FILM          RD-AZ220J-   1/6 22 OHM J             1      1           1    1     R534
161 R CARBON FILM          RD-AZ221J-   1/6 220 OHM J            4      4           4    4     R441    R552    R933     R934
                                                                                               R211    R212  R253  R264  R407
162 R CARBON FILM          RD-AZ222J-   1/6 2.2K OHM J           10     10      10       10    R408    [R737  R740] R581  R742            R
                                                                                               R747
                                                                                               R107   R528   R530   R615  R616
163 R CARBON FILM          RD-AZ223J-   1/6 22K OHM J            7      7           7    7
                                                                                               [R724]   R753   R911
164 R CARBON FILM          RD-AZ224J-   1/6 220K OHM J           3      3           3    3     R629   R630   R726
165 R CARBON FILM          RD-AZ271J-   1/6 270 OHM J            2      2           2    2     R307   R316 [R354    R363]
                                                                                               R222   R223   R427   R428  R611
166 R CARBON FILM          RD-AZ272J-   1/6 2.7K OHM J           8      8           8    8
                                                                                               R612   R617   R618
167 R CARBON FILM          RD-AZ273J-   1/6 27K OHM J            3      3           3    3     R542   R555   R556
                                                                                               R007 [R308    R317] [ R355
168 R CARBON FILM          RD-AZ331J-   1/6 330 OHM J            4      4           4    4
                                                                                               R364] R670
                                                                                    Q'ty
NO          Parts Name    Parts Code            Description                                                          Location
                                                                       317L   317R    316L     317R
                                                                                                      R005   R106    R221 [R324]    R516
169 R CARBON FILM         RD-AZ332J-   1/6 3.3K OHM J                   8      8           7    7
                                                                                                      R541   R543    R922
170 R CARBON FILM         RD-AZ333J-   1/6 33K OHM J                    4      4           4    4     R621   R655    R656   R756 [ R716]
                                                                                                      R650   R673    [R718   R761]   R763
171 R CARBON FILM         RD-AZ334J-   1/6 330K OHM J                   5      5           5    5
                                                                                                       [R760  R776     R779]
172 R CARBON FILM         RD-AZ391J-   1/6 390 OHM J                    3      3           2    2     R309   R318    R767 [R356    R365]
                                                                                                      [R373] R415     R416   R529   R633
173 R CARBON FILM         RD-AZ392J-   1/6 3.9K OHM J                   5      5           6    6
                                                                                                      R634
                                                                                                      R520  R537  R572       R586     R587
174 R CARBON FILM         RD-AZ393J-   1/6 39K OHM J                    6      6           6    6
                                                                                                      R759 [R718]
175 R CARBON FILM         RD-AZ470J-   1/6 47 OHM J                     4      5           4    5     R003  R209  R252       [R275]    R657
176 R CARBON FILM         RD-AZ471J-   1/6 470 OHM J                    2      2           2    2     R310  R319 [R357       R366]
                                                                                                      R101    R103   R104  R105  R207
                                                                                                      R210    R547   R561  R562  R565
                                                                                                      R566    R573   R574  R575  R576
177 R CARBON FILM         RD-AZ472J-   1/6 4.7K OHM J                   27     27      28       28
                                                                                                      R577    R578   R582  R583  R645
                                                                                                      R646    R662   R669 [R722 R723]
                                                                                                       R752    R787 [R788] R831  R832
                                                                                                      R512  R653   R658  R745  R746
178 R CARBON FILM         RD-AZ473J-   1/6 47K OHM J                    7      7           9    10    [R750][R751] [R765  R772] [R781]
                                                                                                      R914 R915
                                                                                                      R217  R218   R442 R444  R501
179 R CARBON FILM         RD-AZ474J-   1/6 470K OHM J                   7      7           7    7
                                                                                                      R540  R661
180 R CARBON FILM         RD-AZ475J-   1/6 4.7M OHM J                   1      1           1    1     R901
181 R CARBON FILM         RD-AZ479J-   1/6 4.7 OHM J                    1      1           1    1     R652 [R652]
                                                                                                      R311  R320   R569 R570  R571
182 R CARBON FILM         RD-AZ561J-   1/6 560 OHM J                    6      6           6    6
                                                                                                      R668
183   R   CARBON   FILM   RD-AZ562J-   1/6   5.6K OHM J                 3      3           3    3     R429  R430   R527
184   R   CARBON   FILM   RD-AZ563J-   1/6   56K OHM J                  4      4           4    4     R514  R517   R805 R806
185   R   CARBON   FILM   RD-AZ681J-   1/6   680 OHM J                  2      2           1    1     R006  [R766]
186   R   CARBON   FILM   RD-AZ682J-   1/6   6.8K OHM J                 5      5           5    5     R219  R609   R610 R631  R632
                                                                                                      R607  R608   R623 R649 [R707
187 R CARBON FILM         RD-AZ683J-   1/6 68K OHM J                    6      6           6    6
                                                                                                      R760 R717 R784]
188 R CARBON FILM         RD-AZ689J-   1/6 6.8 OHM J                    2      2           2    2     R743  R748 [R739  R744]
189 R CARBON FILM         RD-AZ820J-   1/6 82 OHM J                     3      3           3    3     R506  R605   R606
                                                                                                      R312  R635   R636 R807  R808
190 R CARBON FILM         RD-AZ821J-   1/6 820 OHM J                    5      5           6    6
                                                                                                      [R359  R368]
191   R CARBON FILM       RD-AZ822J-   1/6 8.2K OHM J                   4      4           4    4     R401  R402   R507 R524
192   R CARBON FILM       RD-AZ823J-   1/6 82K OHM J                    2      2           2    2     R535  R536
193   R FUSIBLE           RF01F4780J   0.47OHM 1W                       2      2           2    2     RF901 RF902
194   R SEMI FIXED        RV1417222-   1/10 2.2K OHM B V6EK-PV1S        1      1           1    1     RV601
195   R SEMI FIXED        RV6417223-   VM6CK-PV(1S) B 22K OHM           3      3           3    3     RV201 RV501 RV502
196   RESONATOR           5PCSA8MTZ-   CSA8MTZ, 8MHZ                    1      1           1    1     XC701
197   RESONATOR CERA      5PCSA16R93   CSA16.93MXZ04                    1      1           1    1     XC501
198   SW ENCORDER         5SH162401-   EC16B24204 24P W/DETENT          1      1           1    1     VR702 [VR701]
                                                                                                      SW701   SW702    SW703    SW704 SW705
                                                                                                      SW706   SW707    SW708    SW709 SW710
199 SW TACT               5S50101001   KPT-1105A 1C-1P                  24     24      25       25    SW711   SW712    SW713    SW714 SW715
                                                                                                      SW716   SW717    SW718    SW719 SW720
                                                                                                      SW721   SW722    SW723    SW724[SW726]
200   TR                  TKRA107M--   KRA107M (KSR2006)                1      1           1    1     Q003
201   TR                  TKRA111M--   KRA111-M TAPPING(KSR2010)        -      1           -    -     Q715
202   TR                  TKRC107M--   KRC107-M TAPPING(KSR1006)        4      5           4    4     Q701    [Q706] Q708       Q710    [Q717]
203   TR                  TKRC111M--   KRC111M (KSR1010)                2      3           2    2     Q702    Q703 [Q716]
204   TR                  TKSA928AY-   KSA928A-Y                        2      2           2    2     Q501    Q502
205   TR                  TKSC2331Y-   KSC2331Y                         1      1           1    1     Q503
206   TR                  TKSR1003--   KSR1003                          1      1           1    1     Q504
207   TR                  TZRA107M--   KRA107M (KSR2006)                2      2           2    2     Q613    Q614
208   TR                  TZRA111M--   KRA111M                          3      3           3    3     Q610    Q611    Q803
209   TR                  TZRC107M--   KRC107M(AUTO)                    1      1           1    1     Q618
210   TR                  TZRC111M--   KRC111M                          3      3           3    3     Q612    Q616    Q619
211   TR                  TZTA1266Y-   KTA1266Y- (AUTO)(1015Y)          3      3           3    3     Q603    Q604    Q617
212   TR                  TZTA1273Y-   KTA1273Y(966Y)                   5      5           5    5     Q615    Q705    Q707    Q709     Q901
213   TR                  TZTC3194Y-   KTC3194Y                         1      1           1    1     Q001
                                                                                                      Q201    Q202    Q505    Q605     Q606
214 TR                    TZTC3198Y-   KTC3198Y-(1815Y) (AUTO)          12     12      12       12    Q607    Q608    Q609    Q704     Q801
                                                                                                      Q802    Q804
215   TRANS POWER         5TP8066762   EI=66X30                         1      1           1    1     PT901
216   TUNER PACK          9737612700   FTA3-503V                        1      1           1    1     TU001
217   VFD                 DSVA09MM10   SVA09MM10                        1      1           1    1     FD701
218   WIRE JUMPER         W581GY1005   AWG22 1/0.65    SN   10 AUTO     2      2           2    2     R827 R829
219   WIRE JUMPER         W581GY5095   AWG22 1/0.65    SN   5 AUTO      1      1           -    -     CC709
220   WIRE JUMPER         W581GY6095   AWG22 1/0.65    SN   6 AUTO      1      2           1    2     [L270] R002
221   WIRE JUMPER         W581GY7595   AWG22 1/0.65    SN   7.5 AUTO    1      1           -    -     R703
222   X-TAL               5XA4R332M-   4.332M                           -      1           -    1     XC270
223   X-TAL               5XA7R20000   7.2M                             1      1           1    1     XC251



◦ Jabse Service Manual Search 2024 ◦ Jabse PravopisonTap.bg ◦ Other service manual resources online : FixyaeServiceinfo
