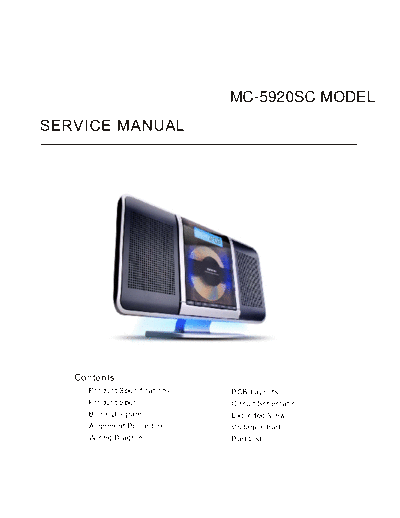

Image preview - the first page of the document
daewoo_mc-5920sc_radio_cd_player_sm


>> Download daewoo_mc-5920sc_radio_cd_player_sm documenatation <<

Text preview - extract from the document
                              MC-5920SC MODEL
SERVICE MANUAL




   Contents
     Product Specifications   PCB Layouts
     Product Spec             Circuit Schematic
     Block Diagram            Exploded View
     Alignment Procedure      Voltage Chart
     Wiring Diagram           Part List
                             Product Specifications


* Product Features:
>CD/CDR/CDRW/CDMP3/WMA Player
>USB/SD Player
>PLL FM radio
>Alarm Clock function
>Electronics CD door open / close
>LCD display
>5 x Blue color LED for lighting effect (on/off)
>2W + 2W max power output
>Full function remote control

>Aux in jack for any MP3 player
>Slim type switching power supply




* PACKING :
> PACKED BY POLYBAG
> 4 COLOUR GIFT BOX WITH
 POLYFOAM 4pcs/CTN (TBC)
> ENGLISH INSTRUCTION BOOK


* DIMENSION : (PRELIMINARY)
> UNIT : 215.9mm x 124.5mm (H) x 43.2 mm(w/o footstand) x 68.6mm (w/ footstand)




                                               2
    Product Spec. (CU)----- General V01                                              Sample no.
    Model no:MC-5920SC

    Item      Description                                    Testing method            Unit Normal   Limit    1#     2#     3#     4#     5#
      1     operating voltage    For Europe AC 230V +/-10%, For Battery +10/-30%                     PASS    PASS   PASS   PASS   PASS   PASS
      2 Standby current(standby) Power off, NO AC/DC input, Check battery current       uA           <250                   17     16     16
      3      Clock accuracy                                                            sec/d          +/-2   0.8    0.8     0.7    0.7    0.6
      4    Temperature range     Operation temperature range                           degC          0-40
      5     Remote distance                                                             M              >7     9             9      9      9
      6   SUBWOOFER OUT @784, 100HZ, 0dB / @FM Mod 75K , 100hZ Subwoofer loading @47KomVrms           >40




3
    Product Spec. (CU)----- CD V01                                                     Sample no.
    Model no:MC-5920SC

    Item       Description                                      Testing method          Unit Normal Limit           1#      2#        3#        4#        5#
      1           Scratch        @444A trk 7, 8 - vol. half                             um      NA      >600      1000    1000      1000      1000      1000
      2         black dots       @444A trk 14 vol. half                                 um      NA      >600       800     800       800       800       800
      3        finger prints     @444A trk 18,19 - vol. half                            um      NA        75        75      75        75        75        75
      4     vertical deviation   @TCD-731, vol half                                    No Scatch Cabinet          pass    pass      pass      pass      pass
      5        eccentricity      @TCD-712,vol half                                                    all pass    pass    pass      pass      pass      pass
      6            TOC           @784 , vol half                                        sec       8       12        10      10        11        11        10
      7        Access time       @784 ,vol half, trk 1 - 22, trk 22 - 1                 sec       8       12         9      10         9         8         8
      8     Short Access time    @784, vol half, trk 1 - 2                              sec              <1.5        1       1         1         1         1
      9          distortion      @784, trk2 1khz , vol= ref, with low pass filter        %      0.5        1      0.75               0.8       0.8       0.8
     10       L/R seperation     @Standard Disc ,trk30, 1khz ,vol=ref                    dB      45       40        43     48         44        46        48
     11          S/N ratio       @Standard Disc trk1 ,1khz , vol=ref                     dB      50       45        54     56         56        57        56
     12       Min Vol Hum        AC input / Adaptor , @784 tk7, Min vol, use Adaptor    mV      NA        <8      0.85               0.7      0.75       0.8
     13      channel balance     @Standard Disc trk1 ,1khz , vol=ref                     dB     0.5       3<         0                 0         0         0




4
     14    frequency response    @Standard Disc trk37 ,1khz , vol=ref                    dB      ref      ref        /      /          /         /         /
                 (EQ flat)       @Standard Disc trk36 ,100hz                             dB       0      +/-3        0    +0.5         0       +2        +2
                                 @Standard Disc trk38, 10khz                             dB       0      +/-3     -2.5    -2.5      -2.5         0         0
    15     Max power output      @784, trk2 1khz, vol max                                W      NA        >2      2.89    2.72      2.72      2.89      2.89
               CDRW
    16     RW high reflection    @TCDW082W TRK 1 and 15, VOL HALF                                      all pass   pass    pass      pass      pass      pass
                MP3
    17       MP3 bit rate        @Standard Mp3 test disc                                Kbps          32 -320 32 -320    32 -320   32 -320   32 -320   32 -320
    18     MP3 VBR bit rate      @Stand VBR MP3 test disc                               Kbps           PASS    pass       pass      pass      pass      pass
    19      WMA bit rate         @Standard WMA test disc                                Kbps          32-320 32-320      32-320    32-320    32-320    32-320
    Product Spec. (CU)----Radio - FM V01                                                                                    Sample no.
    Model no:MC-5920SC
                                                                                                                                                                         Result
    Item        Description                                           Testing method                                  Unit Normal         Limit        1#        2#         3#         4#        5#
      1       Frequency range                                                                                     Low Mhz   87.5          +/-0.5     87.5      87.5       87.5        87.5      87.5
                                                                                                                 High Mhz   108           +/-0.5      108       108        108        108       108
     2        Frequency step                                                                                          Khz                 50Khz         0         0          0          0         0
     3           30dB s/n            u@MTP, vol@ref , #sig-O&F@MTP>s/n@max                                            dbuv   20             26       9/9/8     8/8/9      8/8/8     10/10/10   8/9/10
     4       Dial Calibration        All points on Dial printing                                                      Mhz                 +/-0.7        0         0          0          0         0
     5     -3dB Freq. Response       sig-F@MTP 60dBuV, Preamp 75us(USA),vol=ref, ^sig- AF=A >o/p v 3 dB, v sig-AF=B>O hz    100            200         65                   72         67        63
                                     Frequency response = A and B                                                      hz   12k             8k        16k       13         13k        15k       15k
     6       min. volume Hum         AC supply / Adaptor, u@MTP , sig@MTP , 60dBuv                                            mv     NA    <8        0.75       0.6        0.55        0.6      0.6
     7       S/N ratio (Mono)        u@MTP, vol@ref, sig@MTP 60dBuv                                                           db     43    37          42                   46         40       42
     8      distortion@ 22.5Kc       u@MTP , sig-F@MTP 1mV, #vol=ref,#distortion meter=1khz>THD=min.                          %       1     2        0.65                   0.7        0.7     0.64
     9          Stereo THD           With A weighted filter, u@MTP, sig@MTP, 60dBuV                                           %      NA    6<        0.65                   0.7       0.95     0.85
    10       Max output Power        u@MTP , sig-F@MTP 60dBuv, 1khz, ^ dev, vol=max>O/P=A, power =AxA/speaker ohm             W      NA    >2        2.25                  2.56       2.89     2.72
                                                                                                                                                        0




5
    11     Auto search accuracy      Full frequency range, sig-O@25dBuV and 60dBuV                                            step         +/-1
    12        Auto search sens       sig@LTP , mod 22.5k , auto search from lower OR upper side ,Repeat test for HTP ,MTP   dbuv     24     30     18/18/18   18/18/18   17/18/18   17/18/19 17/18/18
    13        Stereo seperation      With A weighted filter, sig@MTP, 60dBuV                                                   dB    28     20         34        35         34         37       37
    14     Stereo indicatior sense   u@MTP, sig-F@MTP, ^sig-O=A> Stereo indicator light ON                                   dBuv    24     30         14        13         15         14       21
    Product Spec. (CU)----Radio - AM V01                                                                     Sample no.
    Model no:MC-5920SC


                                                                                                                                                               Result
    Item       Description                                         Testing method                                   Unit Normal Limit       1#         2#         3#         4#       5#
      1      Frequency range      Sig-O@80dbuv/m Vol@ref                                                             khz   522   +/-5      522        522        522        522      522
                                                                                                                     khz  1620   +/-5     1620       1620       1620       1620     1620
     2         Max. sens          u@LTP , vol@max , ^sig-O> O/P=ref                                                 dB/M    54    60        58         59         56         57       56
     3          20dB s/n          u@LTP , vol@ref , #sig-F@LTP>s/n@max,=> ^sig-O=A > O/P = 20db s/n                 dB/M    62    68    57/58/56   58/56/57   60/59/56   59/58/58 58/57/55
     4       Dial Calibration     check all points on dial scale                                                     Khz +/-40 +/-80         0          0          0          0        0
     5         Distortion         u@MTP , sig@MTP ,94dB/M, #vol>o/p=ref                                               %      1     2       1.1        1.1        1.1          1      1.2
     6      Max. O/P power        u@MTP, sig@MTP, Mod ^, 94dB/M, ^vol=max                                            W     NA     >2      2.89       2.89       2.89       3.06     2.89
     7            AGC             u@MTP, sig@MTP, mod 30%,94dB/M, vol = ref, v sig-O= x > O/P v =ref - 10dB , AGC =  db     45    40        55         57         56         57       54
     8     Frequency response     u@MTP ,sig@MTP,94dB/M, vol =ref O/P, ^sig-AF =A> O/P v 3dB, v sig-F=B> O/P v 3dB hz      100   200        74         68         72         71       79
                                                                                                               High Khz      2   1.8       1.9        2.0          2          2        2
     9        Min. Vol Hum        AC I/P / Adaptor , u@MTP, sig@MTP,100dB/M, Vol=0                                   mV    NA     <8      0.65       0.65       0.55        0.9     0.65




6
                   S/N            u@MTp, sig@MTP, 94dB/M, Vol=ref O/P                                                dB     35    30        42                    43         42       42
    11     Auto search accuracy   Full frequency range, sig-O@74dB/M and 94dB/M                               step             +/-1         0          0
    12      Auto search sens      sig@LTP , auto search from lower OR upper side ,Repeat test for HTP ,MTP   dB/M      68       76      56/58/59   60/60/61   60/59/61   61/59/62 61/58/60
    Product Spec. (CU)----- Audio 1 V01                                                              Sample no.
    Model no:MC-5920SC

    Item         Description                                Testing method                           Unit Normal Limit     1#     2#     3#     4#     5#
                  LINE IN
     1              Hum            At AC input, Vol = 0                                               mV            <8     0.65   0.6    0.55   0.6    0.6
     2        Channel seperation LINE IN 300mVrms, 1khz                                               dB      40    35      39    42      41    39     41
     3     -3dB frequency response LINE IN 300mVrms, set 1khz =0dB, vol=ref
                                                                                          Low End     Hz      100   150     60            58     48     44
                                                                                          High End    Hz      16K   15K    32k    33k    34k    37k    38k
     4        Distortion          LINE IN 300mVrms, 1khz, Vol=ref                                     %        1     <2    0.56          0.6    0.55   0.52
     5     channel balance        LINE IN 300mV ,1khz , vol=ref                                       dB      NA     3<     0.5          0.4      0      0
     6    Max Output power        LINE IN 600mVrms, 1khz, Vol=max                                     W       NA     >2
          Earphone Output
     7      Output power          @784, Trk 2 / FM mod=75K 1khz ,Vol max                               MV     450   300    400    390    380    400    400
     8     channel balance        @784, TRK2,1khz/   FM mod75K 1khz , vol=ref                          dB     0.5   2<      0             0       0      0
     9          Hum               At AC input / Adaptor , @784 , TRK2, Pause, Vol=max / @Fm 1khz tone mVrms   NA    <1     0.2           0.1    0.15   0.18




7
               USB/SD
    10          Hum               At AC input, Vol = 0                                                mV      NA    <8     0.82   0.7    0.65   0.7    0.7
    11    Channel seperation      L 0dB, 1khz                                                         dB      40    35      41    43      42    48     50
    12 -3dB frequency response    set 1khz =0dB, vol=ref
                                                                                             100Hz    dB            +/-3    +1    +0.5    -1     1.5     2
                                                                                             10KHz    dB            +/-3     0    -2.5   -2.5     0      0
    13           Distortion       1khz odb trk, Vol=ref                                               %        1     <2    0.55          0.75   0.75   0.72
    14       Max Output power     1khz odb Vol=max                                                    W       NA     >2
    15        channel balance     0dB,1khz , vol=ref                                                  dB      NA     3<     0             0      0      0
Block Diagram




      8
Wiring Diagram




      9
PCB Layouts
Main PCB (Top Layer)




         10
Main PCB (Bottom Layer)




           11
Clock PCB (Top Layer)           Clock PCB (Bottom Layer)




9A-RESET PCB (Top Layer)        9A-RESET PCB (Bottom Layer)




                           12
   SD/USB JACK P C B ( T o p L a y e r )        SD/USB JACK P C B ( B o t t o m L a y e r )




J A C K P C B ( To p L a y e r )                 JACK PCB (Bottom Layer)




                                           13
8A-LED LIGHT PCB (L) (Top Layer)        8A-LED LIGHT PCB (R) (Bottom Layer)




8A-LED LIGHT PCB (L) (Top Layer)        8A-LED LIGHT PCB (L) (Bottom Layer)




                                   14
    Remote PCB (Top Layer)        Remote PCB (Bottom Layer)




6A KEY P C B(Top Layer)           6A KEY P C B (Bottom Layer)




                             15
SWITCH PCB (R) (Top Layer)        SWITCH PCB (R) (Bottom Layer)




SWITCH PCB (L) (Top Layer)        SWITCH PCB (L) (Bottom Layer)




                             16
CD PCB (Top Layer)




CD PCB (Bottom Layer)




                        17
CD/MP3 Circuit Schematic




            18
MAIN Circuit Schematic




            19
(REMOTE CONTROL) Circuit Diagram




               20
Exploded View




      21
                          MC-5920SC IC VOLTAGE DATA SHEET
                                                   10V DC 1400 MA

         IC202   IC3      IC201 IC803 IC307 IC805          U1     IC804    U3      IC801   IC2     IC4
ITEM

         VOLT VOLT VOLT VOLT VOLT VOLT VOLT VOLT                          VOLT     VOLT VOLT VOLT
 1 PIN     0V     5.2 V   1.49V   0.10V   0.02V   1.50V   2.59V     0V    10.63V   1.97V     9V    0.05V
 2 PIN   4.22V     0V     1.52V   1.40V   6.03V   4.15V   2.59V     0V     5.33V   1.74V     0V      0V
 3 PIN   3.32V   2.58V    1.52V   3.27V   0.01V   1.42V   2.59V     0V    10.20V   1.75V   6.04V     0V
 4 PIN           2.58V    1.47V     0V      0V    1.54V     0V    5.12V      0V    1.76V             3V
 5 PIN           2.58V    1.54V   0.22V     0V    1.25V   2.58V   0.03V    0.59V   1.75V           3.11V
 6 PIN           2.59V    1.52V   1.35V   6.03V   0.02V   2.59V              0V    1.78V           3.08V
 7 PIN           2.59V    1.52V   3.27V   0.05V   0.02V   2.58V              0V    1.70V           3.11V
 8 PIN           2.58 V   1.52V    3.3V   6.03V   5.11V   5.18V            0.58V   3.31V             0V
 9 PIN           2.58 V   1.53V           0.03V     0V                     5.83V   1.56V           0.78V
10 PIN           2.58 V   3.12V                     0V                    10.40V   1.17V           0.77V
11 PIN           2.58 V   1.48V                   2.56V                    5.48V     0V
12 PIN           2.58 V   0.02V                   2.39V                   10.62V   1.
13 PIN           2.58 V   1.46V                   2.76V                            1.18V
14 PIN           2.58 V   1.34V                   2.22V                            1.13V
15 PIN           2.58 V   3.12V                    2.6V                            1.60V
16 PIN           2.58 V   3.67V                   2.47V                            1.43V
17 PIN           2.58 V   1.96V                   2.92V                            1.70V
18 PIN           2.58 V   3.12V                   2.09V                            3.31V
19 PIN           2.58 V   3.12V                   5.12V                            1.62V
20 PIN           2.58 V   3.12V                     0V                             2.24V
21 PIN           2.58 V   3.12V                   1.33V                              0V
22 PIN           2.58 V   0.02V                     0V                               0V
23 PIN           2.60V    2.82V                   1.68V                             3.3V
24 PIN           2.60V    0.02V                     0V                             1.73V
25 PIN             0V     3.03V                   5.08V                            3.31V
26 PIN           3.11V    0.02V                   1.56V                            1.26V
27 PIN           3.11V    0.02V                   1.55V                            0.48V
28 PIN           2.59V    3.12V                   3.31V                              0V
29 PIN                    3.12V                                                    1.73V
30 PIN                    0.03V                                                      0V
31 PIN                    3.31V                                                    1.51V
32 PIN                    0.02V                                                    1.51V
33 PIN                    0.02V                                                    1.51V
34 PIN                    3.31V                                                    1.51V
35 PIN                    0.03V                                                    1.51V
36 PIN                    3.31V                                                    1.51V
37 PIN                    3.12V                                                      0V
38 PIN                    3.12V                                                     3.3V
39 PIN                    0.02V                                                      0V
40 PIN                    3.09V                                                      0V
41 PIN                    3.02V                                                      0V
42 PIN                    3.02V                                                      0V
43 PIN                    3.02V                                                      0V
44 PIN                    3.02V                                                      0V
45 PIN                    1.52V                                                    0.46V




                                                   22
46 PIN   1.51V        0.59V
47 PIN   1.48V        1.52V
48 PIN   1.47V        0.57V
49 PIN   1.55V        0.57V
50 PIN   1.47V        1.70V
51 PIN   1.49V
52 PIN   1.51V        1.52V
53 PIN   1.47V        0.77V
54 PIN   1.47V        1.52V
55 PIN   1.47V        1.72V
56 PIN   1.47V        2.21V
57 PIN   1.47V        1.42V
58 PIN   1.47V          0V
59 PIN   1.47V          0V
60 PIN   1.50V          0V
61 PIN   1.52V        0.03V
62 PIN   1.54V        2.63V
63 PIN   1.52V        0.39V
64 PIN   1.51V        2.52V
65 PIN   1.47V        2.51V
66 PIN   1.49V        1.29V
67 PIN   1.50V        0.26V
68 PIN   1.51V        1.73V
69 PIN   1.52V          0V
70 PIN   1.54V          0V
71 PIN   1.49V        3.32V
72 PIN                0.28V
73 PIN                1.69V
74 PIN                1.69V
75 PIN                0.19V
76 PIN                0.20V
77 PIN                1.66V
78 PIN                0.23V
79 PIN                1.41V
80 PIN                0.10V
81 PIN                  0V
82 PIN                3.32V
83 PIN                3.31V
84 PIN                  0V
85 PIN                  0V
86 PIN                  0V
87 PIN                  0V
88 PIN                0.03V
89 PIN                3.32V
90 PIN                3.32V
91 PIN                3.32V
92 PIN                1.91V
93 PIN                  0V
94 PIN                  0V
95 PIN                1.37V




                 23
 96 PIN        1.37V
 97 PIN        1.45V
 98 PIN        1.45V
 99 PIN        1.45V
100 PIN        1.45V
101 PIN        1.45V
102 PIN        1.45V
103 PIN        1.69V
104 PIN        3.32V
105 PIN        1.92V
106 PIN          0V
107 PIN        0.03V
108 PIN          0V
109 PIN        3.32V
110 PIN        0.03V
111 PIN        0.02V
112 PIN          0V
113 PIN          0V
114 PIN          0V
115 PIN          0V
116 PIN          0V
117 PIN        3.32V
118 PIN        3.32V
119 PIN        1.46V
120 PIN        1.50V
121 PIN        1.47V
122 PIN        1.41V
123 PIN        1.39V
124 PIN        1.52V
125 PIN        1.38V
126 PIN        3.12V
127 PIN        1.53V
128 PIN        1.36V
129 PIN        3.31V
130 PIN        1.47V
131 PIN        1.45V
132 PIN        3.3V
133 PIN        1.28V
134 PIN        3.3V
135 PIN        0.23V
136 PIN        0.24V
137 PIN        0.22V
138 PIN        0.23V
139 PIN        0.23V
140 PIN         0V
141 PIN        0.16V
142 PIN        3.0V
143 PIN        1.32V




          24
144 PIN        1.25V
145 PIN        1.18V
146 PIN        1.22V
147 PIN          0V
148 PIN        3.32V
149 PIN         0V
150 PIN        1.73V
151 PIN        1.20V
152 PIN        1.23V
153 PIN        1.23V
154 PIN        1.24V
155 PIN         0V
156 PIN         0V
157 PIN        1.18V
158 PIN        1.23V
159 PIN        1.06V
160 PIN        1.04V
161 PIN        3.21V
162 PIN        3.31V
163 PIN        3.31V
164 PIN        3.32V
165 PIN         0V
166 PIN         0V
167 PIN         0V
168 PIN        1.55V
169 PIN        1.62V
170 PIN        3.32V
171 PIN        1.75V
172 PIN         0V
173 PIN        1.54V
174 PIN        1.43V
175 PIN        1.57V
176 PIN        0.20V




          25
                          MC-5920SC Part list
             Code                        Description       Quantity
1   FANE380S-CABINET(0)          FANE380S CABINET (0)         1
2   - 580100380S000010                   Front casting        1
3   - 580108380S000034             Stand, Front casting       1
4   - 580110380S000000                   Back casting         1
5   - 580113380S000034                      Stand             1
6   - 580110380S000034             Stand, Back casting        1
7   - 580140380S000000                   Battery Door         1
8   - 580149380S000058                     CD Door            1
9   - 580188380S000046                 CD open button         1
10 - 580359380S000046               Function key Door         1
11 - 580254380S0S0000              Function key, small        1
12 - 580254380S0L0010                  Function key, big      1
13 - 580195380S000046                   Power button          1
14 - 580318380S0L0046                     Cover, Left         1
15 - 580318380S0R0046                    Cover, right         1
16 - 580257380S0B0075                      CD lens            2
17 - 580257380S0A0075              Buttom casting lens        1
18 - 580371380S000000                     Cover rack          1
19 - 580279380S0S0000                    Small Gear           2
20 FANE380AS-CABINET(1)          FANE380AS CABINET (1)        1
21 - 580282380S0B0057                     Motor rack          1
22 - 580280380S000057                     Gear rack           1
23 - 580267380S000000                  LCD zebra rack         1
24 - 580303380S0A0000                     LED rack            1
25 - 580361380S000000                      IR rack            1
26 - 580253380S0A0000             CD door switch rack 2       1
27 - 580253380S0B0000             CD door switch rack 2       1
28 - 580279380S0B0057                      Big Gear           1
29 - 580303380S0B0000            Button casting LED rack      3
30 - 580272380S0A0000               CD module rack A          1
31 - 580272380S0B0000               CD module rack B          1
32 - 580272380S0C0000                      Coil rack          1
33 - 580279380S000057                        Gear             1
34 - 580282380S0A0057                  Motor Gear " A "       1
35 - 580262380S000070                        Lens             1
36 - 580303380S0L0000                  CD LED rack "L"        1
37 - 580303380S0R0000              CD LED rack - " R "        1
38 - 580349380S0L0000                     Shaft " L "         1
39 - 580349380S0R0000                     Shaft " R "         1
40 - 580303380S0C0000                   Key,LED " C "         2




                                  26
41 FANE380SIR-CABINET          FANE380SIR CABINET               1
42 - 580117380S0I0000                Remote bottom              1
43 - 580140380S0I0000            Remote battery door            1
44 FANE380AS-PACKING            FANE380AS PACKING               1
45 - 480110380S00                        Label                  1
46 - 500115060101           Poly Bag (PO) (035) 3 x 4-1/2"      1
47 - 500115711600            Poly Bag (PO) (035) 7.5 x 11"      1
48 - 500117M80702                Non transparent bag            1
49 - 500700380SL2                    Polyfoam, left             1
50 - 500700380SR2                    Polyfoam, right            1
51 - 520105000011               Q.C. Passed Label (09)          1
52 - 520106096200                      Fcc Label                1
53 - 520122038801                    Class 1 Laser              1
54 - 520401380S00                      I/B Booklet              1
55 - 5204100936J1             CD module protection card         1
56 - 540115380S00                       Gift box                1
57 - 560102380000                Carton (2 Ply *BB*)            1
58 FANE380ASIR-PACKING         FANE380ASIR PACKING              1
59 - 440130058501                 Battery Sanp PVC              1
60 - 48010538SI00                    Remote plate               1
61 - 480110368I01              Back Plate (For Remote)          1
62 - 5001150368Q2           Poly Bag (PO) (035) 2-1/2 x 6"      1
   FANE380AS-
63 ACCESSORIES               FANE380AS ACCESSORIES              1
64 - 320102091506                    Black adapter              1
65 - 4200502501KA               Screw KA 5 x 25 (D=8)           2
66 FANE380AS-CASING(1)         FANE380AS CASING(1)              1
67 - 200260093802                         Coil                  1
68 - 200260182T01                         Coil                  1
69 - 4200200800PA             Screw PA 2 x 8 (Zinc Black)       4
70 - 4200230802WA           Screw PWA 2.3 x 8 (D=9.5mm)         2
71 - 4200261050PA        Screw PA 2.6 x 10 (Zinc Black) "5mm"   4
72 - 4200301200PA            Screw PA 3 x 12 (Zinc Black)       13
73 - 4200200841KA           Screw KA 2 x 8 **NIC** "4mm"        1
74 - 4200230800KA            Screw KA 2.3 x 8 (Zinc Black)      1
75 - 4200260802WA             Screw PWA 2.6 x 8 (D=9.5)         1
76 - 380177015000         Wire 1500mm (Black) (U/L 1007#26)     1
77 FANE380S-CASING(0)           FANE380S CASING(0)              1
78 - 280210053000        Speaker 3 " 4 5W * UPS 706 -07AR *     2
79 - 380190038301                    UL shrink tube             1
80 - 380302040260                     4 Pin cable               1
81 - 380305020100        2P Housing (U/L 2651#28) L=100mm       1
82 - 400100000196          CD module *DA11B3VZ* "SANYO"         1
83 - 380308160075                FFC UL Cable 16 Pin            1
84 - 400300000201           Motor 6V *SD500-14450-32mm*         1




                                27
85 - 4200140501PA                    Screw PA 1.4 x 5                  2
86 - 4200170531KB           Screw KB 1.7 x 5 **NIC** "3.1mm"           1
87 - 42001707RNPA             Screw NPAGN 1.7 x 7 **NIC**              17
88 - 4200200501PB                 Screw PB 2 x 5 **NIC**               10
89 - 4200200501PA                 Screw PA 2 x 5 **NIC**               1
90 - 4200260601PA                Screw PA 2.6 x 6 **NIC**              1
91 - 4200200651WA            Screw PWA 2 x 6 **NIC** "5mm"             1
92 - 4200200801PA                 Screw PA 2 x 8 **NIC**               8
93 - 4200300601WA            Screw PWA 3 x 6 (D=7) **NIC**             8
94 - 4200260400BM             Screw BM 2.6 x 4 (Zinc Black)            2
95 - 4200260801PA                Screw PA 2.6 x 8 **NIC**              18
96 - 4200261001WA              Screw PWA 2.6 x 10 **NIC**              2
97 - 4200260802WA              Screw PWA 2.6 x 8 (D=9.5)               4
98 - 4301000020R0             Fiber Washer *FW 2 x 5 x 0.5*            4
99 - 430100005000            Fiber Washer *FM M5* *1105-3*             4
100 - 420201380S00        FM antenna plate " 23.00 x 9.95 x 8.00       1
101 - 440140090000                  Battery Contact (+)                1
102 - 440140090001                  Battery Contact (-)                1
103 - 440140090002                 Battery Contact (+/-)               1
104 - 440150036802                Spring *Hook* (Black)                1
105 - 440163080700                 EVA 222 x 5 x 2mm                   2
106 - 440170048901         Rubber Foot 12.5 x 1.6 mm *3M* *2*          4
107 - 440171000100             CD prevent vibration rubber             4
108 - 440180038000     Dust resist paper(120 x 30 x 0.2mm) {x 2 pcs}   2
109 - 460201036801          Motor Belt Silicon Rubber Ring *2*         1
110 - 480105380S00     Back casting PVC * 24.35 X 14.10 X 0.30mm       2
111 - 440180093702                     Dust resist paper               2
112 - 4402000807R5                        gear shaft                   1
113 - 520103093700                      copper paper                   1
114 - 5201050000L1                     Q.C.Test Label                  1
115 - 560900036800               Filament Tape 3M #898                 1
116 - 580177518000             CD module dust resist cover             1
117 - 440200606380                  Cable Tie 100mm                    1
118 - 606M00000024                        Lubricants                   1
119 - 560900000004                     Protective paper                1
120 FAGT900IR-CASING               FAGT900IR CASING                    1
121 - 360100000601             Battery Lithtum 3V*CR2032*              1
122 - 4200140521KB           Screw KB 1.4 x 5 **NIC** (D2.4)           8
123 - 440170038300            Plastic parts 7.5 X 6.2 X 3mm            1
    FANE380ACS
124 CHASSIS(0)                 FANE380ACS CHASSIS(0)                   1
125 - 1002847806CS                 I.C. L7806C-V * ST *                1
126 - 100284D72910                 I.C. D7291 "Silicore"               1
127 - 100284D82270                 I.C. D8227 "CHMC"                   1
128 - 100302077200           Transistor B772K" LIGHTNING" *            1




                                  28
129 - 100700004001                    Diode IN4001 50V "TIP"               1
130 - 100700005401                      Diode IN5401- TIP                  1
131 - 100710000330                    Zenor 3.3V 1/2W +/-5%                2
132 - 120160000100                  Resistor 1 OHM 1/2W +-5%               1
133 - 140710107160          Dip Elect Cap 100UF 16V +/-20% -40 ~ +85       1
134 - 140600108103              E. Cap 1000 UF 10V ( D8 x 12mm )           4
135 - 140600228250                  E. Cap 2200 UF 25V +/-20%              1
136 - 140700106162                 Mini E. Cap 10 UF 16V +/-20%            1
137 - 140700107101                    Mini E. Cap 100 UF 10V               7
138 - 140700226161                    Mini E. Cap 22 UF 16V                1
139 - 140700475502                    Mini E. Cap 4.7 UF 50V               2
140 - 140700476161              Mini E. Cap 47 UF 16V 85+/-20%*            3
141 - 140820100001               Mylar Cap 0.1 UF10%" "Polyester"          2
142 - 20015200R100               Chock Coil 10uH " AL0204-100J "           1
143 - 200300000032                    Bar Holder small 8mm                 1
144 - 200355000000                             am bar                      1
145 - 24015500C900                  AM/FM Module I.C * C900 **             1
146 - 3801500000R1                 Wire *Copper* Dia.0.6mm(CP)             1
147 - 380251030000                            Wafer 3P                     1
148 - 380251GA0600                            Wafer 2P                     1
149 - 380251104000                  Wafer (ST.) 4P {PH:2.5mm}              1
150 - 380252120002                     FFC connector 12 Pin                2
151 - 380252160000                     FFC Connector 16P                   1
152 - 4200260801BM                       Screw BM 2.6 x 8                  1
153 - 420201000800                            NUT 2.6                      1
154 - 440200080700                           Heat Sink                     1
155 - 440200080704                            Heat sink                    1
156 FANE380S-CHASSIS(1)              FANE380S CHASSIS(1)                   1
157 - 1003008550D0                       Transistor 8550D                  1
158 - 100282EA3240                         I.C* EA32400SA                  1
159 - 100860038001                       3mm blue LED                      2
160 - 100860038000                          LED blue led                   2
161 - 140700107101                    Mini E. Cap 100 UF 10V               2
162 - 140700475502                    Mini E. Cap 4.7 UF 50V               1
163 - 20015200R100               Chock Coil 10uH " AL0204-100J "           2
164 - 2201000380D0                 Display " 784023-02-T3NSO "             1
165 - 4801900603R0                     Colour Plate (Black)                1
166 - 240154000194             IR Module receiver KSM-803LM(38BT)          1
167 - 240250000150        Quartz * 32.738kHz * 12.5PF +/-10PPM "CITIZEN"   1
168 - 260180000101               Switch ( TC-6608-4.3*180+/-30gf )         2
169 - 300100038000               Zebra cable " 86.2 X 10.3 X 2mm           1
170 - 380251070000                  Wafer (ST.) 7P {PH:2.0mm}              1
171 - 380308120090                   FFC 12 Pin wire L=90mm                2
172 - 440160039803                  Sponge *B* 50 x 25 x 10mm              1




                                      29
173 - 440180038001        Scrub paper 98.00 x 30.40 x 0.075mm *X2PCS   3
174 - 440200038000            LCD rack (105.95 x 32.00 x 14.90mm)      1
175 - 480107038000              Reflect paper(98 x 30.4 x 0.1mm)       1
176 FANE380S-CHASSIS(2)             FANE380S CHASSIS(2)                1
177 - 100300928A00              Transistor KSA928A-Y "Fairchild"       1
178 - 140600337102                    E. Cap 330 UF 10V                1
179 - 140700106162               Mini E. Cap 10 UF 16V +/-20%          10
180 - 140700107101                  Mini E. Cap 100 UF 10V             2
181 - 140700226161                   Mini E. Cap 22 UF 16V             1
182 - 140700227102                  Mini E. Cap 220 UF 10V             1
183 - 140700476161            Mini E. Cap 47 UF 16V 85+/-20%*          1
184 - 140600477103              E. Cap 470 UF 10V *6.3 x 11mm          1
185 - 2402500738R0              Crystal 16.9344MHz "HC-49US"           1
186 - 380303060080                    6 Pin *UL1571#28 *               1
187 - 380308160121                          FFC 16Pin                  1
188 FANE380S-CHASSIS(3)             FANE380S CHASSIS(3)                1
189 - 2002600366R0                   coil 3.5 x 1.3 x 3 (3T)           8
190 - 200260530D00               coil" THH9 x 5 x 3 -270N ( f ) "      1
191 - 260210080700                   DC jack DC-004-2.0R               1
192 - 260250000001                   Phone jack" HJ-307E "             1
193 - 2602500ID200               Earphone Jack * HJ-307G-5P *          3
194 - 380200110060                Flat Cable 11Pin UL2651#26           1
195 - 3801500000R1               Wire *Copper* Dia.0.6mm(CP)           1
196 FANE380S-CHASSIS(4)             FANE380S CHASSIS(4)                1
197 - 380257051800                    USB jack (USB A90)               1
198 - 3801500000R1               Wire *Copper* Dia.0.6mm(CP)           1
199 - 380308160350                          FFC16Pin                   1
200 FANE380S-CHASSIS(5)             FANE380S CHASSIS(5)                1
201 - 100860038000                         LED blue led                3
202 - 260180000101             switch ( TC-6608-4.3*180+/-30gf )       16
203 - 380305070220                            7Pin "                   1
204 FANE380S-CHASSIS(6)             FANE380S CHASSIS(6)                1
205 - 340150038006                            PCB                      1
206 - 100860038000                         LED blue led                2
207 - 380200030100             3P wire L=100mm ( U/L 2651#28 )         1
208 FANE380S-CHASSIS(7)             FANE380S CHASSIS(7)                1
209 - 340150038007                            PCB                      1
210 - 100860038000                         LED blue led                2
211 - 380200030100             3P wire L=100mm ( U/L 2651#28 )         1
212 FANE380S-CHASSIS(8)             FANE380S CHASSIS(8)                1
213 - 340150038008                        PCB * RESET *                1
214 - 260180000101             switch ( TC-6608-4.3*180+/-30gf )       1
215 - 380305030210                          3Pin wire                  1
216 FANE380S-CHASSIS(9)             FANE380S CHASSIS(9)                1




                                     30
217 - 340150038009                               PCB                          1
218 - 260180038000               Micro Switch * MX - 001E * PH: 2.5mm "       1
219 FANE380S-CHASSIS(10)               FANE380S CHASSIS(10)                   1
220 - 340150038010                               PCB                          1
221 - 260180038000               Micro Switch * MX - 001E * PH: 2.5mm "       1
222 FANE380S-SMD(0)                       FANE380S SMD(0)                     1
223 - 340150038000                               PCB                          1
224 - 100098PT7314                            I.C. PT7314                     1
225 - 1002844558F0                  I.C. LS4558F{ SMD} * Lighting *           1
226 - 100303BC847B                     Transistor " BC847 " TIP "             4
227 - 1005008050D0                    Transistor S8050M-C * SMD               4
228 - 1005008550D0                       Transistor S8550M-C                  3
229 - 100750000120                    Chip Diode SMD* TCLL4148                5
230 - 10077000SS14               Chip Schottky Rectifier Diode * SS14 *       1
231 - 120230000000             Chip Resistor 0 OHM+/-5% (0603) "YAEGO"        1
232 - 120230001000            Chip Resistor 10 OHM+/-5% (0603) "YAEGO"        3
233 - 120230000470            Chip Resistor 4.7 OHM+/-5% (0603) "YAEGO"       2
234 - 120230010000            Chip Resistor 100 OHM+/-5% (0603) "YAEGO"       3
235 - 120231000100               Chip Resistor 1K+/-5% (0603) "YAEGO"         24
236 - 120231000120              Chip Resistor 1.2K+/-5% (0603) "YAEGO"        1
237 - 120230022000            Chip Resistor 220 OHM+/-5% (0603) "YAEGO"       2
238 - 120231000220              Chip Resistor 2.2K+/-5% (0603) "YAEGO"        4
239 - 120231000560              Chip Resistor 5.6K+/-5% (0603) "YAEGO"        4
240 - 120231000750              Chip Resistor 7.5K+/-5% (0603) "YAEGO"        2
241 - 120231001000              Chip Resistor 10K+/-5% (0603) " YAGEO "       7
242 - 120231002200              Chip Resistor 22K+/-5% (0603) "YAEGO"         6
243 - 120231002700              Chip Resistor 27K+/-5% (0603) "YAEGO"         2
244 - 120231003300              Chip Resistor 33K+/-5% (0603) "YAEGO"         4
245 - 120231004300              Chip Resistor 43K+/-5% (0603) "YAEGO"         2
246 - 120231004700           Chip Resistor 47K(0603)+/-5% (0603) "YAEGO"      2
247 - 120231006800              Chip Resistor 68K+/-5% (0603) "YAEGO"         2
248 - 120231010000              Chip Resistor 100K+/-5% (0603) "YAEGO"        6
249 - 120270000000                 Chip Resistor 0 OHM+/-5% (1206)            9
250 - 120232000120              Chip Resistor 1.2M+/-5% (0603) "YAEGO"        1
251 - 140435001000             Chip Cap 0.001 UF+/-10% 50V X7R (0603)         8
252 - 140410000150               Chip Cap 150 PF+/-5% 50V NPO (0603)          2
253 - 140410000100               Chip Cap 100 PF+/-5% 50V NPO (0603)          2
254 - 140410000560                 Chip Cap 560 PF+/-5% NPO (0603)            4
255 - 140433470000                  Chip Cap 0.47 UF+/-20% (0603)             1
256 - 140433001500             Chip Cap 0.0015 UF+/-20% 50V X7R (0603)        2
257 - 140435002200             Chip Cap 0.0022 UF+/-10% 50V X7R (0603)        2
258 - 140435003300             Chip Cap 0.0033 UF+/-10% 50V X7R (0603)        2

259 - 140440010000         Chip Cap 0.01 UF+80/-20%(+-10%) 50V X7R " (0603)   2
260 - 140440100000             Chip Cap 0.1 UF+80/-20%50V Y5V * (0603)        14




                                         31
261 - 140440000100         Chip Cap 1 UF+80/-20% 16V Y5V (0603)         27
262 - 140444000220       SMD coil CB1608L221T( f ) " 200mA "{ 0603 }    3
263 FANE380S-SMD(1)                   FANE380S SMD(1)                   1
264 - 340150038001                            PCB                       1
265 - 100294880923            I.C. *CE8809C23M* 2.3V SOT - 23-3         1
                      I.C. XC6203E332PR *3.3V* 2 *"TOREX"(SOT-89)=
266 - 100294E332PR                    LDO100294CE6233                   1
267 - 100303BC847B              Transistor " BC847 " TIP " * 2 *        3
268 - 1005008550D0                   Transistor S8550M-C                2
269 - 100750000120          Chip Diode SMD* TCLL4148 *(=IN4148)         2
270 - 100750005819                  DIODE SM5819(SMD)                   2
271 - 120230008200       Chip Resistor 82 OHM+/-5% (0603) "YAEGO"       2
272 - 120230010000       Chip Resistor 100 OHM+/-5% (0603) "YAEGO"      3
273 - 120230047000       Chip Resistor 470 OHM+/-5% (0603) "YAEGO"      19
274 - 120231000100          Chip Resistor 1K+/-5% (0603) "YAEGO"        2
275 - 120231000180         Chip Resistor 1.8K+/-5% (0603) "YAEGO"       1
276 - 120231000820         Chip Resistor 8.2K+/-5% (0603) "YAEGO"       1
277 - 120231001000         Chip Resistor 10K+/-5% (0603) " YAGEO "      12
278 - 120231010000         Chip Resistor 100K+/-5% (0603) "YAEGO"       4
279 - 120231047000         Chip Resistor 470K+/-5% (0603) "YAEGO"       2
280 - 140440100000        Chip Cap 0.1 UF+80/-20%50V Y5V * (0603)       9
281 - 140440010000     Chip Cap 0.01 UF+80/-20%(+-10%) 50V X7R (0603)   1
282 - 140410000030            Chip Cap 30 PF+/-5% NPO (0603)            2
283 - 140410000100          Chip Cap 100 PF+/-5% 50V NPO (0603)         5
284 FANE380S-SMD(2)                   FANE380S SMD(2)                   1
285 - 340150038002                            PCB                       1
286 - 100122M5673S                   I.C. * M5673S * " ALI "            1
287 - 100122ML1005                    I.C. * MX25L1005 *                1
288 - 1002845888S0      I.C. * V5888S * " AMTEK * ( MOTOR DRIVER IC )   1
289 - 100294RT9702             I.C. * RT9702APB * " RICHTEK "           1
290 - 1005008550D0                   Transistor S8550M-C                2
291 - 100500BT3904                  Transistor * MMBT3904               3
292 - 100500BT3906               Transistor * MMBT3906 * ST             2
293 - 10077000SS14           Chip Schottky Rectifier Diode * SS14 *     1
294 - 120230000000        Chip Resistor 0 OHM+/-5% (0603) "YAEGO"       2
295 - 120230001500       Chip Resistor 15 OHM+/-5% (0603) "YAEGO"       1
296 - 120230022000       Chip Resistor 220 OHM+/-5% (0603) "YAEGO"      2
297 - 120231000100          Chip Resistor 1K+/-5% (0603) "YAEGO"        1
298 - 120231000150         Chip Resistor 1.5K+/-5% (0603) "YAEGO"       2
299 - 120231000220         Chip Resistor 2.2K+/-5% (0603) "YAEGO"       1
300 - 120231000330         Chip Resistor 3.3K+/-5% (0603) "YAEGO"       1
301 - 120231000390         Chip Resistor 3.9K+/-5% (0603) "YAEGO"       1
302 - 120231000470         Chip Resistor 4.7K+/-5% (0603) "YAEGO"       2
303 - 120231000750         Chip Resistor 7.5K+/-5% (0603) "YAEGO"       1
304 - 120231001000         Chip Resistor 10K+/-5% (0603) " YAGEO "      16




                                     32
305 - 120231001200         Chip Resistor 12K+/-5% (0603) "YAEGO"         1
306 - 120231001800         Chip Resistor 18K+/-5% (0603) "YAEGO"         3
307 - 120231002000         Chip Resistor 20K+/-5% (0603) "YAEGO"         1
308 - 120231002200         Chip Resistor 22K+/-5% (0603) "YAEGO"         4
309 - 120231002400         Chip Resistor 24K+/-5% (0603) "YAEGO"         1
310 - 120231002700         Chip Resistor 27K+/-5% (0603) "YAEGO"         1
311 - 120231003300         Chip Resistor 33K+/-5% (0603) "YAEGO"         3
312 - 120231003900         Chip Resistor 39K+/-5% (0603) "YAEGO"         1
313 - 120231004700      Chip Resistor 47K(0603)+/-5% (0603) "YAEGO"      1
314 - 120231005100         Chip Resistor 51K+/-5% (0603) "YAEGO"         1
315 - 120231010000         Chip Resistor 100K+/-5% (0603) "YAEGO"        9
316 - 120231015000         Chip Resistor 150K+/-5% (0603) "YAEGO"        1
317 - 120231033000         Chip Resistor 330K+/-5% (0603) "YAEGO"        1
318 - 120232000100          Chip Resistor 1M+/-5% (0603) "YAEGO"         1
319 - 140410000030            Chip Cap 30 PF+/-5% NPO (0603)             3
320 - 140440000100         Chip Cap 1 UF+80/-20% 16V Y5V (0603)          7
321 - 140440004700         Chip Cap 0.047 UF+80/-20% Y5V (0603)          1
322 - 140440006800         Chip Cap 0.0068 UF+80/-20% Y5V (0603)         2

323 - 140440010000    Chip Cap 0.01 UF+80/-20%(+-10%) 50V X7R " (0603)   2
324 - 140440100000        Chip Cap 0.1 UF+80/-20%50V Y5V * (0603)        34
325 - 140440470000        Chip Cap 0.47UF16V+80/-20% Y5V (0603)          1
326 - 140441008200        Chip Cap 0.082 UF X7R 25V +/-10% (0603)        2
327 - 140444000220       SMD coil CB1608L221T( f ) " 200mA "{ 0603 }     22
328 - 380252160004       FFC Connector 16P " FNTA12-016EN " (SMD)        2
329 FANE380S-SMD(3)                  FANE380S SMD(3)                     1
330 - 340150038003                          PCB                          1

331 - 100750ML14KE    ESD Diode * CG0603MLA-14KE * " MLA " VDC 14V       2
332 - 120230002200       Chip Resistor 22 OHM+/-5% (0603) "YAEGO"        1
333 - 120230022000       Chip Resistor 220 OHM+/-5% (0603) "YAEGO"       1
334 - 120230033000       Chip Resistor 330 OHM+/-5% (0603) "YAEGO"       2
335 - 120231003300         Chip Resistor 33K+/-5% (0603) "YAEGO"         1
336 - 120231047000         Chip Resistor 470K+/-5% (0603) "YAEGO"        2
337 - 140435001000        Chip Cap 0.001 UF+/-10% 50V X7R (0603)         7
338 - 140440000100         Chip Cap 1 UF+80/-20% 16V Y5V (0603)          2
339 - 140440010000       Chip Cap 0.01 UF+80/-20%(+-10%) 50V X7R "       3
340 - 140444000220       SMD coil CB1608L221T( f ) " 200mA "{ 0603 }     8
341 FANE380S-SMD(4)                  FANE380S SMD(4)                     1
342 - 340150038004                          PCB                          1
343 - 120230007500       Chip Resistor 75 OHM+/-5% (0603) "YAEGO"        2
344 - 140410000030            Chip Cap 30 PF+/-5% NPO (0603)             5
345 - 140440100000        Chip Cap 0.1 UF+80/-20%50V Y5V * (0603)        1
346 - 140444000220       SMD coil CB1608L221T( f ) " 200mA "{ 0603 }     11
347 - 380258400027              SD / MMC jack "113-C400027"              1
348 FANE380S-SMD(5)                  FANE380S SMD(5)                     1




                                    33
349 - 340150038005                        PCB                     1
350 - 120230008200     Chip Resistor 82 OHM+/-5% (0603) "YAEGO"   7
351 - 120231000180      Chip Resistor 1.8K+/-5% (0603) "YAEGO"    3
352 - 120231000470      Chip Resistor 4.7K+/-5% (0603) "YAEGO"    3
353 - 120231000820      Chip Resistor 8.2K+/-5% (0603) "YAEGO"    3
354 - 120231001500      Chip Resistor 15K+/-5% (0603) "YAEGO"     3
355 - 120231003000      Chip Resistor 30K+/-5% (0603) "YAEGO"     4
356 - 140440100000     Chip Cap 0.1 UF+80/-20%50V Y5V * (0603)    1
357 FAGT900IR-SMD(0)              FAGT900IR SMD(0)                1
358 - 340150090005                        PCB                     1
359 - 1002842221M1            I.C. PT2221M-001 * 2 * SMD          1
360 - 100303BC847B           Transistor " BC847 " TIP " * 2 *     1
361 - 120250001000      Chip Resistor 10 OHM+/-5% 1/8W (0805)     2
362 - 140510000220         Chip Cap 220 PF+/-5% NPO (0805)        2




                                 34



◦ Jabse Service Manual Search 2024 ◦ Jabse PravopisonTap.bg ◦ Other service manual resources online : FixyaeServiceinfo
