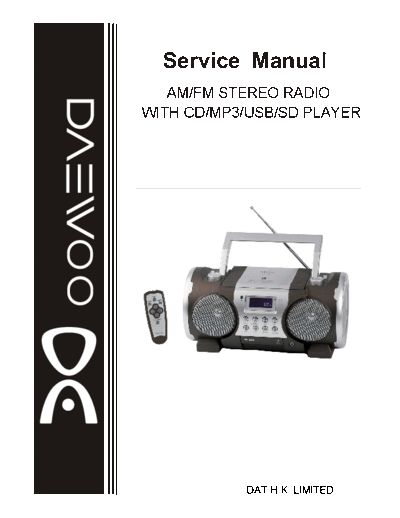

Image preview - the first page of the document



>> Download BC-4904SAC documenatation <<

Text preview - extract from the document

   AM/FM STEREO RADIO
WITH CD/MP3/USB/SD PLAYER
                               CONTENTS
1. SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3~4

2. PCB DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5~8

3. PRODUCT SPECIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9~12

4. EXPLODED VIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

5. BOM PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14~26
                                         AM SPECIFICATION
 MODEL : BC-4904SAC               BAND : AM                      DATE : 2007/06/06

        SUPPLY VOLTACE                   LOAD           REF.     MOD.     MOD. FREQUENCY
                                                         O/P     DEPTH
AC        220      V.                8     Ohm         50 mW      30%            1 KHz
DC         12      V.

           DESCRIPTION                TEST               TEST     UNIT   NOR .   LIMIT   MEAS .
                                    CONDITION           POINT
BAND COVERAGE                         LOW END            LOW       KHz    520    +/-10
BAND COVERAGE                        HIGH END            HIGH      KHz   1630    +/-20
INTERMEDIATE FREQUENCY               HIGH END            HIGH      KHz    455     +/-5
MAXIMUM SENSITIVITY                      600 KHz         LOW       dB     76      82
MAXIMUM SENSITIVITY                      1000 KHz        MED       dB     76      82
MAXIMUM SENSITIVITY                      1400 KHz        HIGH      dB     74      82
20 dB S / N SENSITIVITY                  600 KHz         LOW       dB     82      94
20 dB S / N SENSITIVITY                  1000 KHz        MED       dB     82      94
20 dB S / N SENSITIVITY                  1400 KHz        HIGH      dB     80      94
I.F. REJECTION                           600 KHz         LOW       dB     45      35
IMAGE REJECTION                    1400 KHz + 2 I.F.     HIGH      dB     40      30
6 dB BANDWIDTH                     REF. O / P + 6 dB     MED       KHz     5      4-9
ADJACENT CHANNEL ATTENTUATION
