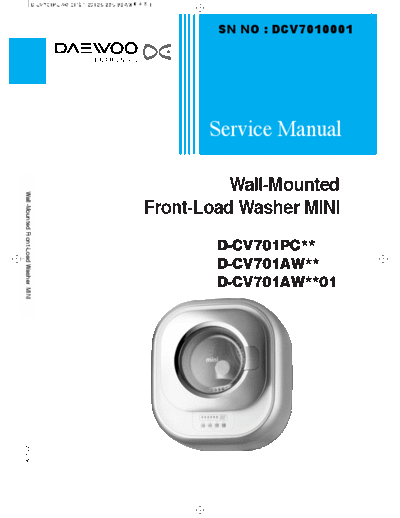

Image preview - the first page of the document



>> Download D-CV701PC & AW D-CV701PCXX & D-CV701AWXX documenatation <<

Text preview - extract from the document

                                              SN NO : DCV7010001




                                             Service Manual

                                                Wall-Mounted
Wall-Mounted Front-Load Washer MINI




                                      Front-Load Washer MINI
                                              D-CV701PC**
                                              D-CV701AW**
                                              D-CV701AW**01
   2012.09
1. What is Wall-Mounted Front-Load Washer MINI? ............................................2

2. Specifications ......................................................................................................4

3. Assembly Part List ..............................................................................................5

4. PCB Functions ..................................................................................................14

5. Wiring Diagram .................................................................................................29

6. Part List and Major Specifications ....................................................................30

7. Installation .........................................................................................................47
1. What is Wall-Mounted Front Load Washer MINI?

 1. What is the Wall-Mounted Front-Load Washer MINI?

Mini is the world's first ever wall-mounted front-load washer, which is installable in bathroom, pantry, kitchen and
various locations.




 2. Features of Wall-Mounted Front-Load Washer MINI



        Low Noise                          Spoon-Shaped Detergent Container              Star Drum
                       low-noise motor     Containers for detergent and softener   Star-shaped concave-convex drum
   Mini's customized
                        ring wash, and     are discretely designed to prevent      prevents damage to fabric to keep
   reduces noise du                pa d    mixture. The spoon-shaped design
   th e 4- lay er ed du stp ro of                                                  clothes fresh.
    prevents vibrations to ensure silent   enables you to apply the proper
                                           amount of detergent conveniently.
    washing.




                                                                                              ograms
   Transparent Door                            Child Protection                    Cleaning Pr r various
                                                                                                        es fo
                                              'But ton Lock ' and 'Doo r Lock '               ram featur
   Tran spar ent door allow s you to                                               Mini's prog        and fabrics.
                                              functions apply to prevent kids                  rposes
   view the cont ents and chec k                                                   cleaning pu
                                              from touching buttons and opening
   laundry process.
                                              doors during wash.




                                                              2
  3. Power Train of Wall-Mounted Front-Load Washer MINI




                                                Tub
                           Load

                                               Drum



     Natural drainage
                                                                   Inverter Motor
           Natural drainage system
