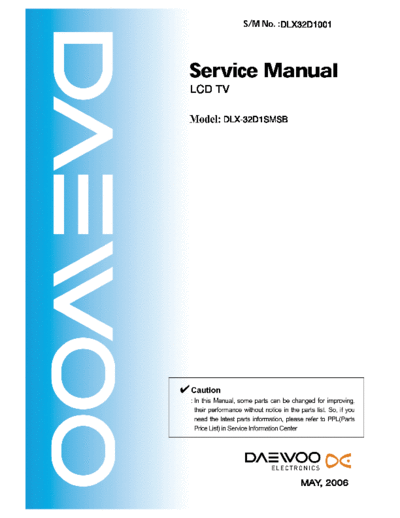

Image preview - the first page of the document
>> Download DLX-32D1SMSB documenatation <<
Text preview - extract from the document
DLX32D1001
LCD TV
DLX-32D1SMSB
MAY, 2006
Contents
PRECAUTION.....................................................................................................
................................................................
1. SAFETY PRECAUTION..................................................................................................... 4
1-1. IMPORTANT SAFETY FOR YOU AND TV SET. ............................................................................... 4
1-2. SAFETY PRECAUTIONS FOR SERVICE. ..................................................................................... 7
SPECIFICATIONS. ....................................................................................................
................................................................
2. SET SPECIFICATIONS. .................................................................................................... 8
2-1. GENERAL SPECIFICATIONS. ............................................................................................... 8
2-2. FULL SPECIFICATIONS. .................................................................................................... 9
2-3. RESOLUTION. ............................................................................................................. 12
2-3-1. PC Resolution. ................................................................................................... 12
2-3-2. DTV Resolution. .................................................................................................. 13
SPECIFICATION.................................................................
CIFICATION.....................................................................................
3. GENERAL PANEL SPECIFICATION. .................................................................................... 13
CONTROLLER. ................................................................
................................................................
4. REMOTE CONTROLLER. ................................................................................................ 14
.......................................................................................................
................................................................
5. BLOCK DIAGRAM. ....................................................................................................... 15
EACH ................................................................
......................................................
6. DESCRIPTION OF EACH BLOCK. ...................................................................................... 16
6-1. GRAPHIC SIGNAL PROCESS ACCORDING TO INPUT SOURCE. ........................................................... 16
6-2. VIDEO INPUT PROCESS. .................................................................................................. 16
6-3. VIDEO OUTPUT PROCESS. ............................................................................................... 17
6-4. AUDIO INPUT & OUTPUT PROCESS....................................................................................... 17
6-5. OPERATING PARTS & UPDATE PROCESS. ............................................................................... 18
DESCRIPTION.................................................................
TION............................................................................................
7. CONNECTOR DESCRIPTION............................................................................................ 19
7-1. MAIN BOARD & ITS PIN ASSIGNMENT. ................................................................................... 19
7-2. TERMINAL PIN ASSIGNMENT OF MAIN BOARD AND SUB BOARD CONNECTOR. ........................................ 20
LIST.................................................................................................
.......................................................................................................
8. CABLE/WIRE LIST........................................................................................................ 21
9. TROUBLE SHOOTING. .................................................................................................. 22
..................................................................................................
................................................................
9-1. GENERAL SET CHECK PROCEDURE...................................................................................... 22
9-2. POWER CHECK PROCEDURE. ............................................................................................ 23
9-3. PICTURE ON THE SCREEN CHECK PROCEDURE.......................................................................... 23
9-3. PICTURE ON THE SCREEN CHECK PROCEDURE.......................................................................... 24
9-4. S-VIDEO, AV1/2 CHECK PROCEDURE.................................................................................. 24
9-5. TV CHECK PROCEDURE. ................................................................................................. 25
9-6. PC, HDMI, COMPONENT CHECK PROCEDURE. ........................................................................ 25
9-7. KEY FUNCTION CHECK PROCEDURE ..................................................................................... 26
9-8. REMOTE CONTROLLER CHECK PROCEDURE. ............................................................................ 26
9-9. AUDIO CHECK PROCEDURE. ............................................................................................. 27
2
........................................................................................................
................................................................
10. SET ASSEMBLY. ........................................................................................................ 27
10-1. ASSEMBLY OF FRONT PARTS. .......................................................................................... 27
10-2. ASSEMBLAGE OF IR ..................................................................................................... 28
10-3. ASSEMBLAGE OF PANEL SUB........................................................................................... 28
10-4. ASSEMBLAGE OF PANEL COVER. ....................................................................................... 29
10-5. ASSEMBLAGE OF FRONT & PANEL ASSEMBLY. ........................................................................ 29
10-6. ASSEMBLAGE OF BOARD................................................................................................ 30
10-7. ASSEMBLAGE OF PCB COVER.......................................................................................... 30
10-8. ASSEMBLY OF REAR COVER. ........................................................................................... 31
10-9. ASSEMBLAGE OF STAND. ............................................................................................... 31
10-10. SCREW SPECIFICATIONS. ............................................................................................. 32
...................................................................................................
................................................................
11. FIRMWARE UPDATE ................................................................................................... 33
11-1. PREPARATION. .......................................................................................................... 33
11-2. SYSTEM CONFIGURATION. .............................................................................................. 33
11-3. CABLE CONNECTION. ................................................................................................... 34
11-4. UPDATE PROCEDURE. .................................................................................................. 34
MODE.................................................................................................
.......................................................................................................
12. FACTORY MODE. ....................................................................................................... 36
12-1. CALIBRATION. (NOT USED.)............................................................................................ 36
12-2. OPTION TABLE. ......................................................................................................... 36
12-3.COLOR CONTROL. ....................................................................................................... 36
12-4. DEVICE ADJUST. ........................................................................................................ 36
12-4-1. PW218. .......................................................................................................... 36
12-4-2. PW-Deinterlace................................................................................................. 36
12-4-3. PW-Enhancer. .................................................................................................. 36
12-4-4. ADC............................................................................................................... 36
12-4-5. TW9919. ......................................................................................................... 36
12-5. HEATRUN................................................................................................................ 36
12-6. VERSION. ................................................................................................................ 36
12-7. RESET. .................................................................................................................. 36
12-8. CH TEST. ............................................................................................................... 36
............................................................................................................
................................................................
13. PARTS LIST. ............................................................................................................ 37
14. EXPLODED VIEW.. ..................................................................................................... 39
VIEW. .....................................................................................................
................................................................
3
1. Safety Precaution.
1-1. important safety for you and TV set.
Your product has been manufactured and tested with your safety in mind. However, improper use can result
in potential electrical shock or fire hazards. To avoid defeating the safeguards that have been built into your
new product, please read and observe the following safety points when installing and using your new product,
and save them for future reference.
Observing the simple precautions discussed in this booklet can help you get many years of enjoyment and
safe operation that are built into your new product.
Instructions.
Read Instructions.
All the safety and operating instructions should be read before the product is operated.
Instructions.
Follow Instructions.
All operating and use instructions should be followed.
Instructions.
Retain Instructions.
The safety and operating instructions should be retained for future reference.
Warnings.
Heed Warnings.
All warnings on the product and in the operating instructions should be adhered to.
Moisture.
Water and Moisture.
Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in
a wet basement, or near a swimming pool. The apparatus shall not be exposed to dripping or splashing and
that no objects filled with liquids, such as vases, shall be placed on the apparatus.
Stands.
Accessories, Carts, and Stands.
Do not place this product on a slippery or tilted surface, or on an unstable cart, stand, tripod, bracket, or
table. The product may slide or fall, causing serious injury to a child or adult, and serious damage to the
product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold
with the product. Any mounting of the product should follow the manufacturer's instructions, and should use
a mounting accessory recommended by the manufacturer.
Product.
Transporting Product.
A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the product
and cart combination to overturn.
4
Attachments.
Attachments.
Do not use attachments not recommended by the product manufacturer as they may cause hazards.
Ventilation.
Ventilation.
Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product
and to protect it from overheating, and these openings must not be blocked or covered. The openings should
never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should
not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the
manufacturer's instructions have been adhered to. Separate the product from the wall, and keep a distance
of more than 10cm.
Sources.
Power Sources.
This product should be operated only from the type of power source indicated on the marking label. If you
are not sure of the type of power supply to your home, consult your product dealer or local power company.
For products intended to operate from battery power, or other sources, refer to the operating instructions.
Grounding.
Outdoor Antenna Grounding.
If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is
grounded so as to provide some protection against voltage surges and built-up static charges.
Lightning.
Lightning.
For added protection for this product (receiver) during a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system.
This will prevent damage to the product due to lightning and power-line surges.
Lines.
Power Lines.
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light
or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna
system, extreme care should be taken to keep from touching such power lines or circuits as contact with
them might be fatal.
5
Overloading.
Overloading.
Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
Heat.
Heat.
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other
products (including amplifiers) that produce heat.
Cleaning.
Cleaning.
leaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use
a dry cloth for cleaning.
Servicing.
Servicing.
Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
Service.
Damage Requiring Service.
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following
conditions:
- When the power-supply cord or plug is damaged.
- If liquid has been spilled, or objects have fallen into the product.
- If the product has been exposed to rain or water.
- If the product does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions as an improper adjustment of other controls may
result in damage and will often require extensive work by a qualified technician to restore the product to
its normal operation.
- If the product has been dropped or the cabinet has been damaged in any way.
- When the product exhibits a distinct change in performance.
Whenever you connect all external A/V equipment to your television, ensure that all equipments are
switched off. Also refer to the user manual supplied with your A/V equipment for detail connection
instructions and associated safety precaution.
The mains plug is used as the disconnect device. The disconnect device shall remain readily operable.
* The socket-outlet shall be installed near the apparatus and shall be easily accessible.
6
1-2. Safety precautions for service.
When moving or laying down a TV set, at least two people must be working. Avoid any impact towards the
TV set.
Do not leave the broken TV set on for a long time. To prevent any further damages, after check the
broken set s condition, make sure to turn the power (AC) off.
When opening the back cover, turn off the power (AC) to prevent electric shock. When a TV set is on,
high voltage and high current exist inside the set.
When loosening screws, check the connecting position and type of the screw. Sort out the screws and
store them separately. Because screws holding PCB are working as electric circuit grounding, make sure
to check if any screw is missing when assembling.
A TV set contains different kind of connector cables. When connected or disconnected connector cables,
check the direction and position of the cable beforehand.
When disconnecting connectors, unplug the connectors slowly with care.
Connectors are designed so that if the number of pins or the direction does not match, connectors will not
fit. When having problem in plugging the connectors, make sure to check their kind, position, and
direction.
7
2. Set Specifications.
2-1. General Specifications.
Model
DLX-
DLX-32D1SMSB
Specifications
Panel 32inches TFT LCD
LCD Resolution 1366 X 768 (WXGA)
Screen Size 697.68(H) x 392.26(V)
Width 985.5
Dimension Height 654.5
Depth 106
Aspect ratio 16:9
Weight 25kg
System 3System (NTSC-M, PAL-M, PAL-N)
TV Tuning FS
Cable 125 Channels
Speaker Up to 10Wx2 (6 Speaker)
Power Consumption 175W
Video 1/2 RCA 2 / Stereo L/R
Component 1/2 RCA (Y Pb Pr) 2, RCA Stereo (L/R)
Input
PC Analog RGB (15 Pin D-Sub)
Source
HDMI HDMI (Type A), RCA Stereo (L/R)
Antenna 75ohm Coaxial Cable/F-Connector
Remote Controller DDR-2020000
Power AC 110~240V, 50/60Hz
8
2-2. Full Specifications.
Category Dimension
Type LCD Panel
Vendor Samsung
Aspect Ratio 16 : 9
Panel
LCD
Refresh Rate 50Hz, 60Hz
Supported Pixel Rate 1366 x 768
Interface LVDS
NTSC-M
US Analog PAL-M
TV
PAL-N
S-
CVBS / S-Video NTSC-3.58 / PAL-M / PAL-N
Component 1/2 480i , 480p , 720p, 1080i
H. Frequency Range 20 ~ 72 kHz
V. Frequency Range 55 ~ 90 Hz
MAX. Resolution 1360 x 768 @60Hz
*1)
Signals
PC
Supported MAX. Pixel Rate 110 MHz
DTV mode Support 480p, 720p, 1080i
RGB (8 bit per Channel)
VIDEO Y/Cb/Cr (Uncompressed)
Max pixel input: 1920 x 1080i
HDMI
(DVI)
AUDIO @2 Channels: 32 ~ 48kHz / Channel
Data Protection HDCP v.1.1
RCA Audio Stereo Input
DVI Sound In
(Applicable when using DVI to HDMI Cable)
RS-232 (for A/S) Stereo Jack Type
HDMI Jack (Type A)
HDMI(DVI) HDMI Audio (RCA Stereo L/R Input for DVI)
(Applicable when using DVI to HDMI Cable)
Analog RGB (15 Pin D-Sub)
PC (RGB)
Stereo Audio-In Jack
BOARD
(Universal)
3 RCA (Y Pb Pr)
Component1
RCA Stereo (L/R)
Connections 3 RCA (Y Pb Pr)
MAIN
Component 2
RCA Stereo (L/R)
Speaker Out
*2) Up to 15Wx2 (4 Speaker, 1KHz, d=10%)
(Internal Connector) Up to 10Wx2 (8 Speaker, 1KHz, d=10%)
AUDIO Line-Out RCA Stereo L/R Out
AV 1 S-Video or Video, and RCA Stereo L/R
BOARD
(NTSC)
AV 2 Video & RCA Stereo L/R
SUB
TV Antenna Antenna In (75ohm Coaxial/(F-connector)
RF Frequency Range 55.25MHz ~ 801.25 MHz
SUB BOARD
Video System (NTSC) NTSC-M, PAL-M, PAL-N
(NTSC)
TV
MTS (Mono, Stereo, SAP)
Sound System (NTSC)
SUB
BTSC
*1) PC Input doesn t support 1360 x768 resolution in some VGA card.
Au Voltage
*2) Normal Audio AMP Power Voltage is 24V.
9
Category Dimension
Color 8bit Color (256 Color Palette from 16bit Color)
Type Graphical & Text User Interface
Language English, French, Spanish, Portuguese
OSD Size 703 X 422
Contrast / Brightness / Sharpness / Color / Tint
5 Color Tone Temperature Modes
(Normal/Warm1/Warm2/Cool1/Cool2)
Image Setting
5 Picture Modes
(Video & Graphic) (Standard/dynamic/Mild/Movie/Custom)
5 Aspect Ratio Modes
(Wide / Panorama / Zoom / 14:9 / 4:3)
(Up/down Scroll function in Zoom & 14:9 Mode)
Volume / Balance
5 band equalizer
Mono / Stereo / MTS
Sound
Auto Volume Level
5 Sound Modes
(Custom / Standard / Music / Movie / Speech)
Auto Adjustment
Frequency Adjustment
Phase Adjustment
PC Function
Position Adjustment
Aspect ratio Change
On Screen (Wide / Real / 4:3)
Display (OSD) Graphic vs. Video
*3)
( Not support G vs. G & V vs. V)
Sub Picture Source Select
PIP & PBP Sub Picture Size
(Small / Double1 / Double2)
Sub Picture Position
Picture Swap
V-chip / CC (US)
(US) Supported
Sleep
(Off / 30 / 60 / 90 /120 / 150 / 180 min)
Timer Wake up ON & Power OFF Reservation
On Time Channel & Volume Set
Blue Screen Function Blue Back Screen
Last Power State Save Remember the last state before power-off
Picture still Pause moving image
Miscellaneous
High Digital Multimedia Interface
HDMI & HDCP
High-Bandwidth Digital Content Protection
DNR Digital Noise Reduction of Image
Pixel Shift Pixel Burning Protection
Key Lock Disable all the buttons on TV set.
Wiper Clear & Refresh whole screen.
10
*3) PIP & POP Support Table.
*3) Table.
SUB Component Component
TV AV1 S-Video AV2 DTV PC HDMI
MAIN 1 2
TV X X X X X O O O O
AV1 X X X X O O O O O
S- Video X X X X O O O O O
AV2 X X X X O O O O O
DTV X O O O X X X X X
Component
1
O O O O X X X X X
Component
2
O O O O X X X X X
PC O O O O X X X X X
HDMI O O O O X X X X X
*Video = TV, AV Input
*Graphic = DTV, Component, Analog RGB, HDMI.
11
2-3. Resolution.
2-3-1. PC Resolution.
Section Resolution Frequency
H Frequency (KHz) V Frequency (Hz) Pixel Frequency (MHz) Comment
640x400 37.861 85.08 31.5
31.469 70.087 25.175
640x350
37.861 85.08 31.5
31.469 59.94 25.175
37.861 72.809 29.765
37.500 75.0 31.5
640x480
43.269 85.008 36.0
45.540 90.0 37.889
50.900 100 43.163 Out of range
31.469 70.087 28.322
720 X 400
37.927 85.039 35.5
35.156 56.25 36.0
37.879 60.317 40.0
43.764 70.020 45.5
48.077 72.188 50.0
800x600
46.875 75.0 49.5
53.674 85.061 56.25
56.880 90.0 60.065
62.5 100 66 Out of range
48.780 60.001 64.11
48.363 60.004 65.0
56.476 70.069 75.0
PC
60.030 75.029 78.75
1024 X 768
60.241 74.927 80
68.677 84.997 94.5
72.810 90.0 100.187
81.845 100.795 110 Out of range
53.700 60 81.6
1152 X 864
62.932 69.924 96.6
1152 X 864 67.500 75.0 104.993
61.846 66.0 94.787
1152 X 900
72.713 76.047 105.561
1280 X 768 47.700 60.0 80.136
1280 X 960 60.000 60.0 102.104
63.337 59.978 108.18
63.981 60.02 108.0
64.754 60.060 Out of range
74.405 69.995 125 Out of range
1280 X1024 74.664 70.032 Out of range
78.125 72.005 135 Out of range
79.976 75.025 135 Out of range
91.146 85.024 Out of range
91.375 85.0 Out of range
1360 X 768 60 Only nVidia
* Shade Box is Not Support or requires compatibility Test.
Test.
12
2-3-2. DTV Resolution.
H Frequency V Frequency Pixel Frequency
Section Resolution Comment
(KHz) (Hz) (MHz)
720 X 480 31.469 59.94 25.175
720 X 480 31.5 60 27.027
720 X 576 31.250 50.0 26.566
1280 X 720 44.964 59.94 74.176
DTV 1280 X 720 45 60 74.25
1920x1080 33.750 60.0 74.25
1920x1080 33.176 59.94 74.176
1920x1080 28.125 50.0 74.25
1920x1080 31.25 49.96 74.25
resolutions, support
*DVI doesn t support PC resolutions, it only support DTV resolutions!
3. General Panel Specification.
Min Max
Screen Size(mm) 697.68(H) x 392.256(V)
Pixel Pitch(mm) 0.51075(H) x 0.51075(W)
Luminance/Brightness 450cd/m 500cd/m
Contrast Ratio 700 : 1 1200 : 1
Viewing Angle 170(Degrees) 178(Degrees)
Because Standard of reject is decided according to outgoing inspection criteria and approval of panel maker,
Standard
Defect panel should be referred to panel maker or its documents.
13
4. Remote Controller.
14
5. Block Diagram.
15
6. Description of each Block.
6-1. Graphic Signal Process according to Input Source.
Graphic signal is processed from each source input to ADC/TMDS as a bellows,
1) HDMI(DVI) Input Signal : Pin 108, 109, 111, 112, 114,115, 117, 118, 124,125.
2) D-SUB Input Signal : Pin 2, 3, 6, 7, 8, 9, 10, 11, 12.
3) Component 1 Input Signal : Pin 15, 16, 17, 18, 19, 20, 21.
4) Component 2 Input signal : Pin 1,3,5.
Component Output : From Pin 15, 19, 21 of MUX to Pin 22, 23, 24, 25, 26, 27, 28 of ADC.
And each graphic input signal is transmitted to scaler IC of 24-bit RGB signal, HDMI audio signal is
transmitted from ADC to audio processor.
6-2. Video Input Process.
Processing From video input port to video decoder as a bellows,
1) AV1 Input Signal : Decoder Pin 58 from CVBS signal.
2) AV2 : Decoder Pin 57 from AV2 CVBS signal.
3) TUNER : Decoder Pin 59 CVBS signal of Tuner.
Video signal from CVBS and Y, C signal of decoder is transmitted to scaler with 8Bit CCIR656 format.
16
6-3. Video Output Process.
Signal from ADC and video decoder is transmitted to Scaler PW218, actually displaying on the screen,
output signal through LVDS interface is displayed on LCD or PDP panel.
6-4. Audio Input & Output process.
Audio signal from Audio Processor is processed from audio AMP to speaker as a bellows,
1) Tuner Input : Pin 67 of audio processor from tuner SIF signal.
2) PC Input : Pin 53, 54 of audio processor from PC audio signal.
3) DVI Input : Pin 56, 57 of audio processor from DVI audio signal.
4) Component 1 : Pin 50, 51 of audio processor from component 1 signal.
5) Component 2 : Pin 47, 48 of audio processor from component 2 signal.
6) AV 1/2 : Pin 59,60 of audio processor through MUX audio signal from AV 1/2.
7) HDMI : Pin 19,20,22 of audio processor from HDMI I S(Inter-IC Sound) of ADC pin 96, 97, 98.
2
8) Audio Line Out : Pin 33, 34 of audio processor.
17
6-5. Operating parts & Update Process.
SCALER
(PW218) Control B/D
LED
KEY
RCU
RECEIVER
M UART
U for A/S
X
STEREO JACK
UART
for TV
Internal CON.
1) Key : Signal of Key board is transmitted directly to pin port B0~B6 of scaler.
2) IR : Signal of IR board is transmitted directly to IRRCVR0 of scaler.
3) LED : LED signal is outputted from IN1B4, IN1B5 to control pin 1, 2 of scaler.
4) Update : UART Port signal of Main board from serial port of PC is transmitted to RXD, TXD of scaler.
18
7. Connector Description.
7-1. Main Board & its Pin Assignment.
Table No. 1 Terminal PIN Assignment of Main Board.
Loc.
Loc. / No 1 - Con18 2 - Con31 3 - Con25 4 - Con15
Name Power Audio Power IR & Key Speaker
Pin Number 12 4 14 6
Pin No Con18 Con31 Con25 Con15
1 12V V_amp LED_G Left-
2 12V V_amp LED_R Left+
3 NC GND GND Left+_SW
1
4 GND GND Key_Ch+ Right-
2 4 5 5V Key_Ch- Right+
6 5V Key_Vol- Right+_SW
7 Stby5V Key_Vol+
8 GND Key_power
9 BRI-ADJ GND
10 GND Key_Menu
11 BLU On Key_Input
3 12 SMPS ON IR IN
13 3V3
14 GND
NC = Not Connection
V_amp (Power for Audio AMP.) = 12 ~ 30V,
(Normally 24V (at least) for Enough Audio Power)
Not used connector : CON36, CON37, CON32, CON35.
CON17 is used as a LVDS connector.
19
7-2. Terminal PIN Assignment of Main Board and Sub Board Connector.
Location No. CON 23
SUB B/D(or SUB Module)
Function
Connection
No. of pin 60pin ( pin1~40 is for Analog TV)
Type SH1605-230 (female)
Pin No. Pin Name Pin No. Pin Name
1 FS_G 16 S-Video_Y
2 FS_B 17 AV2_CVBS
3 FS_R 18 GND
4 FS_FB 19 AV2_DET
5 GND 20 S-Video_C
6 GND 21 5V_ Standby
1
7 HS_CVBS 22 GND
8 FS_CVBS 23 GND
9 HS_ID 24 Tuner_CVBS
10 FS_ID 25 Tuner_SIF
11 AV1_DET 26 GND
12 HS_CVBS_OUT 27 GND
13 AV1_CVBS 28 9V_MUX
14 GND 29 TV_R_out
15 S-Video_DET 30 TV_L_out
20
8. Cable/Wire List.
No Part Code Part Name Part Specification Appearance
Part Appearance
LVDS
1 DD-L32LVD-40 30P*30P*260mm
Cable
AD POWER
2 DD-L32ADP-40 12P*15P*300mm
Cable
INVERTER
3 DD-L32INV-20 14P*15P*400mm
Cable
AMP POWER
4 DD-L32AMP-40 4P*15P*250mm
Cable
KEY-IR
5 DD-L32KEYIR-40 14P*8P*6P*400*500mm
Cable
SPEAKER
6 DD-L32SPK-40 6P*LUG(A,B)*550mm
Cable
NOISE
7 DD-L32MPN-30 2P*350mm+GND
FILTER
8 DDL32GND--40 GROUND WIRE 1P*1P*200mm
21
9. Trouble Shooting.
In this chapter, you are guided how to check, find the hardware problem points and get a repairing ideas.
9-1. General Set Check Procedure.
Connect all the external devices of Tango and Power On
Connect all the external devices of Tango and Power On
START
START
Power
Power LED LED No Check 1.1.
Check 1.1.
Indicator On?
Indicator On? Power Circuit
Power Circuit
Yes
No
Panel
Panel No Check 1.2.
Check 1.2. No Problem?
No Problem?
Backlight?
Backlight? Backlight
Backlight
Yes
Yes
TV/VIDEO
TV/VIDEO No Check 1.3.
Check 1.3.
Display OK?
Display OK? Display
Display
Yes
Function
Function No Check 1.4.
Check 1.4.
Adjustment?
Adjustment? Function
Function
Yes
Sound
Sound No Check 1.5.
Check 1.5.
Function OK?
Function OK? Sound Circuit
Sound Circuit
END
END
22
9-2. Power Check Procedure.
START
START
Replace SMPS
Replace SMPS
Check for AC
Check for AC No Re-
Re-connect AC-
Re-connect AC-Cord
AC-Cord
Cord or SMPS
Cord or SMPS or SMPS
or SMPS
Yes
YES
Power circuit
Power circuit No Check regulators
Check regulators
normal?
normal? (U61, U63, U64, U74)
(U61, U63, U64, U74) No
No
Problem?
Problem? NO
Yes
Check 14.318
Check 14.318 No Check Crystal
Check Crystal or
or
(Y3) oscillator
(Y3) oscillator PW218
PW218
Yes
Reset PW218
Reset PW218 No Check Reset signal
Check Reset signal
Reset switch
Reset switch (R307)
(R307)
Yes
I2CBus signal No Check
Check
I2CBus signal
normal? peripheral circuit
peripheral circuit
normal?
Check con26, 27, 28
Check con26, 27, 28
END
END
23
9-3. Picture on the screen Check Procedure.
START
START
Check LVDS cable & Main
Check LVDS cable & Main
board connection
board connection -- Re-
Re-
Re-
connect LVDS, Mainboard
connect LVDS, Mainboard
cable
cable
Check Power line(u62, FB48)
Check Power line(u62, FB48)
END
END
9-4. S-Video, AV1/2 Check Procedure.
START
START
Check peripheral devices
Check peripheral devices
(VCR, DVD Player.. etc)
(VCR, DVD Player.. etc)
connection
connection
Check
Check AV
AV Video
Video
Decoder(U49)
Decoder(U49)
Check Video clock
Check Video clock
Check Reset signal(Q2)
Check Reset signal(Q2)
Check I2C Bus Line
Check I2C Bus Line
(r434, r435)
(r434, r435)
END
END
24
9-5. TV Check Procedure.
START
START
Check
Check
Sub board connection
TV board connection
Check TV Tuner input
Check TV Tuner input
(75 RF --In)
(75 RF In)
Check TV Power inlet signal
Check Tuner power
(U13, U14 / 5V)
Tuner power signal (U46/U47) is normal?
Check Tuner power
(U15/U32)
Check Tuner I2C bus
(R115, R117)
END
9-6. PC, HDMI, Component Check Procedure.
START
START
Check
Check Graphic
Graphic A/D
A/D
converter power(3.3, 2.5V)
converter power(3.3, 2.5V)
Check A/D converter main
Check A/D converter main
clock(Y4)
clock(Y4)
Check Video Decord Reset
Check Video Decord Reset
