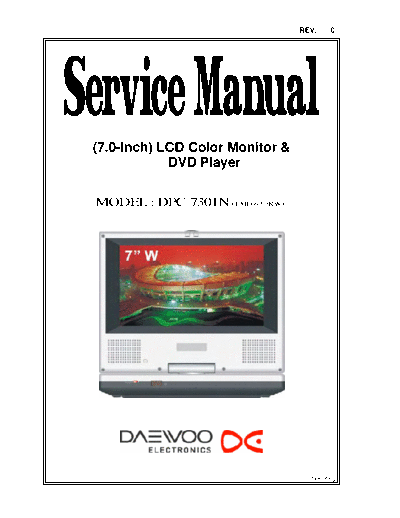

Image preview - the first page of the document



>> Download DPC-7301N documenatation <<

Text preview - extract from the document

                                 REV.    0




(7.0-Inch) LCD Color Monitor &
            DVD Player

MODEL : DPC-7301NLMD-6708RW




                                   2006/Aug.
                                                                 CONTENTS
                                                                 ----------------


Specification..............................................................................................................................   3~4
Block Diagram........................................................................................................................... 5~6
General Alignment Instruction...............................................................................................                   7
Troubleshooting........................................................................................................................       8~9
Printed Circuit Board................................................................................................................ 10~17
IC Block Diagram & Description........................................................................................... 18~33
Explode View..............................................................................................................................    34
Schematic Diagram.................................................................................................................. 35~43




                                                                            -2-
                                SPECIFICATION

LCD MONITOR


          Description                 Condition         Unit    Limit    Nominal

Headphone Output                      1kHz 0dB          mW      3
