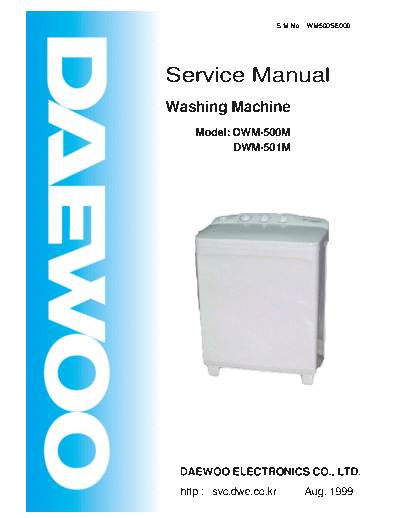

Image preview - the first page of the document
>> Download DWM-500M & 501M documenatation <<
Text preview - extract from the document
S/M No. : WM500SE000
Service Manual
Washing Machine
Model: DWM-500M
DWM-501M
DAEWOO ELECTRONICS CO., LTD.
http : //svc.dwe.co.kr Aug. 1999
SPECIFICATIONS ............................................................................................................................... 2
CAUTIONS ON THE OPERATION...................................................................................................... 3
WIRING AND CIRCUIT DIAGRAM ..................................................................................................... 5
PRINCIPLES OF OPERATION AND EXPLANATION OF FUNCTIONS............................................ 8
HOW TO DISASSEMBLE.................................................................................................................... 16
EXPLODED VIEWS AND RECOMMENDABLE PARTS .................................................................... 19
SPECIFICATIONS
SPECIFICATIONS
NO ITEM
50H Z 60H Z
1 POWER SOURCE Available in all local AC voltage
2 P O W E R C O N S U M PT IO N N O N PU M P 330W
PUMP 410W
3 M A C HIN E W E IG HT N O N PU M P NE T : 17.0kg, PA C K E D U P : 18.5kg
PUMP NE T : 18.0kg, PA C K E D U P : 19.5kg
4 D IM EN S IO N 680 x 406 x 857 (W xD xH , m m )
5 C A PA C IT Y WASH 3.0 kg
S P IN 2.7 kg
6 W AT ER LE VE L HIG H : 37 , LO W : 27
7 O P E RATIN G W AT E R P R E S SU R E 0.3 ~ 3.0kgf/cm 2 ( 3.0 ~ 30.0 N /cm 2)
8 R O TAT IN G S P E ED WASH 330 rpm 340 rpm
S P IN 1,450 rpm 1,700 rpm
9 W AS H IN G T Y P E P ulsator (Im peller) Type
10 S P IN NIN G TY P E Centrifugally S eparated Type
11 W AS H T IM E M ax. 15m in., M anual O peration
12 S P IN T IM E M ax. 15m in., M anual O peration
13 P U LSATO R 6 W IN G S ( 200 m m )
14 W AT ER S U PP LY M A N UA L
Explanation table for suffixes of model names
SUFFIX
PO WER SOURCE EXAM PLE
NON PUMP PUMP
A C 110V, 60H z T TP
M odel nam e PUMP
A C 220V, 60H z L LP
A C 110/220V, 50Hz D DP
A C 127/220V, 60H z S - D W -X X X XN P
A C 220V, 50H z N NP
A C 230~240V, 50H z M MP P ow er soure
A C100V, 50/60H z J -
CAUTIONS ON THE OPERATION
1. Installation
- Install the washer in the place easy of access to water, electrical pow er and drainage.
- Install the washer on a firm and flat floor.
- Be sure that the washing m achine m ust be grounded with the external grounding wire(option) or w ith the power cord
and electric outlet of the house.
- Avoid installing the m achine w here it can be exposed to rain or direct ray of the sun, that m ay cause trouble or
discoloration. In case the m achine has to be installed in such a place, provide a shield to protect m achine from rain
or direct rays of the sun.
- In sum m er or other periods when there is a great difference between the water tem perature and the air tem perature,
drops of water may condense on the outside of the tub, and the floor might become wet from dripping; be careful of this.
- Please disconnect the power cord plug after washing.
2. Grounding
- Connect the grounding w ire(option) to a water faucet if the pipe is m ade of m etal.
- M ake sure that the power cord is unplugged during ground work.
- Be sure to wind grounding wire on a m etal pipe like Fig1.
(Do not connect the grounding wire end to a gas tube.)
- For m axim um security, attach the grounding wire to a copper plate or grounding rod and bury it at least 20cm in the
ground like Fig2.
Fig. 1 Fig.2
CAUTIONS ON THE OPERATION
3. Caution on Use
- Do not use water which contains rust.
- Never put your hands into the tub during wash and rinse process.
- This unit is m ade of poly-propylene, use water below 50 .
- The opening m ust not be obstructed by carpeting when the washing m achine is installed on a carpeted floor.
- Put the wet clothes into the spindryer drum , being sure that they m ust be well balanced.
- Place the safety cover horizontally on the top.
- Ensure that the spindryer drum com pletely stops before reaching in to rem ove the laundry.
Putting in the clothes Detergent Amount
Distribute the clothes in If you use too m uch
the tub being sure that detergent. There will be an
nothing is protruding excessive amount of suds
and rinsing m ay be
out of the top.
insufficient: limit the
am ount of detergent you use.
Pocket Check Acting Time Of Pulsator
Check the pockets of the
laundry and remove W ash M ove Stop
Action
contents that shouldn't
be washed before putting Normal 6.8" 4.5"
the laundry into the tub. Reverse
WIRING AND CIRCUIT DIAGRAM
1. SINGLE VOLTAGE NON PUMP MODEL
2. SINGLE VOLTAGE PUMP MODEL
WIRING AND CIRCUIT DIAGRAM
3. DUAL VOLTAGE NON PUMP MODEL
4. DEAL VOLTAGE PUMP MODEL
WIRING AND CIRCUIT DIAGRAM
5. SINGLE VOLTAGE PUMP MODEL WITH TERMINAL BLOCK
6. SINGLE VOLTAGE NON PUMP MODEL(ONLY FOR JAPAN)
PRINCIPLES OF OPERATION AND EX PLANATION OF FUNCTIONS
TIMER WASH
- Function
The m ain switch(T1) rem ains ON during the washing tim e set by turning the tim er knob.
At the sam e tim e, the internal switch(T2, T3) provides Power to wash m otor alternately at assigned intervals.
Circuit Diagram
BLACK
T1
T2
AC(V) M AIN
VIOLET BLUE
W ASH
M M OTO R
309 (MAX S ET)
900'' 12 0 ( 300 SET )
T1
Main
T2
PRINCIPLES OF OPERATION AND EXPLANATION OF FUNCTIONS
TIMER SPIN(OPTION)
- Function
The Spin Tim er is the switch providing power to the spin m otor(Drain Pum p m otor) during the set spin dry tim e,
and is a spring-type tim e sw itch com es on upon turning and those contact point com es off after the set tim e.
Structure and Principle of Activation
1. The m ain shaft turns due to the unwinding force when the spin tim er is turned and the spring wound, with that force
being delivered through each gear and the spring slow ly unwinding at a speedfinally controlled by the angle
assem bly.
2. The contact point turns ON and the assem bly angle is set in m otion, which is in the CAM groove in the OFF state,
com es off the groove when the M AIN SHAFT is turned to wind the spring. The contact point turns OFF, return to
CAM groove when the spring unwind com pletely.
SAFETY D EVICE FOR MO TORS(OPTION)
In case excessive strain is placed on the m otor
due to excessive electricity, over heating, or
overloading so that the tem perature of m otor
(Violet)
reaches to about 130 the therm al protector
attached to the m otor shuts off the m otor (W hite)
autom atically. In the case the m otor does not
operate, until the tem perature of m otor drops to
. It takes about an hour.
(Blue)
about 85
SAFETY DEVIC E FOR SPIN D RYER
The spin dryer is an apparatus w hich elim inates the water from the laundry through centrifugal separation
generated by rapid revolution(approxim ately 1700rpm for frequency of 60H z).
Accordingly, there are a door sw itch to cut off the power going into the spin m otor when door spin o is opened and
a brake system to stop the rotating spin dryer.
PRINCIPLES OF OPERATION AND EXPLANATION OF FUNCTIONS
- Door Sw itch
W hen the door spin o is opened during spin drying the lever of the door switch which sites atop the door spin o
falls off the contact, and cuts off the power going into the spin m otor.
- Brake System
W hen the door spin is opened, the link brake and brake wire is loosened.
A nd then the brake band touches the drum coupling assem bly and stops the spin dryer as it is pulled by the
spring in the brake fix plate assem bly.
PA NE L B
D O O R SP IN O
PANEL B
DO OR S W ITCH
LINK BR AK E
SPIN DR Y ER
BR A KE W IR E
(IN NE R W IR E )
B ASE
DOO R SW ITCH
DOOR SPIN O LEV ER SPRING W IR E G UID E
DRUM BR AKE W IRE
C O U PLIN G (O U TER W IRE )
LEVE R B R AKE
BR AK E BA ND BR AK E FIX
PLATE
- Brake Band Gap C ontrol
The band brake w orks best when the gap between it and the drum coupling is about 2m m when the door spin is
closed. The spin dryer stops slowly if the gap is too large.
- SPIN B ELLOW S ASS'Y
The wrinkled rubber device below the spindryer
is called spin bellows assem bly.
It has a waterseal and an oilless m etal inside to
prevent leakage and so that spin dryer m ay work
sm oothly.
DRAIN PUMP OPERATION (Pump Model Only)
- Always running during Tim er is ON .
PRINCIPLES OF OPERATION AND EXPLANATION OF FUNCTIONS
NOTE
P ull out the pow er plug prior repair and m ake sure that the W ashing M achine has been properly grounded.
- Concerning Wash
Problem Check Point Cause Solution
NO
Is the Power properly connected? Reconnect the Power Cord.
Pulsator does YES
not rotate.
YES NO Set the W ash Selector
Is there a whirring sound from the Is this Wash Selector
W ash Motor when turned on? properly positioned? to W ASH RINSE
YES
M otor does not start due Reconnect the Condenser.
Is the Condenser properly NO
to opening the Condenser
connected? circuit.
NO
Is the Motor hot? YES Power has been cut off Power restored when
(In case there is Therm al Protector) by the Thermal Protector Motor cools
NO
NO
Is the W iring good? Improper wiring. Reconnect the wiring.
(Refer to the W iring Diagram )
YES
NO
Is the contact of W ash Timer good? Defective W ash Timer. Replace W ash Timer.
YES
Defective W ash M otor. Replace W ash M otor.
NO
Is the wash load appropriate? Reload with proper wash
Pulsator does not load.
rotate sm oothly. YES
Are the Pulsator and M otor Pulley NO Defect of m echanical Tighten the screws fixed
securely assembled? assem bly. on the Pulley.
YES
YES
Does the V-Belt slip? W orn out V-Belt. Replace V-Belt
NO
Are there impurities between the YES Revolution obstructed by Rem ove im purities after
Pulsator and Tub. im purities. disassem bling pulsator.
NO
YES W orn out the Serration
Does the pulsator shaft rotate propely Replace pulsator.
when the pulsator has been within the pulsator.
disassem bled?
Defective Case Shaft As. Replace Case Shaft As..
NO
PRINCIPLES OF OPERATION AND EXPLANATION OF FUNCTIONS
Problem Check Point Cause Solution
NO
Is the wiring of Condenser properly Improper wiring. Reconnect.
Pulsator rotate connected?
only in one
direction. YES
NO
Is the wiring of wash timer properly Improper wiring. Reconnect the Wash
connected? Timer
YES
Defective Wash timer. Replace Wash Timer.
YES Impurtities between Remove im purities after
Are there strange noise from Tub when
There is excessive the Pulsator rotates? Pulsator and Tub. disassembling Pulsator.
noise during
washing. NO
Pulsator im properly Tighten the Pulsator fixing
assem bled. screw.
NO
Som ething is in contact Adjust the parts so that
with the Pulsator Pulley or there are no im purities in
M otor Pulley or other contact with rotating parts.
rotationg parts.
Concerning Spin
Problem Check Point Cause Solution
NO
Is the Spin Selector properly set? Set the Spin Selector to SPIN
The Spin Dryer
does not rotate. YES
YES
Is the Door Spin *O open? The contact of Door Keep the Door Spin *O
Switch is open. closed during spin.
NO
Is there a whirring sound form the
Spin Motor when turned ON?
YES
NO NO
Is the Condenser properly connected? Motor does not start due Reconnect.
to opening the Condenser
YES circuit.
PRINCIPLES OF OPERATION AND EXPLANATION OF FUNCTIONS
Problem Check P oint Cause S olution
YES
The Brake Band is touching Brake wire is too long Assemble after loosening
The Spin Dryer the Drum coupling Assembly. Link Brake and
does not rotate. adjusting downward.
NO
Is the Motor hot? YES Power has been cut off Power restored when
(In case there is Therm al Protector) by the Thermal Protector Motor cools
NO
NO
Is the W iring good? Im proper wiring. Reconnect the wiring.
(Refer to the W iring Diagram)
YES
Is the Door Switch Lever properly NO Replace Door Switch or
Defective connection
placed on the Door Spin *O? reshape the Lever.
YES
Is the Door Switch terminal properly NO
Improper wiring Reconnect the terminal.
connected?
YES
NO
Is the contact of Spin Tim er good? Defective Spin Tim er Replace the Spin Timer.
YES
Defective Spin Motor Replace the Spin M otor.
NO
Is the wash load well balanced? Spin Dryer does not Reload the clothes so they
There are strange balanced due to wash load. are well balanced.
noise and severe YES
vibration during YES
Are clothes or the Safely Cover Tub is in contact with the Reload the clothes and
spinning. object stuck out.
stuck out of the Spin Basket? press down the Safety
Cover into Spin Basket.
NO
YES
Is the assembly between the Drum Improper structural assembly Tighten the Bolt in Drum
Coupling Assembly and Spin M otor Coupling Assembly
or Spin Dryer loose?
NO
NO
Is The Spin Dryer itself well Balanced? Spin Dryer unbalance Re-assem ble Spin Dryer.
YES
PRINCIPLES OF OPERATION AND EXPLANATION OF FUNCTIONS
Problem Check Point Cause Solution
YES
There are strange The Waterseal or the Oilless metal in the Replace Bellows Assembly
noise and severe Bellows Assembly worn out.
vibration during
spinning.
Is the Bellows Assem bly properly NO Waterproofing not working Re-assemble Bellows
There is leakage assem bled? due to defective assembly. Assembly.
during spin drying.
YES
The waterseal or the oilless
metal in the Bellows Replace Bellows Assembly.
Assembly is worn out.
NO
Does the Brake Band touches the Drum Brake wire is too short Assemble after loosening
Spin Dryer does coupling when the Door Spin *O open. Link Brake and adjusting
not stop with the upward.
Door Spin *O
open. YES
Brake Band is worn out. Replace Brake Band or
Brake Fix Assembly.
NO
Is the electric connection of the Door Defecive Door Switch Replace Door Switch
Switch good?
YES The contact of the Door Replace Door Switch or
switch does not open due reshape the Lever of
to deformity of the Lever Door Switch.
of Door Switch.
Concerning Drainage
Problem Check Point Cause Solution
Is the height of the drainage area where YES
the Drain Hose hangs over 1m? The Drain Hose is too High. Hang the Drain Hose lower
Drainage is not (pump m odel)
satisfactory.
NO
YES Im purities are obstructing Disassemble Pulsator and
Are there impurities in the Drain Strainer?
drainage. take out impurities in Drain
NO strainer
YES Im purities are obstructing Rem ove impurities or
Are there im purities in the case valve or
Inlet Joint. drainage. replace Case Valve or
inlet joint.
NO
Im purities are blocking the Rem ove impurities
Drain Hose.
PRINCIPLES OF OPERATION AND EXPLANATION OF FUNCTIONS
Problem Check Point Cause Solution
YES
Is the Drain Selector is at the DRAIN Misoperation Turn Drain Selector to
Water Keeps
position? WASH/RINSE positon
draining during
wash
NO
There are impurities Remove impurities. Or
between the Case Valve replace Case Valve.
and Valve Bellows.
YES Drain valve connot be Change the link valve.
Draining does not Is the link valve broken?
opened.
function during
drain selecting NO
NO
Is the pump Motor wiring properly Defective wiring Reconnect wiring
connected?
YES
Defective Pump m otor Replace Pump Motor
NO
Are the wiring of the Spin Tim er and Defective wiring Reconnect wiring
Draining does not the Pump Motor good?
function during
YES
Spin drying
NO
Is the Spin Timer's contact good? Defective Spin Timer Change the Spin Timer.
YES Defective Pump Motor Change Pump Motor.
HOW TO DISASSEMBLE
1. REPLACING WASH TIMER AND SELECTOR SWITCH.
1. Rem ove 2 screw on the back cover B 2. S eparate connector to harness assem bly.
3. Separate link valve from the valve rod. 4. R em ove plate from tub.
5. Rem ove 2 screws on panel. 6. S eparate the panel assem bly.
7. Rem ove the door switch. 8. R em ove the knob.
HOW TO DISASSEMBLE
9. Rem ove 4 screws on bracket panel. 10. Rem ove wash tim er and selector sw itch.
2. Replacing wash and spin motor
1. Separate m ain harness assem bly. 2. Rem ove nut and bolt on spin basket shaft
and rem ove spin basket.
3. Rem ove a belt connecting m otor 4. Separate link brake from the brake
pulley and pulsator pulley. wire assem bly.
HOW TO DISASSEMBLE
5. Rem ove 3 screw fixing the 6. Rem ove cap screw(2EA) and 5 screws
drain pum p. (pum p m odel) on flange of the tub. And lift up the tub assem bly.
7. Rem ove 3 screws and spin m otor. 8. Rem ove 3 screws and spin m otor.
EXPLODED VIEWS
1. PANEL ASS'Y
EXPLODED VIEWS
2. TUB ASS'Y
EXPLODED VIEWS
3. BASE ASS'Y
EXPLODED VIEWS
4. PART LIST
- PANEL ASS'Y
R PART R ECOMM ENDED FOR STOC K
NO R PA RT NAM E PART CO DE SPECIFICATION Q'TY REMARK S
1 KNOB 3613403100 HIP S (HI-450) 3.00
2 PA N E L 3614230500 PP (J-945) 1.00 500M
3614231000 PP (J-945) 1.00 501M
3 S C RE W TA PP IN G 7122401411 T2S T RS 4X 14 M F Z N 4.00
4 B R AC K E T PAN E L 3610604800 HIP S (HI-425TV ) 1.00 500M , H B
3610604810 HIP S (HF H -400) 1.00 500M , V O , S /T IM E R
3610604820 HIP S (HF H -400) 1.00 500M , V O
3610605200 HIP S (HI-425TV ) 1.00 501M , H B
3610605210 HIP S (HF H -400) 1.00 501M , V O , S /T IM E R
3610605220 HIP S (HF H -400) 1.00 5010, VO
5 S C RE W TA PP IN G 7122401411 T2S T RS 4X 14 M F Z N 4.00
6 R T IM E R W A S H 3619910700 S-K 30AP, S A N 1.00 P U M P, SA N
3619910710 S-K 30BP, P C 1.00 P U M P, PC
3619910720 S-K 30AS , S A N 1.00 JA PA N (S/T, U L94H B )
3619910730 S-K 30BS , P C 1.00 JA PA N (S/T, U L94V -O )
3619910740 S-K 30A, S A N 1.00 N O N -P U M P, S AN
3619910750 S-K 30B, P C 1.00 N O N -P U M P, P C
7 LE VE R C O N T R O L 3613701400 PO M 2.00
8 S W IT C H SE LE C TO R 3619044600 SZ M -V15-2FA-93 2.00
9 R S W IT C H DR A IN 3619043700 VP 531A-2H ,250VA C ,15A 1.00 P U M P, S/T IM E R
10 H A RN E S S D R A IN 3612759900 500M 'S D R A IN H A RN E S S 1.00 P U M P, S/T IM E R
11 R T IM E R S PIN 3619910800 S-3000A,S A N 1.00 JA PA N (U L94HB )
3619910810 S-3000B,P C 1.00 JA PA N (U L94V -O )
12 R C O VE R S /W A S 4507K 44031 15A ,220VAC 1006F D 1.00
13 H A RN E S S S P IN 3612759800 500M 'S D O O R H A R NE S S 1.00 N O N -P U M P
14 LIN K VA LV E 3613800900 PP B A ND 1.00
EXPLODED VIEWS
- TUB ASS'Y
R PART R ECOMM ENDED FOR STOC K
NO R PART NA ME PART CODE SPECIFICATIO N Q'TY REMARK S
1 S P EC IA L SC R E W 3616002900 S U S 304 1.00
2 P U LS AT O R A S 3619705100 P P (J-640A) 1.00
3 F ILT E R O V E R F LO W 3611904300 P P (J-640A) 1.00
4 C O VE R S AF E T Y 3611417000 LLDP E (JL210)+HD P E (JK 910) 1.00
5 B A SK E T SP IN A S 3619103200 A S , 500M 'S 1.00
6 R ING B A SK E T 3614602000 P P (J-640A) 1.00
7 S C RE W TA PP IN G 7122401208 T 2S T R S 4X 12 S US 4.00
8 B A SK E T 3619102300 P P (J-640A) 1.00
9 R B E LLO W S A S 3616401500 A S , 4.0kg 1.00
10 LIN K B R A KE 3613801300 P P BA N D (L453) 1.00
11 S P RIN G CO V E R 3615110400 HSW3 1.00
12 D O O R S P IN O 3611416900 P P (J945) 1.00
13 P LAT E T 3614518300 P P (J740) 1.00
14 C O VE R INN E R 3611416700 P P (J801) 1.00
15 S C RE W TA PP IN G 7122401611 T 2S T R S 4X 16 M F Z N 5.00
16 C A P S C R EW 3610909600 NBR 2.00
17 B A SE W ATE R 3610388100 P P (J740) 1.00
18 C O VE R W A S H 3611416800 P P (J945) 1.00
19 TUB 3618816000 P P (J740) 1.00
20 P R O T E C TO R F.B . 3618303500 NBR 1.00 P U M P, JAPAN
21 C A SE S H AFT A S 3611118500 A S , 4.0kg 1.00
22 G A SK E T 3612301400 N B R(K 35L) 1.00
23 S P EC IA L NU T 3616007500 LU PO L G P-2300 1.00
24 P U LLE Y P ULS ATO R 3618430300 F R PP (G LAS S 30% ) 1.00
25 S P EC IA L BO LT 3616008300 S M 18C +S ILO C K (M 5) 1.00
26 NUT HEX 7391500011 6N -1-5 M FZ N 1.00
27 D R AIN A SS 'Y 3611120500 D R AIN A S(P U M P) PUMP
1.00
3611120400 D R AIN A S(P U M P) N O N -PU M P
28 C A P VA LV E 3610909400 PP 1.00
29 S P RIN G VA LV E 4505C 06020 S U S 304 W R 1.0D 1.00
30 VA LV E RO D 3615406700 PP 1.00
31 R B E LLO W S 4509A 06042 NBR 1.00
32 C A SE VA LV E 3611119300 P P (640A ) 1.00 N O N -PU M P
3611119400 P P (640A ) 1.00 PUMP
33 H O SE O V ER F LO W 3613220800 LD PE , 4010 1.00 JA PA N
34 IN LET JO INT 3617503900 P P (640A ) 1.00
EXPLODED VIEWS
- BASE ASS'Y
R PA RT REC OMM ENDED FOR STOCK
NO R PART NAME PART CODE SPECIFICATION Q'TY REMARKS
1 COUPLING DRUM AS 3619400900 ASSY, 4.0kg 1.00
2 BOLT HEX(P) 7342602011 6B-2-6X20 POINTING 2.00
3 NUT HEX 7393600011 6N-3-6 MFZN 2.00
4 COUPLING DRUM 3619400300 AS, 4010 1.00
5 BUSHING AS 3610701900 BUSHING+PLATE(SUS0.5T) 1.00
6 SCREW MACHINE 7001401065 PAN 4X10 BSNI 3.00
7 SPRING BRAKE 3615109000 SWC D1.0 ZN8-C 1.00
8 BRAKE FIX PLT AS 3614517400 GA 1.00
9 PLATE BRAKE AS 3614517400 ASSY, 4.0kg 1.00
10 BRAKE BAND 3619201400 NYLON 1.00
11 ASSY BRAKE WIRE 3610004300 500M'S, L210 1.00
12 R BELT V 3616590400 M31, 60Hz 1.00 T,TP,L,J,S
450M 700020 M32, 50Hz 1.00 N,M,NP,MP,D,DP
13 PULLEY MOTOR AS 3618430900 PRESS, D58, 60Hz 1.00 T,TP,L,J,S
3618431000 PRESS, D54, 50Hz 1.00 N,M,NP,MP,D,DP
14 SPECIAL SCREW 3616009300 SET SCREW+SILOCK(8X12) 1.00
15 SPECIAL BOLT 3616003100 M5*35 WASHER 3.00
16 R MOTOR WASH 3618952800 100V 50/60Hz,TP, 25T 1.00 J
3618953000 110V,50Hz,25T 1.00 T,TP
3618953200 220-240V,50/60Hz,TP,25T 1.00 N,NP,M,MP
3618953300 220-240V,50/60Hz,25T 1.00 N,NP,M,MP,L
3618953800 110-120/220-240V,50/60Hz 1.00 D,DP,S
17 CUSHION MOTOR 450M 712020 NR 3.00
18 CUSHION SPOT 450M 712010 PP 1.00
19 R MOTOR SPIN 3618952900 110V,50/60HZ,TP,15.5T 1.00 J
3618953100 110V,60Hz,15.5T 1.00 T,TP
3618953400 220V,50/60Hz,TP,15.5T 1.00 N,NP
3618953500 220V,50/60Hz,15.5T 1.00 N,NP,L
3618953600 240V,50Hz,TP,15.5T 1.00 M,MP
3618953700 240V,50Hz,15.5T 1.00 M,MP
3618953900 110/220V,50Hz,15.5T 1.00 D,DP
3618954000 127/220V,60Hz,15.5T 1.00 S
20 AS CUSHION SPIN 3611537200 DWM-3000'S 3.00
21 SCREW TAPPING 7122502011 T2S TRS 5X20 MFZN 3.00
22 STOPPER 3615201600 PP(J640A) 6.00
23 ABSORBER 3610106400 SBS(STE1084) 3.00
EXPLODED VIEWS
NO R PART NAME PART CODE SPECIFICATION Q'TY REMARKS
24 SPRING CUSHION 3615110300 SWC D2.5, L75 3.00
25 HARNESS POWER 3612701900 TERMINAL BLOCK 1.00 OPTION
26 SCREW TAPPING 7121302011 PAN T2S 3X20 MFZN 2.00 OPTION
27 TERMINAL BLOCK 3618701900 271-312 1.00 OPTION
28 BRACKET TERMINAL 4505D 37002 PP 1.00 OPTION
29 COVER B 3611416800 PP(J640A) 1.00
30 SCREW TAPPING 7122401411 T2S TRS 4X14 MFZN 2.00
31 HOSE PUMP 3613225200 LDPE,OSUNG 1.00 PUMP
3613225300 LDPE,DMI 1.00 PUMP
32 SCREW TAPPING 7122502011 T2S TRS 5X20 MFZN 3.00 PUMP
33 BRACKET PUMP 3610604600 PP(J640A),DMI 1.00 PUMP
3610603700 PP(J640A),OSUNG 1.00 PUMP
34 R DRAIN PUMP 3618952500 110V,60Hz,TP,30T 1.00 TP
3618952600 220V,50Hz,TP,30T 1.00 NP
3618952700 110-120/220-240V,50/60Hz,TP 1.00 DP
3618955700 240V,50Hz,TP,30T 1.00 MP
35 HARNESS ASSY 3612757220 SINGLE,N-PUMP,MAIN 1.00 N,M,T,L
3612757230 JAPAN, FILTER, MAIN 1.00 J
3612759400 SINGLE PUMP, MAIN 1.00 NP,MP,TP
3612759200 DUAL NON-PUMP, MAIN 1.00 D,S
3612759300 DUAL PUMP, MAIN 1.00 DP
3612757200 4010SINGL,N-PUMP,MAIN 1.00 N,M,T,L,J, S/TIMER
3612757300 4010SINGL,PUMP,MAIN 1.00 NP,MP,TP, S/TIMER
36 R UNIT CAPACITOR 3618954100 26.0/12.4uF,200VAC,EPOXY 1.00 J
3618954200 26.0/9.0uF,200VAC,EPOXY 1.00 T,TP
3618954300 6.5/2.6uF,400VAC,EPOXY 1.00 N,NP,L
3618954400 4.0/2.2uF,400VAC,EPOXY 1.00 M,MP
R CAPACITOR WASH 3618954500 13X2uF,200VAC 1.00 D,DP,S
R CAPACITOR SPIN 450E 411050 12.4uF,200VAC 1.00 D,DP
450E 411090 7.6uF,250VAC 1.00 S
HARNESS CONDENSER 3612759700 300'S DUAL 1.00 D,DP,S
37 BASE UNDER 3610388010 PP(J-945) 1.00
38 DRAIN HOSE O AS 3613224200 HOSE(755MM),HANGER 1.00 NON-PUMP
3613224300 HOSE(820MM),HANGER 1.00 JAPAN
3613218800 LD-PE/EVA L=1600 PUMP 1.00 PUMP
39 CLAMP HOSE O - 1.00 PUMP
4508A 06120 SW2.6D ZN8-C(R15.5) 1.00 NON-PUMP
40 HOSE DRAIN O - 1.00 PUMP
3613223600 LDPE,755MM 1.00 NON-PUMP
EXPLODED VIEWS
NO R PART NAME PART CODE SPECIFICATION Q'TY REMARKS
41 HOLDER HOSE(GUIDE D/H) 3612502300 PP(JI-360) 1.00 PUMP
3613012100 PP 1.00 NON-PUMP
42 CORD POWER 3611330800 N LFC-3R 3X0.75 2.3M GY 1.00 STOPPER,CONNECTOR
3611330900 F H05W 3X0.75 2.3M WH 1.00
3611331000 RW-300/500 3X0.75 2.3M 1.00
3611331100 - VCTF 3X0.75 2.3M 1.00
3611331200 R VCTF 2X1.25 2.3M GY 1.00
3611331300 U VDTF 3X0.75 2.3M GY 1.00
3611331400 - H05W-F 3X0.75 2.3M GY 1.00
3611331500 P VCTF 3X0.75 2.3M WH 1.00
3611331600 - H05W-F 3X0.75 2.3M BK 1.00
3611331700 A-VCTFK 2X0.75 2.3M GY 1.00
3611331800 F H05W 3X0.75 2.3M BK 1.00
3611331900 C SJT 3X18AWG 2.3M GY 1.00
3611332000 - HO5W-F 3X0.75 2.3M BK 1.00
3611332100 VCTFK 2X0.75 2.3 GY 1.00
43 HARNESS OUTER 3612756100 L2850,GN,TWIST 1.00 JAPAN, OPTION
44 LEG 3617702700 PP(J640A) 4.00
POWER CORD
NO PAR T CODE TYPE OF P LU G SPEC. CO UNTRY REMARK
1 3611330900 F H 05VV 3X 0.75 2.3M W H CH ILE C HILE 3PIN
2 3611330800 N LF C -3R 3X 0.75 2.3M G Y A R G E N T INA KP -551
P.N .G
A U ST R A LIA
N E W Z E A LAN D
3611330820
N LF C -3R 3X 0.75 2.3M G Y
TE R M IN A L B LO C K
3 3611331000 RW -300/500 3X 0.75 2.3M CH IN A
N
250V
10A
~
E
L
4 3611331100 - V C T F 3X 0.75 2.3M IN D IA 3P IN R O UN D
S RILA N K A
L 5A 250V N
E
5 3611331300 U V C T F 3X 0.75 2.3M G Y KO R E A CP -2P IN
U.A .E
S A U DI A R AB IA
MAKER
7A 250V
K
6 3611331200 R V C T FK 2X 1.25 2.3M G Y JA PA N -M A RK
12A 125V
7 3611332100 VC T F K 2X 0.75 2.3M G Y S A U DI A R AB IA R-2P IN
LE BA N O N
8 3611331500 P V C T F 3X 0.75 2.3M W H OM AN B S-1363(/A )
K U W A IT
N
AMP
E
13
L
POWER CORD
NO PAR T CODE TYPE OF P LU G SPEC. CO UNTRY REMARK
9 361131400 H05V V -F 3X 0.75 2.3M G Y M AU R IT US BP -3P IN
S O U TH A F RIC A
W X 745N 7B 2-
N
CHING CHENG
10 AMP
EL-208
250V
E
H05V -F 3X 0.75 3M G Y
L
TE R M IN A L B LO C K
10 3611331600 -H 05V V-F 3X 0.75 2.3M B K S IN G A P O RE VDE
M A LAY SIA
11 3611331700 A-V C T FK 2X 0.75 2.3M G Y TA IW A N F-2P IN
12 3611331800 F H 05VV 3X 0.75 2.3M B K RU S S IA UP -2P IN
T UN IS IA
R O M A N IA
C ZE C H O
3611331820
H U N G A RY
F H 05VV 3X 0.75 2.3M B K
P O LA N D
TE R M IN A L B LO C K
13 3611331900 C S JT 3X 18AW G 2.3M G Y PA N A M A EP -3P IN
D O M IN ICA
C O S TA RIC A
USA
3611331920
C AN A D A
C S JT 3X 18AW G 2.3M G Y
TE R M IN A L B LO C K
14 3611332000 Z H 05W -F 3X 0.75 2.3M B K ISR A E L VDE
DAEWOO ELECTRONICS CO., LTD
686, AHYEON-DONG MAPO-GU
SEOUL, KOREA
C.P.O. BOX 8003 SEOUL, KOREA
TELEX : DWELEC K28177-8
CABLE : "DAEWOOELEC"
E-mail : [email protected]
FAX : 032) 510-7630
TEL : 032) 510-7618
PRINTED DATE : AUG. 1999
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
