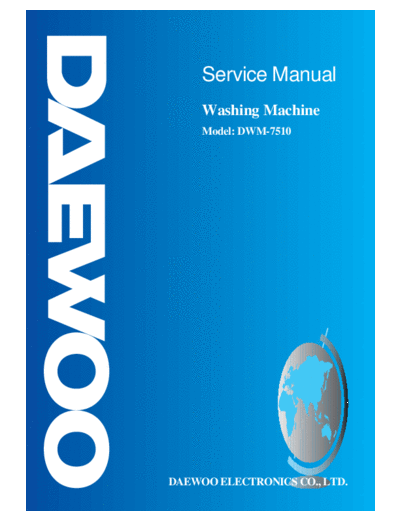

Image preview - the first page of the document
>> Download DWM-7510 documenatation <<
Text preview - extract from the document
Service Manual
Washing Machine
Model: DWM-7510
DAEWOO ELECTRONICS CO., LTD.
TABLE OF CONTENTS
1. SPECIFICATIONS ................................................................................................................................. 1
2. EXTERNAL VIEW ................................................................................................................................. 2
3. PRINCIPLES OF OPERATION AND EXPLANATION OF FUNCTIONS ............................................. 3
4. DIRECTION FOR DISASSEMBLY AND ASSEMBLY ......................................................................... 7
5. TROUBLESHOOTING GUIDE ............................................................................................................. 10
6. EXPLODED VIEW AND PARTS LIST .................................................................................................. 15
7. WIRING DIAGRAM ................................................................................................................................ 23
1. SPECIFICATIONS
NO ITEM SPEC IFIC A TION S
1 POW ER VOLTAGE AC 110V AC 1 20V AC 220V AC 127/220V AC 110/220V AC 220V AC 240V
SOURCE
FREQUENCY 60Hz 50Hz
2 POW ER PUMP 640W 610W
CONSUM PTION
NON PUMP 580W 550W
3 DIMENSION NET : 874 X 532 X 989, PACKED UP : 898 X 558 X 1015 (W XDXH)
4 MACHINE PUM P NET : 40kg, PACKED UP : 44kg
W EIGHT
NON PUM P NET : 38kg, PACKED UP : 42kg
5 WASHING COURSE STRON G, NORM AL
6 WATER LEVEL HIGH : 72 , M EDIUM : 61 , LOW : 52
7 REVOLUTION WASH 100 rpm 100 rpm
PER M INUTE
SPIN 1700 rpm 1400 rpm
8 TIM ER WASH M AX. 15 min., Manual operation
SPIN M AX. 5 min., Manual operation
9 WASHER TYPE PULSATOR TYPE
10 SPIN TYPE CENTRIFUGALLY SEPARATED TYPE
11 MAXIMUM MASS WASH 7.5kg
OF TEXTILE
SPIN 7.0kg
12 WATER SUPPLY MANUAL
13 SPIN RINSE O
14 OUTLET OF DRAIN HOSE REAR
15 LINT FILTER O
N O TE : E xplanation table for suffix of nam es.
SUFFIX
POW ER SOU RCE EXPLANATION
NO N PUM P PU MP
AC 100V 50/60Hz J -
A C 110V 60H z T TP
M odel N am e Pum p
A C 120V 60H z A AP
A C 220V 50H z N NP
DW M - XXXX N P
A C 220V 60H z L LP
A C 240V 50H z M MP P ower S ource
A C 110/220V 50H z D DP
A C 127/220V 60H z S -
2
2. EXTERNAL VIEW
2-1. STRUCTURE OF THE WASH MACHINE
DRAIN STRAINER FILTER AS GUIDE FILTER
COVER SAFETY
PANEL B
DOOR SPIN
DRAIN HOSE
BASKET SPIN
PLATE T
DOOR WASH
PULSATOR CABINET
2-2. CONTROL PANEL(PANEL B ASS'Y)
W AS H T IM E R VA LV E SE LE C TO R IN LE T WAT ER
W A SH AC TIO N SP IN T IM E R
LE VE R W AT ER
SU PP LY SE LEC TO R
W ASH TIMER
U se to select the desired tim e for w ashing or rinsing.
W ASH ACTION
U se to select w ash action. ("S TR O N G ", "N O R M A L")
VALVE SELECTOR
S elect "W A S H .R IN S E " for w ashing and rinsing, and "D R A IN " to drain the w ater.
(In case P U M P M O D E L turn on the drain pum p.)
"O FF" to turn off the drain pum p. (O nly P U M P M O D E L)
LEVER WATER SUPPLY SELEC TOR
Left : w ater supply in the W A S H T U B
R ight: : w ater supply in the B A S K E T S P IN .
INLET WA TE R
C onnect inlet hose to supply w ater in the W A S H TU B or B A S K E T S P IN .
SPIN TIMER
U se to select the desired tim e for spinning.
3
3. PRINCIPLES OF OPERATION AND EXPLANATION OF FUNCTIONS
W A S H T IM ER
FUNCTION
T he m ain sw itch rem ains O N during the w ashing tim e set by turning the tim er knob.
A t the sam e tim e, the internal switch T1 and T2 w hich provide pow er to W A SH M O TO R alternately at assigned Intervals.
S elect sw itch knob sets the w ash type by m eans of controlling the interval of internal sw itch contact.
STRUCTURE AND PRINCIPLE O F ACTIVATION
CIRCUIT DIAGRAM
4
S P IN TIM E R
FUNCTION
The spin tim er is the sw itch providing pow er to the S P IN M O TO R (D R A IN P U M P M O TO R ) during the set spin
dry tim e, and is a spring-type tim e sw itch com es on upon turning and those contact points com es off after the
set tim e.
STRUCTURE AND PRINCIPLE OF ACTIVATION
1) T he m ain shaft turns due to the unw inding force w hen the spin tim er is turned, the spring w ound w ith that
force being delivered through each gear and the spring slow ly unw inding at a speed finally
controlled by the angle assem bly.
2) The contact point turns O N and the assem bly angle is set in m otion, w hich is in the C A M groove in the
O F F state, com es off the groove w hen the m ain shaft is turned to w ind the spring. The contact point
turns O FF, return to C A M groove w hen the spring unw ind com pletely.
SAFETY DEVICE FOR BASKET SPIN
T he B A S K ET S P IN is an apparatus w hich elim inates the w ater from the laundry through centrifugal separation
generated by rapid revolution(approxim ately 1,600rpm for 60H z). A ccordingly, there are a D O O R S W IT C H
to cut off the pow er going into the D O O R S P IN is opened and a brake system to stop the rotating B A S K E T S P IN .
DOOR SW ITCH
W hen the D O O R S P IN is opened during spinning,
the D O O R S W ITC H LE V E R w hich sites atop the D O O R
S P IN falls off the contact, and cuts off the pow er going
into the S P IN M O TO R .
5
BRAKE SYSTEM
W hen the D O O R S P IN is opened, LIN K W IR E
w hich connect to D O O R S P IN loosens. A nd then
the B R A K E B A N D touches the D R U M C O U P LIN G
assem bly and stops the S P IN D R Y E R as it is pulled
by the S P R IN G in the B R A K E F IX P LATE assem bly.
PLATE
BA SKET SPIN CO NTROL WIRE
BRAKE BAND GAP CONTROL METHOD
The B A N D B R A K E w orks best w hen the gap betw een
it and the D R U M C O U P LIN G is about 2m m w hen the
D O O R S P IN is closed. T he S P IN D R Y E R stops slow ly if
the gap betw een the tw o is too narrow, the S P IN D R Y E R
revolution is affected and the P LATE C O N TR O L W IR E m ay
be adjusted to m aintain the B R A K E B A N D gap adequately.
W ASH DECELERATOR ASSEM BLY
The initial deceleration follow ing the activation of the W A S H M O TO R takes place through the P U LLE Y
M O TO R and P U LLE Y P U LS ATO R , and the secondary deceleration is done by the gear in the G E A R
H O U S IN G w hich also increases their revolution strength. This revolution speed and strength is delivered to
the P U LS ATO R , w hich is then able to cause w ater current that is strong yet soft so that w ash loads are not
dam aged.
M O TO R W A S H
A bout 1,700rpm (60H z)
1,400rpm (50H z)
P U LLE Y P U LS ATO R
A bout 330rpm (60H z)
330rpm (50H z)
WASH MOTOR
P U LS ATO R
A bout 100rpm (60H z)
100rpm (50H z)
6
GEAR HOUSING ASS'Y
The G E A R H O U S IN G A S S E M B LY is a transm ission device w hich turns the P U LS ATO R at 3.3 : 1 low ered
speed through the gear unit assem bly w hich receives pow er at the G E A R S H A FT U N IT.
STRUCTURE
1) The tw o sides of the G E A R S H A FT U N IT
are supported by the O ILLE S S B E A R IN G
in the G E A R H O U S IN G A S S E M B LY.
2) The G E A R U N IT A S S E M B LY is connected
to the G E A R S H A FT 1 and G E A R S H A FT
U N IT by the G E A R and G E A R U N IT respectively.
3) The tw o sides of G E A R S H A FT 1 are
supported by the O IL S E A L and O ILLE S S
B E A R IN G in the G E A R H O U S IN G A S S E M B LY.
SPIN BELLOW S ASS'Y
The w rinkled rubber device on the bottom of the
B A S K E T S P IN is called S P IN B E LLO W S A S S E M B LY.
It has a w aterseal and a oilless m etal inside
to prevent leakage and so that the B A S K E T S P IN
m ay w ork sm oothly.
FILTER
M uch lint m ay be obtained depending upon the kind of
clothes to be w ashed and sam e of the lint m ay also be
suck to the clothes.
To m inim ize this possibility, a lint filter is provided
on the upper part of the F ILTE R O V E R FLO W to filter the
w ash w ater.
U se of the lint filter during every w ash is
recom m end.
CLEANING THE LINT FILTER
1) R em ove the FILTE R A S from the FILT E R O V E R FLO W by pressing it dow nw ards.
2) Turn the FILT E R A S inside out, and w ash the lint off w ith w ater.
3) R eturn the FILTE R A S it w as, and fix the F ILTE R A S to the FILTE R O V E R FLO W.
7
4. DIRECTION FOR DISASSEMBLY AND ASSEMBLY
ASSY PANEL BACK
1. R em ove 5 screw s on the PA N E L B . 2. R em ove K N O B and 2 screw s on the PA N E L B .
(S pin Tim er)
3. R em ove C O N TR O L LE V E R and W A S H
T IM E R .
BASKET SPIN
4. R em ove 5 screw s on the C O V E R B A C K . 5. R em ove LIN K B R A K E and A S S E M B LY
B R A K E W IR E .
8
6. R em ove 1 bolt and nut on the upper side of the 7. R em ove 2 screw s on the P LATE T.
D R U M C O U P LIN G A S .
8. Lift up the B A S K E T S P IN . ASSY BASE UNDER
9. R em ove 1 screw on the C A B IN E T.
10. S eparate H A R N E S S A S connectors. 11. R em ove a V -B E LT from P U LLE Y M O TO R .
9
12. Turn over the w ashing m achine. 13. R em ove 7 screw s on the B A S E U N D E R
A S S Y.
14. R em ove 3 screw s on the B R A C K E T S P IN , 15. R em ove 3 bolts on the B A S E U N D E R ,
and rem ove the S P IN M O TO R . and rem ove the W A S H M O TO R .
16. R em ove 3 screw s on the C O V E R P U M P.
(In case of P U M P M O D E L)
10
5. TROUBLESHOOTING GUIDE
N ote : P ull out the pow er plug to repair and m ake sure that the W ashing M achine has been properly grounded.
Concerning W ash
Problem Check Point Cause Solution
NO
Is the Power properly connected? Reconnect the Power Cord.
Pulsator does YES
not rotate.
Is there a whirring sound from the NO YES
Is the fuse blown? Change the fuse.
W ash Motor when turned on?
YES
Motor does not start due Reconnect the Condenser.
Is the Condenser properly NO
to opening the Condenser
connected? circuit.
NO
Is the M otor hot? YES Power has been cut off W ash restart when
(In the case there is Thermal Protector) by the Thermal Protector. Motor cools.
NO
NO
Is the W iring good? Improper wiring. Reconnect the wiring.
(Refer to the W iring Diagram)
YES
NO
Is the contact of W ash Timer good? Defective W ash Timer. Replace W ash Tim er.
YES
Defective Wash Motor. Replace Wash M otor.
NO
Is the wash load appropriate? The wash load is more Reload with proper wash
Pulsator does not than 7.5kg. load.
rotate smoothly. YES
Are the Pulsator and Motor Pulley NO Defect of mechanical Tighten the screws fixed
securely assem bled? assembly. on the Pulley.
YES
YES
Does the V-Belt slip? W orn out V-Belt. Replace V-Belt.
NO
Are there imputities between the YES Revolution obstructed by Rem ove impurities after
Pulsator. im purities. disassem bling pulsator.
NO
Does the Gear Housing As Shaft rotate YES Worn out the serration Replace pulsator.
propely when the pulsator has been within the pulsator.
disassembled?
NO Replace Gear Housing As.
Defective Gear Housing As.
11
Problem Check Point Cause Solution
NO
Is the wiring of Wash Condenser Improper wiring. Reconnect.
Pulsator only properly connected?
rotates in one
direction. YES
NO
Is the wiring of Wash Timer properly Improper wiring. Reconnect the Wash
connected? Timer.
YES
Defective W ash timer. Replace W ash Timer.
YES Im purtities between YES Rem ove im purities after
Are there strange noise from Tub when
There is excessive Pulsator and Tub. disassem ble Pulsator.
the Pulsator rotate?
noise during
washing.
NO
Pulsator im properly Tighten the Pulsator
NO assem bled. fixing screw.
Something is in contact Adjust the parts so that
with the Pulsator Pulley or there are no im purities in
Motor Pulley or other contact with rotating parts.
rotating parts.
Concerning Spin
Problem Check Point Cause Solution
YES The contact of Door
Is the D oor Spin open? Keep the Door Spin
The Basket Spin Switch is open. closed during spin.
does not rotate. NO
YES
Is the Fuse blown? Change the Fuse.
NO
Is there a w hirring sound from the
Spin M otor w hen turned ON ?
NO YES
NO
Is the C ondenser properly connected? Motor does not start due Reconnect the Condenser.
to opening the C ondenser
YES circuit.
12
Problem Check Point Cause Solution
YES
YES
The Brake Band is touching Brake W ire is too long. Assem ble after loosening
The Basket Spin the Drum Coupling Assembly. Link Brake.
does not rotate.
NO
Brake Spring is broken. R eplace Brake Spring.
NO
Is the Motor hot? YES Power has been cut off Spin restart when
(In the case there is Therm al Protector) by the Thermal Protector. M otor cools.
NO
NO
Is the W iring good? Im proper wiring. Reconnect the W iring.
(R efer to the W iring Diagram )
YES
Is the Door Sw itch Lever properly NO Replace Door Switch or
Defective connection.
placed on the Door Spin? Reconnect the Door Switch.
YES
Is the Door Switch term inal properly YES
Improper w iring. Reconnect the term inal.
connected?
YES
NO
Is the contact of Spin Tim er good? D efective Spin Tim er. Replace the Spin Tim er.
YES
D efective Spin M otor. Replace the Spin Motor.
NO
Is the w ash load w ell balanced? Basket Spin does not R eload the clothes so they
There are strange balanced due to wash load. are well balanced.
noise and severe YES
vibration during NO Basket Spin does not
Are clothes or the Safety Cover Reload the colthes and
spinning. balanced due to w ash load.
stick out from Basket Spin ? press down the Safety
Cover into Basket Spin .
YES
YES
Is the assembly betw een the Drum Im proper assem bly. Tighten the Bolt in D rum
Coupling Assem bly and Spin M otor Coupling Assem bly.
or Basket Spin loose?
NO
NO
Is The Basket Spin itself w ell Balanced? Basket Spin unbalance. R eplace Basket Spin.
YES
13
Problem Check Point Cause Solution
YES
There are strange The W aterseal or the Oilless m etal in the Replace Bellows Assem bly.
noise and severe Bellows Assem bly worn out.
vibration during
spinning.
Is the Bellows Assembly properly NO W aterproofing not working Re-assem ble Bellows
There is leakage assembled? due to defective assem bly. Assem bly.
during spinning.
YES
The W aterseal or the Oilless
Metal in the Bellows Assembly Replace Bellows Assem bly.
is worn out.
NO
The Brake Band touches the Drum Brake wire is too short. Assemble after losening
Basket Spin does Couping when the Door Spin open. Link Brake.
not stop with the
Door Spin open. YES
Brake Bnad is worn out. Replace Brake Band or
Brake Fix Assembly.
NO
Is the electric connection of the Door Defecive Door Switch. Replace Door Switch.
Switch good?
The contact of the Door
YES
Switch does not open due Replace Door Switch or
to deformity of the Lever Reconnect the Door Switch.
of Door Switch.
Concerning Drainage (Pum p)
Problem Check Point Cause Solution
Is the height of the drainage area where YES
The Drain Hose is too high. Hang the Drain Hose lower.
Drainage is not the Drain Hose hangs over 1m?
satisfactory.
NO
YES Impurities are obstructing Disassemble Pulsator and
Are there impurities in the Drain Strainer?
drainage. take out impurities in Drain
NO strainer.
YES Impurities are obstructing Remove impurities or
Are there impurities in the
Valve Housing or Inlet Joint? drainage. replace Valve Housing or
Inlet Joint.
NO Impurities are blocking the Remove impurities.
Drain Hose.
14
Problem Check Point Cause Solution
Is the Drain Selector in the DRAIN NO Turn the Drain Selector
Draining does not The position is fault.
position? to DRAIN.
function during
drain selecting. YES
NO
Is the pump Motor wiring properly Defective wiring. Reconnect wiring.
connected?
YES
Defective Pump Motor. Replace Pump Motor.
NO
Are the wiring of the Spin Timer and Defective wiring. Reconnect wiring.
Draining does not the Pump Motor good?
function during
YES
Spinning.
NO
Defective Spin Timer. Replace Spin Timer.
Is the Spin Timer contact good?
YES Defective Pump Motor. Replace Pump Motor.
Concerning Drainage (NON PUM P)
Problem Check Point Cause Solution
YES
Impurities are obstrusting Disassemble Pulsator and
Are there impurties in the Drain Strainer?
Drainage is not drainage. take out impurities in Drain
satisfactory. NO Strainer.
Are there impurities in the Valve Housing YES Impurities are obstrusting Remove impurities or replace
or Inlet Joint? drainage. Valve Housing or Inlet Joint.
NO
Impurities are blocking the Remove impurities.
Drain Hose.
YES
Is the Drain Selector DRAIN position The position is fault. Turn the Drain Selector to
Water Keeps on the panel. WASH/RINSE position.
Draining during
wash.
NO There are impurities Remove impurities or
between Valve Housing replace Valve Housing.
and Valve Bellows.
15
6. EXPLODED VIEW AND PARTS LIST
ASSY PANEL BACK
16
ASSY PANEL BACK
NO. PART NAM E PART CODE SPECIFICATION REM ARK
P01 KNO B 3613402400 HIPS CO LO R O PTIO N
P02 PANEL B 3614220900 HIPS CO LO R/LETTER O PTIO N
P03 LEVER W.S SELECT 3613701000 PP CO LO R O PTIO N
P04 TIM ER SPIN 3619910100 S-7510A
P05 TIM ER WASH 3619910200 S-K75A
P06 SW ITCH DRAIN 3619043700 VP531A -2H, 250VAC/15A
P07 LEVER CO NTRO L 3613700800 PO M
P08 BRACKET C O NTRO L 3610604200 HIPS
P09 LINK VALVE 3617801500 PP BAND W 6
P10 HARNESS DRAIN 3612757500 7510P SW DRAIN PUM P M O DEL
ASSY ACCESSORY
NO. PART NAM E PART CODE SPECIFICATION REMARK
A01 CO VER SAFETY 3611416300 PELD
A02 HO SE CLAM P 4508A06120 SW 2.6D ZN8-C (R15.5) NO N PUM P M O DEL
A03 DRAIN HO SE 3613223000 L=1100m m NO N PUM P M O DEL
A04 CLAM P HO SE O 3611202400 HSW -3, 4.0 kg PUM P M O DEL
A05 HO SE DRAIN O 3613222600 4010P, O SUNG SA PUM P M O DEL
A06 G UIDE DRAIN H O SE 3612502300 PP PUM P M O DEL
17
ASSY TUB
PUMP MODEL
18
ASS Y TUB
NO PART NAM E PART CODE SPECIFICATION REMARK
T 01 TUB 3618815600 PP
T 02 DOOR WASH 3611795000 H IP S C O LO R O PT IO N
T 03 P U LS AT O R A S 3619704700 7.5kg C O LO R O PT IO N
T 04 S P EC IA L SC R E W 3616002900 S U S 304
T 05 G U ID E D O O R 3612507100 PP
T 06 D R AIN S T RA IN ER 3619606600 PP
T 07 B A SE W ATE R S UP P LY 3610387100 PP C O LO R O PT IO N
T 08 F ILT E R A S 3611904000 P P + PO LY E S T ER
T 09 F ILT E R O V E RF LO W 3611903700 PP
T 10 C O VE R B AS K E T 3611416000 PP
T11 B O LT SP IN BA S K E T 4506B19031
T 12 P LAT E U P P ER 3614516900 S P G T1.2
T 13 B A SK E T S PIN 3619102400 SPCE
T 14 P LAT E U N D ER 3614517900 S P G T2..0
T 15 F IX TU R E SH A FT A S 3612005300 7.0kg D14
T 16 B E LLO W S A S 3616401600 7.5kg
T 17 F IX TU R E BE LLO W S 3612005100 PP
T 18 LIN K B R A KE 3617801600 P P B AN D W 6
T 19 S P RIN G CO V E R 3615109100 SW C
T 20 W IND O W S P IN 3615501900 ABS C O LO R O PT IO N
T 21 D O O R S P IN 3611794900 H IP S C O LO R O PT IO N
T 22 S W IT C H CO V E R 3619001200 15A 220VA C RW -622,250
T 23 P LAT E T 3614517000 PP C O LO R O PT IO N
T 24 C O VE R INN E R 3611416100 PP
T 25 PA C K IN G 3614001900 NBR
T 26 G E AR H O US IN G A S 3617306200 D W M -7510S R =3.3:1
T 27 P U LLE Y P ULS ATO R 3618405500 FRPP
T 28 S P EC IA L BO LT 3616008400 M 6 S IDE F IXIN G
T 29 PA C K IN G 4509A05032 NR P U M P M O D EL
T 30 VA LV E C AP 4505F06013 PP
T 31 S P RIN G VA LV E 4505C06020 S U S 304 W R D 1.0
T 32 R O D VA LV E 3618504000 PP
T 33 B E LLO W S VALVE 4505C06040 NR
T 34 IN LET JO INT 3617503800 PP
T 35 C A SE VA LV E 3611118200 PP
T 36 CAP 3610909800 PP
T 37 H O SE O V ER F LO W 4506H60610 P E -H D
T 38 E LBO W D RA IN 3617101900 PP N O N PU M P M O D EL
H O SE A 3613217420 P E -LD/E VA , O -SU N G P U M P M O D EL
19
ASSY MAIN
20
A S S Y M A IN
NO PART NAM E PART CODE SPECIFICATION REM ARK
M 01 CAB INET W ELD AS PRAW PS0000 7510S C O LO R O PTIO N
M 02 HAN DLE CABINET 4506J03010 PE-HD C O LO R O PTIO N
M 03 CO VER BACK 3611416200 T0.4x520x610
M 04 TERM INAL BLO CK 3618701900 271-312 O PTIO N
M 05 BRA CKET TERM INAL 4505D37002 PP O PTIO N, T/BLO CK
M 06 HAR NESS PO W ER 3612756810 7510M P, T/BLO C K 250-CO N . O PTIO N, T/BLO CK
M 07 HAR NESS 4505D64081 16/0.26X340 FO R G ND . O PTIO N, T/BLO CK
M 08 BASE UNDER 3610387000 PP N O N PUM P M O DEL
BASE UNDER 3610387010 PP, PUM P PU M P M O DEL
M 09 CU SHIO N SPO T 450M 712010 PP
M 10 CU SHIO N W /M M O TO R 3611506200 NR
M 11 M O TO R WASH 3618949700 AC 110V 60Hz, W 1D42ED001 D W M -7510T(P)
3618950800 AC 120V 60H z, W 1D42JD001 D W M -7510A(P)
3618949300 AC 220V 60H z, W 1D42UD 101 D W M -7510, L
3618949500 AC 220V~240V 50Hz, W 1D42VD101 D W M -7510N(P), M (P)
3618949900 AC 110V/220V 50Hz, D W M -7510S,D(P)
120/240V 60Hz, W 1D42G D001
M 12 SPEC IAL BO LT 3616003100 M 5x35 WASHER
M 13 PULLEY M O TO R 4506H 12011 ADC-12 60Hz
4509A20022 ADC-10 50Hz
M 14 BO LT HEX 7342602011 6B-2 6x20 PO INTING M FZN
M 15 NU T HEX 7393600011 6N-3-6 M FZN
M 16 BELT V 450M 700020 M -32
M 17 DRAIN PUM P 3619601610 AC 110V 60Hz CO N. D W M -7510TP
3619610030 AC 120V 620Hz CO N. D W M -7510AP
3619600720 AC 220~240V 50Hz CO N. D W M -7510NP,M P
3619603810 AC 110/220V 50Hz CO N . D W M -7510DP
M 18 RING E 7402003031 ER-3 SKZN PU M P M O DEL
M 19 FAN CO O LING 3611801300 ABS PU M P M O DEL
21
NO PART NAM E PART CODE SPECIFICATION REMARK
M 20 BR ACKET PUM P 3610604000 PP(O SU NG SA) PUM P M O DEL
M 21 UNIT CO NDEN SER 3618943020 50/25 200VAC CO N. DW M -7510T(P)
3618950600 41.6/20.8uF 200/230VAC CO N. DW M -7510A(P)
3618943420 12.5/5.2 400/440VAC CO N. DW M -7510L
3618948300 10.4/5.2 400/440VAC CO N. DW M -7510N(P), M (P)
M 22 CAPACITO R WASH 4505E11000 25 x2 200VAC CO N. DW M -7510D(P),DU AL
4509C11020 20.8 x2 200VAC CO N. DW M -7510S,DUA L
M 23 CAPACITO R SPIN 4509C11010 20.8 CO N . DW M -7510D(P),S,DUAL
M 24 HARNESS 3612706710 CO NNECTO R A, B DUAL VO LTAG E
CO NDEN SER
M 25 CO RD PO W ER AS - -
M 26 CO UPLING DRUM AS 4507K16001 7.5kg
M 27 NU T HEX 7393800011 6N-3-8 M FZN
M 28 BO LT HEX 7342802011 6B-2 8x20 PO INTING M FZN
M 29 NU T HEX 7393600011 6N-3-6 M FZN
M 30 BO LT HEX 7642602011 6B-2 6x20 PO INTING M FZN
M 31 BO LT HEX 7341500811 6B-1-5x8 M FZN
M 32 SPR ING BRAKE 4507K53010 SW C D1.0 ZNB-C
M 33 BR AKE FIX PLATE AS 4505C54000 2-WAY
M 34 ASSY BRAKE W IRE 3619201800 SUS W IRE + PP
M 35 BO LT HEX 7341501611 6B-1-5x16 HS M FZN
M 36 M O TO R SPIN 3618949600 AC 110V 60Hz W 1D35 EF001 DW M -7510T(P)
3618950700 AC 120V 60Hz W ID35JF001 DW M -7510A(P)
3618949200 AC 220V 60Hz W 1D35UF001 DW M -7510, L
3618949400 AC 220V~240V 50Hz W 1D35VF001 DW M -7510N(P), M (P)
3618950100 AC 110/220V 50Hz W 1D35FF002 DW M -7510D(P)
3618950000 AC 120/240V 60Hz W 1D35LF002 DW M -7510S
M 37 CU SHIO N M O TO R SPIN 3611532900 PP
M 38 BRACKE T M O TO R SPIN 3610604100 SPG T1.4
M 39 STO PPER 4506H14020 PEHD
22
NO PART NAM E PART CODE SPECIFICATION REMARK
M 40 SPR ING CUSHIO N 4507K14010 SW C D3.2
M 41 RU BBER DAM PING 4506H14030 NBR
M 42 STO PPER LO W ER 3615200800 PP
M 43 HA RNESS AS 3612756300 7.5kg DUAL, NO RM AL NO N PUM P
3612756400 7.5kg DUAL, PUM P
3612756500 7.5kg SING LE, N O RM AL NO N PUM P
3612756600 7.5kg SING LE, P UM P
M 44 HA RNESS EARTH 3612757800 UL1015 AW G 18 L=490 + 600 PUM P M O DEL
3612757810 UL1015 AW G 18, L=490 NO N PUM P
23
7. WIRING DIAGRAM
7-1. SINGLE VOLTAGE (NORMAL)
7-2. SINGLE VOLTAGE (PUMP)
24
7-3. DUAL VOLTAGE (NORMAL)
7-4. DUAL VOLTAGE (PUMP)
25
DAEWOO ELECTRONICS CO., LTD
686, AHYEON-DONG MAPO-GU
SEOUL, KOREA
C.P.O. BOX 8003 SEOUL, KOREA
TELEX : DWELEC K28177-8
CABLE : "DAEWOOELEC"
E-mail : [email protected]
FAX : 02) 360-8184
TEL: 02) 360-8178~8181
S/M NO. : DW75100001 PRINTED DATE : JUL. 1998
◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
