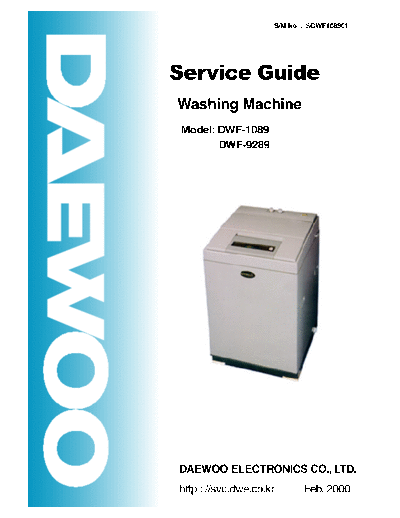

Image preview - the first page of the document
DWF-1089 & 9289


>> Download DWF-1089 & 9289 documenatation <<

Text preview - extract from the document
1. SPECIFICATIONS

 NO.           ITEM                     DWF-1089                  DWF-9289                 DWF-8089                DWF-7589

  1     POWER SOURCE                                     AVAILABLE IN ALL LOCAL AC VOLTAGE AND CYCLE

                                    50Hz        60Hz         50Hz          60Hz        50Hz          60Hz      50Hz        60Hz
  2     POWER CONSUMPTION
                                    430W        480W         430W          480W        400W          460W      400W        460W

        MACHINE NON-PUMP           55Kg (GROSS : 64Kg)      54Kg (GROSS : 63Kg)      50Kg (GROSS : 60Kg)     49Kg (GROSS : 59Kg)
  3
        WEIGHT        PUMP         56Kg (GROSS : 65Kg)      55Kg (GROSS : 64Kg)      51Kg (GROSS : 61Kg)     50Kg (GROSS : 60Kg)

  4     DIMENSION (WXHXD)                       628 X 1005 X 673mm                                 610 X 962 X 655mm

                                                                     FULL AUTOMATIC 8 COURSE
  5     WASHING COURSE
                                              (FUZZY, MEMORY, DRY, SILK, ECONOMICAL, STRONG, NIGHT, BLANKET)

  6     WATER CONSUMPTION             NORMAL 315L              NORMAL 304L               NORMAL 265L            NORMAL 259L

                                   HIGH(96L), MID(81L)      HIGH(93L), MID(78L)       HIGH(82L), MID(70L)     HIGH(80L), MID(68L)

  7     WATER LEVEL SELECTOR LOW(65L), SMALL(49L)          LOW(61L), SMALL(48L)      LOW(57L), SMALL(43L)    LOW(55L), SMALL(42L)

                                      E.SMALL(36L)             E.SMALL(33L)             E.SMALL(31.5L)          E.SMALL(30.5L)

  8     OPERATING WATER PRESSURE                           0.3kgf/cm2~8kgf/cm2 (2.94 N/cm2~78.4N/cm2)

                       60Hz                                         WASH : 145~160, SPIN : 750~800
       REVOLUTION
  9                    50Hz                                       WASH : 130~145, SPIN : 700~750
       PER MINUTE
                      SILK, DRY
                      COURSE                                         WASH : 70 (60Hz), 60 (50Hz)

 10     PULSATOR                                6 WINGS (
