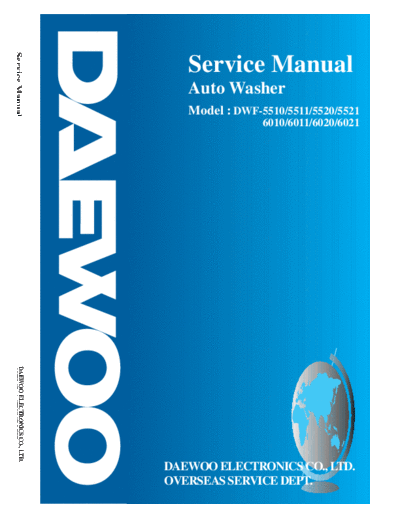

Image preview - the first page of the document
>> Download DWF-5510 & 5511 & 5520 & 5521 documenatation <<
Text preview - extract from the document
Service Manual
Auto Washer
Model : DWF-5510/5511/5520/5521
6010/6011/6020/6021
DAEWOO ELECTRONICS CO., LTD.
DAEWOO ELECTRONICS CO., LTD.
OVERSEAS SERVICE DEPT.
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASH-
ER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO
WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASH-
ER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO
WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASH-
ER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO
WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
Contents
1. SPECIFICATIONS 2
WASHING MACHINE
2. STRUCTURE OF THE WASHING MACHINE 3
3. FUNCTIONS OF THE CONTROL PANEL 4
4. WASHING PROCEDURE AND COURSE SELECTION
FULL AUTOMATIC COURSE 5
RESERVED WASHING 7
PARTIAL SELECTION AMONG WASH, RINSE OR SPIN 7
5. DIRECTIONS FOR INSTALLATION AND USE
INSTALLATION OF THE UNDER BASE COVER 8
HOW TO INSTALL ON AN INCLINED PLACE 8
HOW TO CONNECT THE INLET HOSE 9
HOW TO CLEAN THE FILTER 10
6. FEATURE AND TECHNICAL EXPLANATION
FEATURE OF THE WASHING MACHINE 11
WATER CURRENT TO ADJUST THE UNBALANCED LOAD 11
AUTOMATIC WATER SUPPLY SYSTEM FOR BLANKET WASH 11
PULSATOR SYSTEM 12
AUTOMATIC DRAINING TIME ADJUSTMENT 12
SOFTENER DISPENSER 13
AUTOMATIC UNBALANCE ADJUSTMENT 14
CIRCULATING-WATER COURSE AND LINT FILTER 14
LINT FILTER 15
RESIDUAL TIME DISPLAY 15
DRAIN MOTOR 15
GEAR MECHANISM ASS'Y 16
PRINCIPLE OF BUBBLE GENERATOR 16
FUNCTIONAL PRINCIPLE OF BUBBLE WASHING MACHINE 17
7. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
GEAR MECHANISM ASS'Y REPLACEMENT 18
DRAIN MOTOR AND VALVE 19
BRAKE ADJUSTMENT 19
8. TROUBLE SHOOTING GUIDE
CONCERNING WATER SUPPLY 20
CONCERNING WASHING 21
CONCERNING DRAINING 22
CONCERNING SPINNING 23
CONCERNING OPERATION 24
9. PRESENTATION OF THE P.C.B ASS'Y 25
APPENDIX
WIRING DIAGRAM 26
PARTS DIAGRAM & PARTS LIST 30
CIRCUIT DIAGRAM 39
1. SPECIFICATIONS
NO. ITEM DWF-5510 DWF-5511 DWF-5520 DWF-5521 DWF-6010 DWF-6011 DWF-6020 DWF-6021
1 POWER SOURCE AVAILABLE IN ALL LOCAL AC VOLTAGE
POWER 50Hz 250W
2
CONSUMPTION 60Hz 270W
MACHINE NET 32 32.5 32.5 33 32.5 33 33 33.5
3
WEIGHT GROSS 35 36 36 37 36 37 37 38
4 DIMENSION (WXHXD) 532X855X542 532X920X542 532X887X542 532X952X542 532X855X542 532X920X542 532X887X542 532X952X542
5 MATERIAL OF INTERNAL TUB PLASTIC STAINLESS STEEL
FULL AUTOMATIC 4 COURCE
6 WASHING COURSE
(FUZZY, LIGHT, HEAVY, WOOL/SUIT)
7 WATER LEVEL SELECTOR HIGH(55l), MID(45l), LOW(31l)
8 OPERATING WATER PRESSURE 0.3kgf/cm2~8kgf/cm2 (2.94 N/cm2~78.4N/cm2)
9 MAXIMUM MASS OF TEXTILE 5.5Kg 6.0Kg
WASH 125~145(50Hz), 130~150(60Hz)
REVOLUTION
10 SPIN 710~725(50Hz), 760~785(60Hz)
PER MINUTE
SUIT 50(50Hz), 60(60Hz)
11 DIRECTION INLET VALVE BACKWARD UPWARD BACKWARD UPWARD
12 WATER CONSUMPTION APPROX. 135l/CYCLE APPROX. 130l/CYCLE
13 PULSATOR PROVIDED WITH 6 SPOUTING HOLES FOR POWERFUL UPWARD WATER STREAM
14 WATER LEVEL CONTROL ELECTRONICAL SENSOR
15 ANTI NOISE PLATE OPTION
16 GEAR MECHANISM ASS'Y SPUR GEAR
17 LINT FILTER O
18 SOFTENER INLET O
19 ALARM SIGNAL O
20 AUTO. WATER SUPPLY O
21 FUNCTION FOR BUBBLE OPTION
22 AUTO RE-FEED WATER O
23 AUTO POWER OFF O
2 SPECIFICATIONS
3. FUNCTIONS OF THE CONTROL PANEL
Control panel has micom sensor.
As the buttons are pressed, the lamps indicating the selection of your desired washing program will light up.
