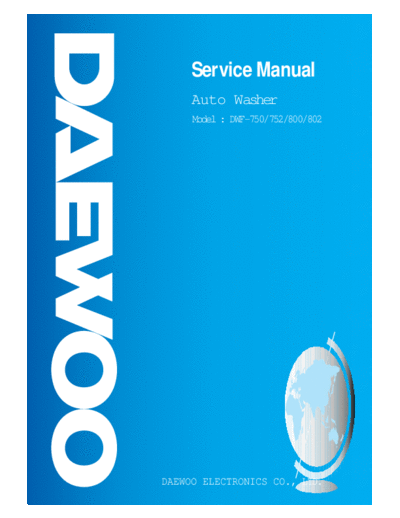

Image preview - the first page of the document
>> Download DWF-750 & 752 & 800 & 802 documenatation <<
Text preview - extract from the document
Service Manual
Auto Washer
Model : DWF-750/752/800/802
DAEWOO ELECTRONICS CO., LTD.
ASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASH
TO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AU
ASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASH
TO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AU
ASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASH
TO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AU
ASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASH
Contents
1. SPECIFICATIONS................................................................................................................... 2
WASHING MACHINE
2. STRUCTURE OF THE WASHING MACHINE ....................................................................... 3
3. FUNCTIONS OF THE CONTROL PANEL ............................................................................. 4
4. WASHING PROCEDURE AND PROGRAM SELECTION
FULL AUTOMATIC PROGRAM...................................................................................................... 5
RESERVED WASHING .................................................................................................................. 7
PARTIAL PROCESS & COMBINATION ......................................................................................... 7
5. DIRECTIONS FOR INSTALLATION AND USE
LOCATION OF WASHER ............................................................................................................... 8
DRAIN SYSTEM.............................................................................................................................. 8
HOW TO CONNECT THE INLET HOSE........................................................................................ 9
HOW TO CLEAN THE FILTER ..................................................................................................... 10
6. FEATURE AND TECHNICAL EXPLANATION
FEATURE OF THE WASHING MACHINE ................................................................................... 11
WATER CURRENT TO ADJUST THE UNBALANCED LOAD .................................................... 11
AUTOMATIC WATER SUPPLY SYSTEM .................................................................................... 11
AUTOMATIC DRAINING TIME ADJUSTMENT ........................................................................... 12
SOFTENER DISPENSER............................................................................................................. 13
AUTOMATIC UNBALANCE ADJUSTMENT ................................................................................ 14
CIRCULATING-WATER ................................................................................................................ 14
LINT FILTER.................................................................................................................................. 15
RESIDUAL TIME DISPLAY........................................................................................................... 15
DRAIN MOTOR ............................................................................................................................. 15
GEAR MECHANISM ASS'Y ......................................................................................................... 16
PRINCIPLE OF BUBBLE GENERATOR ...................................................................................... 16
FUNCTIONAL PRINCIPLE OF BUBBLE WASHING MACHINE ................................................. 17
7. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
GEAR MECHANISM ASS'Y REPLACEMENT............................................................................. 18
DRAIN MOTOR AND VALVE........................................................................................................ 19
BRAKE ADJUSTMENT................................................................................................................. 19
8. TROUBLE SHOOTING GUIDE
CONCERNING WATER SUPPLY..................................................................................................20
CONCERNING WASHING ........................................................................................................... 21
CONCERNING DRAINING........................................................................................................... 22
CONCERNING SPINNING ........................................................................................................... 23
CONCERNING OPERATION ....................................................................................................... 24
9. PRESENTATION OF THE P.C.B ASS'Y .............................................................................. 25
APPENDIX
WIRING DIAGRAM ....................................................................................................................... 26
PARTS DIAGRAM & PARTS LIST................................................................................................ 30
CIRCUIT DIAGRAM ...................................................................................................................... 39
1. SPECIFICATIONS
NO. ITEM DWF-750 DWF-752 DWF-800 DWF-802
1 POWER SOURCE AVAILABLE IN ALL LOCAL AC VOLTAGE
POWER 50Hz 250W
2
CONSUMPTION 60Hz 300W
MACHINE NET 27 27.5
3
WEIGHT GROSS 30.5 31
4 DIMENSION (WXHXD) 525X858X535 525X948X535 525X858X535 525X948X535
5 MATERIAL OF INTERNAL TUB PLASTIC STAINLESS STEEL
FULL AUTOMATIC 6 PROGRAMS
6 WASHING PROGRAM
(FUZZY, FUZZY+SOAK, HEAVY, HEAVY+SOAK, SPEEDY, WOOL/SUIT)
7 WATER LEVEL SELECTOR HIGH(55l), MID(45l), LOW(31l)
8 OPERATING WATER PRESSURE 0.3kgf/cm2~8kgf/cm2 (2.94 N/cm2~78.4N/cm2)
9 MAXIMUM MASS OF TEXTILE 5.5kg 6.0kg
WASH 125~145(50Hz), 130~150(60Hz)
REVOLUTION
10 SPIN 710~725(50Hz), 760~785(60Hz)
PER MINUTE
SUIT 50(50Hz), 60(60Hz)
11 WATER CONSUMPTION APPROX. 130l/CYCLE
12 WATER LEVEL CONTROL ELECTRONICAL SENSOR
13 ANTI NOISE PLATE OPTION
14 GEAR MECHANISM ASS'Y SPUR GEAR
15 LINT FILTER O
16 SOFTENER INLET O
17 ALARM SIGNAL O
18 AUTO. WATER SUPPLY O
19 FUNCTION FOR BUBBLE OPTION
20 AUTO RE-FEED WATER O
21 AUTO POWER OFF O
2 SPECIFICATIONS
3 STRUCTURE
PUMP MODEL NON PUMP MODEL
CONNECTOR INLET(OPTION) INLET HOSE(OPTION) DRAIN HOSE
water tap adapters will not be provided.
In case of screw shaped inlet hoses
P
U
HOSE CONNECTOR(OPTION) UNDER COVER(OPTION) HOSE ADAPTER DRYTEN(OPTION)
