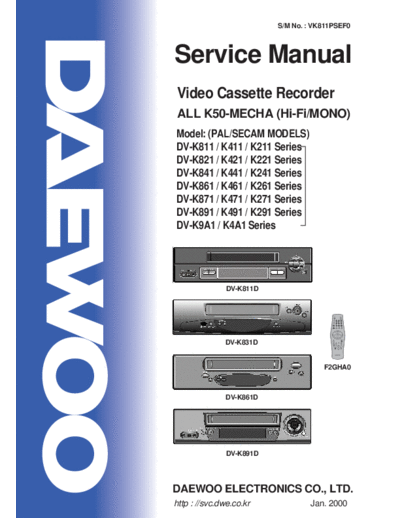

                          S/M No. : VK811PSEF0



Service Manual
Video Cassette Recorder
ALL K50-MECHA (Hi-Fi/MONO)
Model: (PAL/SECAM MODELS)
DV-K811 / K411 / K211 Series
DV-K821 / K421 / K221 Series
DV-K841 / K441 / K241 Series
DV-K861 / K461 / K261 Series
DV-K871 / K471 / K271 Series
DV-K891 / K491 / K291 Series
DV-K9A1 / K4A1 Series




               DV-K811D



                                           A




              DV-K831D


                                      F2GHA0



              DV-K861D




               DV-K891D




DAEWOO ELECTRONICS CO., LTD.
http : //svc.dwe.co.kr             Jan. 2000
TABLE OF CONTENTS

SAFETY&PRECAUTIONS ................................................................................................ 2
EXTERNAL VIEWS ......................................................................................................... 4
 FRONT VIEWS FUNCTION .................................................................................................................... 4
 REAR VIEWS FUNCTION ...................................................................................................................... 6

ELECTRICAL ADJUSTMENT............................................................................................ 7
SPECIFICATIONS ......................................................................................................... 8
VOLTAGE CHART ........................................................................................................ 9
CIRCUIT DIAGRAM ...................................................................................................... 13
 POWER CIRCUIT DIAGRAM.................................................................................................................           13
 SYSCON CIRCUIT DIAGRAM ...............................................................................................................           14
 A/V CIRCUIT DIAGRAM (PAL)...............................................................................................................         15
 A/V CIRCUIT DIAGRAM (SECAM) .........................................................................................................            16
 PIF CIRCUIT DIAGRAM........................................................................................................................      17
 HI-FI & SW CIRCUIT DIAGRAM.............................................................................................................          18
 SW CIRCUIT DIAGRAM .......................................................................................................................       19
 SHUTTLE / PATH JIG DIAGRAM .............................................................................................................         20

WAVEFORMS ON VIDEO CIRCUIT ................................................................................ 21
COMPONENTS LOCATION GUIDE ON PCB BOTTOM VIEW ............................................ 24
 PCB MAIN.......................................................................................................................................... 24

DISASSEMBLY ............................................................................................................. 25
 PACKING ASS' ................................................................................................................................. 25
             Y
 FRONT PANEL ASSEMBLY ................................................................................................................... 26
 INSTRUMENT DISASSEMBLY ................................................................................................................. 30

ELECTRICAL PARTS LIST ............................................................................................... 36
 PCB MAIN AS .................................................................................................................................... 36
 TABLE OF DIFFERENT PART LIST FOR PCB MAIN AS .............................................................................. 48

APPENDIX
TROUBLE SHOOTING FLOW CHART .............................................................................. 1
 POWER CIRCUIT ................................................................................................................................. 1
 PIF CIRCUIT........................................................................................................................................ 3
 SERVO-SYSCON CIRCUIT .................................................................................................................... 4
 AUDIO CIRCUIT (NORMAL) ................................................................................................................. 12
 VIDEO CIRCUIT .................................................................................................................................. 15
