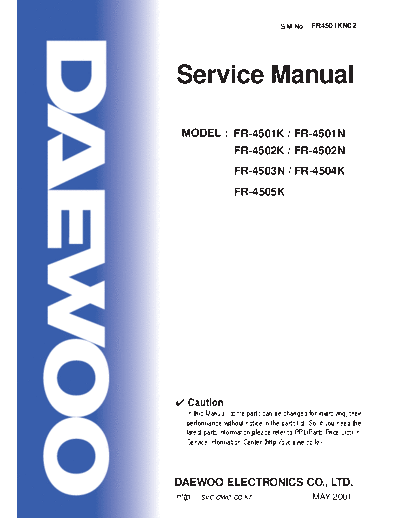

Image preview - the first page of the document
>> Download FR-4501K & 4502K & 4503N & 4505K documenatation <<
Text preview - extract from the document
S/M No. : FR4501KN02
Service Manual
MODEL : FR-4501K / FR-4501N
FR-4502K / FR-4502N
FR-4503N / FR-4504K
FR-4505K
Caution
: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center (http://svc.dwe.co.kr).
DAEWOO ELECTRONICS CO., LTD.
http : //svc.dwe.co.kr MAY. 2001
PRECAUTIONS TO BE OBSERVED BEFORE AND
DURING SERVICING TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
SAFETY AND PRECAUTIONS
1) For starters, be sure to check any chances of the leakage of electricity."
2) You could handle a part in the vicinity of electricity after unplugging.
3) You should put on rubber gloves to prevent an electric shock on operation test.
4) Make sure the rated current,voltage,capacity before using an instrument."
5) Keep your wet hands away from the metal goods in the freezer compartment
not to be frostbitten.
6) Be careful not to let water permeate the electric part in the machine room.
7) With door open during your working,you might be damaged by door."
8) You should give a title to the refrigerator for your safe after removing the breakable
goods inside the refrigerator.
9) You'd better use cotton gloves if you fix it up around the evaporator
TABLE OF CONTENTS
EXTERNAL VIEWS ................................................................................................................ 2
1. EXTERNAL SIZE & NAME OF PARTS ...................................................................................... 2
SPECIFICATIONS .................................................................................................................. 9
1. OUTLINE ..................................................................................................................................9
2. ELECTRIC PARTS ....................................................................................................................10
3. POWER CORD...........................................................................................................................15
OPERATION AND FUNCTIONS .............................................................................................. 16
DIAGRAM ................................................................................................................................. 22
1. WIRING DIAGRAM.....................................................................................................................22
2. CIRCUIT WIRING DIAGRAM .....................................................................................................23
3. AIR FLOW DIAGRAM.................................................................................................................24
4. REFRIGERATOR CYCLE DIAGRAM ........................................................................................25
DISASSEMBLY AND ASSEMBLY........................................................................................... 26
EXPLODED VIEW AND PARTS LIST...................................................................................... 32
1. TOTAL EXPLODED VIEW .........................................................................................................32
2. TOTAL PARTS LIST...................................................................................................................39
3. MACHINE ROOM EXPLODED VIEW AND PARTS LIST ..........................................................66
1
EXTERNAL VIEW
1. FR-4501K
1) EXTERNAL SIZE
2) NAME OF PARTS
?
2
EXTERNAM VICE
2. FR-4501N
1) EXTERNL SIZE
2) NAME OF PARTS
?
3
EXTERNAM VICE
3. FR-4502K
1) EXTERNAL SIZE
2) NAME OF PARTS
?
4
EXTERNAM VICE
4. FR-4502N
1) EXTERNAL SIZE
2) NAME OF PARTS
?
5
EXTERNAM VICE
5. FR-4503N
1) EXTERNAL SIZE
2) NAME OF PARTS
?
6
EXTERNAM VICE
6. FR-4504K
1) EXTERNAL SIZE
2) NAME OF PARTS
?
7
EXTERNAM VICE
7. FR-4505K
1) EXTERNAL SIZE
2) NAME OF PARTS
?
8
SPECIFICATIONS
1. OUTLINE
DIVISION CONTENTS
FR-4501K,FR-4502K
MODEL NAME FR-450N,FR-4502N FR-4503N
FR-4504K,FR-4505K
FREEZER 101ߧ 101ߧ 101ߧ
USABLE CAPACITY REFRIGERATOR 273ߧ 273ߧ 273ߧ
TOTAL 374ߧ 374ߧ 374ߧ
WIDHT 708mm 710.5mm 710.5mm
EXTERNAL DIMENSION DEPTH 671mm 671mm 712mm
HEIGHT 1715mm 1759mm 1759mm
REFRIGERANT R134a 90g 90g 90g
COOLING SYSTEM Fan Cooling System Fan Cooling System Fan Cooling System
COOLING & CONTROL SYSTEM DEFROST SYSTEM Fin Evaporator Forced Fin Evaporator Forced Fin Evaporator Forced
DEFROST CONTROL Automatic Start & Stop Automatic Start & Stop Automatic Start & Stop
NET WEIGHT (kg)
9
SPECIFICATIONS
3. POWER CORD
NO SHAPE OF POWER CORD PART CODE DESCRIPTION REMARK
1 3011315000 CP-2PIN For european country
2 3010097000 CP-2PIN For other country
3 4006D17101 KP-30 For America & El Salvador
4 3010096800 KP-211 For Japan & Taiwan
5 3011300801 BP-3PIN
6 3011303010 # 267 For Chile
7 3011315310 For Israel
"For U.K, Middle Asia Singapore &
8 3011303050 BS-1363A
Malaysia"
9 3011301200 KP-551/550 For China & Australia
15
OPERATION AND FUNCTIONS
CONTROL CONTROL
NO CONTENTS REMARK
FUNCTION OBJECTS
1 Display LED
1.TEMP BUTTON
1) Temperature of Refrigerator can be controlled as changin
control mode according to customer's desire.
2) Initial mode is "Mid" and whenever pressing TEMP buton,
control mode proceeds as follows.
Low -> Mid -> High -> Quick -> Low
3) If TEMP.button is pressed, control mode is set in 3 Sec.
2.QUICK MODE
1) If QUICK mode is set by TEMP.button, QUICK LED is on.
2) Maximum time of QUICK mode is 40 min.
3) If Refrigerator sensor (R-S) is below -3.0◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
