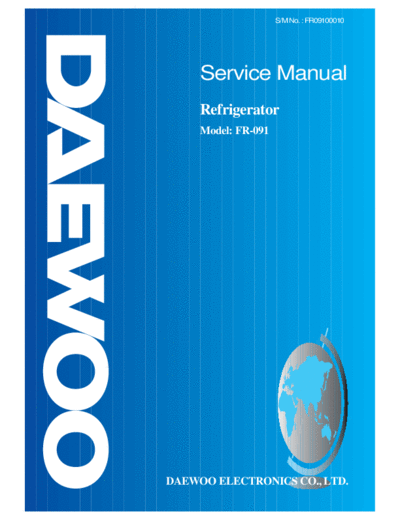

Image preview - the first page of the document
>> Download FR-091 documenatation <<
Text preview - extract from the document
S/M No. : FR09100010
Service Manual
Refrigerator
Model: FR-091
DAEWOO ELECTRONICS CO., LTD.
CONTENTS
1. Specification -----------------------------------------------------------------------------------------------1
2. External view ---------------------------------------------------------------------------------------------2
3. Wire diagram ---------------------------------------------------------------------------------------------3
4. Name of parts---------------------------------------------------------------------------------------------4
5. Refrigerant cycle diagram ----------------------------------------------------------------------------5
6. Machine room view and part list-------------------------------------------------------------------6
7. Main components ---------------------------------------------------------------------------------------7
8. Door color specification -------------------------------------------------------------------------------9
9. Exploded view and parts list ---
----------------------------------------------------------------------12
1. SPECIFICATION
MODEL NAME FR-091
R12 95g
Refirgerant
R134a 90g
Cooling System Aluminumembossed Plat "Roll Bond" Type
Refrigeration System Natural Cold-air Convection
Defrost System Natural
Defrost Operation Manual Start & Stop
Cold Control Adjustable Dial
Freezer -
Capacity Refrigerator -
Total 75
Height 726mm
External
Width 440mm
Dimension
Depth 452mm
Net Weight 21Kg
2. EXTERNAL VIEW
861
370 30
118.5 233
251
690
726
190
159
23
440
440 400
21
452
2
3. WIRE DIAGRAM
BROWN
THERMOSTAT
P-RELAY
YELLOW
COMPRESSOR
L/BLUE
PLUG
3
4. NAME OF PARTS
1 Evaporator
2 Drain Pan
3 Control Box
4 Plastic Coated Shelf
5 Magnetic Door Seals
6 Ice Tray
7 Bottle Rack
8 Usable Rack
9 Egg Shelf
1 6 2 4 3 7 8 9
5
4
5. REFRIGERANT CYCLE DIAGRAM
EVAPORATOR
CAPI-TUBE
IPE DRYER
EP
SID
SUCTION PIPE
COMPRESSOR
C S D C E A S
O I R A V C U
M D Y P A C C
P E E I P U
R
E P R O M P
S I T R I
S P U A P
O E B T E
R E O
R
5
6. MACHINE ROOM VIEW AND PART LIST
5 4 6
1
2
7
8
3
16
17
10
12 11 15 14 13 9
NO PART NAME NO PART NAME NO PART NAME
1 CABINET 7 SUCTION PIPE 13 WASHER *T
2 REINFORCE *L 8 PIPE CON 14 ABSORBER
3 REINFORCE *R 9 BASE COMP 15 WASHER *U
4 COMPRESSOR 10 BOLT HEX 16 MACHINE SCREW
5 DRYER 11 P RELAY AS 17 TAPPING SCREW
6 CAPI TUBE 12 POWER CORD
6
7. MAIN COMPONENTS
1. COMPRESSOR
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Comp. model FL7Y-1 FL5Y-1U SL7Y-5
Part code 3951105400 39511054U0 3954105470
Strating type RSIR RSIR
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Comp. model HFL7Y HFL5Y-1H X HSL7Y-5 X HSL7Y-5
Part code 3951107F00 3951105F10 X 3954107F50 X 3954107F50
Strating type RSIR X RSIR X RSIR
2. RELAY ASSEMBLY
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Relay model 213THB, S068 197SHB, S068 129SHB, S220 104NHB, S220 129SHB, S220
Part code 3018101910 3018102010 3018102110 3018101410 3018100110 3018106810 3018101710
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Relay model 265THB, S068 174SHB, S068 174SHB, S068 X 129SHB, S220 X 129SHB, S220
Part code 3018101920 3018108020 3018102120 X 3018101940 X 3018101940
3. CONTROL SWITCH
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. PFN-110U-02A PFN-110U-02A
Part code 4004V70142 4004V70142
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. PFN-110U-02A PFN-110U-02D PFN-110U-02D PFN-110U-02A PFN-110U-02A
Part code 4004V70142 3018301000 4004V70142 4004V70142 4004V70142
4. DRYER
Refrigerant R12 R134a
Spec. 5g 10 g
Part code 4019L04000 3016801300
7
POWER CORD SPECIFICATION
NO SHAPE OF POWER CODE PART CODE DESCRIPTION REMARK
1 3011315000 CP-2PIN FOR EUROPEAN COUNTRY
2 401RA17200 CP-2PIN FOR OTHER COUNTRY
3 4006D17101 KP-30 FOR AMERICA
4 401PD17101 KP-211 FOR JAPAN & TAIWAN
5 3011300801 BP-3PIN
6 3011303010 #267 FOR CHILE
7 3011315310 FOR ISRAEL
FOR U.K, MIDDLE ASIA
8 3011303050 BS-1363A
SINGAPORE & MALAYSIA
9 3011301200 KP-551/550 FOR CHINA & AUSTRALIA
* Upper power cord's part code is only for lead wire, without any kinds of terminal or housing.
8
8. DOOR COLOR SPECIFICATION
1. ASSEMBLY URETHAN DOOR
1) Key type
Refrigerant R12 R134a
Dull lamina High glossy High glossy Dull lamina High glossy High glossy
Color type Normal PCM Normal PCM
sheet lamina sheet bright PCM sheet lamina sheet bright PCM
Part code X X PFUD2UB150 X X X PFUD2UB155 X
2) Non key type
Refrigerant R12 R134a
Dull lamina High glossy High glossy Dull lamina High glossy High glossy
Color type Normal PCM Normal PCM
sheet lamina sheet bright PCM sheet lamina sheet bright PCM
Part code X PFUD2UB130 PFUD2UB170 X X PFUD2UB135 PFUD2UB175 X
9
COLOR TABLE
1. PCM type
NO COLOR CHIP COLOR NAME
1 P/WITH (WH069)
2 '94 L/GRAY (GY158)
3 '95 L/GRAY (GY259)
4 '94 M/GRAY (GY331)
5 '95 M/GRAY (GY335)
6 '97 M/GRAY (GY267)
7 M. D/GRAY (GY750)
8 N/BLUE (BL718)
9 MINT GREEN (GN206)
10 '97 BEIGE (BE215)
10
2. Lamina sheet type
NO COLOR CHIP COLOR NAME
1 P/WITH (WH069)
2 '94 L/GRAY (GY158)
3 '95 L/GRAY (GY259)
4 '94 M/GRAY (GY331)
5 '95 M/GRAY (GY335)
6 '97 M/GRAY (GY267)
7 M. D/GRAY (GY750)
8 N/BLUE (BL718)
9 MINT GREEN (GN206)
10 S/GOLD
11 G/GREEN
11
9. EXPLODED VIEW AND PARTS LIST
1. Exploded view
12
2. Parts list
NO PART CODE PART NAME DESCRIPTION QUANTITY REMARK
1 ASSY URT CAB 1
2 ASSY URT DOOR 1 REFER TO # 9
3 3012302622 GASKET AS ROUND DOOR 1
4 3017405600 LINER DR ABS 1.4 X715 X953 1
5 4016V45010 POCKET A PVC 2
6 4016V45020 POCKET B PVC 1
7 4016V53212 DOOR F HIPS 1
8 3011110100 DRAIN PAN PE 1
9 4016V55112 SHELF *T SWRM-B PE-COATING 1
10 4016V55212 SHELF *U SWRM-B PE-COATING 1
11 4002A30420 CASE ICING PE-HD 1
12 4016V0310C EVAPORATOR AS 1
13 3011420050 COVER *T HI PP 1
14 3012903670 HINGE *T AS SPHC T2.3 1
15 3012903900 HINGE *U AS 1
16 4017L32521 ADJ FOOT *L PP (JI-360) 2
17 4004V70142 CS(THERMOSTAT) PFN 110U-02A 1
18 3013400300 KNOB AS ABS 1
19 3010502900 BOX CONTROL HIPS 1
20 COMPRESSOR 1 REFER TO # 7
21 SWITCH P RELAY ASS◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
