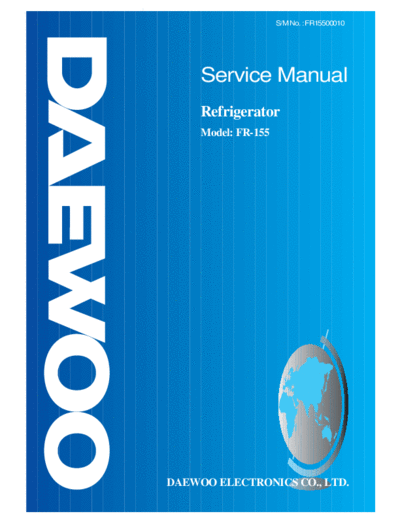

                     S/M No. : FR15500010




     Service Manual
     Refrigerator
     Model: FR-155




DAEWOO ELECTRONICS CO., LTD.
CONTENTS


  1. Specification -----------------------------------------------------------------------------------------------1

  2. External view ----------------------------------------------------------------------------------------------2

  3. Wire diagram ---------------------------------------------------------------------------------------------3

  4. Name of parts---------------------------------------------------------------------------------------------4

  5. Refrigerant cycle diagram ----------------------------------------------------------------------------5

  6. Machine room view and part list-------------------------------------------------------------------6

  7. Main components ---------------------------------------------------------------------------------------7

  8. Door color specification --------------------------------------------------------------------------------9

  9. Exploded view and parts list ------------------------------------------------------------------------12
1. SPECIFICATION

         MODEL NAME                          FR-155

                    R12                        110g
  Refirgerant
                    R134a                      105g

Cooling System                             Direct Cooling

Refrigeration System               Natural Cold-air Convection

Defrost System                                Natural

                                   Freezer : Manual Start & Stop
Defrost Operation
                                   Refrigerator : Auto Start & Stop

Cold Control                              Adjustable Dial

                    Freezer                    41

   Capacity         Refrigerator               81

                    Total                     122

                    Height                   1060mm
  External          Width                     520mm
  Dimension
                    Depth                     550mm

Net Weight                                     36Kg




                                   1
2. EXTERNAL VIEW




        520
  458
522




                          1033
                          1058
              993.5




                      2
3. WIRE DIAGRAM


                                              P RELAY




           GREEN
       2




               THERMOSTAT                                      COMPRESSOR
       3




                                                        LAMP
                            LAMP SWITCH
       1




                   RED                    BLUE                 BLACK        BLACK




           WHITE                                  PLUG




                                          3
4. NAME OF PARTS



      1
                             1   Table
                       11    2   Ice Box
   2                         3   Freezing Shelf
                       12    4   Ice Tray
   3
                             5   Control Box
  10
                             6   Refrigerator Shelf
                             7   Vegetable Cover
  4                          8   Vegetable Box
  5                    13    9   Height Adjustable Legs
  6                         10   Evaporator
                            11   Gasket
                       14
 16                         12   Freezing Pocket
  7                              (Freezer Pocket)
                            13   Egg Pocket
                            14   Mini Pocket
  8                         15   Bottle Pocket
                            16   Drain Hole
                       15   17   Gasket

                       17
  9




                   4
5. REFRIGERANT CYCLE DIAGRAM




                                                                                                 F EVAPORATOR
                           HOT PIPE

                                                                                            5%
                                                                                                                5%
     CONDENSOR PIPE




                                                                                                                ACCUM
                                                                                            5%
                                                                 CAPI TUBE
                                                                                                     5%         5%




                      35%                       DRYER

                                          35%               5%                                     R EVAPORATOR




                                                                                 SUC PIPE
                                                35%
                                          COMP 5%




       C              H               C     D           C                    F               R       A          S
       O              O               O     R           A                                            C          U
       M              T               N     Y           P                    E               E       C          C
       P                              D     E           I                    V               V       U
       R               P              E
       E               I              N     R                                A               A       M          P
       S               P              S                 T                    P               P                  I
       S               E              O                 U                    O               O                  P
       O                              R                 B                    R               R                  E
       R                                                E                    A               A
                                      P                                      T               T
                                      I                                      O               O
                                      P
                                      E                                      R               R




                                                        5
6. MACHINE ROOM VIEW AND PART LIST




                 14 15        16 17       9        10                         18        19      20




      5




                         12   13
                                                                                                                    1

                                                                                        11

                     4                3




            8                             6               2               7




 NO       PART NAME                           NO        PART NAME                  NO        PART NAME
 1        DRYER AS                            8         FOOT ADJ                   15        SIDE-PIPE (R) OUTLET
 2        COMPRESSOR                          9         FIXTURE VAPORI             16        SIDE-PIPE (R) INLET
 3        SWITCH P-RELAY AS                   10        CASE VAPORI                17        SIDE-PIPE (L) OUTLET
 4        POWER CORD                          11        VIBRATION MASS             18        SUC-PIPE
 5        CEC COVER                           12        CONNECT PIPE B             19        HOT-PIPE
 6        ABSORBER                            13        CONNECT PIPE A             20        SIDE-PIPE(L) OUTLET
 7        COMPRESSOR BASE                     14        HOT-PIPE OUTLET




                                                               6
7. MAIN COMPONENTS
1. COMPRESSOR
 Refrigerant                                                         R12
 Voltage         100V/50,60Hz 110V/60Hz    115, 120V/60Hz   127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz            240V/50Hz
 Comp. model          X           X               X             X         SL17J-5    PL17J-4    SL17J-5            X
 Part code            X           X               X             X       3954117380 3956115340 3954117380           X
 Strating type        X           X               X             X          RSIR       RSCR        RSIR             X

 Refrigerant                                                        R134a
 Voltage         100V/50,60Hz 110V/60Hz 115, 120V/60Hz      127V/60Hz 220V/50Hz       220V/60Hz    230V/50Hz   240V/50Hz
 Comp. model        HEL17J    HEL13J-3H        X                X         X               X            X           X
 Part code        3953119E00 3953113E3H        X                X         X               X            X           X
 Strating type       RSCR       RSCR           X                X         X               X            X           X


2. RELAY ASSEMBLY

 Refrigerant                                                         R12
 Voltage         100V/50,60Hz 110V/60Hz    115, 120V/60Hz   127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
 Relay model          X           X               X             X      174SHBYY-52 104NHBYY-52 174SHBYY-52 X
 Part code            X           X               X             X       3018108400 3018112200 3018104810   X

 Refrigerant                                                        R134a
 Voltage         100V/50,60Hz 110V/60Hz 115, 120V/60Hz      127V/60Hz 220V/50Hz       220V/60Hz    230V/50Hz   240V/50Hz
 Relay model     419RHBYY-52 213THBYY-52       X                X         X               X            X           X
 Part code        3018114800 3018115100        X                X         X               X            X           X


3. RUNNING CAPACITOR
 Refrigerant                                                         R12
 Voltage         100V/50,60Hz 110V/60Hz    115, 120V/60Hz   127V/60Hz 220V/50Hz       220V/60Hz    230V/50Hz   240V/50Hz
 Spec.                X           X               X             X         X            350V/5
