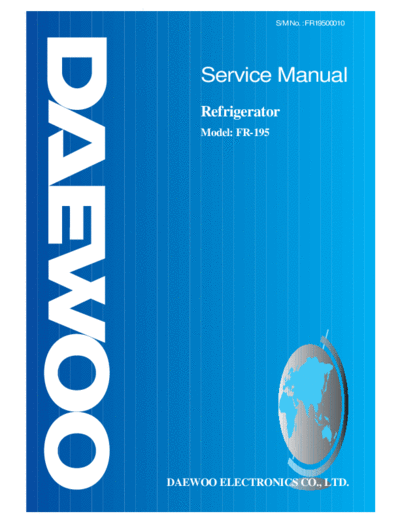

FR-195


>> Download FR-195 documenatation <<

Text preview - extract from the document
                     S/M No. : FR19500010




     Service Manual
     Refrigerator
     Model: FR-195




DAEWOO ELECTRONICS CO., LTD.
CONTENTS


  1. Specification -----------------------------------------------------------------------------------------------1

  2. External view ---------------------------------------------------------------------------------------------2

  3. Wire diagram ---------------------------------------------------------------------------------------------3

  4. Name of parts---------------------------------------------------------------------------------------------4

  5. Refrigerant cycle diagram ----------------------------------------------------------------------------5

  6. Machine room view and part list-------------------------------------------------------------------6

  7. Main components ---------------------------------------------------------------------------------------7

  8. Door color specification -------------------------------------------------------------------------------9

  9. Exploded view and parts list ------------------------------------------------------------------------12
1. SPECIFICATION

         MODEL NAME                           FR-195

                    R12                        120g
  Refirgerant
                    R134a                      115g

Cooling System                            Direct Cooling

Refrigeration System                Natural Cold-air Convection

Defrost System                                Natural

                                   Freezer : Manual Start & Stop
Defrost Operation
                                   Refrigerator : Auto Start & Stop

Cold Control                              Adjustable Dial

                    Freezer                    46
   Capacity         Refrigerator              116

                    Total                     162

                    Height                   1280mm
   External
                    Width                     520mm
  Dimension
                    Depth                     550mm

Net Weight                                     40Kg
2. EXTERNAL VIEW



          520
    458
 522




                            1255
                            1280
                993.5




                        2
3. WIRE DIAGRAM


                                              P RELAY




           GREEN
       2




               THERMOSTAT                                      COMPRESSOR
       3




                                                        LAMP
                            LAMP SWITCH
       1




                   RED                    BLUE                 BLACK        BLACK




           WHITE                                  PLUG




                                          3
4. NAME OF PARTS


  1

                            1    Table
  2                         2    Ice Box
                       11
  3                         3    Freezer Shelf
                            4    Ice Tray
  10                   12
                            5    Control Box
   4                        6    Refrigerator Shelf
                            7    Vegetable Cover
  5                         8    Vegetable Case
                       13
                            9    Height Adjustable Legs
   6                        10   Evaporator
                            11   Gasket
                            12   Freezer Pocket
  15                        13   Egg Pocket
                            14   Bottle Pocket
  7                    14   15   Drain Hole
                            16   Gasket
   8



                       16

  9




                   4
5. REFRIGERANT CYCLE DIAGRAM




                                                                                                 F EVAPORATOR
                           HOT PIPE

                                                                                            5%
                                                                                                                5%
     CONDENSOR PIPE




                                                                                                                ACCUM
                                                                                            5%
                                                                 CAPI TUBE
                                                                                                     5%         5%




                      35%                       DRYER

                                          35%               5%                                     R EVAPORATOR




                                                                                 SUC PIPE
                                                35%
                                          COMP 5%




       C              H               C     D           C                    F               R       A          S
       O              O               O     R           A                                            C          U
       M              T               N     Y           P                    E               E       C          C
       P                              D     E           I                    V               V       U
       R               P              E
       E               I              N     R                                A               A       M          P
       S               P              S                 T                    P               P                  I
       S               E              O                 U                    O               O                  P
       O                              R                 B                    R               R                  E
       R                                                E                    A               A
                                      P                                      T               T
                                      I                                      O               O
                                      P
                                      E                                      R               R




                                                        5
6. MACHINE ROOM VIEW AND PART LIST




                 14 15        16 17       9        10                         18        19      20




      5




                         12   13
                                                                                                                    1

                                                                                        11

                     4                3




            8                             6               2               7




 NO       PART NAME                           NO        PART NAME                  NO        PART NAME
 1        DRYER AS                            8         FOOT ADJ                   15        SIDE-PIPE (R) OUTLET
 2        COMPRESSOR                          9         FIXTURE VAPORI             16        SIDE-PIPE (R) INLET
 3        SWITCH P-RELAY AS                   10        CASE VAPORI                17        SIDE-PIPE (L) OUTLET
 4        POWER CORD                          11        VIBRATION MASS             18        SUC-PIPE
 5        CEC COVER                           12        CONNECT PIPE B             19        HOT-PIPE
 6        ABSORBER                            13        CONNECT PIPE A             20        SIDE-PIPE(L) OUTLET
 7        COMPRESSOR BASE                     14        HOT-PIPE OUTLET




                                                               6
7. MAIN COMPONENTS
1. COMPRESSOR
 Refrigerant                                                         R12
 Voltage         100V/50,60Hz 110V/60Hz    115, 120V/60Hz   127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz            240V/50Hz
 Comp. model          X           X               X             X         SL19J-5    PL17J-4    SL19J-5            X
 Part code            X           X               X             X       3954119380 3956117340 3954119380           X
 Strating type        X           X               X             X          RSIR       RSCR       RSIR              X

 Refrigerant                                                        R134a
 Voltage         100V/50,60Hz 110V/60Hz 115, 120V/60Hz      127V/60Hz 220V/50Hz       220V/60Hz    230V/50Hz   240V/50Hz
 Comp. model        HEL19J     HEL15J-3        X                X         X               X            X           X
 Part code        3955119E00 3953115E30        X                X         X               X            X           X
 Strating type       RSCR       RSCR           X                X         X               X            X           X


2. RELAY ASSEMBLY

 Refrigerant                                                         R12
 Voltage         100V/50,60Hz 110V/60Hz    115, 120V/60Hz   127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
 Relay model          X           X               X             X      174SHBYY-52 129NHBYY-52 174SHBYY-52 X
 Part code            X           X               X             X       3018108400 3018112100 3018104810   X

 Refrigerant                                                        R134a
 Voltage         100V/50,60Hz 110V/60Hz 115, 120V/60Hz      127V/60Hz 220V/50Hz       220V/60Hz    230V/50Hz   240V/50Hz
 Relay model     427THBZZ-52 232THBYY-52       X                X         X               X            X           X
 Part code        3018114900 3018115200        X                X         X               X            X           X


3. RUNNING CAPACITOR
 Refrigerant                                                         R12
 Voltage         100V/50,60Hz 110V/60Hz    115, 120V/60Hz   127V/60Hz 220V/50Hz       220V/60Hz    230V/50Hz   240V/50Hz
 Spec.                X           X               X             X         X            350V/5
