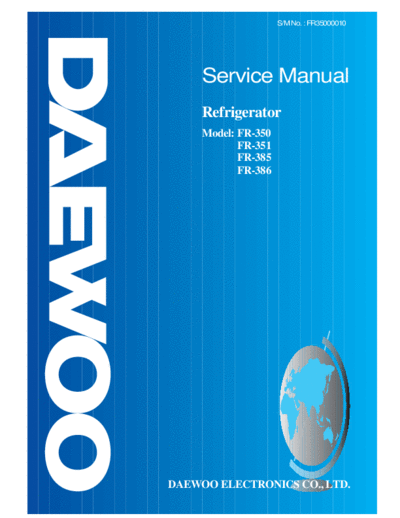

Image preview - the first page of the document
>> Download FR-350 & 351 & 385 & 386 documenatation <<
Text preview - extract from the document
S/M No. : FR35000010
Service Manual
Refrigerator
Model: FR-350
FR-351
FR-385
FR-386
DAEWOO ELECTRONICS CO., LTD.
CONTENTS
1. Specification -----------------------------------------------------------------------------------------------1
2. External view ----------------------------------------------------------------------------------------------2
3. Wire diagram ---------------------------------------------------------------------------------------------4
4. Name of parts---------------------------------------------------------------------------------------------5
5. Air flow diagram-----------------------------------------------------------------------------------------6
6. Refrigerant cycle diagram ----------------------------------------------------------------------------7
7. Machine room view and part list-------------------------------------------------------------------9
8. Main components ---------------------------------------------------------------------------------------10
9. Door color specification -------------------------------------------------------------------------------13
10. Exploded view and parts list -----------------------------------------------------------------------16
1. SPECIFICATION
MODEL NAME FR-350 FR-351 FR-385 FR-386
R12 150g 150g 150g 150g
Refirgerant
R134a 125g 125g 125g 125g
Cooling System Fan Cooling Convection Type
Refrigeration System Air Forced Convection
Defrost System Forced Fin-enaporator Type
Defrost Operation Automatic Start & Stop
Cold Control Adjustable Dial
Freezer
73 73 83
83
Capacity Refrigerator 266 266 245 245
Total 339 339 328 328
Height 1665mm 1665mm 1689mm 1689mm
External
Width 652mm 652mm 652mm 652mm
Dimension
Depth 646mm 646mm 666mm 666mm
Net Weight 65Kg 65Kg 70Kg 70Kg
645.5
645.5 75.5
75.5
FR-350
FR-351
634 535 634 535
42.5 35 42.5 35
2. EXTERNAL VIEW
10.5 1044 10.5 485
1042.5 485
652
652
2
1665 1665
10 10
984.5 60 409.5 40 9 984.5 60 409.5 40 9
257 199 182 249 142.5 152 257 199 182 249
142.5 152
106 106
558
640
562
534
558
640
562
534
665.5 665.5
75.5 75.5
FR-385
FR-386
20 20
634 535 634 535
42.5 55 42.5 55
1044 10.5 485
10.5
1042.5 485
652
652
3
1689 1689
10
10 984.5 60 409.5 40 9
984.5 60 409.5 40 9
166.5 176 258.5 195 184 249
166.5 176 258.5 195 184 249 131
131
558
640
562
534
558
640
562
534
3. WIRE DIAGRAM
BK BK L/BLUE
RD : RED
BR : BROWN GY/YW
WH COMPRESSOR
WH : WHITE 1
PK : PINK 3 DOOR A M
BK : BLACK 2 SW POWER
YW : YELLOW CORD
BL : BLUE BL
GY : GRAY
WH/BL : WHITE WITH TEMP BI-METAL
BLUE STRIPE DEFROST PTC OL
FUSE YW LAMP
HEATER
P-RELAY
PK
GN
FAN
MOTOR
WH/BL
WH BR
1 2
M
RD
YW 3 4 YW RD
WH/BL DEFROST
THERMOSTAT
TIMER
YW BR
4
4. NAME OF PARTS
1 Freezer Shelf
2 2 Freezer Temperature
Controller
3 13
3 Case Icing
1 4 Case Ice
14 5 Case Chilled
4
6 Refrigerator
Temperature Controller
5 7 Lamp
16
8 RefrigeratorShelf
6 15
9 Crisper Cover
7
17 10 Crisper
8 11 Front Grille
12 Adjustable Foot
18 13 Freezer Pocket (SM)
9 14 Freezer Pocket (BG)
15 Egg Pocket (*Option)
16 Case Egg
10
17 Refrigerator Pocket (SM)
(*Option)
18 Refrigerator Pocket (BG)
11 (*Option)
12
5
5. AIR FLOW DIAGRAM
Freezer door pocket
Do not put ice cream or frozen
food in freezer door pocket to Freezer room
store for a long term. Opening Do not put in any bottle such as
and shutting the door can rise up beer or beverage because it can
-16~-18 -16~-18
the temperature. be frozen and broken.
-17~-19
Refrigerator room
Cold air absorbing duct
This model is multi-flow type
Do not place food in front
which flows out cold air from
of the duct because it is the
each shelf space. The hot air
entrance of the cold air.
A after making the refrigerator
2~4 cold, flows into cooling system
2~4 1~3
through the front upper part.
Refrigerator door pocket
Temperature is high even if the B
3~5
pocket is in the middle. 2~4 1~3
When storing margarine or cheese
for one or two weeks, make use C Do not put food having much
of the refrigerator shelf. 3~5
2~4 2~3 moisture at the middle part of
each shelf space ("A", "B" and
"C" part). It can be frozen owing
Crisper 5~7
to the low temperature.
Suitable in storing fruits or
vegetable.
Wrapping can prevent from
dryness.
6
6. REFRIGERANT CYCLE DIAGRAM
1. FOR MIDDLE ASIA
PIPE ACCUM
HOT
E ROSS
T PIP FIN. C
AUX-HO EVA
CAPI TUBE
BACK PLATE PIPE
SUC-PIPE
ER
DRY
PIPE
ON
AUX-C
COMP
C A A H B D C E A S
O U U O A R A V C U
M X X T C Y P A C C
P K E I P U
R I I P
E I P R O M P
S C H P L T R I
S O O E A U A P
O N T T B T E
R E E O
P P R
I I P
P P I
E E P
E
7
2. For Other Country
PIPE ACCUM
HOT
ROSS
FIN. C
EVA
CAPI TUBE
SIDE PLATE PIPE
SUC-PIPE
ER
DRY
PIPE
ON
AUX-C
COMP
C A H S D C E A S
O U O I R A V C U
M X T D Y P A C C
P E E I P U
R I P
E I P R O M P
S C P L T R I
S O E A U A P
O N T B T E
R E E O
P R
I P
P I
E P
E
8
7. MACHINE ROOM VIEW AND PART LIST
20
16
15
14
13 11
10
8
17
9
18
5
23 22 4 3 2 1 21 12 7 6
19
NO PART NAME NO PART NAME NO PART NAME
1 COMPRESSOR 9 PIPE CON (SUC) 17 CABLE CLAMP
2 ABSORBER 10 PIPE COOLING CON (AUX) 18 STARTING CAPACTOR
3 BOLT COMP. FIXTURE 11 PIPE COOLING (A) 19 POWER CORD
4 FIXTURE COMP. WASHER 12 PIPE CON (P.A) 20 ABSORBER PIPE
5 PLATE AUX-CON AS 13 SCREW MACHINE 21 VIBRATIONPROOF MASS(B)
6 CASTER PIN 14 DRAIN HOSE(B) AS 22 SWITCH P-RELAY AS
7 CASTER 15 TAPE OPP 23 RELAY BAND
8 DRYER AS 16 CEC COVER
9
8. MAIN COMPONENTS
1. COMPRESSOR
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Comp. model EL23YE-3 CL23YE-1-C X CL23YE-2-C SL25YE-5-C PL23YE-4-C SL25YE-5-C X
Part code 3953123A30 3957123C30 X 3957123C30 3954125C80 3956123A40 3954125C80 X
Strating type RSCR CSIR X CSIR RSIR RSCR RSIR X
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Comp. model HBL23YE-3-C HBL23YE-3-C X X HSL25YE-5-C X X HSL25YE-5-C
Part code 3952123L30 3953123L30 X X 3954125L50 X X 3954125L50
Strating type CSR CSR X X RSIR X X RSIR
2. RELAY ASSEMBLY
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Relay model 437THBYY-52 427THBYY-52 X 276THBYY-52 232THBYY-52 197SHBYY-52 232THBY-52 X
Part code 3018101590 3018103020 X 3018109710 3018103040 3018109700 3018103040 X
Refrigerant R134a
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Relay model 414THBYY-52 427THBYY-52 X X 276THBYY-52 X X 276THBYY-52
Part code 3018110000 3018108090 X X 3018105680 X X 3018105680
3. RUNNING CAPACITOR
Refrigerant R12
Voltage 100V/50,60Hz 110V/60Hz 115, 120V/60Hz 127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz 240V/50Hz
Spec. 200V/5◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
