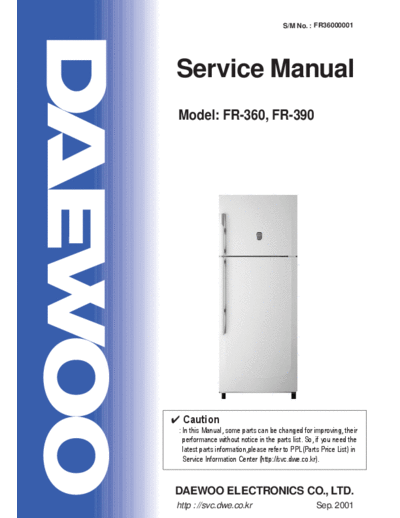

                                        S/M No. : FR36000001




Service Manual
 Model: FR-360, FR-390




 Caution
 : In this Manual, some parts can be changed for improving, their
   performance without notice in the parts list. So, if you need the
   latest parts information,please refer to PPL(Parts Price List) in
   Service Information Center (http://svc.dwe.co.kr).



DAEWOO ELECTRONICS CO., LTD.
http : //svc.dwe.co.kr                              Sep. 2001
 SAFETY AND PRECAUTIONS
 1) For starters, be sure to check any chances of the leakage of electricity.
 2) You could handle a part in the vicinity of electricity after unplugging.
 3) You should put on rubber gloves to prevent an electric shock on operation test.
 4) Make sure the rated current, voltage, capacity before using an instrument.
 5) Keep your wet hands away from the metal goods in the freezer compartment not to be frostbitten.
 6) Be careful not to let water to permeate the electric part in the machine room.
 7) With the door open during your repair, you might be hurt by that door.
 8) You should give a tilt to the refrigerator for your safe after removing the breakable goods inside the refrigerator.
 9) You'd better use gloves if you fix it up around the evaporator.




TABLE OF CONTENTS
SPECIFICATION ........................................................................................................... 2
EXTERNAL VIEWS ........................................................................................................ 3
WIRING DIAGRAM ..................................................................................................... 4
NAME OF PARTS ........................................................................................................ 5
AIR FLOW DIAGRAM ................................................................................................... 6
REFRUGERANT CYCLE DIAGRAM ................................................................................. 7
MACHINE ROOM VIEW AND PART LIST ......................................................................... 8
MAIN COMPONENTS .................................................................................................. 9
POWER CORD ............................................................................................................ 12
PART LIST AND EXPLODED VIEW ................................................................................... 13




                                                               1
SPECIFICATION

                    Model Name                        FR-360                             FR-390
Cooling system                                           Fan Cooling Convention Type
Refrigeration System                                           Air Forced Convention
Defrost System                                            Forced Fin-Evaporator Type
Defrost Operation                                              Automatic start & stop
Cold Control                                                      Adjustable Dial
Method                                          NET            GROSS             NET              GROSS
Capacity (l)                 Freezer            78                80                78             80
                             Refrigerator       226              245             240               260
                             Total              304              325             318               340
External                     Width (W)                 667                                667
Dimension (mm)               Depth (D)                 637                                637
                             Height (H)                1677                               1727
Net Weight (kg)                                         60                                 61




                                            2
 EXTERNAL VIEWS
1. FR-360,390




                  3
WIRING DIAGRAM




                 4
NAME OF PARTS




  1   CASE ICING                     9   LAMP COVER (SHADE R)
  2   F SHELF (REMOVABLE)            10 COVER CASE VAGETB
  3   FREEZER TEMPERATURE            11 CASE VEGETABLE
      CONTROL KNOB                   12 FREEZER POCKET (TOP)
  4   CASE ICE                       13 FREEZER POCKET (BOTTOM)
  5   CHILLED CASE DOOR              14 EGG POCKET (TOP)
  6   CASE CHILLED                   15 CASE EGG
  7   REFRIGERATOR TEMPERATURE       16 UTILITY POCKET (BOTTOM)
      CONTROL SWITCH                 17 BOTTLE POCKET (TOP)
  8   R SHELF (REMOVABLE)            18 BOTTLE POCKET (BOTTOM)


                                 5
AIR FLOW DIAGRAM


    AIR CIRCULATION
      in the Freezer.
                                                                        FREEZER
 Cold air flow comes out from                                         COMPARTMENT
 the upper hole and comes
                                                                  Do not put in any breakable
 into the lower hole in louver.
                                                                  bottle.




 FREEZER COMPARTMENT
     DOOR POCKET
                                            -18 C
 Do not store ice cream or
 frozen food for a long time.
 Temperature may rise with
 frequent opening and closing.      -18 C

                                                        -18 C

                                                                      REFRIGERATOR
                                                                      COMPARTMENT

                                                                  Do not place frozen food near
                                                                  the duct. It may freeze due to
                                                         -1~1 C   low temperature.
 FRESH FOOD PRESERVING
   CASE(CHILLED CASE)

 Use for storing fish or meat.


   REFRIGERATOR COM-              4~6 C
  PARTMENT DOOR POCKET                              1~4 C
 The temperature of this
 position is high. When
 margarine or something is
 stored for 1~2 week, You                           1~4 C
 may refrigerator shelf.


                                                                     CASE VEGETABLE
                                             4~7 C
                                                                  Vegetables should be stored
                                                                  in this vessel and wrap is
                                                                  used to keep them flesh.




                                                    6
REFRIGERANT CYCLE DIAGRAM




                  7
MACHINE ROOM VIEW AND PART LIST




     NO.   PART NAME             NO.   PART NAME
     1     CABINET AS            14    SWITCH P-RELAY AS
     2     COVER CAB             15    BAND RELAY
     3     BASE CAB AS           16    BOX POWER AS
     4     PIPE HOT              17    CORD POWER AS
     5     PIPE SUC AS           18    HARNESS MAIN
     6     PIPE SUC CONN         19    CASE VAPORI
     7     PIPE CONN A           20    C-FAN MOTOR
     8     DRYER AS              21    FIXTURE C MOTOR AS
     9     BASE COMP AS          22    WI-CON AS
     10    ABSORBER COMP         23    BRACKET EARTH
     11    WASHER COMP * T       24    WIRE EARTH
     12    COMPRESSOR            25    BANGJIN GUM
     13    PIPE SERVICE          26    HARNESS TIMER AS




                             8
 MAIN COMPONENTS
1.COMPRESSOR

 REFRIGERANT                                                            R12
 VOLTAGE ( V/HZ)             110/60                  127/60                         220~240/50           220V/60
 COMP MODEL                CL23YE-3                 CL23YE-2                        SL25YE-5            PL23YE-4
 PART CODE                3957123A10               3957123A20                       3954125A50         3956123A40
 STARTING TYPE                CSIR                       CSIR                         RSIR                RSCR
 REFRIGERANT(g)                                                         130


 REFRIGERANT                                                           R134a

 VOLTAGE ( V/HZ)          110 / 60            115 / 60                220~240/50                          220V/60
 COMP MODEL             HEL23YG-3           HEL21YH-1                 HSL25YE-5           HPL25YG2-5     HPL23YE-4
 PART CODE              3953123R30          3953121S10                39524125G50         3956125R50    3956123G40

 STARTING TYPE             RSCR               RSCR                       RSIR                   RSCR       RSCR
 REFRIGERANT(g)                                                         115

2. RELAY

 REFRIGERANT                                                            R12

 VOLTAGE ( V/HZ)             110/60                          127/60                   220~240/50         220V/60
 RELAY MODEL              427THBYY-52               414THBYY-52                      232THBYY-52       197SHBYY-52
 PART CODE                3018114661                 3018114641                       3018114631       3018114621

 PTC RESISTANCE               S068                           S068                        S220             S330


 REFRIGERANT                                                           R134a
 VOLTAGE ( V/HZ)          110 / 60            115 / 60                             220~240/50             220V/60
 RELAY MODEL            762SHBYY-52        762SHBYY-52              276THBYY-52          213NHBYY-52    174SHBYY-52

 PART CODE              3018114720          3018114720                3018114101          3018116911    3018114710
 PTC RESISTANCE            S068                   S068                   S220                   S330       S330

3. STARTING CAPACITOR

 REFRIGERANT                                                            R12
 VOLTAGE ( V/HZ)             110/60                  127/60                          220~240/50           220V/60
 PART CODE                           3016400100                                 X                  X         X
 SPEC.                             200VAC 100
