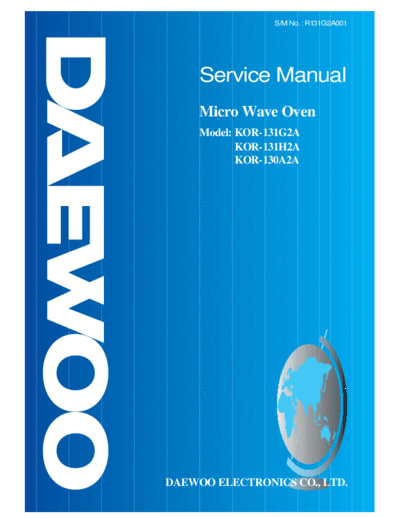

Image preview - the first page of the document



>> Download KOR-131G2A & 131H2A & 130A2A documenatation <<

Text preview - extract from the document

                 S/M No. : R131G2A001




     Service Manual
     Micro Wave Oven
     Model: KOR-131G2A
            KOR-131H2A
            KOR-130A2A




DAEWOO ELECTRONICS CO., LTD.
   PRECAUTIONS TO BE OBSERVED BEFORE AND
   DURING SERVICING TO AVOID POSSIBLE
   EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
   (a) Do not operate or allow the oven to be operated with the door open.
   (b) Make the following safety checks on all ovens to be serviced before activating the magnetron or other microwave
      source, and make repairs as necessary: (1) Interlock operation, (2) Proper door closing, (3) Seal and sealing
      surfaces (arcing, wear, and other damage), (4) Damage to or loosening of hinges and latches, (5) Evidence of
      dropping or abuse.
   (c) Before turning on power to the microwave oven for any service test or inspection within the microwave
      generating compartments, check the magnetron, wave guide or transmission line, and cavity for proper
      alignment, integrity, and connections.
   (d) Any defective or misadjusted components in the interlock, monitor, door seal, and microwave generation and
      transmission systems shall be repaired, replaced, or adjusted by procedures described in this manual before the
      oven is released to the owner.
   (e) A microwave leakage check to verify compliance with the Federal performance standard should be performed on
      each oven prior to release to the owner.




  TABLE OF CONTENTS
SAFETY AND PRECAUTIONS ................................................................................................. 3
    FOR SAFE OPERATION ............................................................................................................................... 3
    FOR SAFE SERVICE PROCEDURES .......................................................................................................... 3
SPECIFICATIONS....................................................................................................................... 4
EXTERNAL VIEW ...................................................................................................................... 5
    OUTER DIMENSION .................................................................................................................................... 5
    FEATURE DIAGRAM ................................................................................................................................... 6
    CONTROL PANEL ........................................................................................................................................ 7
INSTALLATION.......................................................................................................................... 10
OPERATIONS AND FUNCTIONS............................................................................................ 11
DISASSEMBLY AND ASSEMBLY ........................................................................................... 12
INTERLOCK MECHANISM AND ADJUSTMENT ............................................................... 19
TROUBLE SHOOTING GUIDE ................................................................................................ 20
MEASUREMENT AND TEST.................................................................................................... 24
    MEASUREMENT OF THE MICROWAVE POWER OUTPUT .................................................................. 24
    MICROWAVE RADIATION TEST .............................................................................................................. 25
    COMPONENT TEST PROCEDURE ............................................................................................................. 26
WIRING DIAGRAM.................................................................................................................... 27
PRINTED CIRCUIT BOARD..................................................................................................... 28
    CIRCUIT CHECK PROCEDURE.................................................................................................................. 28
    P.C.B. CIRCUIT DIAGRAM ......................................................................................................................... 31
    P.C.B. LOCATION NO .................................................................................................................................. 32
EXPLODED VIEW AND PARTS LIST .................................................................................... 33
    DOOR ASSEMBLY ....................................................................................................................................... 33
    CONTROL PANEL ASSEMBLY .................................................................................................................. 33
    TOTAL ASSEMBLY...................................................................................................................................... 33


                                                                                    2

















    
 !"




















   






 !"#$%"&&"' ()" #" *%+*#,"-%.#"./0*# "#0*%#$%--& )%
"





   1



   2





   3

,

   4





   5




   #






,









   " "###%/-##""-%.#%#$*--& )%'#$#$%""."-% #



   












   " "###%/-##"*%.6)%#$*--& )%0 #&!"0$6%.%#$**%.6)%/ 0&




   1







,









   2







,











,

,





,



7
,










   3




,








    ).$























   
































   




































SPECIFICATIONS


MODEL                                 KOR-131G2A
POWER SUPPLY                          120V~60Hz, SINGLE PHASE WITH GROUNDING
POWER                 MICROWAVE       1500W
CONSUMPTION
                      GRILL
                      COMBINATION
MICROWAVE ENERGY OUTPUT               1100W
MICROWAVE FREQUENCY                   2450MHz
OUTSIDE DIMENSIONS (W X H X D)        563 x 318 x 418 mm (22.1 x 12.5 x 16.5 in.)
CAVITY DIMENSIONS (W X H X D)         380 x 246 x 386 mm (14.9 x 9.7 x 15.2 in.)
NET WEIGHT                            APPROX. 16.5 Kg ( 36.4 lbs.)
TIMER                                 99 min. 99 sec.
FUNCTION SELECTIONS                   MICROWAVE
POWER SELECTIONS                      10 LEVELS
CAVITY VOLUME                         1.3 Cu.Ft.
