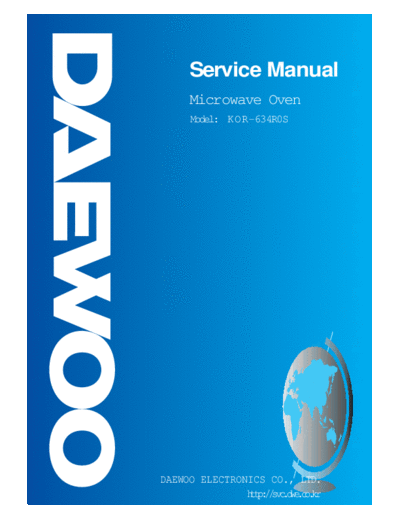

Image preview - the first page of the document

>> Download KOR-634R0S documenatation <<

Text preview - extract from the document

Service Manual
Microwave Oven
Model: KOR-634R0S

DAEWOO ELECTRONICS CO., LTD.
ht:/v.w.ok
tp/scdec.r
PRECAUTIONS TO BE OBSERVED BEFORE AND
DURING SERVICING TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
(a) Do not operate or allow the oven to be operated with the door open.
(b) Make the following safety checks on all ovens to be serviced before activating the magnetron or other micro-
wave source, and make repairs as necessary: (1) Interlock operation, (2) Proper door closing, (3) Seal and
sealing surfaces (arcing, wear, and other damage), (4) Damage to or loosening of hinges and latches, (5)
Evidence of dropping or abuse.
(c) Before turning on power to the microwave oven for any service test or inspection within the microwave gen-
erating compartments, check the magnetron, wave guide or transmission line, and cavity for proper align-
ment, integrity, and connections.
(d) Any defective or misadjusted components in the interlock, monitor, door seal, and microwave generation
and transmission systems shall be repaired, replaced, or adjusted by procedures described in this manual
before the oven is released to the owner.
(e) A microwave leakage check to verify compliance with the Federal performance standard should be per-
formed on each oven prior to release to the owner.

TABLE OF CONTENTS
SAFETY AND PRECAUTIONS ...........................................................................................................................................2
1. FOR SAFE OPERATION............................................................................................................................................2
2. FOR SAFE SERVICE PROCEDURES......................................................................................................................2
SPECIFICATIONS ...............................................................................................................................................................3
EXTERNAL VIEW................................................................................................................................................................4
1. OUTER DIMENSION..................................................................................................................................................4
2. FEATURE DIAGRAM .................................................................................................................................................5
3. CONTROL PANEL .....................................................................................................................................................6
INSTALLATION ...................................................................................................................................................................7
OPERATIONS AND FUNCTIONS.......................................................................................................................................8
DISASSEMBLY AND ASSEMBLY......................................................................................................................................9
INTERLOCK MECHANISM AND ADJUSTMENT.............................................................................................................16
TROUBLE SHOOTING GUIDE .........................................................................................................................................17
MEASUREMENT AND TEST ............................................................................................................................................21
1. MEASUREMENT OF THE MICROWAVE POWER OUTPUT..................................................................................21
2. MICROWAVE RADIATION TEST ............................................................................................................................22
3. COMPONENT TEST PROCEDURE ........................................................................................................................23
WIRING DIAGRAM............................................................................................................................................................24
PRINTED CIRCUIT BOARD..............................................................................................................................................25
1. CIRCUIT CHECK PROCEDURE..............................................................................................................................25
2. PCB CIRCUIT DIAGRAM .........................................................................................................................................28
3. P.C.B. LOCATION NO..............................................................................................................................................29
EXPLODED VIEW AND PARTS LIST...............................................................................................................................30
1. DOOR ASSEMBLY...................................................................................................................................................30
2. CONTROL PANEL ASSEMBLY ...............................................................................................................................30
3. TOTAL ASSEMBLY..................................................................................................................................................30

1
SAFETY AND PRECAUTIONS
1. FOR SAFE OPERATION
Damage that allows the microwave energy (that cooks or heats the food) to escape will result in poor cooking and may
cause serious bodily injury to the operator.
IF ANY OF THE FOLLOWING CONDITIONS EXIST, OPERATOR MUST NOT USE THE APPLIANCE.
(Only a trained service personnel should make repairs.)
(1) A broken door hinge.
(2) A broken door viewing screen.
(3) A broken front panel, oven cavity.
(4) A loosened door lock.
(5) A broken door lock.
The door gasket plate and oven cavity surface should be kept clean.
No grease, soil or spatter should be allowed to build up on these surfaces or inside the oven.
DO NOT ATTEMPT TO OPERATE THIS APPLIANCE WITH THE DOOR OPEN.
The microwave oven has concealed switches to make sure the power is turned off when the door is opened.
Do not attempt to defeat them.
DO NOT ATTEMPT TO SERVICE THIS APPLIANCE UNTIL YOU HAVE READ THIS SERVICE MANUAL.

2. FOR SAFE SERVICE PROCEDURES
1. If the oven is operative prior to servicing, a microwave emission check should be performed prior to servicing the
oven.
2. If any certified oven unit is found to servicing, a microwave emission check should be performed prior to servicing the
oven.
(a) inform the manufacturer, importer or assembler,
(b) repair the unit at no cost to the owner,
(c) attempt to ascertain the cause of the excessive leakage,
(d) tell the owner of the unit not to use the unit until the oven has been brought into compliance.
3. If the oven operates with the door open, the service person should tell the user not to operate the oven and contact
the manufacturer and CDRH immediately.

IMPORTANT
The wire in this mains lead coloured in accordance with the following code.
Green-and-yellow : Earth
Blue : Neutral
Brown : Live
As the colours of the wires in the manins lead of this appliance may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows.
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with
the letter `E', earth symbol or coloured green-and-yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter `N' or coloured
black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter `L' or
coloured red.

NOTE :
The oven is designed for counter-top use only.

2
SPECIFICATIONS
MODEL KOR-634R0S
POWER SUPPLY 230V~50Hz, SINGLE PHASE WITH EARTHING
POWER CONSUMPTION MICROWAVE 1,200 W
MICROWAVE ENERGY OUTPUT 800W
MICROWAVE FREQUENCY 2450MHz
OUTSIDE DIMENSIONS (W X H X D) 465 x 279 x 360 mm (18.3 x 11.0 x 14.2 in)
CAVITY DIMENSIONS (W X H X D) 290 x 220 x 306 mm (11.4 x 8.7 x 12.0 in.)
NET WEIGHT Approx. 13 kg (28.7 Ibs.)
TIMER 59 min.
FUNCTION SELECTIONS MICROWAVE
POWER SELECTIONS 5 LEVELS
CAVITY VOLUME 0.7 Cu. Ft.
* SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

3
EXTERNAL VIEW
1. OUTER DIMENSION

4
2. FEATURE DIAGRAM

1. DOOR SEAL 5. OVEN LAMP
Door seal maintains the microwave within the oven Automatically turns on during oven operating.
cavity and prevents microwave leakage.
6. SAFETY INTERLOCK SYSTEM
2. DOOR HOOK
7. CONTROL PANEL
When the door is closed, it will automatically lock shut.
If door is opened while oven is operating, magnetron 8. GLASS COOKING TRAY
tube will immediately stop operating. Made of special heat resistant glass. The tray must
always be in proper position before operating. Do not
3. DOOR SCREEN
cook food directly on the tray.
Allows viewing of food. Microwave cannot pass
through perforations in screen. 9. OVEN FRONT PLATE
4. SPATTER SHIELD 10. ROLLER GUIDE
Protects the microwave outlet from splashes of cook- Supports the glass cooling tray.
ing foods.

5
3. CONTROL PANEL

1. Display
