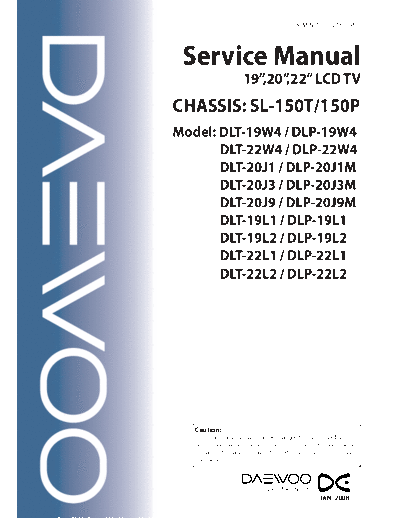

Image preview - the first page of the document
>> Download daewoo-service-sl-150t-sl-150p-101002144759-phpapp01 documenatation <<
Text preview - extract from the document
S/M NO. : DSL150TP00
Service Manual
19",20",22" LCD TV
CHASSIS: SL-150T/150P
Model: DLT-19W4 / DLP-19W4
DLT-22W4 / DLP-22W4
DLT-20J1 / DLP-20J1M
DLT-20J3 / DLP-20J3M
DLT-20J9 / DLP-20J9M
DLT-19L1 / DLP-19L1
DLT-19L2 / DLP-19L2
DLT-22L1 / DLP-22L1
DLT-22L2 / DLP-22L2
Caution:
In this manual some parts can be changed for improving. Their
performance without notice in the parts list. So, if you need the lat-
est parts information, please refer to PPL(Parts Price List) in Service
Information Center.
JAN. 2008
Contents
I. Parts with the exception of MODULE
1. Safety Precaution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2. Product Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
3. Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
4. Schematic Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
5. PCB Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
6. Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
7. Service Part List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
8. Different part list for models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
9. Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
10. Out Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
11. Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
12. Software Install & Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
13. SVC keys function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
* Remarks
Points from 3 show data for DLT models.
For DLP models diffrent part list for models (point 8) must be used.
1
1. Safety Precautions
(1) When moving or laying down a LCD Set, at least two people must work together. Avoid any
impact towards the LCD Set.
(2) Do not leave a broken LCD Set on for a long time. To prevent any further damages, after
checking the condition of the broken Set, make sure to turn the power (AC) off.
(3) When opening the BACK COVER, you must turn off power (AC) to prevent any electric
shock.
(4) When loosening screws, check the position and type of the screw. Sort out the screws and
store them separately for reassembling. Because screws holding PCBs are working as elec-
tric circuit grounding, make sure to check if any screw is missing when assembling / reas-
sembling. Do not leave any screws inside the set.
(5) A LCD Set contains different kinds of connector cables. When connecting or disconnecting
cables, check the direction and position of the cable beforehand.
(6) Connect/disconnect the connectors slowly with care especially FFC (film) cables and FPC
cables. Do not connect or disconnect connectors instantaneously with force, and handle
them carefully for reassembling.
(7) Connectors are designed so that if the number of pins or the direction does not match,
connectors will not fit. When having problem in plugging the connectors, check their kind,
position, and direction.
2
2. Product Specifications
Model DLT-19W4 / DLP-19W4 DLT-20Jx / DLP-20JxM DLT-22W4 / DLP-22W4
Screen Size 480mm (diagonal) 510.54mm (diagonal) 558.673mm (diagonal)
Display Colour 16.7 M
Aspect Ratio 16:10 4:3 16:10
Resolution 1440 x 900 (WXGA+) 640 x 480 (VGA) 1680 x 1050 (WSXGA+)
Pixel Pitch 0.2835 x 0.2835 0.6375 x 0.6375 0.2835 x 0.2835
Contrast Ratio 1000:1 350:1 1000:1
Appearance w/o stand 476.3 x 346 x 80 514 x 460 x 85 545.4 x 400 x 81
(W x H x D) with stand 476.3 x 401.5 x 190 514 x 498 x 239 545.4 x 426 x 190
Weight w/o stand 4.9 Kg 7.0 Kg 5.6 Kg
(Net) with stand 5.2 Kg 8.0 Kg 5.9 Kg
Power Consumption 42W / 39W 52W / 49W 50W / 46W
Sound Output 2.0W + 2.0W
AV IN : SCART, COMPOSITE VIDEO, AUDIO L/R,
COMPONENT, PC, HDMI
Terminals HEADPHONE : 3.5mm STEREO MINI-JACK
DIGITAL AUDIO OUT: Coaxial
ANT. IN : COAXIAL-TYPE
VHF BAND I : CH2-CH4
BAND II : CH5-CH12
Reception Channel UHF HYPER BAND : SI'-S3', S1-S20
BAND IV, V : CH21-CH68
PAL-B/G, D/K, SECAM-L/L', NTSC(AV input only)
Power Source AC 220 ~ 240V, 50Hz
RF, AV1, AV2
The follow- MODE
WIDE, FULL SCREEN
ing picture COMPONENT, 4:3, FULL SCREEN FULL SCREEN 4:3, FULL SCREEN
formats is HDMI, PC
available: DVB-T MODE WIDE, FULL SCREEN
PC Input resolution in LCD
DLT/P-19W4, 22W4 DLT/P-20J1, 20J3, 20J9
Resolution V-Freq Remark
PC(D-Sub) HDMI PC(D-Sub) HDMI
640 x 480 60Hz o o o o
800 x 600 60Hz o o x x
1024x768 60Hz o o x x
1280x768 60Hz o x x x
1440 x 900 60Hz o x x x
Multimedia input resolution table in LCD
DLT/P-19W4, 22W4 DLT/P-20J1, 20J3, 20J9
Resolution V-freq Remark
Component HDMI Component HDMI
720 x 480i 60Hz o x o x
720 x 480p 60Hz o o o o
720 x 576i 60Hz o x o x
720 x 576p 60Hz o o o o
50Hz o o o o
1280 x 720p
60Hz o o o o
50Hz o o o o
1920 x 1080i
60Hz o o o o
3
3. Block Diagram (Main)
* DLT model only
" "
"
4
Block Diagram (Power Lips)
5
4. Schematic Diagram (DLT-19W4, DLT-22W4)
6
Schematic Diagram (DLT-20J1, DLT-20J3)
7
Schematic Diagram
8
Schematic Diagram
9
Schematic Diagram
10
Schematic Diagram
This page can be used only for DLT models
11
Schematic Diagram
12
Schematic Diagram
13
5. PCB Data (DLT-19W4, DLT-22W4 - TOP)
14
PCB Data (DLT-19W4, DLT-22W4 - BOTTOM)
15
PCB Data (DLT-20J1, DLT-20J3 - TOP)
16
PCB Data (DLT-20J1, DLT-20J3 - BOTTOM)
17
PCB Data (DLT-19W4, DLT-22W4 - Control PCB - TOP)
18
PCB Data (DLT-19W4, DLT-22W4 - Control PCB - BOTTOM)
19
PCB Data (DLT-20J1, DLT-20J3 - Control PCB - TOP )
20
PCB Data (DLT-20J1, DLT-20J3 - Control PCB - BOTTOM)
21
6. Trouble Shooting
* Facts you must know at trouble diagnosis or repairing
(1) The trouble diagnosis and repairing of set means Module .
In other words, find out which PCB modules are not working and replace them with normal PCB
modules.
(2) This TROUBLE SHOOTING list only contains representative and simple PCB trouble diagnosis and
Module Exchange method. Therefore, if you find Sets which are difficult to diagnose or to repair,
contact Daewoo Electronics.
(3) Basic TROUBLE SHOOTING procedure :
Check Trouble Symptoms Detach Back Cover Trouble Diagnosis Replace broken PCB module
Adjust ADC Function Check Repair Complete.
(4) Required equipments for trouble diagnosis
- Digital Multi-meter (measure Dc voltage, measure Diode Voltage, Short-Open test)
- Screwdriver (or electric screwdriver), plastic adjusting tool
(5) Before assemble/disassemble PCBs, check to see if AC Switch is OFF.
(6) After Back cover is closed, redo Heat-run for at least one hour by inputting Full white pattern.
Symptoms of power, inverter, panel Trouble
Not even weak discharge (luminescence) shows on screen.
Discharge (luminescence) on screen is unstable
Set is producing unusual noise Symptoms of VIDEO or JACK PCB Trouble
Only weak discharge (luminescence) shows on screen, but No Data is on screen
Screen DATA is abnormal
Particular input signal (Video, etc.) does not operate
No SOUND
Remote Control or KEY does not operate
22
Trouble Shooting
6-1. When LED doesn't lit.
Check start
Y
Is the AC power cord Confirm power cord
correctly connected? N
connection.
Y
Is power S/W ON? N Confirm Power S/W ON.
Y
Is output voltage of N Check the power connection.
Power LIPS correct? Exchange the power LIPS.
Y
Check the Main PCB.
23
Trouble Shooting
6-2. When TV doesn't turn on in red LED.
Check start
Y
Does TV turn on N Is output voltage of N Check the power connection.
pushing the CH key? Power module correct? Exchange the Power module.
(or LIPS)
Y Y
Check the connection to IR PCB.
Check the operation of Remote Confirm Power S/W ON.
Controller.
6-3. When "white screen".
Check start
Y
Is correctly N Check the connection
connected? Of Panel
Y
Is normal? N Check the Main PCB
Y
Check the connector or Main PCB
24
Trouble Shooting
6-4. When "No picture" in TV mode.
Check start
Y
Does LED turn on in N Go to chap 7 - 2
GREEN?
Y
Confirm AC connection.
N N Confirm Power SW ON.
Does raster appear? Is this weak discharge Check the power,
On the screen? Inverter and panel
Y Y
Check I501
Does auto - tuning
Function operate
normally?
Y
Tune the channel
N
Check the tuner
25
Trouble Shooting
6-5. When "No picture" in External input mode.
Check start
Y
Confirm AC connection.
Does OSD menu N N Confirm Power SW ON.
Is this weak discharge
Screen appear? Check the power,
On the screen?
Inverter and panel
Y
Y Go to 7 - 4
Is the signal jack N Check the
Correctly connected?
Connection of Jack
Y
N
Does input source Operate AV device
operate?
Y
Is input selection N Confirm input selection
In used mode?
Y
Check the main PCB
and sub - JACK PCB
26
Trouble Shooting
6-6. When No Sound in External input mode.
Check start
Y
N
Does Screen appear? Go to 7-5
Y
Is the sound input jack N Check the
Correctly connected? Connection of sound Jack
Y
Is the speaker jack N Check the
Correctly connected? Connection of speaker
Y
N Check the AUDIO AMP(I601)
Is the I601 output
And I501
Normal?
Y
Exchange speaker or
speak cable
27
Trouble Shooting
6-7. When Key does not operate.
Check start
Y
Does remote
N
Controller operate? Check the I501
Y
Is 2th PIN of P903A N
Exchange Key PCB
Correctly operate?
Y
Check Key cable and I501
28
Trouble Shooting
6-8. When Remote Controller does not operate.
Check start
Y
Does input of key N
Check the I501
operate?
Y
Does remote
Controller operate?
N Check the battery of
remote controller
Y
Whenever push the button of N
Remote controller, does the 2nd pin Exchange the Key PCB
Of P506A output normal?
Y
Check IR cable and I501
Output of 2nd pin of P501A (IR) : PCB for Remote Control EX) Push "PR DOWN" button.
29
7. Service part list (DLT-19W4)
LOC PART CODE PART NAME PART DESCRIPTION LOC PART CODE PART NAME PART DESCRIPTION
ZZ110 PTACPWG105 ACCESSORY AS DLT-19W4LMBSCF M201 4852098411 MASK FRONT 19W4 HIPS BK
M201A 4857818506 CLOTH BLACK CLOTH 240X8XT0.5
10 4850Q00910 BATTERY AAA R03 SUPERGARD/ROCKET
M201D 2233039604 PAINT WATER BK9604BP CETELON
20 7178301251 SCREW TAPPTITE TT2 WAS 3X12 MFZN 3CR M201E 48558000A02T LABEL POP GLOSSY PET
M382A 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR M561 48556192SD02 MARK BRAND DAEWOO 68MM (20"21")
M591 485594900001 DECO PLATE 19W4 PC T2.0
M382B DMP2505200 BAG P.E. P.E 40X60 DLT-19/22W4
ZZ210 PTSPPWG105 SPEAKER AS DLT-19W4LMBSCF
M821 4858213801 BAG INSTRUC- L. D. P. E. T0. 05X250X400 P601A 4850704S41 CONNECTOR YH025-04+YRT205+ULW=300
TION
SP01 4858319910 SPEAKER SP-5090F24C
ZZ100 48B5655H1101 TRANSMITTER R-55H11 (AAA) SP01A 4853956801 BRKT SPKR 19/22W4 HIPS BK
REMOCON
SP01B 7178301051 SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR
ZZ120 PTBCSHG105 COVER BACK AS DLT-19W4LMBSCF SP01C 4857818705 CLOTH BLACK FELT T0.7 L=110 W=15
M211 4852181401 COVER BACK 19W4 HIPS BK SP01D 4857818705 CLOTH BLACK FELT T0.7 L=110 W=15
SP02 4858319910 SPEAKER SP-5090F24C
M211A 4857823900 CLOTH BLACK FELT 240X12XT1.0
SP02A 4853956801 BRKT SPKR 19/22W4 HIPS BK
M211B 4857823900 CLOTH BLACK FELT 240X12XT1.0 SP02B 7178301051 SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR
M321 4853298800 BRKT VESA 19/22W4 SECC T=1.0 SP02C 4857818705 CLOTH BLACK FELT T0.7 L=110 W=15
SP02D 4857818705 CLOTH BLACK FELT T0.7 L=110 W=15
ZZ130 PTPKCPG105B PACKING AS DLT-19W4SMB-CF
PACKING ZZ280 PTCTMSG105 PCB CTRL DLT-19W4LMBSCF
MANUAL AS
M191 485819E500 PAD 19W4 EPS
M231 4852335301 PANEL CTRL 19/22W4 HIPS BK
M212 485218151101 COVER STAND 19/22W4 HIPS BK9604BP M481 4854873411 BUTTON POWER 19/22W4 ABS
BASE GY340A+SV2405BP
M491 4854965611 BUTTON CH 19/22W4 ABS
M212A 4852716201 LEG BOTTOM CR (14V5)
GY340A+SV2405BP
M382 485383321101 FRAME STAND 19/22W4 HIPS BK9604 M491A 7178301051 SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR
P903A 4850703S70 CONNECTOR YH025-03+YBH250-
M801 DMP5030700 BOX DLT-19W4TB
03+ULW=400
M822 DMP2504300 BAG P.E. PE FOAM T0.5X700X650 SW17 5S40101009 SW PUSH PS-22E06
ZZ140 PTCACAG108B CABINET AS AS- DLT-19W4SMB-CF ZZ200 PTCTJRG105 PCB CTRL RADIAL DLT-19W4LMBSCF
SEMBLY AS
SW11 5S50101Z90 SW TACT SKHV10910A
M191 4851959800 HINGE AS 19/22W4
SW12 5S50101Z90 SW TACT SKHV10910A
M191A 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR SW13 5S50101Z90 SW TACT SKHV10910A
M211B 2TF01612CL TAPE FILAMENT 12MMX55ME CLEAR SW14 5S50101Z90 SW TACT SKHV10910A
SW15 5S50101Z90 SW TACT SKHV10910A
M351 4853535500 HOLDER AC 14A5 NYLON66 UL/CSA
CORD SW16 5S50101Z90 SW TACT SKHV10910A
ZZ200 PTCTJAG105 PCB CTRL AXIAL DLT-19W4LMBSCF
M361 4853636301 TERMINAL JACK 19/22W4 HIPS BK AS
M362 485363530101 TERMINAL COVER HIPS BK A002 4859833714 PCB CONTROL SL-150T 115X23(246X330/
2X8)D1B
M362A 7178301052 SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR R526 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
M381C 4956800200 CLAMP WIRE WS-A-2-19 R527 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J
R528 RD-AZ202J- R CARBON FILM 1/6 2K OHM J
M381D 7172401252 SCREW TAPPTITE TT2 TRS 4X12 MFZN BK 3CR
R529 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
M381E 7008300651 SCREW MACHINE WAS 3X6 MFZN 3CR R530 RD-AZ822J- R CARBON FILM 1/6 8.2K OHM J
M381F 4856815910 CLAMP WIRE EGI T0.4+TUBE+PIE 4.2 ZZ290 PTMPMSG108 PCB MAIN DLT-19W4SMBSCF
MANUAL AS
P502A 4859000260 CABLE LVDS FMW1214A-31+FH10001- 10 2193110032 SOLDER WIRE SP001 PHI 3.0MM (LFCO-W3.0)
30+UL1571#30=250MM
20 2193011612 SOLDER WIRE LFC-107 (1.6MM)
PWC1 48599DL002 CORD POWER W/F 6-LO (LOMAX) YH396-43V
30 2291050620 FLUX SOLDER DF-2810U (0.810)
V901 485LD16191 LCD PANEL LTM190M2-L31
40 2291050314 FLUX SOLVENT IM-1000
ZZ200 PTFMSJG105B MASK FRONT AS DLT-19W4SMB-CF C634 CEXF1E471V C ELECTRO 25V RSS 470MF (10X16) TP
30
Service part list (DLT-19W4)
LOC PART CODE PART NAME PART DESCRIPTION LOC PART CODE PART NAME PART DESCRIPTION
C635 CMXL1J334J C MYLAR 63V 0.33MF J MEU TP X502 5XJX19R6JE CRYSTAL QUARTZ HC-49/S 19.6608MHZ 18PF
30PPM
C655 CEXF1E471V C ELECTRO 25V RSS 470MF (10X16) TP
XD01 5XJ27R00AC CRYSTAL QUARTZ HC-49/S 27.000MHZ 15PF
C657 CMXL1J334J C MYLAR 63V 0.33MF J MEU TP
20PPM
CE670 CEXF1H221V C ELECTRO 50V RSS 220MF (10X16) TP
XD02 5XJ27R00AC CRYSTAL QUARTZ HC-49/S 27.000MHZ 15PF
CE922 CEXF1C471V C ELECTRO 16V RSS 470MF (10X12.5)TP 20PPM
CE924 CEXF1C471V C ELECTRO 16V RSS 470MF (10X12.5)TP ZZ200 PTMPJ2G105 PCB CHIP MOUNT DLT-19W4LMBSCF
B AS
CE925 CEXF1C471V C ELECTRO 16V RSS 470MF (10X12.5)TP
C520 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CE931 CEXF1C471V C ELECTRO 16V RSS 470MF (10X12.5)TP
C521 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CE947 CEXF1C471V C ELECTRO 16V RSS 470MF (10X12.5)TP
C522 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CE985 CEXF1C471V C ELECTRO 16V RSS 470MF (10X12.5)TP
C523 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
D905 DBAT85---- DIODE BAT85 (TAPPING)
C524 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
I504 1M24C32BN6 IC EEPROM M24C32WRNG
C531 HCBF224KBA C CHIP CERA 16V X7R 0.22MF K 1608
IC12 1R24FH1B-- IC PREAMP R24FH1B
C532 HCBF224KBA C CHIP CERA 16V X7R 0.22MF K 1608
ID15 14C64WBN6- IC EEPROM M24C64-WBN6
C533 HCBF224KBA C CHIP CERA 16V X7R 0.22MF K 1608
ID25 1K1A7025AP IC RESET KIA7025AP
C534 HCBF224KBA C CHIP CERA 16V X7R 0.22MF K 1608
JD02 4859200440 CONN PCMCIA PC68PRA5513XZ
C535 HCBF224KBA C CHIP CERA 16V X7R 0.22MF K 1608
JP01 4859295520 CONN WAFER 4602-02MV2-60-1 PLUG 2P ST
C536 HCBF224KBA C CHIP CERA 16V X7R 0.22MF K 1608
JP201 4959200160 CONN D-SUB SHF-015-B111-22/BR2-J0.6
C537 HCBF224KBA C CHIP CERA 16V X7R 0.22MF K 1608
JP202 4959102340 JACK PHONE YKB21-5157
C538 HCBF224KBA C CHIP CERA 16V X7R 0.22MF K 1608
JP501 4859117750 JACK PIN TPSE-9612-6
C578 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
JP503 4859112850 JACK PIN DPSS-0173 3PIN STR
C590 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
JP504 4859112950 JACK SCART DSSM-0378 STR
C594 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
JP602 97P6316100 JACK HEAD DHSE-9959
PHONE C623 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
LED1 DSPR39MVW- LED SPR-39MVW (DUAL) C627 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
M381 4853833301 FRAME MAIN PCB 19W4 SECC T0.8 (SEC) C629 HCQK471JBA C CHIP CERA 50V CH 470PF J 1608
M381A 7178300852 SCREW TAPTITE TT2 WAS 3X8 MFZN BK 3CR C630 HCQK471JBA C CHIP CERA 50V CH 470PF J 1608
M381B
C633 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
7178300852 SCREW TAPTITE TT2 WAS 3X8 MFZN BK 3CR
P201
C652 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
4859295420 CONN WAFER 4602-04MV2-1 PLUG 4P ST
C672 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
P202 4859295420 CONN WAFER 4602-04MV2-1 PLUG 4P ST
C673 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
P202A 4859295620 CONN WAFER 4602-2FV2-1 JUMPER 2P 2.54
C919 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
P202B 4859295620 CONN WAFER 4602-2FV2-1 JUMPER 2P 2.54
C920 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
P204 4859295420 CONN WAFER 4602-04MV2-1 PLUG 4P ST
C921 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
P204A 4859295620 CONN WAFER 4602-2FV2-1 JUMPER 2P 2.54
C932 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
P204B 4859295620 CONN WAFER 4602-2FV2-1 JUMPER 2P 2.54
C935 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
P506 4859231820 CONN WAFER YW025-05
C937 HCBK153KBA C CHIP CERA 50V X7R 0.015MF K 1608
P506A 4850705S32 CONNECTOR YH025-05+YBH250-
05+ULW=350 C943 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
P508 485923172S CONN WAFER YW025-04 (STICK) C961 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
P601 485923172S CONN WAFER YW025-04 (STICK) C969 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608
P902A 4850715N09 CONNECTOR YH025-15+YBNH250- C970 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
15+ULW=100 C971 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
P903 4859231620 CONN WAFER YW025-03 C972 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
PD03 485923172S CONN WAFER YW025-04 (STICK) C983 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
R897 RN02B399JS R METAL FILM 2W 3.9 OHM J SMALL CA01 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
R994 RN02B399JS R METAL FILM 2W 3.9 OHM J SMALL CA02 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
S101 485A115170 SHIELDRON 12X20X10(H) CA03 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
S102 485A115170 SHIELDRON 12X20X10(H) CA31 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
SW1 5S50101Z90 SW TACT SKHV10910A CA32 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
SW502 5S50101Z90 SW TACT SKHV10910A CA37 HCQK120JBA C CHIP CERA 50V CH 12PF J 1608
U100 4859732130 TUNER DIGITAL TDTG-S154D CA38 HCQK120JBA C CHIP CERA 50V CH 12PF J 1608
V902 485AS003PL POWER LIPS IPB-6012M01 CA39 HCQK120JBA C CHIP CERA 50V CH 12PF J 1608
31
Service part list (DLT-19W4)
LOC PART CODE PART NAME PART DESCRIPTION LOC PART CODE PART NAME PART DESCRIPTION
CA40 HCQK120JBA C CHIP CERA 50V CH 12PF J 1608 CD37 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA41 HCQK120JBA C CHIP CERA 50V CH 12PF J 1608 CD40 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA42 HCQK120JBA C CHIP CERA 50V CH 12PF J 1608 CD41 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA45 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CD42 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA46 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CD43 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA50 HCQK120JBA C CHIP CERA 50V CH 12PF J 1608 CD44 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA51 HCQK120JBA C CHIP CERA 50V CH 12PF J 1608 CD45 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA52 HCQK120JBA C CHIP CERA 50V CH 12PF J 1608 CD46 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA53 HCQK470JBA C CHIP CERA 50V CH 47PF J 1608 CD47 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA54 HCQK470JBA C CHIP CERA 50V CH 47PF J 1608 CD49 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA55 HCQK120JBA C CHIP CERA 50V CH 12PF J 1608 CD51 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA56 HCQK120JBA C CHIP CERA 50V CH 12PF J 1608 CD53 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA57 HCQK120JBA C CHIP CERA 50V CH 12PF J 1608 CD54 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA58 HCQK120JBA C CHIP CERA 50V CH 12PF J 1608 CD55 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA59 HCQK120JBA C CHIP CERA 50V CH 12PF J 1608 CD56 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA68 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CD57 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA69 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CD58 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA84 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CD59 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD02 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CD60 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CD03 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CD63 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD07 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CD64 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CD09 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CD67 HCQK391JBA C CHIP CERA 50V CH 390PF J 1608
CD105 HCQK391JBA C CHIP CERA 50V CH 390PF J 1608 CD70 HCBF224KBA C CHIP CERA 16V X7R 0.22MF K 1608
CD108 HCQK391JBA C CHIP CERA 50V CH 390PF J 1608 CD71 HCQK391JBA C CHIP CERA 50V CH 390PF J 1608
CD11 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 CD75 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD12 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608 CD76 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CD131 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CD77 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD132 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CD78 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CD133 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CD79 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD134 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CD80 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD135 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CD81 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD136 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CD82 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD137 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CD83 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD138 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CD84 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD15 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CD85 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD16 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CD86 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD17 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CD90 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD19 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CD91 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD21 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CD96 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD22 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CP02 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD23 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CP04 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD24 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CP06 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD26 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CP08 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD27 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CP09 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD28 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CP10 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD29 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CP11 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD30 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CP12 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD31 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CP13 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD32 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CP14 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD33 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CP15 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD34 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CP19 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CD35 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CP23 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
32
Service part list (DLT-19W4)
LOC PART CODE PART NAME PART DESCRIPTION LOC PART CODE PART NAME PART DESCRIPTION
R550 HRFT000JBA R CHIP 1/10 0 OHM J 1608 RA05 HRFT471JBA R CHIP 1/10 470 OHM J 1608
R551 HRFT000JBA R CHIP 1/10 0 OHM J 1608 RA06 HRFT102JBA R CHIP 1/10 1K OHM J 1608
R557 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RA30 HRFT511JBA R CHIP 1/10 510 OHM J 1608
R559 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RA31 HRFT473JBA R CHIP 1/10 47K OHM J 1608
R561 HRFT181JBA R CHIP 1/10 180 OHM J 1608 RA32 HRFT473JBA R CHIP 1/10 47K OHM J 1608
R566 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RA35 HRFT750JBA R CHIP 1/10 75 OHM J 1608
R568 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RA36 HRFT750JBA R CHIP 1/10 75 OHM J 1608
R584 HRFT000JBA R CHIP 1/10 0 OHM J 1608 RA37 HRFT750JBA R CHIP 1/10 75 OHM J 1608
R585 HRFT272JBA R CHIP 1/10 2.7K OHM J 1608 RA41 HRFT511JBA R CHIP 1/10 510 OHM J 1608
R588 HRT2490FBA R CHIP 1/10 249 OHM F 1608 RA51 HRFT224JBA R CHIP 1/10 220K OHM J 1608
R596 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RA52 HRFT224JBA R CHIP 1/10 220K OHM J 1608
R597 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RA59 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
R630 HRF4220JEA R CHIP 1/4W 22 OHM J 3216 RA60 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
R635 HRF4100JEA R CHIP 1/4W 10 OHM J 3216 RA61 HRFT000JBA R CHIP 1/10 0 OHM J 1608
R636 HRF4100JEA R CHIP 1/4W 10 OHM J 3216 RA63 HRFT101JBA R CHIP 1/10 100 OHM J 1608
R651 HRF4220JEA R CHIP 1/4W 22 OHM J 3216 RA64 HRFT101JBA R CHIP 1/10 100 OHM J 1608
R665 HRFT223JBA R CHIP 1/10 22K OHM J 1608 RA82 HRFT303JBA R CHIP 1/10 30K OHM J 1608
R671 HRF4100JEA R CHIP 1/4W 10 OHM J 3216 RA83 HRFT750JBA R CHIP 1/10 75 OHM J 1608
R684 HRFT153JBA R CHIP 1/10 15K OHM J 1608 RA84 HRFT103JBA R CHIP 1/10 10K OHM J 1608
R764 HRFT000JBA R CHIP 1/10 0 OHM J 1608 RA85 HRFT750JBA R CHIP 1/10 75 OHM J 1608
R770 HRFT752JBA R CHIP 1/10 7.5K OHM J 1608 RA86 HRFT750JBA R CHIP 1/10 75 OHM J 1608
R912 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 RA87 HRFT750JBA R CHIP 1/10 75 OHM J 1608
R913 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RA88 HRFT750JBA R CHIP 1/10 75 OHM J 1608
R919 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RA89 HRFT122JBA R CHIP 1/10 1.2K OHM J 1608
R926 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 RA90 HRFT393JBA R CHIP 1/10 39K OHM J 1608
R934 HRFT000JBA R CHIP 1/10 0 OHM J 1608 RA91 HRFT223JBA R CHIP 1/10 22K OHM J 1608
R951 HRFT104JBA R CHIP 1/10 100K OHM J 1608 RA92 HRFT681JBA R CHIP 1/10 680 OHM J 1608
R952 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RA93 HRFT681JBA R CHIP 1/10 680 OHM J 1608
R953 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RA94 HRFT750JBA R CHIP 1/10 75 OHM J 1608
R955 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RD03 HRFT471JBA R CHIP 1/10 470 OHM J 1608
R956 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RD04 HRFT471JBA R CHIP 1/10 470 OHM J 1608
R957 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RD100 HRFT103JBA R CHIP 1/10 10K OHM J 1608
R961 HRFT512JBA R CHIP 1/10 5.1K OHM J 1608 RD102 HRFT103JBA R CHIP 1/10 10K OHM J 1608
R962 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RD103 HRFT103JBA R CHIP 1/10 10K OHM J 1608
R963 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RD104 HRFT103JBA R CHIP 1/10 10K OHM J 1608
R964 HRFT183JBA R CHIP 1/10 18K OHM J 1608 RD105 HRFT101JBA R CHIP 1/10 100 OHM J 1608
R965 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RD106 HRFT000JBA R CHIP 1/10 0 OHM J 1608
R966 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RD107 HRFT101JBA R CHIP 1/10 100 OHM J 1608
R968 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RD108 HRFT102JBA R CHIP 1/10 1K OHM J 1608
R969 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RD109 HRFT102JBA R CHIP 1/10 1K OHM J 1608
R974 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RD117 HRFT000JBA R CHIP 1/10 0 OHM J 1608
R975 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RD119 HRFT000JBA R CHIP 1/10 0 OHM J 1608
R981 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RD130 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
R983 HRFT333JBA R CHIP 1/10 33K OHM J 1608 RD131 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
R984 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RD145 HRFT151JBA R CHIP 1/10 150 OHM J 1608
R985 HRFT000JBA R CHIP 1/10 0 OHM J 1608 RD147 HRFT151JBA R CHIP 1/10 150 OHM J 1608
R996 HRFT000-CA R CHIP 1/10 0 OHM 2012 RD15 HRFT103JBA R CHIP 1/10 10K OHM J 1608
R997 HRFT000-CA R CHIP 1/10 0 OHM 2012 RD150 HRFT151JBA R CHIP 1/10 150 OHM J 1608
RA01 HRFT221JBA R CHIP 1/10 220 OHM J 1608 RD16 HRFT103JBA R CHIP 1/10 10K OHM J 1608
RA02 HRFT121JBA R CHIP 1/10 120 OHM J 1608 RD17 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RA03 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RD18 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
RA04 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RD25 HRFT103JBA R CHIP 1/10 10K OHM J 1608
33
Service part list (DLT-19W4)
LOC PART CODE PART NAME PART DESCRIPTION LOC PART CODE PART NAME PART DESCRIPTION
RD26 HRFT103JBA R CHIP 1/10 10K OHM J 1608 C544 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
RD27 HRFT103JBA R CHIP 1/10 10K OHM J 1608 C545 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
RD28 HRFT103JBA R CHIP 1/10 10K OHM J 1608 C547 HCQK180JBA C CHIP CERA 50V CH 18PF J 1608
RD29 HRFT103JBA R CHIP 1/10 10K OHM J 1608 C548 HCQK180JBA C CHIP CERA 50V CH 18PF J 1608
RD30 HRFT103JBA R CHIP 1/10 10K OHM J 1608 C551 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
RD31 HRFT103JBA R CHIP 1/10 10K OHM J 1608 C557 HCEJK109MC C CHIP ELECTRO MV 50V 1MF 4.0DX5.3H
RD32 HRFT103JBA R CHIP 1/10 10K OHM J 1608 C558 HCEJK109MC C CHIP ELECTRO MV 50V 1MF 4.0DX5.3H
RD33 HRFT103JBA R CHIP 1/10 10K OHM J 1608 C561 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
RD34 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 C591 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052
RD35 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 C621 HCBF224KBA C CHIP CERA 16V X7R 0.22MF K 1608
RD36 HRFT470JBA R CHIP 1/10 47 OHM J 1608 C622 HCBK153KBA C CHIP CERA 50V X7R 0.015MF K 1608
RD37 HRFT000JBA R CHIP 1/10 0 OHM J 1608 C625 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
RD38 HRFT470JBA R CHIP 1/10 47 OHM J 1608 C626 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
RD40 HRFT000JBA R CHIP 1/10 0 OHM J 1608 C628 HCBK153KBA C CHIP CERA 50V X7R 0.015MF K 1608
RD41 HRFT000JBA R CHIP 1/10 0 OHM J 1608 C631 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
RD50 HRFT151JBA R CHIP 1/10 150 OHM J 1608 C640 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
RD53 HRFT470JBA R CHIP 1/10 47 OHM J 1608 C641 HCBF224KBA C CHIP CERA 16V X7R 0.22MF K 1608
RD56 HRFT473JBA R CHIP 1/10 47K OHM J 1608 C644 HCEEF101MC C CHIP ELECTRO MV 16V 100MF 6.3DX5.7H
RD76 HRFT000JBA R CHIP 1/10 0 OHM J 1608 C645 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
RD91 HRFT000JBA R CHIP 1/10 0 OHM J 1608 C646 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
RD93 HRFT103JBA R CHIP 1/10 10K OHM J 1608 C647 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
RD96 HRFT103JBA R CHIP 1/10 10K OHM J 1608 C648 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
RD97 HRFT103JBA R CHIP 1/10 10K OHM J 1608 C649 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
RD99 HRFT103JBA R CHIP 1/10 10K OHM J 1608 C650 HCBF224KBA C CHIP CERA 16V X7R 0.22MF K 1608
RQ15 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 C651 HCBF224KBA C CHIP CERA 16V X7R 0.22MF K 1608
ZZ200 PTMPJ1G105 PCB CHIP MOUNT DLT-19W4LMBSCF C656 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
A AS
C668 HCEJF470MC C CHIP ELECTRO 16V 47MF CS 6352
100 2193220009 SOLDER CREAM PJ790-G0061
C671 HCELH100MC C CHIP ELECTRO 25V 10MF CM 4052
A001 4859818992 PCB MAIN SL-150T 234X189 K4V (WIDE)
C904 HCEEF101MC C CHIP ELECTRO MV 16V 100MF 6.3DX5.7H
C402 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052
C911 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C403 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C912 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C404 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C913 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C420 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C914 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C501 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C923 HCELF471ME C CHIP ELECTRO 16V 470MF CM 8010
C502 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C928 HCEEF101MC C CHIP ELECTRO MV 16V 100MF 6.3DX5.7H
C503 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C934 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C504 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C938 HCEEF101MC C CHIP ELECTRO MV 16V 100MF 6.3DX5.7H
C505 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C940 HCEEF101MC C CHIP ELECTRO MV 16V 100MF 6.3DX5.7H
C506 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C942 HCEJF470MC C CHIP ELECTRO 16V 47MF CS 6352
C508 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C944 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C509 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C963 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C510 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C964 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C511 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C965 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C512 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C966 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C514 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C967 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C515 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C984 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C516 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA33 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C517 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA34 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
C518 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA35 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
C541 HCFK103ZBA C CHIP CERA 50V Y5V 0.01MF Z 1608 CA36 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
C542 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CA44 HCELK479MC C CHIP ELECTRO 50V 4.7MF CM 4052
C543 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CA47 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
34
Service part list (DLT-19W4)
LOC PART CODE PART NAME PART DESCRIPTION LOC PART CODE PART NAME PART DESCRIPTION
CA48 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CD92 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052
CA49 HCELK479MC C CHIP ELECTRO 50V 4.7MF CM 4052 CD93 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052
CA61 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CD94 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052
CD95 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CA63 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CP01 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052
CA66 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CP03 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052
CA67 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CP05 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052
CA70 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CP07 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052
CA71 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CP1 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052
CA72 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CP18 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052
CA81 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CP22 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052
CA83 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CP25 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052
CA87 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CP29 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052
CA88 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CP35 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052
CP40 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052
CD01 HCEJF470MC C CHIP ELECTRO 16V 47MF CS 6352
CP48 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052
CD04 HCEJK109MC C CHIP ELECTRO MV 50V 1MF 4.0DX5.3H
CP51 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052
CD05 HCEJK109MC C CHIP ELECTRO MV 50V 1MF 4.0DX5.3H
CP65 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052
CD06 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052
D401 DBAV70---B DIODE CHIP BAV70
CD08 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052
D911 DM2FM3---C DIODE CHIP SCHOTTKY M2FM3 M2F TYPE
CD10 HCELK479MC C CHIP ELECTRO 50V 4.7MF CM 4052 D912 DM2FM3---C DIODE CHIP SCHOTTKY M2FM3 M2F TYPE
CD103 HCQK270JBA C CHIP CERA 50V CH 27PF J 1608 D913 DM2FM3---C DIODE CHIP SCHOTTKY M2FM3 M2F TYPE
CD106 HCQK270JBA C CHIP CERA 50V CH 27PF J 1608 D923 DBAV70---B DIODE CHIP BAV70
CD120 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 DA03 DBAV70---B DIODE CHIP BAV70
CD121 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 DA71 DBAV70---B DIODE CHIP BAV70
CD122 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 I403 124C04MN6D IC CHIP EEPROM M24C04-WMN6T
I501 1FL130602Q IC CHIP VIDEO DE- FLI30602H
CD123 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
CODER
CD124 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 I505 125VF016-Q IC CHIP FLASH MEMORY SST25VF016
CD13 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608 I601 1TDA8933-Q IC CHIP AUDIO AMP TDA8933
CD130 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 I902 1G9173363C IC CHIP REGULATOR G9117-33T63U 3.3V
SOT-223
CD14 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
I907 1MP1583--D IC CHIP CONVERTER MP1583DN
CD20 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052
I911 1AZ117H25C IC CHIP REGULATOR AZ1117H-2.5TREI 2.5V
CD25 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052 SOT-223
CD36 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 I912 1MP1583--D IC CHIP CONVERTER MP1583DN
CD38 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052 I913 1MP1583--D IC CHIP CONVERTER MP1583DN
CD39 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052 I914 1LM317BD2E IC CHIP REGULATOR LM317BD2T ADJ 1.2V 37V
1.5A D2PAK
CD48 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
I915 TFDS4953-C FET CHIP FDS4953 SO-8 -30V -5A
CD50 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052 REEL
CD52 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052 I916 1G95110T-C IC CHIP REGULATOR G951-10T65U SOT-223
CD61 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052 I921 1LM317BD2E IC CHIP REGULATOR LM317BD2T ADJ 1.2V
37V 1.5A D2PAK
CD62 HCEJK109MC C CHIP ELECTRO MV 50V 1MF 4.0DX5.3H
IA05 1M74HC14TC IC CHIP LOGIC M74HC14TTR
CD65 HCQK270JBA C CHIP CERA 50V CH 27PF J 1608 ICD13 1STV0362-Q IC CHIP CHANNEL STV0362
CD68 HCQK270JBA C CHIP CERA 50V CH 27PF J 1608 DECODER
ID01 1C1GU04GWD IC CHIP INVERTER 74AHC1GU04GW
CD72 HCEJK109MC C CHIP ELECTRO MV 50V 1MF 4.0DX5.3H
ID02 1ST5105--Q IC CHIP MEDIA PROCES- ST5105
CD74 HCELK479MC C CHIP ELECTRO 50V 4.7MF CM 4052 SOR
CD87 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 ID03 11216AJTAQ IC CHIP DDR SDRAM EDD1216AJTA-5B-E
CD88 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 ID05 1HC1G32GWD IC CHIP OR GATE 74AHC1G32GW
35
Service part list (DLT-19W4)
LOC PART CODE PART NAME PART DESCRIPTION LOC PART CODE PART NAME PART DESCRIPTION
ID07 174LVC162D IC CHIP BUFFER 74LVC16244 L961 HFFMMZ400A F CHIP FERRITE BEAD 40 OHM MMZ 2012S
ID08 174L16244D IC CHIP BUFFER 74LVTH16244 L962 HFFMMZ400A F CHIP FERRITE BEAD 40 OHM MMZ 2012S
ID09 1C1GU04GWD IC CHIP INVERTER 74AHC1GU04GW L963 HFFMMZ400A F CHIP FERRITE BEAD 40 OHM MMZ 2012S
ID10 1HEF4053BD IC CHIP LOGIC HEF4053B L964 HFFMMZ400A F CHIP FERRITE BEAD 40 OHM MMZ 2012S
ID11 1HC1G32GWD IC CHIP OR GATE 74AHC1G32GW L965 HFFMMZ400A F CHIP FERRITE BEAD 40 OHM MMZ 2012S
ID12 1HC1G32GWD IC CHIP OR GATE 74AHC1G32GW L966 HFFMMZ400A F CHIP FERRITE BEAD 40 OHM MMZ 2012S
ID13 1C245APW-D IC CHIP TRANSCEIVER 74LVC245APW L967 HFFMMZ400A F CHIP FERRITE BEAD 40 OHM MMZ 2012S
ID14 174LVC162D IC CHIP BUFFER 74LVC16244 L971 HLC479J00A L CHIP COIL 4.7UH MLF2012
L973 HLC479J00A L CHIP COIL 4.7UH MLF2012
ID17 174HC126PD IC CHIP BUFFER 74HC126PW-T
L974 HLC479K03C L CHIP COIL 4.7UH K NLC5650T
ID18 1160ET70NQ IC CHIP FLASH MEMORY M29W160ET70N6T
L975 HFFMMZ400A F CHIP FERRITE BEAD 40 OHM MMZ 2012S
ID511 174HC126PD IC CHIP BUFFER 74HC126PW-T
L976 HFFMMZ400A F CHIP FERRITE BEAD 40 OHM MMZ 2012S
JP401 4859201660 CONN HDMI WF050-21UBR STR.
SHEEL REEL TYPE L977 HFFMMZ400A F CHIP FERRITE BEAD 40 OHM MMZ 2012S
JP502 4859293820 CONN WAFER GT121-31P-TD-A L978 HFFMMZ400A F CHIP FERRITE BEAD 40 OHM MMZ 2012S
31P ST
L979 HFFMMZ400A F CHIP FERRITE BEAD 40 OHM MMZ 2012S
L421 HFFMMZ400A F CHIP FERRITE BEAD 40 OHM MMZ 2012S
L980 HFFMMZ400A F CHIP FERRITE BEAD 40 OHM MMZ 2012S
L431 HFFMMZ400A F CHIP FERRITE BEAD 40 OHM MMZ 2012S
L987 HFFMMZ400A F CHIP FERRITE BEAD 40 OHM MMZ 2012S
L432 HFFMMZ400A F CHIP FERRI ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
