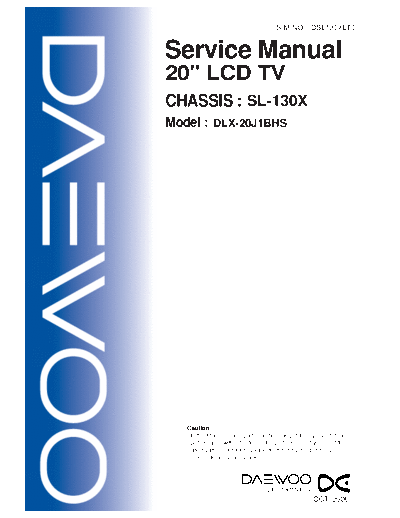

Image preview - the first page of the document
Daewoo+DLX-20J1BHS-SL130X


>> Download Daewoo+DLX-20J1BHS-SL130X documenatation <<

Text preview - extract from the document
                                        S/M NO. : DSL130XEF0


Service Manual
20" LCD TV
CHASSIS : SL-130X
Model :      DLX-20J1BHS




   Caution
   : In this Manual, some parts can be changed for improving. their
     performance without notice in the parts list. So, if you need the
     latest parts information, please refer to PPL(Parts Price List)in
     Service Information Center.




                                                        OCT. 2006
                                   Contents
I. Parts with the exception of MODULE
1. Safety Precaution                           3
2. Product Specification                       4
3. Block Diagram                               5
4. Description of video circuit                8
5. Schematic Diagram                           9
6. PCB Data                                   15
7. Trouble Shooting                           17
8. Service Part List                          25
    8-1 Service Part List                     25
9. Power                                      30
10. Inverter                                  31
11. Exploded View                             33
    11-1 DLX-20J1                             33
SOFTWARE INSTALL & UPGRADE




                                        -2-
1. Safety Precautions

(1) When moving or laying down a LCD Set, at least two people must work together. Avoid any
    impact towards the LCD Set.

(2) Do not leave a broken LCD Set on for a long time. To prevent any further damages, after
    checking the condition of the broken Set, make sure to turn the power (AC) off.

(3) When opening the BACK COVER, you must turn off power (AC) to prevent any electric
    shock.

(4) When loosening screws, check the position and type of the screw. Sort out the screws and
    store them separately for reassembling. Because screws holding PCBs are working as
    electric circuit grounding, make sure to check if any screw is missing when assembling /
    reassembling. Do not leave any screws inside the set.

(5) A LCD Set contains different kinds of connector cables. When connecting or disconnecting
    cables, check the direction and position of the cable beforehand.


(6) Connect/disconnect the connectors slowly with care especially FFC (film) cables and FPC
    cables. Do not connect or disconnect connectors instantaneously with force, and handle
    them carefully for reassembling.


(7) Connectors are designed so that if the number of pins or the direction does not match,
    connectors will not fit. When having problem in plugging the connectors, check their kind,
    position, and direction.




                                              -3-
2. Product Specification




                           -4-
3. Block Diagram




                   -5-
                                                10     9        8         7     6    5        4         3     2    1
                                                                                                                                                                              Block Diagram



                                                                                                                                                                   LCD_ON
                                                                                                                                              15V
      LCD_ON                                                        GND                           GND
                                         5V                                           9V

                                       ON_OFF                                                                                                 I820        I820
                                                                                                                   ON_OFF                   IRF7316     IRF7316
                 I820      I801                            ON_OFF           I801                 I851
               IRF7316   IRF7316                                          IRF7316              APW1172                             15V_SW
                                                                                                                                                                   LG PANEL
                              +5V_SW                                                                    +3V3S_SW                                                   OPTION
        +5V_PANEL                                                    +9V_SW                                                                              I816
                                                                                                                                                       LM317 ADJ
                           U100                    I803                                                                   I852                            12V
               20"AUO                                                                                                                   I807
                         RF TUNER               AP1117E33                   I401                                       KIA78L08F
               PANEL                                                                                                                   BA6161                 +12V_PANEL
                                                                          LA42032             I809                         8V
                                                                                           AP1117E18
                                                      S/B_3V3




-6-
                           I405
                         PI5V330                                                                                             +8V_SW                     20"LG
                                                                                                  +1V8_SW                                     33V_TU
                                                                                                                                                        PANEL
                                                                                  I508                 I503
                                                                                                                         I504           U100
                                                   I502                         DTC34LF              SST39VF
                                                                                                                       TDA9178T       RF TUNER
                                                 24LC32A                           86                   020




                                                                                 I501
                                                                          LOC-1 (TDA15501E)
Block Diagram




                -7-
4.Description of Video Circuit

SL-130X video circuit:

  Process input signals  to produce Output signal
  for LCD panel.(J1/D7 : 640 x 480 , W2 : 1366 x 768)

Introduction for main IC

  4-1. I501(TDA15521E)
     The LCD One Chip 1(LOC 1)series combines the functionsof a Video Signal
     Processor(VSP) together with aFLASH embedded main microcontroller(doing TEXT and
     TV control)and an LCD
     panel controller.In addition the following functions are available:
     -Adaptive digital(4H/2H)PAL/NTSC comb filter
     -Teletext decoder with 10 page text memory
     -Multi-standard stereo decoder




  Microconroller
  -80C51 microcontroller core standard instruction set and timing
  -256k x 8bit program ROM
  -8k x 8bitauxiliary RAM
  -8bit ADC with 4 multiplexed inputs.
  -I2C byte level bus interface




                                              -8-
5. Schematic Diagram




                       -9-
Schematic Diagram




                    -10-
Schematic Diagram




                    -11-
Schematic Diagram




                    -12-
Schematic Diagram




                    -13-
Schematic Diagram




                    -14-
6. PCB Data
TOP




              -15-
PCB Data

BOTTOM




           -16-
7. Trouble Shooting

* Facts you must know at trouble diagnosis or repairing


 (1) The trouble diagnosis and repairing of set means Module .
     In other words, find out which PCB modules are not working and replace them with normal
     PCB modules.

 (2) This TROUBLE SHOOTING list only contains representative and simple PCB trouble
     diagnosis and Module Exchange method. Therefore, if you find Sets which are difficult to
     diagnose or to repair, contact Daewoo Electronics.

 (3) Basic TROUBLE SHOOTING procedure :

     Check Trouble Symptoms      Detach Back Cover      Trouble Diagnosis      Replace broken
     PCB module     Heat-run (for at least 30 minutes, input Test pattern full white)   Adjust
     white balance  Function Check      Repair Complete.

 (4) Required equipments for trouble diagnosis

     - Digital Multi-meter (measure Dc voltage, measure Diode Voltage, Short-Open test)
     - Screwdriver (or electric screwdriver), plastic adjusting tool

 (5) Before assemble/disassemble PCBs, check to see if AC Switch is OFF.

 (6) After Back cover is closed, redo Heat-run for at least one hour by inputting Full white
     pattern.

     Symptoms of LIPS, power, inverter, panel Trouble

    Not even weak discharge (luminescence) shows on screen.
    Discharge (luminescence) on screen is unstable
    Set is producing unusual noise


   Symptoms of VIDEO or JACK PCB Trouble

    Only weak discharge (luminescence) shows on screen, but No Data is on
               screen
    Screen DATA is abnormal
    Particular input signal (Video, etc.) does not operate
    No SOUND
    Remote Control or KEY does not operate




                                              -17-
Trouble Shooting


7-1. When LED doesn't lit.


                         Check start



                                 Y




                     Is the AC power cord             N   Confirm power cord
                     correctly connected?                 connection.




                                 Y



                                                      N
                       Is power S/W ON?                   Confirm Power S/W ON.




                                 Y




                       Is output voltage of           N
                                                          Check the power connection.
                       Power module correct?
                                                          Exchange the power module.
                       (or LIPS)




                                 Y



                      Check the Main PCB.




                                               -18-
Trouble Shooting


7-2. When TV doesn't turn on in red LED.


           Check start



                  Y



                                            N                        Is output voltage of                N          Check the power connection.
      Does TV turn on
                                                                     Power module correct?                          Exchange the Power module.
      pushing the CH key?
                                                                     (or LIPS)




                  Y
                                                                              Y



 Check the connection to IR PCB.
                                                                 Confirm Power S/W ON.
 Check the operation of Remote
 Controller.




7-3. When "white screen".


                                            Check start



                                                    Y




                                        Is P902(TTL) correctly                N
                                                                                             Check the connection
                                        connected?                                           Of Panel




                                                    Y




                                                                              N
                                      Is R751,J301(BOE,AUO)
                                                                                             Check the Main PCB
                                      R752,J302 are normal?




                                                    Y



                                   Check the connector or Main PCB




                                                                       -19-
Trouble Shooting


7-4. When "No picture" in TV mode.


             Check start



                     Y



                                   N
      Does LED turn on in GREEN?       Go to chap 7 - 2




                     Y


                                                                      Confirm AC connection.
                                   N   Is this weak discharge     N   Confirm Power SW ON.
          Does raster appear?          On the screen?                 Check the power,
                                                                      Inverter and panel



                     Y
                                                    Y




           Does auto - tuning                                     N
           Function operate            Is input of YUV normal?
                                                                            Check I504
           normally?                   (I501, A15, B14, B15)




                     Y                              Y




          Tune the channel                                        N
                                       Is input of RGB normal?           Check RA80,81,82
                                       (R203, R207, R211)


                                   N
          Check the tuner
                                                    Y




                                                                  N
                                       Is input of sync normal?              Check I402
                                       (I501, Y1, Y2)




                                                    Y



                                            Check I501




                                          -20-
Trouble Shooting


7-5. When "No picture" in External input mode.


         Check start



                 Y



                                                                        Confirm AC connection.
       Does OSD menu          N                                     N   Confirm Power SW ON.
                                           Is this weak discharge
       Screen appear?                      On the screen?               Check the power,
                                                                        Inverter and panel



                 Y                                                  Y
                                                                               Go to 7 - 4



                              N          Check the
     Is the signal jack
     Correctly connected?                Connection of Jack




                 Y




                              N
       Does input source                 Operate AV device
       operate?




                 Y




       Is input selection     N
                                        Confirm input selection
       In used mode?




                 Y



     Check the main PCB
     and sub - JACK PCB




                                                -21-
Trouble Shooting


7-6. When No Sound in External input mode.


                        Check start



                                Y



                                                N
                   Does Screen appear?                      Go to 7 - 5




                                Y




                                                N    Check the
                   Is the sound input jack
                   Correctly connected?              Connection of sound Jack




                                Y




                   Is the speaker jack          N     Check the
                   Correctly connected?               Connection of speaker




                                Y




                     Is the I601 output         N   Check the AUDIO AMP(I601)
                     Normal?                        And I501




                                Y



                   Exchange speaker or
                   speak cable




                                             -22-
Trouble Shooting


7-7. When Key does not operate.


                      Check start



                              Y




                    Does remote               N
                                                   Check the I501
                    Controller operate?




                              Y




                                              N
                   Is 2th PIN of P504A
                                                  Exchange Key PCB
                   Correctly operate?




                              Y



                Check Key cable and I501




                                           -23-
Trouble Shooting


7-8. When Remote Controller does not operate.


                              Check start



                                      Y



                                                                 N
                        Does input of key operate?                      Check the I501




                                      Y




                            Does remote                          N
                                                                      Check the battery of
                            Controller operate?                       remote controller




                                      Y




                    Whenever push the button of                  N
                    Remote controller, does the 2nd pin              Exchange the Key PCB
                    Of P501A output normal?




                                      Y



                        Check IR cable and I501




Output of 2nd pin of P501A (IR) : PCB for Remote Control EX) Push "PR DOWN" button.




                                                          -24-
8. Service part list

8-1. Service part list
LOC     PART CODE    PART NAME              DESCRIPTION                  REMARK   LOC    PART CODE    PART NAME           DESCRIPTION        REMARK
PA902   4859005960   CABLE FFC         0.50P-50N-100L-T5                          C257   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
V901    485LD12202   LCD PANEL         HT201V01-101(5992)                         C258   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
V902    485AS00600   POWER LIPS        IPB-6015N02                                C259   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
SP01    4858318310   SPEAKER           SP-5090F01C                                C260   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
SP01A   4850703S78   CONNECTOR         YH025-03+YRT205+YRT110+USW=500             C264   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
SP02    4858318310   SPEAKER           SP-5090F01C                                C276   HCQK221JBA   C CHIP CERA   50V CH 220PF J 1608
SP02A   4850703S77   CONNECTOR         YH025-03+YRT205+YRT110+USW=300             C277   HCQK221JBA   C CHIP CERA   50V CH 220PF J 1608
C825    CEXF1C102V   C ELECTRO         16V RSS 1000MF (10X20) TP                  C502   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
C828    CEXF1C102V   C ELECTRO         16V RSS 1000MF (10X20) TP                  C505   HCBH224KBA   C CHIP CERA   25V X7R 0.22MF K 1608
D602    D1N4148---   DIODE             1N4148 (TAPPING)                           C507   HCBH224KBA   C CHIP CERA   25V X7R 0.22MF K 1608
FLT1    5PX4M50C00   FILTER CERA       TPSRA4M50C00-B0 (BULK)                     C509   HCBH224KBA   C CHIP CERA   25V X7R 0.22MF K 1608
I502    124LC32A-P   IC EEPROM         24LC32A-I/P 32K 8 PIN DIP STICK            C511   HCBK102KBA   C CHIP CERA   50V X7R 1000PF K 1608
I601    PTB2SW7724   HEAT SINK ASS`Y   1LA42032E- + 7174300851                    C512   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
00001   1LA42032E-   IC AUDIO AMP      LA42032-E                                  C513   HCBH224KBA   C CHIP CERA   25V X7R 0.22MF K 1608
0000A   4857027724   HEAT SINK         AL EX                                      C514   HCBK102KBA   C CHIP CERA   50V X7R 1000PF K 1608
IC12    1TS0P34838   IC PREAMP         TSOP34838SJ                                C515   HCBH224KBA   C CHIP CERA   25V X7R 0.22MF K 1608
J301    85801060GY   WIRE COPPER       1/0.6 TIN COATING                          C516   HCBH224KBA   C CHIP CERA   25V X7R 0.22MF K 1608
LED1    DSPR39MVW-   LED               SPR-39MVW (DUAL)                           C519   HCBH224KBA   C CHIP CERA   25V X7R 0.22MF K 1608
P103    4859295520   CONN WAFER        4602-02MV2-60-1 PLUG 2P ST                 C522   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
P201    485923202S   CONN WAFER        YW025-07 (STICK)                           C523   HCBK102KBA   C CHIP CERA   50V X7R 1000PF K 1608
P501    4859236220   CONN WAFER        YAW025-05                                  C532   HCBK103KBA   C CHIP CERA   50V X7R 0.01MF K 1608
P501A   4859236220   CONN WAFER        YAW025-05                                  C539   HCBK392KBA   C CHIP CERA   50V X7R 3900PF K 1608
P502    4859231820   CONN WAFER        YW025-05                                   C540   HCBK473KBA   C CHIP CERA   50V X7R 0.047MF K 1608
P504    4859236120   CONN WAFER        YAW025-04                                  C541   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
P504A   4859236120   CONN WAFER        YAW025-04                                  C544   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
P601    4859236020   CONN WAFER        YAW025-03                                  C546   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
P602    4859236020   CONN WAFER        YAW025-03                                  C549   HCBH224KBA   C CHIP CERA   25V X7R 0.22MF K 1608
P701    485923172S   CONN WAFER        YW025-04 (STICK)                           C551   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
P803    4859236720   CONN WAFER        YAW025-10                                  C552   HCBH224KBA   C CHIP CERA   25V X7R 0.22MF K 1608
PA03    4859112750   JACK PIN          DPSE-0375 5PIN STR                         C555   HCBK102KBA   C CHIP CERA   50V X7R 1000PF K 1608
PA04    4859102130   JACK EARPHONE     YSC-1537                                   C556   HCBK102KBA   C CHIP CERA   50V X7R 1000PF K 1608
PA06    4859105340   JACK S-VHS        DSW-10 (STRAIGHT)                          C562   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
PA07    4859112850   JACK PIN          DPSS-0173 3PIN STR                         C564   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
PA09    4859236320   CONN WAFER        YAW025-06                                  C565   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
PA09A   4859236320   CONN WAFER        YAW025-06                                  C566   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
PA501   4850705S26   CONNECTOR         YH025-05+YH025-05+ULW=350                  C568   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
PA502   4850705N39   CONNECTOR         YH025-05+YH025-05+ULW=100                  C570   HCBK102KBA   C CHIP CERA   50V X7R 1000PF K 1608
PA504   4850704N40   CONNECTOR         YH025-04+YH025-04+ULW=350                  C574   HCBH224KBA   C CHIP CERA   25V X7R 0.22MF K 1608
PA803   4850710S32   CONNECTOR         YH025-10+YH025-10+ULW=500                  C575   HCBK102KBA   C CHIP CERA   50V X7R 1000PF K 1608
PAA09   4850706S41   CONNECTOR         YH025-06+YH025-06+ULW=200                  C576   HCBH224KBA   C CHIP CERA   25V X7R 0.22MF K 1608
SW8     5S40101012   SW PUSH           PS-22E06 NL                                C578   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
U100    4859729830   TUNER VARACTOR    TAEA-H071D                                 C579   HCBK102KBA   C CHIP CERA   50V X7R 1000PF K 1608
U101    4850A23740   ANT SHIELD BOX    PAXNF02FA (NTSC)                           C581   HCBH224KBA   C CHIP CERA   25V X7R 0.22MF K 1608
X201    5XJ24R576E   CRYSTAL QUARTZ    HC-49/S 24.576MHZ 30PPM                    C589   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
X501    5XJ24R576E   CRYSTAL QUARTZ    HC-49/S 24.576MHZ 30PPM                    C590   HCQK220JBA   C CHIP CERA   50V CH 22PF J 1608
Z101    5PTSB6221C   FILTER SAW        TSB6221C                                   C592   HCQK220JBA   C CHIP CERA   50V CH 22PF J 1608
C103    HCBK102KBA   C CHIP CERA       50V X7R 1000PF K 1608                      C593   HCQK220JBA   C CHIP CERA   50V CH 22PF J 1608
C107    HCQK470JBA   C CHIP CERA       50V CH 47PF J 1608                         C598   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
C108    HCQK470JBA   C CHIP CERA       50V CH 47PF J 1608                         C599   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
C202    HCBK333KBA   C CHIP CERA       50V X7R 0.033MF K 1608                     C605   HCBK472KBA   C CHIP CERA   50V X7R 4700PF K 1608
C203    HCBK333KBA   C CHIP CERA       50V X7R 0.033MF K 1608                     C607   HCBK472KBA   C CHIP CERA   50V X7R 4700PF K 1608
C206    HCBK333KBA   C CHIP CERA       50V X7R 0.033MF K 1608                     C637   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
C207    HCBK333KBA   C CHIP CERA       50V X7R 0.033MF K 1608                     C638   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
C210    HCBK333KBA   C CHIP CERA       50V X7R 0.033MF K 1608                     C639   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
C211    HCBK333KBA   C CHIP CERA       50V X7R 0.033MF K 1608                     C640   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
C213    HCBK104KBA   C CHIP CERA       50V X7R 0.1MF K 1608                       C701   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
C224    HCBK104KBA   C CHIP CERA       50V X7R 0.1MF K 1608                       C805   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
C226    HCBK104KBA   C CHIP CERA       50V X7R 0.1MF K 1608                       C818   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
C227    HCBK104KBA   C CHIP CERA       50V X7R 0.1MF K 1608                       C820   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
C231    HCBK104KBA   C CHIP CERA       50V X7R 0.1MF K 1608                       C829   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
C233    HCBK104KBA   C CHIP CERA       50V X7R 0.1MF K 1608                       C831   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
C236    HCBK104KBA   C CHIP CERA       50V X7R 0.1MF K 1608                       C833   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
C239    HCBK104KBA   C CHIP CERA       50V X7R 0.1MF K 1608                       C843   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
C243    HCBK104KBA   C CHIP CERA       50V X7R 0.1MF K 1608                       C848   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
C244    HCBK104KBA   C CHIP CERA       50V X7R 0.1MF K 1608                       C849   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
C246    HCBK104KBA   C CHIP CERA       50V X7R 0.1MF K 1608                       C862   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
C247    HCBK104KBA   C CHIP CERA       50V X7R 0.1MF K 1608                       C865   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608
C251    HCBK104KBA   C CHIP CERA       50V X7R 0.1MF K 1608                       C891   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608

                                                                              -25-
Service part list

LOC    PART CODE    PART NAME           DESCRIPTION      REMARK   LOC     PART CODE    PART NAME         DESCRIPTION           REMARK
C904   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608            R605    HRFT242JBA   R CHIP      1/10 2.4K OHM J 1608
C908   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608            R606    HRFT333JBA   R CHIP      1/10 33K OHM J 1608
C910   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608            R607    HRFT103JBA   R CHIP      1/10 10K OHM J 1608
C911   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608            R608    HRFT153JBA   R CHIP      1/10 15K OHM J 1608
C913   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608            R609    HRFT222JBA   R CHIP      1/10 2.2K OHM J 1608
C914   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608            R610    HRFT242JBA   R CHIP      1/10 2.4K OHM J 1608
C918   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608            R642    HRFT479JBA   R CHIP      1/10 4.7 OHM J 1608
CA16   HCQK271JBA   C CHIP CERA   50V CH 270PF J 1608             R643    HRFT479JBA   R CHIP      1/10 4.7 OHM J 1608
CA23   HCQK331JBA   C CHIP CERA   50V CH 330PF J 1608             R644    HRFT479JBA   R CHIP      1/10 4.7 OHM J 1608
CA24   HCQK331JBA   C CHIP CERA   50V CH 330PF J 1608             R645    HRFT479JBA   R CHIP      1/10 4.7 OHM J 1608
CA26   HCQK271JBA   C CHIP CERA   50V CH 270PF J 1608             R751    HRFT000-BA   R CHIP      1/10 0 OHM 1608
CA31   HCQK271JBA   C CHIP CERA   50V CH 270PF J 1608             R784    HRFT101JBA   R CHIP      1/10 100 OHM J 1608
CA36   HCBK104KBA   C CHIP CERA   50V X7R 0.1MF K 1608            R785    HRFT101JBA   R CHIP      1/10 100 OHM J 1608
R106   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             R786    HRFT101JBA   R CHIP      1/10 100 OHM J 1608
R107   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             R788    HRFT101JBA   R CHIP      1/10 100 OHM J 1608
R134   HRFT000-BA   R CHIP        1/10 0 OHM 1608                 R801    HRFT122JBA   R CHIP      1/10 1.2K OHM J 1608
R208   HRFT123JBA   R CHIP        1/10 12K OHM J 1608             R810    HRFT332JBA   R CHIP      1/10 3.3K OHM J 1608
R249   HRFT472JBA   R CHIP        1/10 4.7K OHM J 1608            R811    HRFT123JBA   R CHIP      1/10 12K OHM J 1608
R257   HRFT103JBA   R CHIP        1/10 10K OHM J 1608             R843    HRFT332JBA   R CHIP      1/10 3.3K OHM J 1608
R258   HRFT000-BA   R CHIP        1/10 0 OHM 1608                 R844    HRFT123JBA   R CHIP      1/10 12K OHM J 1608
R270   HRFT103JBA   R CHIP        1/10 10K OHM J 1608             R851    HRFT332JBA   R CHIP      1/10 3.3K OHM J 1608
R271   HRFT103JBA   R CHIP        1/10 10K OHM J 1608             R852    HRFT123JBA   R CHIP      1/10 12K OHM J 1608
R290   HRFT332JBA   R CHIP        1/10 3.3K OHM J 1608            R853    HRFT103JBA   R CHIP      1/10 10K OHM J 1608
R291   HRFT332JBA   R CHIP        1/10 3.3K OHM J 1608            R860    HRFT332JBA   R CHIP      1/10 3.3K OHM J 1608
R501   HRFT332JBA   R CHIP        1/10 3.3K OHM J 1608            R861    HRFT123JBA   R CHIP      1/10 12K OHM J 1608
R502   HRFT332JBA   R CHIP        1/10 3.3K OHM J 1608            R863    HRFT103JBA   R CHIP      1/10 10K OHM J 1608
R503   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             R912    HRFT101JBA   R CHIP      1/10 100 OHM J 1608
R510   HRFT103JBA   R CHIP        1/10 10K OHM J 1608             R913    HRFT103JBA   R CHIP      1/10 10K OHM J 1608
R511   HRFT102JBA   R CHIP        1/10 1K OHM J 1608              R915    HRFT103JBA   R CHIP      1/10 10K OHM J 1608
R517   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             R918    HRFT101JBA   R CHIP      1/10 100 OHM J 1608
R537   HRFT183JBA   R CHIP        1/10 18K OHM J 1608             R921    HRFT101JBA   R CHIP      1/10 100 OHM J 1608
R546   HRFT681JBA   R CHIP        1/10 680 OHM J 1608             R925    HRFT101JBA   R CHIP      1/10 100 OHM J 1608
R547   HRFT104JBA   R CHIP        1/10 100K OHM J 1608            R928    HRFT101JBA   R CHIP      1/10 100 OHM J 1608
R548   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             RA32    HRFT103JBA   R CHIP      1/10 10K OHM J 1608
R549   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             RA58    HRFT103JBA   R CHIP      1/10 10K OHM J 1608
R550   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             RA62    HRFT103JBA   R CHIP      1/10 10K OHM J 1608
R551   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             RA63    HRFT224JBA   R CHIP      1/10 220K OHM J 1608
R557   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             RA64    HRFT224JBA   R CHIP      1/10 220K OHM J 1608
R558   HRFT152JBA   R CHIP        1/10 1.5K OHM J 1608            RA68    HRFT750JBA   R CHIP      1/10 75 OHM J 1608
R562   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             RA74    HRFT102JBA   R CHIP      1/10 1K OHM J 1608
R563   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             RA75    HRFT102JBA   R CHIP      1/10 1K OHM J 1608
R564   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             RA80    HRFT000-BA   R CHIP      1/10 0 OHM 1608
R571   HRFT103JBA   R CHIP        1/10 10K OHM J 1608             RA800   HRFT000-BA   R CHIP      1/10 0 OHM 1608
R572   HRFT103JBA   R CHIP        1/10 10K OHM J 1608             RA801   HRFT000-BA   R CHIP      1/10 0 OHM 1608
R573   HRFT103JBA   R CHIP        1/10 10K OHM J 1608             RA81    HRFT000-BA   R CHIP      1/10 0 OHM 1608
R575   HRFT103JBA   R CHIP        1/10 10K OHM J 1608             RA82    HRFT000-BA   R CHIP      1/10 0 OHM 1608
R578   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             RA94    HRFT000-BA   R CHIP      1/10 0 OHM 1608
R579   HRFT472JBA   R CHIP        1/10 4.7K OHM J 1608            RA97    HRFT000-BA   R CHIP      1/10 0 OHM 1608
R580   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             RA98    HRFT000-BA   R CHIP      1/10 0 OHM 1608
R581   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             C102    CEXF1E470V   C ELECTRO   RSS 25V 47MF 5X11 P5.0 TA
R582   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             C121    CEXF1H100V   C ELECTRO   50V RSS 10MF (5X11) TP
R583   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             C145    CEXF1E101C   C ELECTRO   25V RUS 100MF (6.3X11) TP
R584   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             C205    CEXF1C220A   C ELECTRO   16V RSM 22MF (5X7)
R585   HRFT000-BA   R CHIP        1/10 0 OHM 1608                 C230    CEXF1C220A   C ELECTRO   16V RSM 22MF (5X7)
R586   HRFT000-BA   R CHIP        1/10 0 OHM 1608                 C232    CEXF1C220A   C ELECTRO   16V RSM 22MF (5X7)
R587   HRFT000-BA   R CHIP        1/10 0 OHM 1608                 C238    CEXF1C220A   C ELECTRO   16V RSM 22MF (5X7)
R588   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             C249    CEXF1C220A   C ELECTRO   16V RSM 22MF (5X7)
R589   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             C261    CEXF1C220A   C ELECTRO   16V RSM 22MF (5X7)
R590   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             C501    CEXF1C100A   C ELECTRO   16V RSM 10MF 5X7
R593   HRFT102JBA   R CHIP        1/10 1K OHM J 1608              C503    CEXF1C100A   C ELECTRO   16V RSM 10MF 5X7
R594   HRFT181JBA   R CHIP        1/10 180 OHM J 1608             C508    CEXF1C470A   C ELECTRO   16V RSM 47MF (5X7) TP
R595   HRFT331JBA   R CHIP        1/10 330 OHM J 1608             C510    CEXF1C100A   C ELECTRO   16V RSM 10MF 5X7
R596   HRFT471JBA   R CHIP        1/10 470 OHM J 1608             C517    CEXF1C101A   C ELECTRO   16V RSM 100MF 6X7 TP
R597   HRFT102JBA   R CHIP        1/10 1K OHM J 1608              C520    CEXF1C100V   C ELECTRO   16V RSS 10MF 4X7
R598   HRFT472JBA   R CHIP        1/10 4.7K OHM J 1608            C524    CMXM2A682J   C MYLAR     100V 6800PF J (TP)
R599   HRFT101JBA   R CHIP        1/10 100 OHM J 1608             C525    CEXF1H109A   C ELECTRO   50V RSM 1MF (4X7) TP
R603   HRFT333JBA   R CHIP        1/10 33K OHM J 1608             C527    CEXF1C100V   C ELECTRO   16V RSS 10MF 4X7
R604   HRFT223JBA   R CHIP        1/10 22K OHM J 1608             C529    CMXL1J334J   C MYLAR     63V MEU 0.33MF J (TP)




                                                              -26-
Service part list

LOC     PART CODE    PART NAME            DESCRIPTION           REMARK   LOC    PART CODE    PART NAME                   DESCRIPTION        REMARK
C534    CEXF1H229A   C ELECTRO      50V RSM 2.2MF (4X7) TP               A001   4859817592   PCB MAIN              234X189 C4V
C542    CEXF1C100A   C ELECTRO      16V RSM 10MF 5X7                     C201   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
C543    CEXF1H229A   C ELECTRO      50V RSM 2.2MF (4X7) TP               C204   HCQK100JBA   C CHIP CERA           50V CH 10PF J 1608
C545    CEXF1H229A   C ELECTRO      50V RSM 2.2MF (4X7) TP               C208   HCQK100JBA   C CHIP CERA           50V CH 10PF J 1608
C547    CEXF1C100A   C ELECTRO      16V RSM 10MF 5X7                     C209   HCBK223KBA   C CHIP CERA           50V X7R 0.022MF K 1608
C548    CEXF1C100A   C ELECTRO      16V RSM 10MF 5X7                     C212   HCQK100JBA   C CHIP CERA           50V CH 10PF J 1608
C558    CEXF1C101A   C ELECTRO      16V RSM 100MF 6X7 TP                 C221   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
C559    CEXF1C101A   C ELECTRO      16V RSM 100MF 6X7 TP                 C237   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
C563    CEXF1C101A   C ELECTRO      16V RSM 100MF 6X7 TP                 C240   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
C567    CEXF1C100A   C ELECTRO      16V RSM 10MF 5X7                     C242   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
C569    CEXF1C100V   C ELECTRO      16V RSS 10MF 4X7                     C245   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
C577    CEXF1C101A   C ELECTRO      16V RSM 100MF 6X7 TP                 C254   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
C583    CEXF1C470A   C ELECTRO      16V RSM 47MF (5X7) TP                C256   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
C597    CEXF1C101A   C ELECTRO      16V RSM 100MF 6X7 TP                 C272   HCQK220JBA   C CHIP CERA           50V CH 22PF J 1608
C601    CEXF1C100V   C ELECTRO      16V RSS 10MF 4X7                     C273   HCQK220JBA   C CHIP CERA           50V CH 22PF J 1608
C602    CEXE1C471E   C ELECTRO      16V RM 470MF (8X11.5) TP             C504   HCBK102KBA   C CHIP CERA           50V X7R 1000PF K 1608
C603    CEXF1C221V   C ELECTRO      16V RSS 220MF (8X11.5) TP            C506   HCQK479CBA   C CHIP CERA           50V CH 4.7PF C 1608
C604    CEXF1H109V   C ELECTRO      50V RSS 1MF (5X11) TP                C518   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
C606    CEXF1E470V   C ELECTRO      RSS 25V 47MF 5X11 P5.0 TA            C521   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
C608    CEXF1H109V   C ELECTRO      50V RSS 1MF (5X11) TP                C526   HCBH224KBA   C CHIP CERA           25V X7R 0.22MF K 1608
C631    CEXE1C471E   C ELECTRO      16V RM 470MF (8X11.5) TP             C528   HCBK223KBA   C CHIP CERA           50V X7R 0.022MF K 1608
C703    CEXF1C100V   C ELECTRO      16V RSS 10MF 4X7                     C535   HCBH224KBA   C CHIP CERA           25V X7R 0.22MF K 1608
C802    CEXF1H479A   C ELECTRO      50V RSM 4.7MF 4X7                    C536   HCBH224KBA   C CHIP CERA           25V X7R 0.22MF K 1608
C815    CEXF1H479A   C ELECTRO      50V RSM 4.7MF 4X7                    C550   HCBK103KBA   C CHIP CERA           50V X7R 0.01MF K 1608
C821    CEXE1C471E   C ELECTRO      16V RM 470MF (8X11.5) TP             C553   HCBH224KBA   C CHIP CERA           25V X7R 0.22MF K 1608
C826    CEXE1C471E   C ELECTRO      16V RM 470MF (8X11.5) TP             C554   HCBH224KBA   C CHIP CERA           25V X7R 0.22MF K 1608
C827    CEXF1C100V   C ELECTRO      16V RSS 10MF 4X7                     C557   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
C830    CEXF1H330V   C ELECTRO      50V RSS 33MF (6.3X11) TP             C571   HCQK470JBA   C CHIP CERA           50V CH 47PF J 1608
C832    CEXF1E101V   C ELECTRO      25V RSS 100MF (6.3X11) TP            C572   HCQK470JBA   C CHIP CERA           50V CH 47PF J 1608
C841    CEXF1H479A   C ELECTRO      50V RSM 4.7MF 4X7                    C573   HCQK470JBA   C CHIP CERA           50V CH 47PF J 1608
C842    CEXF1H479A   C ELECTRO      50V RSM 4.7MF 4X7                    C591   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
C844    CEXF1H220V   C ELECTRO      50V RSS 22MF (5X11) TP               C594   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
C850    CEXF1C100V   C ELECTRO      16V RSS 10MF 4X7                     C595   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
C851    CEXF1H479A   C ELECTRO      50V RSM 4.7MF 4X7                    C596   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
C860    CEXF1H479A   C ELECTRO      50V RSM 4.7MF 4X7                    C702   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
C861    CEXE1C471E   C ELECTRO      16V RM 470MF (8X11.5) TP             C704   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
C880    CEXF1C220A   C ELECTRO      16V RSM 22MF (5X7)                   C804   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
C881    CEXE1C471E   C ELECTRO      16V RM 470MF (8X11.5) TP             C812   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
C890    CEXF1H479A   C ELECTRO      50V RSM 4.7MF 4X7                    C845   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
C903    CEXF1C100V   C ELECTRO      16V RSS 10MF 4X7                     C882   HCBK222KBA   C CHIP CERA           50V X7R 2200PF K 1608
C905    CEXF1C100V   C ELECTRO      16V RSS 10MF 4X7                     C883   HCQK101JBA   C CHIP CERA           50V CH 100PF J 1608
C909    CEXF1C100V   C ELECTRO      16V RSS 10MF 4X7                     C884   HCBK103KBA   C CHIP CERA           50V X7R 0.01MF K 1608
C917    CEXF1E470V   C ELECTRO      RSS 25V 47MF 5X11 P5.0 TA            CA01   HCQK120JBA   C CHIP CERA           50V CH 12PF J 1608
CA04    CEXF1C100V   C ELECTRO      16V RSS 10MF 4X7                     CA02   HCQK120JBA   C CHIP CERA           50V CH 12PF J 1608
CA05    CEXF1C100V   C ELECTRO      16V RSS 10MF 4X7                     CA03   HCQK120JBA   C CHIP CERA           50V CH 12PF J 1608
CA06    CEXF1C100V   C ELECTRO      16V RSS 10MF 4X7                     CA10   HCQK330JBA   C CHIP CERA           50V CH 33PF J 1608
CA25    CEXF1C101A   C ELECTRO      16V RSM 100MF 6X7 TP                 CA12   HCQK330JBA   C CHIP CERA           50V CH 33PF J 1608
CA30    CEXF1C101A   C ELECTRO      16V RSM 100MF 6X7 TP                 CA14   HCQK330JBA   C CHIP CERA           50V CH 33PF J 1608
CA60    CEXF1H479A   C ELECTRO      50V RSM 4.7MF 4X7                    CA20   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
CA61    CEXF1H479A   C ELECTRO      50V RSM 4.7MF 4X7                    CA21   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
CA67    CEXF1C101A   C ELECTRO      16V RSM 100MF 6X7 TP                 CA22   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
L502    5CPX150J--   COIL PEAKING   15UH J (RADIAL)                      CA29   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
L601    58C0000116   COIL BEAD      HC-3550R                             CA40   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
LA03    5PXF1B471M   FILTER EMI     CFI 06 B 1H 470PF                    CA44   HCBK471KBA   C CHIP CERA           50V X7R 470PF K 1608
LA04    5PXF1B471M   FILTER EMI     CFI 06 B 1H 470PF                    CA49   HCBK471KBA   C CHIP CERA           50V X7R 470PF K 1608
LA32    5PXF1B471M   FILTER EMI     CFI 06 B 1H 470PF                    CA50   HCBK471KBA   C CHIP CERA           50V X7R 470PF K 1608
LA33    5PXF1B471M   FILTER EMI     CFI 06 B 1H 470PF                    CA51   HCBK471KBA   C CHIP CERA           50V X7R 470PF K 1608
LA41    5PXF1B471M   FILTER EMI     CFI 06 B 1H 470PF                    CA98   HCBK104KBA   C CHIP CERA           50V X7R 0.1MF K 1608
LA42    5PXF1B471M   FILTER EMI     CFI 06 B 1H 470PF                    D805   DBAV70---B   DIODE CHIP            BAV70
Q813    T2SA1980Y-   TR             2SA1980(N)Y                          D850   DM2FM3---C   DIODE CHIP SCHOTTKY   M2FM3 M2F TYPE
Q814    T2SC5343Y-   TR             2SC5343(N)Y                          DA01   DZ02W5R6VA   DIODE CHIP ZENER      Z02W5.6V
Q815    T2SA1980Y-   TR             2SA1980(N)Y                          DA02   DZ02W5R6VA   DIODE CHIP ZENER      Z02W5.6V
Q816    T2SC5343Y-   TR             2SC5343(N)Y                          DA03   DZ02W5R6VA   DIODE CHIP ZENER      Z02W5.6V
SW701   5S50101Z90   SW TACT        THVV502GDA                           DA07   DZ02W5R6VA   DIODE CHIP ZENER      Z02W5.6V
SW702   5S50101Z90   SW TACT        THVV502GDA                           DA08   DZ02W5R6VA   DIODE CHIP ZENER      Z02W5.6V
SW703   5S50101Z90   SW TACT        THVV502GDA                           DA41   DZ02W5R6VA   DIODE CHIP ZENER      Z02W5.6V
SW704   5S50101Z90   SW TACT        THVV502GDA                           DA42   DZ02W5R6VA   DIODE CHIP ZENER      Z02W5.6V
SW705   5S50101Z90   SW TACT        THVV502GDA                           DA43   DZ02W5R6VA   DIODE CHIP ZENER      Z02W5.6V




                                                                     -27-
Service part list

LOC    PART CODE    PART NAME                          DESCRIPTION                  REMARK   LOC    PART CODE    PART NAME         DESCRIPTION      REMARK
DA44   DZ02W5R6VA   DIODE CHIP ZENER              Z02W5.6V                                   Q802   T2SC2412KB   TR CHIP     2SC2412K-T146-BR
DA45   DZ02W5R6VA   DIODE CHIP ZENER              Z02W5.6V                                   Q804   T2SC2412KB   TR CHIP     2SC2412K-T146-BR
I403   1P15V330-D   IC CHIP VIDEO SWITCH          PI5V330                                    Q805   T2SC2412KB   TR CHIP     2SC2412K-T146-BR
I501   1N1FC00AAQ   IC CHIP MULTIMEDIA            TDA15511E N1F C0 0AA                       Q820   T2SC2412KB   TR CHIP     2SC2412K-T146-BR
I503   129LV040AQ   IC CHIP FLASH MEMORY          EN29LV040A-70SCP                           Q850   T2SC2412KB   TR CHIP     2SC2412K-T146-BR
I504   1TDA9178TE   IC CHIP PICTURE IMPROVEMENT   TDA9178TE                                  QA01   T2SC2412KB   TR CHIP     2SC2412K-T146-BR
I508   1DTC34LF86   IC CHIP RECEIVER              DTC34LF86A                                 QA02   T2SC2412KB   TR CHIP     2SC2412K-T146-BR
I801   TFDS4953-C   FET CHIP                      FDS4953 SO-8 -30V -5A REEL                 QA03   T2SC2412KB   TR CHIP     2SC2412K-T146-BR
I803   1AP117E33C   IC CHIP REGULATOR             AP1117E33A 3.3V SOT-223                    QA04   T2SC2412KB   TR CHIP     2SC2412K-T146-BR
I807   1BA6161F-C   IC CHIP SW REG                BA6161F 30~35V 100KHZ SOP8 REEL            QA08   T2SC2412KB   TR CHIP     2SC2412K-T146-BR
I809   1S111718QC   IC CHIP REGULATOR             S1117-18Q 1.8V SOT-223                     QA21   T2SC2412KB   TR CHIP     2SC2412K-T146-BR
I820   TFDS4953-C   FET CHIP                      FDS4953 SO-8 -30V -5A REEL                 R103   HRFT393JBA   R CHIP      1/10 39K OHM J 1608
I851   1APW1172-D   IC CHIP DC-DC CONVERTER       APW1172                                    R104   HRFT683JBA   R CHIP      1/10 68K OHM J 1608
I852   1K1A78L08C   IC CHIP REGULATOR             KIA78L08F                                  R105   HRFT103JBA   R CHIP      1/10 10K OHM J 1608
L101   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R135   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
L203   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R140   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
L204   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R141   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
L205   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R143   HRFT102JBA   R CHIP      1/10 1K OHM J 1608
L206   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R203   HRFT100JBA   R CHIP      1/10 10 OHM J 1608
L207   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R204   HRFT470JBA   R CHIP      1/10 47 OHM J 1608
L208   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R206   HRFT470JBA   R CHIP      1/10 47 OHM J 1608
L209   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R207   HRFT100JBA   R CHIP      1/10 10 OHM J 1608
L210   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R211   HRFT100JBA   R CHIP      1/10 10 OHM J 1608
L213   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R212   HRFT470JBA   R CHIP      1/10 47 OHM J 1608
L214   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R247   HRFT472JBA   R CHIP      1/10 4.7K OHM J 1608
L501   HLC100K02A   L CHIP COIL                   10UH MLF 2012                              R248   HRFT472JBA   R CHIP      1/10 4.7K OHM J 1608
L505   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R250   HRFT472JBA   R CHIP      1/10 4.7K OHM J 1608
L506   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R251   HRFT472JBA   R CHIP      1/10 4.7K OHM J 1608
L507   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R253   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
L508   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R254   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
L509   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R255   HRFT000-BA   R CHIP      1/10 0 OHM 1608
L510   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R296   HRFT000-BA   R CHIP      1/10 0 OHM 1608
L512   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R297   HRFT000-BA   R CHIP      1/10 0 OHM 1608
L513   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R298   HRFT000-BA   R CHIP      1/10 0 OHM 1608
L514   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R302   HRFT224JBA   R CHIP      1/10 220K OHM J 1608
L515   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R303   HRFT224JBA   R CHIP      1/10 220K OHM J 1608
L516   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R33    HRFT101JBA   R CHIP      1/10 100 OHM J 1608
L517   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R34    HRFT101JBA   R CHIP      1/10 100 OHM J 1608
L518   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R422   HRFT103JBA   R CHIP      1/10 10K OHM J 1608
L519   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R504   HRFT152JBA   R CHIP      1/10 1.5K OHM J 1608
L523   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R505   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
L531   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R507   HRFT000-BA   R CHIP      1/10 0 OHM 1608
L806   HLC472M01D   L CHIP COIL                   4.7MH M SLF7045                            R509   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
L807   HLC100K02A   L CHIP COIL                   10UH MLF 2012                              R514   HRFT100JBA   R CHIP      1/10 10 OHM J 1608
L850   HLC100K01E   L CHIP COIL                   10UH K 120120                              R515   HRFT153JBA   R CHIP      1/10 15K OHM J 1608
L851   HLC479K03C   L CHIP COIL                   4.7UH K NLC5650T                           R516   HRFT153JBA   R CHIP      1/10 15K OHM J 1608
L902   HFF600C01A   F CHIP FERRITE BEAD           60 OHM PBY 2012                            R518   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
L903   HFF600C01A   F CHIP FERRITE BEAD           60 OHM PBY 2012                            R519   HRFT750JBA   R CHIP      1/10 75 OHM J 1608
L904   HFF600C01A   F CHIP FERRITE BEAD           60 OHM PBY 2012                            R529   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
L905   HFF600C01A   F CHIP FERRITE BEAD           60 OHM PBY 2012                            R530   HRFT332JBA   R CHIP      1/10 3.3K OHM J 1608
L906   HFF600C01A   F CHIP FERRITE BEAD           60 OHM PBY 2012                            R532   HRFT472JBA   R CHIP      1/10 4.7K OHM J 1608
L920   HFRMZA600A   F CHIP BEAD ARRARY            60 OHM MZA 3216Y                           R533   HRFT472JBA   R CHIP      1/10 4.7K OHM J 1608
L921   HFRMZA600A   F CHIP BEAD ARRARY            60 OHM MZA 3216Y                           R534   HRFT221JBA   R CHIP      1/10 220 OHM J 1608
L922   HFRMZA600A   F CHIP BEAD ARRARY            60 OHM MZA 3216Y                           R535   HRFT221JBA   R CHIP      1/10 220 OHM J 1608
L923   HFRMZA600A   F CHIP BEAD ARRARY            60 OHM MZA 3216Y                           R538   HRFT473JBA   R CHIP      1/10 47K OHM J 1608
L924   HFRMZA600A   F CHIP BEAD ARRARY            60 OHM MZA 3216Y                           R540   HRFT100JBA   R CHIP      1/10 10 OHM J 1608
L925   HFRMZA600A   F CHIP BEAD ARRARY            60 OHM MZA 3216Y                           R541   HRFT393JBA   R CHIP      1/10 39K OHM J 1608
LA23   HFF102C00A   F CHIP FERRITE BEAD           1000 OHM PBY 2012                          R552   HRFT103JBA   R CHIP      1/10 10K OHM J 1608
LA43   HLC100K02A   L CHIP COIL                   10UH MLF 2012                              R553   HRFT103JBA   R CHIP      1/10 10K OHM J 1608
LA44   HLC100K02A   L CHIP COIL                   10UH MLF 2012                              R554   HRFT103JBA   R CHIP      1/10 10K OHM J 1608
P902   4859297320   CONN WAFER                    05002HR-50A01(G)                           R555   HRFT103JBA   R CHIP      1/10 10K OHM J 1608
Q506   T2SC2412KB   TR CHIP                       2SC2412K-T146-BR                           R556   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
Q507   T2SC2412KB   TR CHIP                       2SC2412K-T146-BR                           R559   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
Q511   T2SA1037KB   TR CHIP                       2SA1037AKT146-R                            R560   HRFT222JBA   R CHIP      1/10 2.2K OHM J 1608
Q512   T2SC2412KB   TR CHIP                       2SC2412K-T146-BR                           R561   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
Q602   T2SA1037KB   TR CHIP                       2SA1037AKT146-R                            R565   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
Q701   T2SC2412KB   TR CHIP                       2SC2412K-T146-BR                           R566   HRFT103JBA   R CHIP      1/10 10K OHM J 1608
Q702   T2SC2412KB   TR CHIP                       2SC2412K-T146-BR                           R567   HRFT103JBA   R CHIP      1/10 10K OHM J 1608




                                                                                         -28-
Service part list

LOC    PART CODE    PART NAME         DESCRIPTION      REMARK
R568   HRFT103JBA   R CHIP      1/10 10K OHM J 1608
R569   HRFT103JBA   R CHIP      1/10 10K OHM J 1608
R574   HRFT103JBA   R CHIP      1/10 10K OHM J 1608
R577   HRFT273JBA   R CHIP      1/10 27K OHM J 1608
R591   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
R592   HRFT102JBA   R CHIP      1/10 1K OHM J 1608
R704   HRFT100JBA   R CHIP      1/10 10 OHM J 1608
R705   HRFT223JBA   R CHIP      1/10 22K OHM J 1608
R706   HRFT102JBA   R CHIP      1/10 1K OHM J 1608
R708   HRFT104JBA   R CHIP      1/10 100K OHM J 1608
R709   HRFT100JBA   R CHIP      1/10 10 OHM J 1608
R710   HRFT202JBA   R CHIP      1/10 2K OHM J 1608
R712   HRFT102JBA   R CHIP      1/10 1K OHM J 1608
R715   HRFT472JBA   R CHIP      1/10 4.7K OHM J 1608
R720   HRFT122JBA   R CHIP      1/10 1.2K OHM J 1608
R721   HRFT181JBA   R CHIP      1/10 180 OHM J 1608
R722   HRFT241JBA   R CHIP      1/10 240 OHM J 1608
R723   HRFT331JBA   R CHIP      1/10 330 OHM J 1608
R724   HRFT471JBA   R CHIP      1/10 470 OHM J 1608
R725   HRFT151JBA   R CHIP      1/10 150 OHM J 1608
R726   HRFT681JBA   R CHIP      1/10 680 OHM J 1608
R787   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
R803   HRFT332JBA   R CHIP      1/10 3.3K OHM J 1608
R804   HRFT123JBA   R CHIP      1/10 12K OHM J 1608
R805   HRFT103JBA   R CHIP      1/10 10K OHM J 1608
R807   HRFT103JBA   R CHIP      1/10 10K OHM J 1608
R812   HRFT473JBA   R CHIP      1/10 47K OHM J 1608
R813   HRFT473JBA   R CHIP      1/10 47K OHM J 1608
R814   HRFT472JBA   R CHIP      1/10 4.7K OHM J 1608
R815   HRFT472JBA   R CHIP      1/10 4.7K OHM J 1608
R845   HRFT100JBA   R CHIP      1/10 10 OHM J 1608
R846   HRFT103JBA   R CHIP      1/10 10K OHM J 1608
R880   HRFT362FBA   R CHIP      1/10 3.6K OHM F 1608
R881   HRFT202FBA   R CHIP      1/10 2K OHM F 1608
R885   HRFT512JBA   R CHIP      1/10 5.1K OHM J 1608
R931   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
R932   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
R933   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
R934   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
RA02   HRFT750JBA   R CHIP      1/10 75 OHM J 1608
RA03   HRFT750JBA   R CHIP      1/10 75 OHM J 1608
RA04   HRFT750JBA   R CHIP      1/10 75 OHM J 1608
RA05   HRFT472JBA   R CHIP      1/10 4.7K OHM J 1608
RA06   HRFT103JBA   R CHIP      1/10 10K OHM J 1608
RA07   HRFT472JBA   R CHIP      1/10 4.7K OHM J 1608
RA08   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
RA09   HRFT103JBA   R CHIP      1/10 10K OHM J 1608
RA10   HRFT103JBA   R CHIP      1/10 10K OHM J 1608
RA11   HRFT472JBA   R CHIP      1/10 4.7K OHM J 1608
RA12   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
RA21   HRFT750JBA   R CHIP      1/10 75 OHM J 1608
RA54   HRFT750JBA   R CHIP      1/10 75 OHM J 1608
RA55   HRFT131JBA   R CHIP      1/10 130 OHM J 1608
RA56   HRFT472JBA   R CHIP      1/10 4.7K OHM J 1608
RA57   HRFT101JBA   R CHIP      1/10 100 OHM J 1608
RA59   HRFT750JBA   R CHIP      1/10 75 OHM J 1608
RA60   HRFT131JBA   R CHIP      1/10 130 OHM J 1608
RA61   HRFT472JBA   R CHIP      1/10 4.7K OHM J 1608
RA72   HRFT750JBA   R CHIP      1/10 75 OHM J 1608
RA73   HRFT472JBA   R CHIP      1/10 4.7K OHM J 1608
RA76   HRFT750JBA   R CHIP      1/10 75 OHM J 1608
RA77   HRFT131JBA   R CHIP      1/10 130 OHM J 1608
RA78   HRFT750JBA   R CHIP      1/10 75 OHM J 1608
RA79   HRFT750JBA   R CHIP      1/10 75 OHM J 1608




                                                            -29-
9. Power

9-1. IPB-6015N01/02( LIPS for DLX-20J1)

   Input Requirements.
 Input Voltage Range        Voltage Range:AC180V to 270V Normal Voltage:AC 240V
 Frequency Range            Frequency Range:47 To 63Hz         Normal Frequency:50 To 60Hz
 Input Current                 0.35 Arms at 240 Vac input
 Inrush Current             240V 30A peak
 Earth Leakage Current      3.5mA MAX(250AC)
 Hi-Pot Test                Primary to GND:3000VAC for 1 minute
 Cutoff Current 10mA        3.6KVAC for 3 seconds (mass production)
                            Insulation resistance shall be more then 4M at 500Vdc
 Insulation Resistance
                            between primary Live Neutral line and secondary.
 Input AC surge             The power supply withstand 300Vrms input for 10 seconds.
 Primary inlet F.G to secondary GND      25A for 3second 80m MAX



   Output Requirements
           Output        Minimum          Maximum            Output Current
 Board                                                                            Condition
           Voltage       output voltage   output voltage   MIN    NOR MAX
           +15Vdc        +14.0Vdc         +16.5Vdc         0A       2A       2A
           +9Vdc         +7.75Vdc         +9.8Vdc          0A       0.5A     1A
           +5Vdc         +5.00Vdc         +5.5Vdc          130mA 0.5A        1A
                         This is the voltage for a signal.
 DEP                     When attaching the product which is by the set,
           +10V          voltage became +8.5Vdc~+11.00Vdc.
                           When the product does not attach from the set,
                           +10V outputs are identical from 'output +15Vdc'
          LAMP
          VOLTAGE        600Vdc           880Vdc           4.0mA    5.5mA 7.5mA
          (LPL 700V)




                                              -30-
10. Inverter

10-1. Feature

      - Drive 6 lamps with one module
      - Norminal current 6.5mArms for each lamp
      - 21.6~26.4V input voltage operation
      - Automatically balancing of lamp current
      - Long lamp life with soft start
      - Protection against lamp open or failure
      - Built-in fuse
      - Low EMI and spurious noise


10-2. Recommended operating conditions.

                                                          Recommendation
                Parameter                  Symbol                                   Units
                                                        Min    R.C.     Max
 Input supply voltage                      VIN          21.6    24.0         26.4   V
 Full bright lamp current                  IO(MAX)      4.0     6.5          7.5    mArms
 Brightness control voltage range          VBRT         0                    5.0    V
 Lamp on/off control voltage               VSLEEP       3.0     5.0          7.0    V
 Lamp operating voltage(reference)         VO                   850                 Vrms
 Operating ambient temperature range       TA           0                    50



◦ Jabse Service Manual Search 2024 ◦ Jabse PravopisonTap.bg ◦ Other service manual resources online : FixyaeServiceinfo
