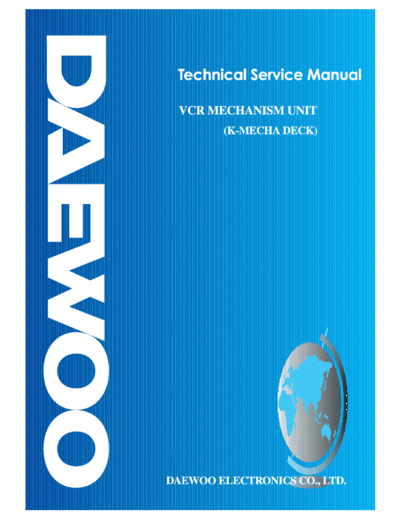

Image preview - the first page of the document



>> Download K-MECHA documenatation <<

Text preview - extract from the document

   CONTENTS
1. MECHANISM DESCRIPTION .................................................................................................2
2. ASSEMBLY DIAGRAM & MAJOR PARTS CHECK ..............................................................5
3. DISASSEMBLY AND REPLACEMENT ................................................................................12
4. MECHANICAL ADJUSTMENT..............................................................................................22
5. ADJUSTMENT OF TAPE TRANSPORTING SYSTEM.......................................................27
6. EXPLODED VIEW AND PARTS LIST....................................................................................37




                                                 1
1. DESCRIPTION OF THE MECHANISM
 1-1 CHARACTERISTIC OF THE K-DECK MECHANISM
1) K-MECHA DECK follows the VHS standard.
2) K-MECHA DECK uses three motors (DRUM MOTOR, CAPSTAN MOTOR and L/C MOTOR)
3) K-MECHA DECK uses L/C MOTOR to drive FRONT LOADING.
4) K-MECHA DECK recognizes each mode by using a 4-BIT MODE signal. This 4-BIT MODE signal is
   generated by the CAM SWITCH which is driven by the L/C MOTOR.
5) K-MECHA DECK is operated by 7 MODES (EJECT/INITIAL/REV/IDLE/PLAY, STOP SLOW/BRAKE/FF
                                                                                    ,
   & REW).
6) K-MECHA DECK reduces the mode shifting time, that is, picture playing time by using the FULL
   LOADING SYSTEM that has the DRUM wrapped by the tape.
7) K-MECHA DECK is seperated from the Main PCB. When assembling, it is connected by B-B TYPE
   CONNECTOR.
   The CAPSTAN MOTOR and DRUM MOTOR of K-MECHA DECK and the MAIN PCB DECK are directly
   connected without using cable.




                                              2
1-2 WIRE DIAGRAM
1-2-1) WIRE DIAGRAM




                      3
1-2-2) CONNECTOR PIN ARRANGEMENT

CN-A (2 HEAD MONO)       CN-A (2 HEAD Hi-Fi)   CN-1
 1    V-R                  1    A-R             1     DRUM M/T 12V
 2    COMMON               2    COMMON          2     DRUM SPP CTL
 3    V-L                  3    A-L             3     DRUM PG
 4    GND                  4    GND             4     NON CONTACT
                           5    V-R             5     GND
                           6    COMMON          6     DRUM FG
                           7    V-L


                         CN-B
                           1    FE HEAD
                           2    GND



CN-A (4 HEAD MONO)       CN-C                  CN-2
 1    SP-L                 1    L/C MT (+)      1     EVER 5V
 2    COMMON               2    L/C MT (
