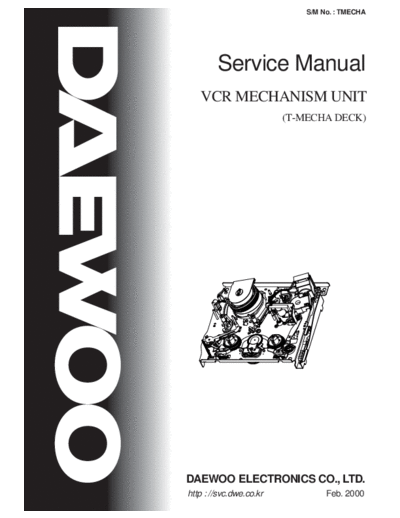

                             S/M No. : TMECHA




        Service Manual
   VCR MECHANISM UNIT
                         (T-MECHA DECK)




DAEWOO ELECTRONICS CO., LTD.
http : //svc.dwe.co.kr            Feb. 2000
    CONTENTS
1. ASSEMBLY DIAGRAM AND A/S ............................................................................................2
2. WIRE DIAGRAM........................................................................................................................5
3. PERIODIC MAINTENANCE AND SERVICE SCHEDULE ....................................................6
4. SERVICE SCHEDULE FOR THE MAJOR PARTS ................................................................7
5. JIGS AND TOOLS.....................................................................................................................8
6. DEASSEMBLY AND REPLACEMENT .................................................................................10
7. MECHANICAL ADJUSTMENT..............................................................................................16
8.ADJUSTMENT OF THE TAPE TRANSPORTING SECTION ..............................................19
9. EXPLODED VIEW AND PARTLIST .......................................................................................25




                                              1
ASSEMBLY DIAGRAM AND A/S
1. Assembly diagram
  1-1. DECK Assembly diagram
      A. Upper View




                                        fig1-1


1 MAINBASE ASS'Y               9 IDLER PLATE TOTAL ASS'Y    17 AC HEAD ASS'Y
2 DRUM ASS'Y                   10 T BRAKE ASS'Y             18 T SLANT POLE ASS'Y
3 FE HEAD                      11 FL RACK                   19 HEAD CLEANER
4 S SLANT POLE ASS'Y           12 RELAY LEVER
5 TENSION BAND ASS'Y           13 CAPSTAN MOTOR
6 S BRAKE ASS'Y                14 LC BRKT ASS'Y
7 S REEL TABLE                 15 PINCH LEVER TOTAL ASS'Y
8 REEL BRKT TOTAL ASS'Y        16 CAM GEAR


                                             2
ASSEMBLY DIAGRAM AND A/S (CONTINUED)



      B. Lower View




                                fig1-2


20 L LOADING ASS'Y
21 R LOADING ASS'Y
22 CONNECT PLATE
23 REEL BELT
24 LOADING RACK




                                 3
ASSEMBLY DIAGRAM AND A/S (CONTINUED)


  1-2. FRONT LOADING Assembly diagram




                                        fig2


1 FL BRKT L                                    5 CST HOLDER AS
2 TOP PLATE                                    6 DOOR OPENER
3 SAFETY LEVER                                 7 SAFETY LEVER R
4 LOADING LEVER AS4                            8 FL BRKT R




                                           4
 WIRE DIAGRAM

 1. Wire Diagram




2. Connector Pin Arrangement




                               5
PERIODIC MAINTENANCE AND SERVICE SCHEDULE
1. PERIODIC MAINTENANCE AND SERVICE                                        - After cleaning with alcohol, allow the parts to dry thoroughly
   SCHEDULE                                                                   before using a cassette tape.
                                                                           b. Cleaning of Driving section
A. In order to effectively maintain the excellent performance
