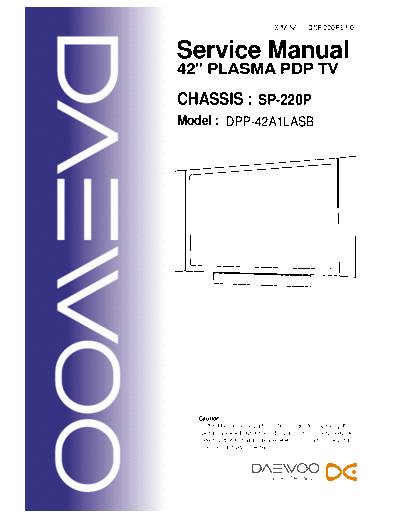

Image preview - the first page of the document
>> Download daewoo SP-220P (dpp-42a1lasb_chassis_sp-220p) documenatation <<
Text preview - extract from the document
S/M NO. : DSP220PEF0
Service Manual
42" PLASMA PDP TV
CHASSIS : SP-220P
Model : DPP-42A1LASB
Caution
: In this Manual, some parts can be changed for improving. their
performance without notice in the parts list. So, if you need the
latest parts information, please refer to PPL(Parts Price List)in
Service Information Center.
Contents
I. Parts with exception of MODULE
1. Safety Precaution 2
2. Product Specification 3
2-1. SPECIFICATION 3
2-2. Available Input Signal 5
2-3. Remote Control Setup Code 6
3. The Features of Inside 27
4. DPP-42A1LASB Block Diagram 28
5. Default Setting in User Menu OSD 29
5-1. Picture Mode 29
5-2. Sound 29
5-3. Screen 30
5-4. Features 30
6. Service Mode 31
7. Power PCB 33
7-1. Input and Environmental Requirement 33
7-2. Output Characteristics 33
7-3. Function of Protection 33
7-4. Connector Specification 34
8. Power Adjustment 35
8-1. Vs (Sustain Voltage) 35
8-2. Vs (Adress Voltage) 36
8-3. 5Vcntl 37
9. Noticeable Points While Assembling 38
10. Software Upgrade Method 41
11. Trouble Shooting 44
12. Assembly List 59
13. STRUCTURE OF PDP SET 61
14. EXPLODED VIEW 66
II. Parts of MODULE
1. Confirmation Manual
2. Repair Manual
-1-
I. Parts with the exception of MODULE
1. Safety Precautions
1. Safety Precautions
(1) When moving or laying down a PDP Set, at least two people must work together. Avoid
any impact towards the PDP Set.
(2) Do not leave a broken PDP Set on for a long time. To prevent any further damages, after
checking the condition of the broken Set, make sure to turn the power (AC) off.
(3) When opening the BACK COVER, you must turn off power (AC) to prevent any electric
shock. When PDP is operating, high voltage and high current inside the Set can cause
electric shocks.
(4) When loosening screws, check the position and type of the screw. Sort out the screws and
store them separately for reassembling. Because screws holding PCBs are working as
electric circuit GROUNDING, make sure to check if any screw is missing when
assembling/reassembling. Do not leave any screws inside the set.
(5) If you open the BACK COVER, you will see a
Panel Gas Exhaust Tube (Picture. 1-1) inside
the bracket. If this part is damaged, the entire
PDP PANEL must be replaced. Therefore,
when working with the set, be careful not to
damage this part.
Picture 1-1. Panel Gas Exhaust Tube
(6) A PDP Set contains different kinds of
connector cables. When connecting or disconnecting cables, check the direction and
position of the cable beforehand.
(7) Connect/disconnect the connectors slowly with care especially FFC (film) cables and FPC
cables. Do not connect or disconnect connectors instantaneously with force, and handle
them carefully for reassembling.
(8) Connectors are designed so that if the number of pins or the direction does not match,
connectors will not fit. When having problem in plugging the connectors, check their kind,
position, and direction.
-2-
2. Product Specification
2-1. SPECIFICATION
ITEM SPECIFICATION REMARK
1. GENERAL
1-1. MODEL NO DPP-42A1LASB
1-2. CHASSIS NO SP-220P
1-3. SCREEN SIZE 42" (16:9)
1-4. COUNTRY Europe
1-5. RESOLUTION 852(H) x 480(V)
1-6. REMOCON TYPE R-53J17
1-7. SAFETY STANDARD CE(CLASS B), CB
1-8 .TUNIG METHOD VS
1-9. MEMORY CHANNEL 99CH
2. MECHANICAL
2-1. APPEARANCE
1) WITHOUT STAND W x H x D =1260 x 653 x 91 mm
2) WITH STAND W x H x D =1260 x 748.5 x 300 mm
2-2. WEIGHT
1) WITHOUT STAND 33 Kg
2) WITH STAND 38.75 Kg
3. ELECTRICAL
3-1. VIDEO INPUT COMPOSITE(NTSC, PAL, SECAM, PAL-M/N, NTSC4.43) &
S-VHS(50/60Hz Y/C) 1 Port
3-2. DTV/DVD INPUT 1080i, 720P, 480P , 480i, 576P, 576i
(Y, Pb/Cb, Pr/Cr COMPONENT SIGNAL) 2 Ports
3-3. SCART INPUT SCART(COMPOSITE, R,G,B, SOUND R/L) 2 Ports
3-4. PC INPUT VGA ~ SXGA(Dot clock : 110MHz), 15 PIN D-SUB 1 Port
3-5. DVI INPUT DVI-D INPUT (DVI Jack) 1 Port
3-6. TV INPUT
1) COLOR STANDARD PAL B/G+I/I+D/K, L-SECAM, L'--SECAM
2) ANTENNA IN ONE INPUT 75 Unbalanced (DIN Standard)
3) RECEPTION CHANNEL
VHF LOW : E2 ~ S6 Ch.
VHF HIGH : S7 ~ S36 Ch.
UHF : S37 ~ E69 Ch.
L'-SECOM : FB, FC1, FC
4) IF & SUBCARRIER PIF : 38.90MHz (PAL, L-SECAM)
33.9 MHz (L'-SECAM)
SIF : 33.40MHz (B/G), 32.90MHz (I/I),
32.4MHz (D/K, L-SECAM), 40.4MHz (L'-SECAM)
3-7. SOUND INPUT VIDEO 1 Port, DTV/DVD 2 Ports, PC 1 Port, DVI 1 Port
3-8. SPEAKER OUTPUT 10W(R) + 10W(L)
3-9. POWER REQUIREMENT AC 100V~240V, 50/60Hz
-3-
Product Specification
ITEM SPECIFICATION REMARK
3-10. POWER CONSUMPTION 270W
3-11. RS-232 CONTROL RS-232 Communication (EXTERNAL UPGRADE)
3-12. AV OUTPUT SCART(CVBS, SOUND R/L) 2 Ports
3-13. FUNCTION
1) SCALING DVI : Screen Mode (16:9, 4:3, Panorama)
PC : Screen Mode (16:9, 4:3, Panorama), H/V Position, Auto
TV / VIDEO / DVD (480, 576 i/p) : Screen Mode (16:9, 4:3,
Panorama, LB (16:9), LBS (16:9), 14:9, LB (14:9), LBS (14:9)
Auto)
2) OSD 18 Languages (English, Greek, Dutch, German, Russian, Rumanian,
Swedish, Danish, Finnish, Norwegian, Spanish, Italian, Franch,
Polish, Portuguese, Czech, Hungarian, Slovakian)
3) PIP / POP TV, Video, S-Video / TV, Video, S-Video
4) OTHERS Still, Sleep Mode, Sound Mode, Timer, Screen Mode, Teletext
(Level 1.5), WSS
4. OPTICAL
4-1. SCREEN SIZE 42"(106 cm) DIAGONAL
4-2. ASPECT RATIO 16 : 9
4-3. NUMBER OF PIXELS 852(H)X480(V)
4-4. DISPLAY COLOR 1,073,000,000 Colors ( 10bits for each RGB)
4-5. CELL PITCH 1.08(H) x 1.08(V)mm (1 Pixel = a Set of RGB Cells )
4-6. PEAK LUMINANCE 1500cd/m2(WITH FILTER GLASS)
4-7. CONTRAST RATIO 10000:1 (Dark Room)
4-8. VIEWING ANGLE 160 degree(VERTICAL/HORIZONTAL)
5. USERCONTROL & ACCESSORIES
5-1 CONTROL BUTTON(SET) PUSH-PULL S/W : AC POWER BUTTON
SOFT S/W: MOVE/CH(UP, DOWN), VOLUME(LEFT, RIGHT),
MENU, INPUT SELECT
5-2. REMOTE CONTROL
(R-52M17) Power, Universal Selection (TV, VIDEO/DVD, CATV/SAT),
10 KEYS(0~10), Recall, VCR /DVD KEY
(F.R/SLOW, Play, F.F/SLOW, Stop, PAUSE, OPEN/CLOSE,
PREV, NEXT ), MENU, TV, AV, Component, PC/DVI, STILL,
PREV PR, MUTE, PR (UP/DOWN), VOL(UP/DOWN), SCREEN
MODE / MIX, Screen Size, Sleep Timer, I-II / CYAN, Sound Mode /
Index, Red, Green, Yellow, TXT, Reveal, Update, Expand, Subpage,
Hold, PIP, SWAP, PR+, PR-, Position, Sourse
5-3. ACCESSORIES REMOTE CONTROL, INSTRUCTION MANUAL, POWER CORD
5-4. OPTIONAL PARTS STAND, WALL HANGER
-4-
Product Specification
2-2 Available Input Signal
(1) PC & DVI
Resolution H Freq. (KHz) V Freq. (Hz) Remark DVI PC
31.469 59.940 DOS O O
640 X 480 37.861 72.809 VESA O O
37.500 75.000 VESA O O
720 X 400 31.469 70.087 IBM O O
35.156 56.250 VESA O O
800 X 600
37.879 60.317 VESA O O
1024 X 768 48.363 60.004 VESA O O
(2) Component
