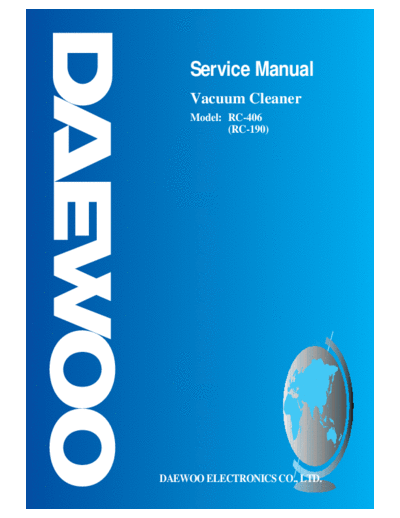

Image preview - the first page of the document
>> Download RC-406 documenatation <<
Text preview - extract from the document
Service Manual
Vacuum Cleaner
Model: RC-406
(RC-190)
DAEWOO ELECTRONICS CO., LTD.
C-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (R
09) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-4
RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) R
06 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-10
C-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (R
09) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-4
RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) R
06 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-10
C-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (RC-109) RC-406 (R
Contents
1. SPECIFICATIONS ................................................................................................................... 1
VA C U U M C L E A N E R
2. CIRCUIT DIAGRAM
SLIDE VOLUME TYPE ........................................................................................................ 2
3. CAUSE OF TROUBLE AND COUNTERMEASURE ............................................................. 3
4. EXPLODED VIEWS AND PARTS LIST
BODY(DOWN) ASS'Y ......................................................................................................... 5
BODY(DOWN) PARTS LIST ................................................................................................ 6
BODY(UP) ASS'Y .............................................................................................................. 7
BODY(UP) PARTS LIST ...................................................................................................... 8
HOSE LINE ASS'Y (I) ......................................................................................................... 9
HOSE LINE PARTS LIST (I) ............................................................................................... 10
HOSE LINE ASS'Y (II) ....................................................................................................... 11
HOSE LINE PARTS LIST (II) .............................................................................................. 12
SUCTION BRUSH ASS'Y .................................................................................................. 13
SUCTION BRUSH PARTS LIST ......................................................................................... 14
1. SPECIFICATIONS
ITEM RC-406 (RC-109)
POWER SOURCE 100V/50-60Hz, 120/60Hz, 220V/50-60Hz, 230V/50-60Hz,
240V/50-60Hz
POWER CONSUMPTION 1,000W, 1,200W
DIMENSION (WXLXH) BODY : 270X482X234 (MM)
WITH PARTS CASE : 270X482X430 (MM)
NOISE BELOW 65dB
CORD LENGTH 5M
NET WEIGHT 8.8Kg
1 SPECIFICATIONS
2. CIRCUIT DIAGRAM
SLID VOLUME TYPE
BLUE
BLACK
THERMOSTAT
CORD REEL 85
ASS'Y
SLIDE VOLUME
M
YELLOW YELLOW
BLACK WHITE YELLOW
PCB ASS'Y FOR POWER
CONTROL
PLUG
CIRCUIT DIAGRAM 2
3. CAUSE OF TROUBLE AND COUNTERMEASURE
TROUBLE CAUSE COUNTERMEASURE
BREAK POWER CORD (AT REPLACE THE POWER
BLADE TIP OR ROOT OF PLUG) CORD
DEFECTIVE PCB REPLACE
REPAIR (SOLDER OR USE
BREAK THE LEAD WIRE
CLOSED END TERMINAL)
DEFECTIVE SWITCH REPLACE THE SWITCH
MOTOR DOSE NOT
ROTATE
ABRASION CARBON BRUSH REPLACE OR REPAIR
BLOW OF FUSE REPLACE
DEFECTIVE SWITCH REPLACE
BREAK IN OTHER CONNECTION REPAIR
MOTOR DOSE NOT STOP
EVEN IF THE SWITCH IS DEFECTIVE SWITCH OR PCB REPLACE
SET "OFF"
THE CORD IS DRIVEN OR
REPAIR
TWISTED
CORD IS NOT WOUND UP
AT ALL
INSUFFICIENT RESERVED ADD PROPER
WINDING RESERVED WINDING
ABRASION OF THE BRAKE
REPLACE
ROLLER
CORD DOESN'T STOP AT
ARBITRARY POSITION
BROKEN THE SPRING OF CORD
REPLACE OR REPAIR
REEL
3 CAUSE OF TROUBLE AND COUNTERMEASURE
TROUBLE CAUSE COUNTERMEASURE
DUST IS SUCKED EXCESSIVELY
REPLACE THE PAPER BAG
INTO THE PAPER BAG
CLOGGING OR BREAK OF THE REMOVE THE OBSTACLE
HOSE OR EXTENSION PIPE OR REPLACE HOSE/E.P.
SUCTION POWER IS LOW
THE FILTER BOX IS FILLED REMOVE DUST OF THE
WITH DUST FILTER BOX
DEFECTIVE MOTOR REPLACE
ELONGATION OR BREAK OF
REPLACE
GEAR BELT
THERE IS MUCK ON THE
REMOVE MUCK
ROTATING BRUSH
TURBO BRUSH DOSE NOT
ROTATE
SUCTION POWER IS LOW REFERENCE ABOVE
CLOGGING OF THE OPENING REMOVE THE OBSTACLE
CAUSE OF TROUBLE AND COUNTERMEASURE 4
4. EXPLODED VIEW AND PARTS LIST
BODY (DOWN) ASS'Y
1 38 2
38 8
5 16
13
15
14
8
6
16
17 18 19 20 21 6
9 10 11 8
12
24
25
26
27
30 28
22
32 29
23 31
4
33
23
22
34
36
35
37
5 EXPLODED VIEW
BODY (DOWN) PARTS LIST
NO. PARTS NAME CODE NO. REFERENCE Q'TY
1 TERMINAL Y-B AS. 4568A43000 1
2 TERMINAL Y-A AS. 4568A42000 1
4 P. C. B AS 4569G27000 POWER CONTROL 1
5 TMERMOS TAT 4569B47002 PW-2 T85 1
6 BRACKET CR 4569C35020 1
8 SCREW TAPPING 7121401211 3
9 TERMINAL OB 4565A36034 1
10 TERMINAL OA 4565A36024 1
11 SUPPORTER TERMINAL 4565A36010 1
12 PLUG CORD 4569C38000 1
13 BOBBIN 4569C35010 1
14 FEEL SHAFT 4569C35050 1
15 SPRING REEL AS. 4568A41000 1
16 SCREW TAPPING 7121300811 2
17 BUTTON CR 4569C35030 1
18 LEVER CORD REEL 4568A35060 1
19 SPRING CR LEVER 4568A35090 1
20 STOPPER CORD REEL 4565A35070 1
21 TIRE C.R. STOPPER 4568A35080 1
22 COVER BACK CASTER 4569C20070 2
23 CASTER FRAME BACK 4569C20020 2
24 BODY FELT 4569C20050 1
25 MB SUPPORTER 4569C20090 3
26 CAP MOTOR BACK 4569C10040 1
27 MOTOR SPONGE 4569C10070 1
28 V/C MOTOR 3962330530 220V / 50Hz 1000W 1
3962510240 230V / 50Hz 1000W
3962610300 240V / 50Hz 1000W
3962330310 220V / 50Hz 1100W
3962510210 230V / 50Hz 1100W
29 CAP MOTOR FRONT 4569A20040 1
30 BODY EXHAUST FILTER 4569C20060 1
31 RIB CUSHION-A 4569C10020 1
32 DA PACKING-R 4569C20080 1
33 PROTECTOR 4569C20030 1
34 BODY 4569C20010 1
35 BRACKET FRONT CASTER 4569C20040 1
36 SCREW TAPPING 7121401211 6
37 CASTER FRONT 4568A54020 1
38 SCREW TAPPING 7121400811 2
PARTS LIST 6
BODY (UP) ASS'Y
1
4
2
7
3 8
9 6
0
e
q
r w
t
y
e
u
i
p f
a
o
s
g
d
j
h
l
k
;
z x
c
v
e
b
7 EXPLODED VIEW
BODY (UP) PARTS LIST
NO. PARTS NAME CODE NO. REFERENCE Q'TY
1 PIPE DA 4569C49060 1
2 PRAGMENT-R 4569C49080 1
3 PRAGMENT-P 4569C49090 1
4 COVER NOZZLE 4569C52020 1
6 COVER MIDDLE 4569C24020 1
7 HOUSING DA 4569C49010 1
8 PACKING DA 4569C49020 1
9 WASHER DA 4569C49070 1
10 SUPPORTER DA 4569C49050 1
11 SPRING DA 4569C49040 1
12 PLUNGER DA 4569C49030 1
13 SCREW TAPPING 7121401211 1
14 PLATE CONTROL 4569C24050 1
15 BRUSH DUSTING 3629300110 1
4569A67100
3629301500
16 PIPE NOEELE 3628100300 1
4568A24020
17 DUST COVER 4569C52010 1
18 BAG HOLDER 4569C22010 1
19 COVER DUST CLAMP 4569C52150 1
20 COVER HOSE HOLE 4569C52130 1
21 SCREW TAPPING 7121301411 4
22 HOSE ADAPTER 4569C52060 1
23 BOX FILTER AS. 4569C21000 1
24 BAG CLAMP 4569C22030 1
25 HANDLE B.H 4569C22020 1
26 SCREW TAPPING 7121300811 3
27 ADAPTER SUPPORTER 4569C52070 1
28 FRAME PACKING 4569C52120 1
29 V TERMINAL-A 4569C52080 1
30 V TERMINAL-B 4569C52160 1
31 TERMINAL FRAME 4569C52090 1
32 DC TERMINAL AS. 4569C52170 2
33 PLT SEALING 4569C52030 1
34 SPRING DC CLAMP 4569C52030 1
35 SP PACKING 4569C52140 1
PARTS LIST 8
HOSE LINE ASS'Y ( I )
1
2
u
y
i t
o
p
3
4
6
5
7
9
8
e
5
0
q
9 r
5 w
9
5
5
9 EXPLODED VIEW
HOSE LINE PARTS LIST ( I )
NO. PARTS NAME CODE NO. REFERENCE Q'TY
1 SCREW TAPPING 7121300811 1
2 COVER HANDLE 4569C70120 1
3 VOLUME SLIDE 5V2254000B 1
4 COVER HOSE 4565A70040 1
5 HOLDER BRUSH 4569A65060 3
6 PIPE HANDLE 4569C70130 1
7 CAP ELBOW-LEFT 4569C70010 1
8 ELBOW 4569C70030 1
9 PIPE EXTENTION 4569C65010 3
10 SPRING HOSE CLAMP 4569C70050 1
11 CLAMP HOSE 4569C70040 1
12 CAP ELBOW-RIGHT 4569C70020 1
13 HOSE 4565A71001 1
14 HOLDER L TERMINAL 4569C70080 1
15 KNOB CONTROL 4569G70150 1
16 PLATE CONTROL 4569G70090 1
17 PLATE P.C. 4569G70170 1
18 SCREW TAPPING 7121300811 2
19 SCREW MACHINE 7001200511 2
20 PLATE SLINE VOLUME 4569G25050 1
PARTS LIST 10
HOSE LINE ASS'Y ( II )
o
u
y
t
r e
i
0
w
9
2
0
a
3
5
s
4 6
7
1 8
d
p
q
11 EXPLODED VIEW
HOSE LINE PARTS LIST ( II )
NO. PARTS NAME CODE NO. REFERENCE Q'TY
1 COVER HOSE 3621401100 ABS 1
2 COVER HOSE 3621401200 ABS 1
3 ELBOW 3627100100 ABS 1
4 BUTTON 3626600400 ABS 1
5 SPRING 4569C70051 HSW3 1
6 L TERMINAL-L AS 4569C70060 TERMINAL+WIRE 1
7 L TERMINAL-R AS 4569C70070 TERMINAL+WIRE 1
8 HOLDER TERMINAL 4569C70080 ABS 1
9 HOSE 4565A71001 PVC+SWRS 1.3M 1
10 TAPE VINYL 2TU00019BK 19mm BLACK 1
11 SCREW TAPPING 7121301211 T2S PAN 3X12 2
12 PIPE 3624406200 ABS 1
13 PCB SLIDE VOLUME AS 3624304800 500K 1
14 SCREW TAPPING 7121300811 T2S PAN 3X8 2
15 PLATE 3624500200 ABS 1
16 KNOB 3623400100 PC, S-3000 1
17 COVER 3621413200 ABS 1
18 COVER HOSE 4565A70040 PP 1
19 SCREW TAPPING 7121301211 T2S PAN 3X12 2
20 PIPE 3624403600 PP T=2.5 2
21 SPACER 3625000400 EVA POAM T=1.5 1
22 HOLDER PIPE 3623001900 ABS 1
23 SCREW TAPPING 7121401411 T2S PAN 4X14 MFZN 1
PARTS LIST 12
SUCTION BRUSH ASS'Y
1
2 2
4
3
9
5
0 6
7 7
8 8
13 EXPLODED VIEW
SUCTION BRUSH PARTS LIST
NO. PARTS NAME CODE NO. REFERENCE Q'TY
1 CONNECTOR 4569C90060 ABS 1
3624405500 BLOWER
2 SPRING BRUSH 4568B90050 2
3 COVER BRUSH 4569C90070 1
4 GASKET BRUSH 4568B90080 1
5 LEVER CHANGE 4568B90040 1
6 SB BODY 4569C90010 1
7 PIN ROLLER 4568B90030 2
8 ROLLER BRUSH 4568B90020 2
9 HOLDER BRUSH AS. 4569C90090 1
10 SCREW TAPPING 7121401411 4
PARTS LIST 14
DAEWOO ELECTRONICS CO., LTD.
686, AHYEON-DONG, MAPO-GU, SEOUL,KOREA
C.P.O. BOX 8003 SEOUL, KOREA
TELEX: DWELEC K28177-8
CABLE: "DAEWOOELEC"
FAX: 02) 360-8184
TEL: 02) 360-8182~3/8178~9
http://www.dwe.daewoo.co.kr
S/M NO. : RC406EV020 Printed Date : JUNE, 1997
