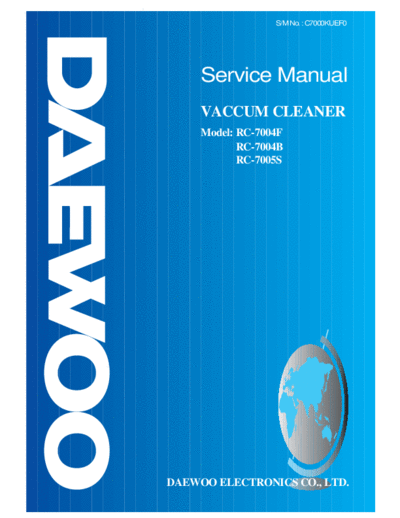

Image preview - the first page of the document
>> Download RC-7004F & 7004B & 7005S documenatation <<
Text preview - extract from the document
S/M No. : C7000KUEF0
Service Manual
VACCUM CLEANER
Model: RC-7004F
RC-7004B
RC-7005S
DAEWOO ELECTRONICS CO., LTD.
SPECIFICATIONS ............................................................................................................................... 2
EXTERNAL VIEWS ............................................................................................................................. 3
1. ASSEMBLY ................................................................................................................................... 3
2. MODEL (RC-7004F, RC-7004B, RC-7005S) ................................................................................ 4
DIAGRAM ............................................................................................................................................ 5
1. WIRING DIAGRAM ....................................................................................................................... 5
2. CIRCUIT DIAGRAM ...................................................................................................................... 6
TROUBLE SHOOTING GUIDE ........................................................................................................... 7
DISASSEMBLING AND TREATMENT ............................................................................................... 9
1. CLEANER ASSEMBLY ................................................................................................................. 9
2. MOTOR ASSEMBLY..................................................................................................................... 10
3. CORD REEL ASSEMBLY ............................................................................................................. 11
4. COVER DUST ASSEMBLY........................................................................................................... 13
5. COVER BODY ASSEMBLY .......................................................................................................... 14
6. HOSE ASSEMBLY........................................................................................................................ 15
7. BRUSH ASSEMBLY (PEDAL BRUSH)......................................................................................... 16
EXPLODED VIEW AND PARTS LIST................................................................................................. 17
1. CLEANER ASSEMBLY ................................................................................................................. 17
2. BODY ASSEMBLY........................................................................................................................ 23
3. COVER ASSEMBLY ..................................................................................................................... 25
4. MOTOR ASSEMBLY..................................................................................................................... 34
5. CORD REEL ASSEMBLY ............................................................................................................. 38
6. HOSE ASSEMBLY........................................................................................................................ 40
7. BRUSH ASSEMBLY...................................................................................................................... 44
8. PIPE ASSEMBLY .......................................................................................................................... 47
SPECIFICATIONS
MO DEL RC -7004F RC-7004B RC -7005S
R ated Voltage AC 230V AC 230V AC 230V
F requency 50/60H z 50/60H z 50/60H z
Input W att M AX 1400W (C EE 1200W ) M AX 1400W (C EE 1200W ) M AX 1500W (C EE 1300W )
W eight(B ody) 5.3K g 5.3K g 5.5K g
D Im ension(LX HX D ) 486X 240X 319m m 486X240X 319m m 486X240X 319m m
C ord Length 6m 6m 6m
P ow er C ontrol B ody O N /O F F B ody Variable H ose Variable
D ust M eter M echanical M echanical M echanecal
H ose N on-Current 1.6m N on-Current 1.6m C urrent 1.6m
E xtension P ipe 2 P ieces S teels 2 P ieces S teels Telescopic S teel
N ozzle C lean B rush P edal B rush P edal B rush
C revice Tool C revice Tool C revice Tool
U pholstery nozzle U pholstery nozzle U pholstery nozzle
D usting B rush D usting B rush D usting B rush
EXTERNAL VIEWS
1. ASSEMBLY
MO DEL
PART NAME
RC-7004F RC -7004B RC-7005S
A - D U S T M E T ER O O O
B - C LE AN IN G TO O LS (Upholstery) O O O
C - C LE AN IN G T O O LS (Crevice Tool) O O O
D - C LE AN IN G T O O LS (Dusting B rush) O O O
E - C O V ER N O ZZ LE O O O
F - C O R D R E W IN D B UT TO N O O O
G - S W ITC H B UT TO N O O O
H - POWER CORD O O O
I-1 - E X T EN S IO N P IP E (S teel Telescopic Tube) - - O
I-2 - E X T EN S IO N P IP E (2 S teel Tubes) O O -
J-1 - H O SE H A ND LE - - O
J-2 - H O SE H A ND LE O O -
K -1 - P E DA L B RU S H - O O
K -2 - C LEA N B RU S H O - -
EXTERNAL VIEWS
2. MODEL (RC-7004F, RC-7004B, RC-7005S)
DIAGRAM
1. WIRING DIAGRAM (RC-7004F)
WIRING DIAGRAM (RC-7004B, RC-7005S)
DIAGRAM
2. CIRCUIT DIAGRAM (RC-7004F)
CIRCUIT DIAGRAM (RC-7004B, RC-7005S)
TROUBLE SHOOTING GUIDE
TROUB LE CAUSE CO UNTERMEA
S UC T IO N P O W E R IS W E A K F ILTE R B A G (PA P E R O R CLO T H ) CH A N G E IT W IT H N EW O N E (PA P ER )
IS F U LL W IT H DU S T RE M O VE T H E D U S T(C LO TH )
C LO G G IN G O R T E A R IN H O S E RE M O VE O B SC TA C LE
O R R E PLA C E T H E HO S E
D EF E C TIV E M O TO R RE P LA CE T H E M O TO R
(S E E 5-2)
C LE A N E R DO E S N O T W O R K B RE A K ING IN PO W E R C O RD RE P LA CE T H E P O W E R C O R D
(AT BLA D E T IP O R R O O T O F PLU G ) (S E E 5-3)
B RE A K ING O F C O N NE C T IO N S IN H O S E RE PA IR (SE E 5-6)
A SS E M BLY
D EF E C TIV E S LID E V O LU M E RE P LA CE IT (S E E 5-6)
LO C AT E D IN H O SE H A ND LE
O R C O VE R B O D Y RE P LA CE IT (S E E 5-5)
D EF E C TIV E P CB A S SE M B LY RE P LA CE IT (S E E 6-1)
B RE A K ING O F C O N NE C T IO N S RE PA IR (SE E 5-3)
O R P O O R C O NTAC T S IN C O RD
R EE L A SS E M BLY
D EF E C TIV E M O TO R RE P LA CE IT (S E E 5-2)
B RE A K ING O F CO N N E CT IO NS IN C O VE R RE PA IR (SE E 5-4)
B O D Y A SS E M BLY
O R C O VE R D US T A SS E M B LY RE PA IR (SE E 5-5)
B RE A K ING O F Z E N E R D IO DE (Z D ) IN P CB RE P LA CE IT (S E E 6-1)
D EF E C TIV E S W IT C H RE P LA CE IT (S E E 5-5)
M O TO R D O E S N O T S TO P D EF E C TIV E P CB A S SE M B LY RE P LA CE IT (S E E 6-1)
E VE N IF S W IT CH
TROUBLE SHOOTING GUIDE
TROUB LE CAUSE CO UNTERMEA
P O W E R C O R D IS B RO K E N R E E L S P R ING RE P LA CE IT (S E E 5-3)
N O T W O U N D UP O F C O RD R E EL
P O W E R C O R D B R O KE AW AY RE PA IR (SE E 5-3)
F RO M TH E B O B B IN
CAUTION
BE CAREFUL W H EN B REAKING UP TH E CO RD REEL, THE REEL SPRIN G M AY SPRING OUT OF THE
SPRING COVER
POW ER CORD DOES A BR A S IO N O F T H E RO LLE R RE P LA CE T H E R O LLE R
N O T S TO P AT A N B RA K E O F C O RD R EE L BR A K E (S E E 5-3)
A RB IT R AR Y P O S IT IO N
LEV E R SP R IN G B R O KE AW AY RE PA IR (SE E 5-3)
F RO M TH E C O R D R EE L B RA C K E T
DISASSEMBLING AND TREATMENT
1. CLEANER ASSEMBLY
1) OPEN THE COVER DUS T AND TAKE THE COVER TO P O UT O F THE COVER ASSE M BLY BY U SING AN AW L.
2) SEPA RATE THE TW O BUTTO NS FR OM THE C OVER ASSEM BLY.
3) UNSC REW THE 6 SCRE W S(6) THEN LIFT THE C OVER ASSEM BLY U P FRO M TH E BO DY AS SEM BLY.
DISASSEMBLING AND TREATMENT
2. MOTOR ASSEMBLY
1) TAKE THE M OTOR ASSEM B LY O UT O F THE BODY.
2) UNSC REW THE 4 SCRE W S(3).
3) CHEC K THE M O TOR(1) (W HETHER THE M OTOR IS BURNT OUT OR NOT).
4) W H EN AS SEM BLING, INSERT THE LEADS INTO TH E SLIT.
DISASSEMBLING AND TREATMENT
3. CORD REEL ASSEMBLY
DISASSEMBLING AND TREATMENT
1) TAKE THE CORD REEL OUT OF TH E BO DY.
2) UNSC REW THE SCREW (13) AND SEPARATE THE BOBBIN(1) FRO M THE BR ACKET(9) AND C HECK THE
C ONTAC TS BETW EEN THE Y TYPE TERM INALS AND THE R ING TYPE TERM INALS(3, 4).
4) CHEC K THE LEVER SPRING(16).
5) IF THE ROLLER BRAKE(15) IS W O RN O UT AN D SEPARATE THE LEVER(14) FROM THE BRACKET(9), TH EN
R EPLACE THE R OLLER B RAKE(15).
AT THIS TIM E, THE BOBB IN(1) IS ROTATED COUNTER CLOCKW ISE DUE TO THE PRESERVED W INDING.
6) IF THE REEL S PRING (7) IS BR OKEN, UNS CREW THE 2 SCR EW S(8) AND REPLACE IT.
CAUTION
W HEN DISAS SEM BLING, THE REEL SPRIN G M AY SPRING O UT O F THE COV ER.
7) UNSC REW THE SCREW (6) AND SEPARATE THE HOLDER TERM INAL(2) FROM THE BOBBIN(1).
8) CHEC K THE CON NECTIO NS B ETW EEN THE POW ER CORD(5) AND THE R ING TERM INALS(3,4).
9) W H EN AS SEM BLING, M A KE THE RESERVED W INDING 5 REVO LUTIO NS O F THE BOBBIN CLOCKW ISE.
DISASSEMBLING AND TREATMENT
4. COVER DUST ASSEMBLY
1) UNSC REW THE 6 SCRE W S(15) AND SEPARATE THE CO VER D UST(7) FRO M THE PLATE(10).
2) UNSC REW THE 2 SCRE W S(15) AND SEPARATE THE FRAM E TER M IN AL AS(27) FROM THE PLATE(10).
3) CHEC K THE CON TACTS BETW EE N THE V TYPE TER M IN ALS(27-2) AND THE R ING TYPE TERM INALS(27-5)
4) CHEC K THE CON NECTIO NS B ETW EEN THE 2 TER M IN ALS(27-5).
5) CHEC K THE CON NECTIO NS B ETW EEN THE TERM INAL(27-2) AND THE PCB ASSEM BLY.
DISASSEMBLING AND TREATMENT
5. COVER BODY ASSEMBLY
1) CHEC K THE CON NECTIO NS B ETW EEN THE PCB ASSY(20) AND TH E W IRE (21).
2) CHEC K THE PCB ASSY(20)
3) CHEC K THE SW ITCH(2, 3).
4) CHEC K W HETHER THE KNOB(24) IS BROKE N OR NO T.
DISASSEMBLING AND TREATMENT
6. HOSE ASSEMBLY
1) UNSC REW THE 2 SCRE W S(20) AND CHECK W HE THER TH E KN OB(18) IS BR OKEN OR NOT.
2) CHEC K THE SLID E VO LU M E AS(14)
3) CHEC K THE CON NECTIO NS TH E TER M IN ALS(6) AND THE HOSE W IRE(9).
DISASSEMBLING AND TREATMENT
7. BRUSH ASSEMBLY (PEDAL BRUSH)
1) UNSC REW THE 4 SCRE W S(15) AND SEPARATE THE CO VER(1) FR OM THE B ODY(14).
EXPLODED VIEW AND PARTS LIST
1. CLEANER ASSEMBLY
1) MODEL RC-7004F(3620011300)
EXPLODED VIEW AND PARTS LIST
NO PA RT NAME PART CODE S PECS. Q'TY
1 BODY AS 3620408300 A SS Y 1
2 A S S Y M O TO R 3620011600 A SS Y (R C-7004F) 1
3 P C B PO W E R C O N TR O L AS 3624309100 A SS Y (230V /50Hz) 1
4 C O R DR E E L A S 3629506800 A SS Y (230V /50Hz) 1
5 C O V ER A S 3621422200 A SS Y 1
6 S C R EW TA P P ING 7121402011 T 2S PA N 4X20 M FZ N 6
7 C O V ER TO P 3621420500 A BS 1
8 B U T TO N C R 3626604200 A BS 1
9 B U T TO N S W ITC H 3626604300 A BS 1
10 F ILT E R EX H A US T 3621906100 P U F O A M (T =10) 1
11 C A S E F ILT E R AS 3621104300 A SS Y 1
12 HOSE AS 3623207400 A SS Y (N O N -C UR R E NT ) 1
13 P IP E ST E E L 3624403510 S PC , T =0.7 (LD =32.6) 2
14 B R U SH A S 3629304900 A SS Y (C LE A N 31) 1
EXPLODED VIEW AND PARTS LIST
2) MODEL RC-7004B (3620011400)
EXPLODED VIEW AND PARTS LIST
NO PART NAME PART CO DE SPECS. Q 'TY
1 B O DY A S 3620408300 ASSY 1
2 A S SY M O TO R 3620011700 A S S Y(R C -7004F ) 1
3 PCB POWER CONTROL AS 3624309000 A S S Y(230V /50H z) 1
4 C O RD R E EL A S 3629506800 A S S Y(230V /50H z) 1
5 C O VE R A S 3621422300 ASSY 1
6 S C RE W TA PP IN G 7121402011 T 2S PA N 4X 20 M F Z N 6
7 C O VE R TO P 3621420700 ABS 1
8 B U TT O N C R 3626604200 ABS 1
9 B U TT O N S W IT C H 3626604300 ABS 1
10 F ILT E R E X H AU S T 3621906300 P E +PP (T =10) 1
11 C A SE F ILT E R A S 3621104300 ASSY 1
12 H O SE A S 3623207400 A S S Y(N O N -C U R RE N T ) 1
13 P IP E S T E EL 3624403510 S P C , T =0.7(LD =32.6) 2
14 B R US H P ED A L AS 3629306600 ASSY 1
EXPLODED VIEW AND PARTS LIST
3) MODEL RC-7005S(3620011500)
EXPLODED VIEW AND PARTS LIST
NO PART NAME PART CO DE SPECS. Q'TY
1 BODY AS 3620408300 A S SY 1
2 A S S Y M O TO R 3620011800 A S SY (R C-7005S) 1
3 P C B PO W E R C O N TR O L AS 3624309000 A S SY (230V /50H z) 1
4 C O R DR E E L A S 3629506800 A S SY (230V /50H z) 1
5 C O V ER A S SY 3621422400 A S SY 1
6 S C R EW TA P P ING 7121402011 T 2S PA N 4X20 M F ZN 6
7 C O V ER TO P 3621420700 ABS 1
8 B U T TO N C R 3626604200 ABS 1
9 B U T TO N S W ITC H 3626604300 ABS 1
10 F ILT E R EX H A US T 3621906200 H EPA F ILT E R 1
11 C A S E F ILT E R AS 3621104300 A S SY 1
12 HOSE ASSY 3623207600 A S SY (C UR R E NT ) 1
13 P IP E ST E E L AS 3624411400 SPC 1
14 B R U SH P E DA L A S 3629306600 A S SY 1
EXPLODED VIEW AND PARTS LIST
2. BODY ASSEMBLY
1) MODEL RC-7004F, RC-7004B, RC-7005S(3620408300)
EXPLODED VIEW AND PARTS LIST
NO PART NAM E PART COD E SPECS. Q'TY
1 BODY 3620407700 PP 1
2 B RA C K E T R O LLE R A S 3620601900 A SS Y 1
3 S CR E W TA PP IN G 7128401212 T 2S W AS 4X 12 M F Z N B K 1
4 R O LLE R BA C K 3624704200 PP 2
5 C O V E R RO LLE R 3621420100 A BS 2
6 H O LD E R F ILT E R 3623005000 A BS 1
7 S PR IN G HO LD ER 3625106000 S K-5 1
8 F ILT ER IN LET 3621905800 P E T =5 1
9 S AF E T Y A S 3625400700 A SS Y 1
10 S CR E W TA PP IN G 7121300811 T 2S PA N 3X8 M F Z N 1
11 PA C KIN G HE AT S IN K 3624006700 NR 1
12 A BS O R B ER V IBR AT IO N 3620109400 NR FOAM 1
13 H O LD E R B R U SH 3623005100 A BS 1
14 S CR E W TA PP IN G 7121401412 T 2S PA N 4X14 M F ZN B K 1
EXPLODED VIEW AND PARTS LIST
3. COVER ASSEMBLY
1) MODEL RC-7004F(3621422200)
- CO VER DUST ASSEM BLY
- COV ER BO DY ASSEM BLY
EXPLODED VIEW AND PARTS LIST
NO PART NAME PART CO DE SPECS. Q'TY
1 C O V ER 3621420200 A BS 1
2 S W IT C H P U S H 3629002000 7A /250V(S K T ) 1
3 HA R N ES S 3622711000 T E R M IN A L+W IR E 1
4 A B S O R B E R S O U ND 3620110000 E VA F O A M 1
5 A BS O R BE R V IBR AT IO N 3620109400 NR FOAM 1
6 S P R ING B U TT O N 3625107400 HSW3 4
7 C O V E R DU S T 3621420300 A BS 1
8 C LA M P CO V E R 3621202300 A BS 1
9 S P R ING 3625102700 HSW3 1
10 PLAT E 3624501700 PP 1
11 PA CK IN G P LAT E 3624006400 NR 1
12 SO C K ET (F ) 3629800800 PP 1
13 G A S KE T 3622300900 EP D M FO A M 1
14 D U ST M E TE R A S 3629702800 A BS 1
15 S C R EW TA P P ING 7121401411 T 2S PA N 4X 14 M F Z N 9
16 N O ZZ LE CR E V ICE 3628100600 PP 1
17 B R US H D US T IN G 3629305000 P P +N Y LO N 1
18 N O Z Z LE U P H O LS T E RY 3628100720 PP 1
19 C O V E R NO Z Z LE 3621420400 A BS 1
EXPLODED VIEW AND PARTS LIST
2) MODEL RC-7004B (3621422300)
- COVER DUST ASSEM BLY
EXPLODED VIEW AND PARTS LIST
- COVER BOD Y ASS EM BLY
EXPLODED VIEW AND PARTS LIST
NO PAR T NAME PA RT CODE SPECS. Q'YT
1 CO V E R B O D Y 3621420200 AB S 1
2 SW IT C H P U SH 3629002000 7A /250V(S K T ) 1
3 HA R N ES S 3622711000 TE R M INA L+W IR E 1
4 AB S O RB E R S O U N D 3620110000 EVA F O A M 1
5 AB S O RB E R V IB R AT IO N 3620109400 NR F O AM 1
6 SP R IN G B U T TO N 3625107400 HS W 3 4
7 CO V E R D U S T 3621420300 AB S 1
8 CLA M P C O V ER 3621202300 AB S 1
9 SP R IN G 3625102700 HS W 3 1
10 PLAT E 3624501700 PP 1
11 PA CK IN G P LAT E 3624006400 NR 1
12 SO C K ET (F ) 3629800800 PP 1
13 GASKET 3622300900 EP D M FO A M 1
14 DU S T M E T E R A S 3629702800 AB S 1
15 SC R E W TA P P ING 7121401411 T2S PA N 4X 14 M FZ N 9
16 NO Z Z LE C R EV IC E 3628100600 PP 1
17 BR U S H D U S TIN G 3629305000 PP +N Y LO N 1
18 NO Z Z LE U P HO LS T ER Y 3628100720 PP 1
19 CO V E R N O Z ZLE 3621420400 AB S 1
20 PC B S /V A S 3624303950 200K S K IP 1
21 HA R N ES S 3622711100 TE R M INA L+W IR E 1
22 SC R E W TA P P ING 7121300811 T2S PA N 3X 8 M FZ N 2
23 PA LATE C O NT R O L 3624501800 AB S 1
24 KN O B 3623401600 PC 1
EXPLODED VIEW AND PARTS LIST
3) MODEL RC-7005S(3621422400)
- CO VER DUST ASSEM BLY
EXPLODED VIEW AND PARTS LIST
- CO VER BODY ASSEM BLY
EXPLODED VIEW AND PARTS LIS
NO PART NAM E PART CODE SPECS. Q'YT
1 CO V E R B O D Y 3621420200 AB S 1
2 SW IT C H P U S H 3629002000 7A /250V(S K T ) 1
3 HA R N ES S 3622711000 TE R M INA L+W IR E 1
4 AB S O RB E R S O U N D 3620110000 EVA F O A M 1
5 AB S O RB E R V IB R AT IO N 3620109400 NR F O AM 1
6 SP R IN G B U T TO N 3625107400 HS W 3 4
7 CO V E R D U S T 3621420300 AB S 1
8 CLA M P C O V ER 3621202300 AB S 1
9 SP R IN G 3625102700 HS W 3 1
10 PLAT E 3624501700 PP 1
11 PA CK IN G P LAT E 3624006400 NR 1
12 - - - -
13 GASKET 3622300900 EP D M FO A M 1
14 DU S T M E T E R A S 3629702800 AB S 1
15 SC R E W TA P P ING 7121401411 T2S PA N 4X 14 M F Z N 9
16 NO Z Z LE C R E VIC E 3628100600 PP 1
17 BR U S H D U S TIN G 3629305000 PP +N Y LO N 1
18 NO Z Z LE U P H O LS T ER Y 3628100720 PP 1
19 C O V ER N O ZZ LE 3621420400 ABS 1
20-24 - - - -
25 FIX T U RE PA C K ING 3622000900 PP 1
26 SC R E W TA P P ING 7121400811 T2S PA N 4X 8 M FZ N 3
27 FR A M E T E R M IN A L AS 3622201800 AS S Y 1
27-1 HO LD ER F R AM E 3623005200 PP 1
27-2 TE R M INA L V AS 3628711300 AS S Y 2
27-3 SO C K ET 3629801000 PP 1
27-4 FR A M E 3622201700 PC 1
27-5 TE R M INA L R ING A S 3628711400 AS S Y 1
27-6 TE R M INA L R ING A S 3628711500 AS S Y 1
27-7 SC R E W TA P P ING 7121301411 T2S PA N 3X 14 M F Z N 4
27-8 SC R E W TA P P ING 7121300811 T2S PA N 3X 8 M FZ N 2
EXPLODED VIEW AND PARTS LIST
4. MOTOR ASSEMBLY
1) MODEL RC-7004F(3620011600)
EXPLODED VIEW AND PARTS LIST
NO PART NAM E PART CO DE SPE CS. Q 'YT
1 M O T O R U NIV E R SA L 3962511810 230V 1500W D M I(F ) 1
2 C AS E M O T O R F R O N T 3621103900 PP 1
3 S CR E W TA PP IN G 7121401411 T 2S PA N 4X 14 M F ZN 4
4 A B SO R B ER V IB RAT IO N 3620109500 NR FOAM 1
5 - - - -
6 PA C KIN G M O TO R 3624006300 NR FOAM 1
7 A B SO R B ER S O UN D 4569C 10071 P U F O A M (T =10) 1
8 G UID E A IR A S 3622503600 A S SY 1
9 C AS E M O T O R R E AR 3621104000 PP 1
10 - - - -
11 - - - -
12 G UID E A IR D U CT 3622503400 PP 1
13 F ILT ER A IR D U C T 3621906000 P E (T =3) 1
14 S CR E W TA PP IN G 7121401411 T 2S PA N 4X 14 M F ZN 4
EXPLODED VIEW AND PARTS LIST
2) MODEL RC-7004B, RC-7005S (3620011800)
EXPLODED VIEW AND PARTS LIST
NO PART NAM E PART CO DE SPECS. Q'YT
1 M O TO R UN IV E RS A L 3962511810 230V 1500W D M I(F) 1
2 CA S E M O TO R FR O N T 3621103900 PP 1
3 SC R E W TA P P ING 7121401411 T 2S PA N 4X 14 M F Z N 4
4 AB S O RB E R VIB R AT IO N 3620109500 NR FOAM 1
5 G A S K ET C A SE 3622300700 EPDM FOAM 1
6 PA CK IN G M O TO R 3624006300 NR FOAM 1
7 AB S O RB E R SO U N D 4569C 10071 P U F O A M (T=10) 1
8 G U ID E A IR A S 3622503700 ASSY 1
9 CA S E M O TO R RE A R 3621104000 PP 1
10 AB S O RB E R SO U N D 3620109700 F E LT (T=3) 1
11 AB S O RB E R SO U N D 3620109710 F E LT (T=3) 1
12 G U ID E A IR D UC T 3622503400 PP 1
13 FILT E R A IR D U CT 3621906000 P E (T=3) 1
14 SC R E W TA P P ING 7121401411 T 2S PA N 4X 14 M F Z N 4
EXPLODED VIEW AND PARTS LIST
5. CORD REEL ASSEMBLY
1) MODEL RC-7004F, RC-7004B, RC-7005S(3629506800)
EXPLODED VIEW AND PARTS LIST
NO PART NAM E PART C ODE SPECS. Q'YT
1 B O B BIN 3629200600 PP 1
2 H O LDE R T ER M IN AL 4565A36020 PC (V -0) 1
3 T E R M IN A L 4565A36034 C2600P -1/2H T=0.3 1
4 T E R M IN A L 4565A36024 C2600P -1/2H T=0.3 1
5 CORD POWER 3621302500 250V 16A, H 05H2F TA -17 1
6 S C R EW TA P P IN G 7121301411 T2S PA N 3X 14 M FZ N 1
7 S P R ING A S 3625102005 S US 30-EH +C over,3800m m 1
8 S C R EW TA P P IN G 7121300811 T2S PA N 3X 8 M FZ N 2
9 B R A CK E T CR 3620602000 PP 1
10 T E R M IN A L Y A S 3628711200 AS S Y 2
11 S C R EW TA P P IN G 7121400611 T2S PA N 4X 6 M FZ N 2
12 S H A FT CR 4569C35051 PC LE X AN 500 1
13 S C R EW TA P P IN G 7121401211 T2S PA N 4X 12 M FZ N 1
14 LE V E R C R 3623702200 PC 1
15 S TO P P ER A S SY 3625200200 AS S Y 1
16 S P R ING 3625103200 HS W 3 1
EXPLODED VIEW AND PARTS LIST
6. HOSE ASSEMBLY
1) MODEL RC-7004F, RC-7004B(3623207400)
NO P ART NAM E PART CODE SPECS. Q'YT
1 P IPE A D AP TE R (F ) 3629102000 PP 1
2 HOSE 3623207500 E VA 1.6m (N on-C urrent) 1
3 H O LD E R H O S E 4569A 71021 PP 2
4 P IPE H O SE 3624408200 PP 1
5 VA LV E AIR 3625400400 PP 1
6 C UF F H O S E 3626800200 LD P E 2
7 PA C K IN G H O S E 3624005900 S P O NG E 1
EXPLODED VIEW AND PARTS LIST
2) MODEL RC-7004B(3623207700)
NO PAR T NAME PART CODE SPECS. Q 'YT
1 P IPE A D AP TE R (F ) 3629102000 PP 1
2 HOSE 3623207500 E VA 1.6m (N on-C urrent) 1
3 H O LD E R H O S E 4569A71021 PP 2
4 C UF F H O S E 3626800200 LD PE 2
5 P IPE H O SE 3624402100 PP 1
6 VA LV E 3625400200 ABS 1
7 C O V E R PIP E 3621405600 ABS 1
8 P IPE A D AP TE R 3629102200 P P, S T-117 1
9 S CR E W TA PP IN G 7121301212 T 2S PAN 3X 12 M F ZN B K 3
EXPLODED VIEW AND PARTS LIST
2) MODEL RC-7005S (3623207600)
EXPLODED VIEW AND PARTS LIST
NO PA RT NAME PART CODE SPECS. Q 'YT
1 P IP E A D A PE R 3629102100 PP 1
2 C O VE R P IPE -L 3621420900 PC 1
3 C O VE R P IPE -R 3621421000 PC 1
4 B U TT O N A D AP TE R 3626604500 PC 1
5 S P RIN G 4569C 70051 H SW 3 1
6 T E RM IN A L A S 3628110400 T ER M INA L+W IRE (B R) 1
7 T E RM IN A L A S 3628710200 19m m B LA C K TE R M IINA L+W IR E (YL) 1
8 S C RE W TA P PIN G 7121301012 T 2S PA N 3X10 M FZ N 2
9 H O SE 3623207300 E VA , 1.6m (C urrent) 1
10 C LAM P H O S E A 3623004500 A BS 1
11 C LAM P H O S E B 3623004600 A BS 1
12 C O VE R H O S E 3621418600 PP 1
13 P IP E H A N DLE 3624411000 A BS 1
14 P C B S /V A S 3624303950 200K S KIP 1
15 C O NN W A F E R 9979200040 5267-02BX 1
16 S C RE W TA P PIN G 7121300811 T 2S PA N 3X8 M F ZN 2
17 P LAT E 3624501600 A BS 1
18 KNOB 3623401400 PC 1
19 C O VE R P IPE 3621421100 A BS 1
20 S C RE W TA P PIN G 7121301212 T 2S PA N 3X12 M FZ N 2
EXPLODED VIEW AND PARTS LIST
1. BRUSH ASSEMBLY
1) MODEL RC-7004F (3629304900)
NO PAR T NAME PART C ODE SPECS. Q'YT
1 B O D Y B R U SH 3620406400 PP 1
2 R O LLER -F BR U S H 3624703100 PP 2
3 S H A FT RO LLE R 3624900900 PA 2
4 P IC K ER LIT TE R 3622700700 PA 2
5 P IP E BR U S H 3624408300 PP 1
6 N E C K B R U SH 3628001600 PP 1
7 R O LLER -B BR U S H 3624703000 PP 2
8 C O V ER B R US H 3621417200 PP 1
9 S C R EW TA P PT ITE 7171401411 T T 2 PA N 4X 14 M F Z N 4
EXPLODED VIEW AND PARTS LIST
2) MODEL RC-7004B, RC-7005S (3629306600)
EXPLODED VIEW AND PARTS LIST
NO PAR T NAME PART C ODE SPECS. Q'YT
1 C O V E R BR U S H 3621420800 PP 1
2 P IPE B R US H 3628304400 PP 1
3 N EC K B RU S H 3628002100 PP 1
4 D UC T B RU S H 3629306300 PP 1
5 S W E E P E R B R US H 3629306400 A BS 1
6 S HA FT S W EE P E R 3624901400 H SW 3 1
7 B UT TO N B RU S H 3626604400 A BS 1
8 S CR E W TA PP IN G 7128408011 T 2S 4x8 1
9 S P RIN G BU T TO N 3625107300 S K-5, T =0.3 1
10 S HA FT R O LLE R 3624900900 PA 2
11 R O LLE R F B R U SH 3624704300 PP 2
12 R O LLE R BA C K 3624704400 PP 2
13 P ICK E R LIT T E R 3627000700 PA ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
